ASRock Z77 Extreme4-M: Chapter 2: Installation

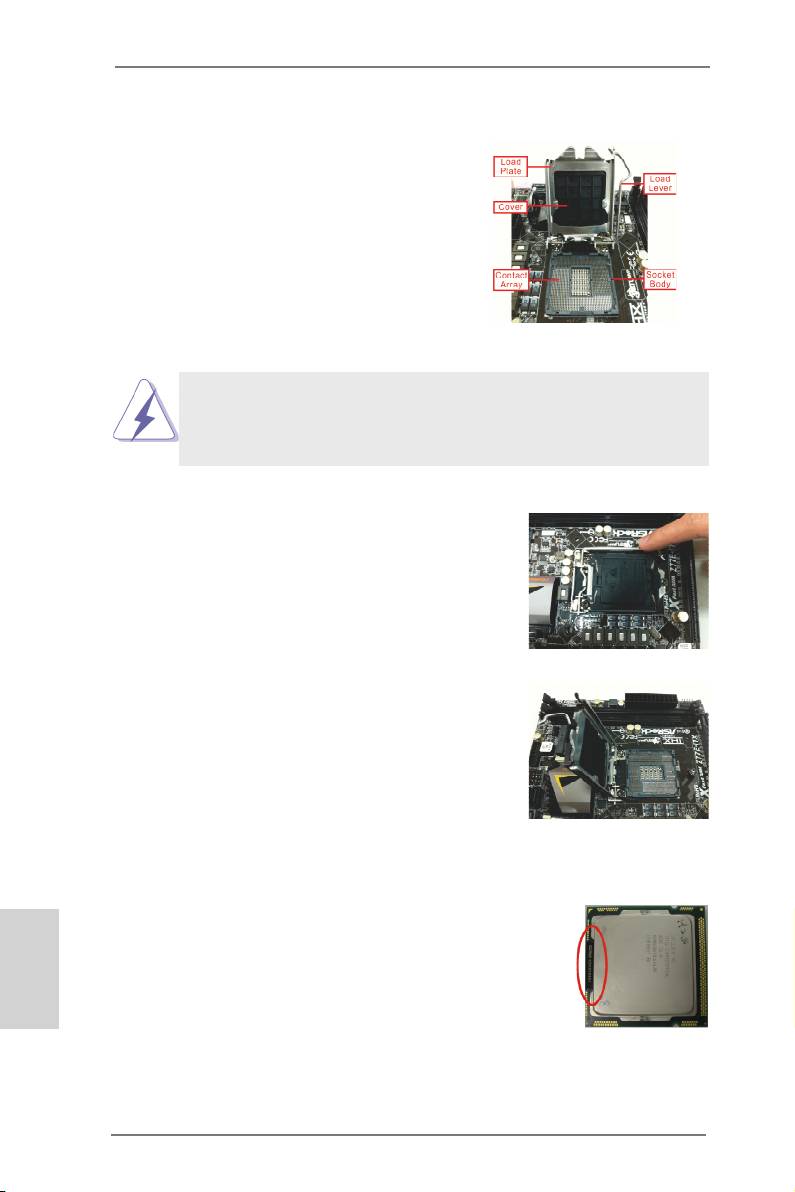

2.4 Installation of CPU Fan and Heatsink

This motherboard is equipped with 1155-Pin socket that supports Intel 1155-Pin

CPUs. Please adopt the type of heatsink and cooling fan compliant with Intel 1155-

Pin CPU to dissipate heat. Before you install the heatsink, you need to spray ther-

mal interface material between the CPU and the heatsink to improve heat dissipa-

tion. Ensure that the CPU and the heatsink are securely fastened and in good con-

tact with each other. Then connect the CPU fan to the CPU_FAN connector (CPU_

FAN1, see page 2, No. 3 or CPU_FAN2, see page 2. No.1).

For proper installation, please kindly refer to the instruction manuals of your

CPU fan and heatsink.

Below is an example to illustrate the installation of the heatsink for 1155-Pin CPUs.

Step 1. Apply thermal interface material onto the cen-

ter of the IHS on the socket’s surface.

Step 2. Place the heatsink onto the socket. Ensure

that the fan cables are oriented on side closest

to the CPU fan connector on the motherboard

(CPU_FAN1, see page 2, No. 3 or CPU_

FAN2, see page 2. No.1).

Step 3. Align fasteners with the motherboard through-

holes.

Step 4. Rotate the fastener clockwise, then press

down on fastener caps with thumb to install

and lock. Repeat with remaining fasteners.

If you press down the fasteners without rotating them clockwise, the

heatsink cannot be secured on the motherboard.

Step 5. Connect fan header with the CPU fan connector on the motherboard.

Step 6. Secure redundant cable with tie-wrap to ensure the cable does not

English

interfere with fan operation or contact other components.

Please be noticed that this motherboard supports Combo Cooler

Option (C.C.O.), which provides exible options to adopt three dif-

ferent CPU cooler types, Socket LGA 775, LGA 1155 and LGA 1156.

The white throughholes are for Socket LGA

1155/1156 CPU fan.

16

ASRock Z77 Extreme4-M Motherboard

2.5 Installation of Memory Modules (DIMM)

This motherboard provides four 240-pin DDR3 (Double Data Rate 3) DIMM

slots, and supports Dual Channel Memory Technology. For dual channel con-

guration, you always need to install identical (the same brand, speed, size

and chip-type) DDR3 DIMM pair in the slots: You have to install identical

DDR3 DIMMs in Dual Channel A (DDR3_A1 and DDR3_B1; Black slots; see p.2

No. 6) or identical DDR3 DIMMs in Dual Channel B (DDR3_A2 and DDR3_

B2; Black slots; see p.2 No. 7), so that Dual Channel Memory Technology can

be activated. This motherboard also allows you to install four DDR3 DIMMs

for dual channel conguration, please install identical DDR3 DIMMs in all four

slots. You may refer to the Dual Channel Memory Conguration Table below.

Dual Channel Memory Conguration

DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2

(Black Slot) (Black Slot) (Black Slot) (Black Slot)

(1) Populated - Populated -

(2) - Populated - Populated

(3)* Populated Populated Populated Populated

* For conguration (3), please install identical DDR3 DIMMs in all four

slots.

1. If you want to install two memory modules, for optimal compatibility

and reliability, it is recommended to install them in the slots: DDR3_

A1 and DDR3_B1, or DDR3_A2 and DDR3_B2.

2. If only one memory module or three memory modules are installed

in the DDR3 DIMM slots on this motherboard, it is unable to activate

Dual Channel Memory Technology.

3. If a pair of memory modules is NOT installed in the same Dual

Channel, for example, installing a pair of memory modules in

DDR3_A1 and DDR3_A2, it is unable to activate Dual Channel

Memory Technology.

4. It is not allowed to install a DDR or DDR2 memory module into

DDR3 slot; otherwise, this motherboard and DIMM may be dam-

aged.

5. Some DDR3 1GB double-sided DIMMs with 16 chips may not work

on this motherboard. It is not recommended to install them on this

motherboard.

English

6. For optimal compatibility and stability while overclocking memory

frequency, it is recommended to install one memory module in

DDR3_B2 slot or two memory modules in DDR3_A2 and DDR3_B2

slots.

17

ASRock Z77 Extreme4-M Motherboard

Installing a DIMM

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

Step 1. Unlock a DIMM slot by pressing the retaining clips outward.

Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the

break on the slot.

The DIMM only ts in one correct orientation. It will cause permanent

damage to the motherboard and the DIMM if you force the DIMM into

the slot in incorrect orientation.

Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends

fully snap back in place and the DIMM is properly seated.

English

18

ASRock Z77 Extreme4-M Motherboard

2.6 Expansion Slots (PCI Express Slots)

There are 4 PCI Express slots on this motherboard.

PCIE slots: PCIE1 (PCIE 3.0 x16 slot) is used for PCI Express x16 lane width

graphics cards, or to install PCI Express graphics cards to support

TM

TM

CrossFireX

or SLI

function.

PCIE2 (PCIE 2.0 x1 slot) is used for a PCI Express x1 lane width card,

such as a Gigabit LAN card or SATA2 card, etc.

PCIE3 (PCIE 3.0 x16 slot) is used for PCI Express x8 lane width graph-

ics cards, or to install PCI Express graphics cards to support CrossFi-

TM

TM

reX

or SLI

function.

PCIE4 (PCIE 2.0 x16 slot) is used for PCI Express x4 lane width graph-

ics cards, or to install PCI Express graphics cards to support 3-Way

TM

CrossFireX

, and for installing ASRock Game Blaster.

1. In single VGA card mode, it is recommended to install a PCI Express

x16 graphics card on PCIE1 slot.

TM

TM

2. In CrossFireX

mode or SLI

mode, please install the PCI Express

x16 graphics cards on PCIE1 and PCIE3 slots. Therefore, PCIE1 will

work at x8 bandwidth, while PCIE3 works at x8 bandwidth.

TM

3. In 3-Way CrossFireX

mode, please install PCI Express x16

graphics cards on PCIE1, PCIE3 and PCIE4 slots. Therefore, PCIE1

and PCIE3 slots will work at x8 bandwidth while PCIE4 slot will work

at x4 bandwidth.

4. Please connect a chassis fan to the motherboard’s chassis fan

connector (CHA_FAN1 or CHA_FAN2) when using multiple

graphics cards for better thermal environment.

5. Only PCIE1 and PCIE3 slots support Gen 3 speed. To run the PCI

Express in Gen 3 speed, please install an Ivy Bridge CPU. If you

install a Sandy Bridge CPU, the PCI Express will run only at PCI

Express Gen 2 speed.

English

19

ASRock Z77 Extreme4-M Motherboard

Installing an expansion card

Step 1. Before installing an expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2. Remove the system unit cover (if your motherboard is already installed

in a chassis).

Step 3. Remove the bracket facing the slot that you intend to use. Keep the

screws for later use.

Step 4. Align the card connector with the slot and press rmly until the card is

completely seated on the slot.

Step 5. Fasten the card to the chassis with screws.

Step 6. Replace the system cover.

English

20

ASRock Z77 Extreme4-M Motherboard

TM

TM

2.7 SLI

and Quad SLI

Operation Guide

®

TM

TM

This motherboard supports NVIDIA

SLI

and Quad SLI

(Scalable Link Interface)

technology that allows you to install up to two identical PCI Express x16 graphics

®

TM

®

cards. Currently, NVIDIA

SLI

technology supports Windows

XP / XP 64-bit /

TM

TM

®

TM

Vista

/ Vista

64-bit / 7 / 7 64-bit OS. NVIDIA

Quad SLI

technology supports

®

TM

TM

Windows

Vista

/ Vista

64-bit / 7 / 7 64-bit OS only. Please follow the installation

procedures in this section.

Requirements

TM

TM

1. For SLI

technology, you should have two identical SLI

-ready graphics

®

cards that are NVIDIA

certied. For Quad SLI technology, you should have

two identical Quad SLI ready graphics cards (dual-GPU on each graphics

card) that are NVIDIA certied.

®

TM

2. Make sure that your graphics card driver supports NVIDIA

SLI

technology.

®

Download the driver from NVIDIA

website (www.nvidia.com).

3. Make sure that your power supply unit (PSU) can provide at least the

®

minimum power required by your system. It is recommended to use NVIDIA

®

certied PSU. Please refer to NVIDIA

website for details.

2.7.1 Graphics Card Setup

TM

2.7.1.1 Installing Two SLI

-Ready Graphics Cards

TM

®

Step 1. Install the identical SLI

-ready graphics cards that are NVIDIA

certied

because different types of graphics cards will not work together properly.

(Even the GPU chips version shall be the same.) Insert one graphics card

into PCIE1 slot and the other graphics card to PCIE3 slot. Make sure that

the cards are properly seated on the slots.

English

Step2. If required, connect the auxiliary power source to the PCI Express

graphics cards.

21

ASRock Z77 Extreme4-M Motherboard

Step3. Align and insert the ASRock SLI_Bridge Card to the goldngers on each

graphics card. Make sure the ASRock SLI_Bridge Card is rmly in place.

ASRock SLI_Bridge Card

Step4. Connect a VGA cable or a DVI cable to the monitor connector or the DVI

connector of the graphics card that is inserted to PCIE1 slot.

English

22

ASRock Z77 Extreme4-M Motherboard

2.7.2 Driver Installation and Setup

Install the graphics card drivers to your system. After that, you can enable the Multi-

®

Graphics Processing Unit (GPU) feature in the NVIDIA

nView system tray utility.

Please follow the below procedures to enable the multi-GPU feature.

®

For Windows

XP / XP 64-bit OS:

TM

(For SLI

mode only)

®

A. Double-click NVIDIA Settings icon on your Windows

taskbar.

B. From the pop-up menu, select Set SLI and PhysX conguration. In

Set PhysX GPU acceleration item, please select Enabled. In Select

an SLI conguration item, please select Enable SLI. And click Apply.

C. Reboot your system.

TM

D. You can freely enjoy the benets of SLI

.

English

23

ASRock Z77 Extreme4-M Motherboard

®

TM

TM

For Windows

Vista

/ Vista

64-bit / 7 / 7 64-bit OS:

TM

TM

(For SLI

and Quad SLI

mode)

A. Click the Start icon on your Windows taskbar.

B. From the pop-up menu, select All Programs, and then click NVIDIA

Corporation.

C. Select NVIDIA Control Panel tab.

D. Select Control Panel tab.

E. From the pop-up menu, select Set SLI and PhysX conguration. In

Set PhysX GPU acceleration item, please select Enabled. In Select

an SLI conguration item, please select Enable SLI. And click Apply.

English

F. Reboot your system.

TM

TM

G. You can freely enjoy the benets of SLI

or Quad SLI

.

TM

®

* SLI

appearing here is a registered trademark of NVIDIA

Technologies Inc., and is used

only for identication or explanation and to the owners’ benet, without intent to infringe.

24

ASRock Z77 Extreme4-M Motherboard

TM

TM

TM

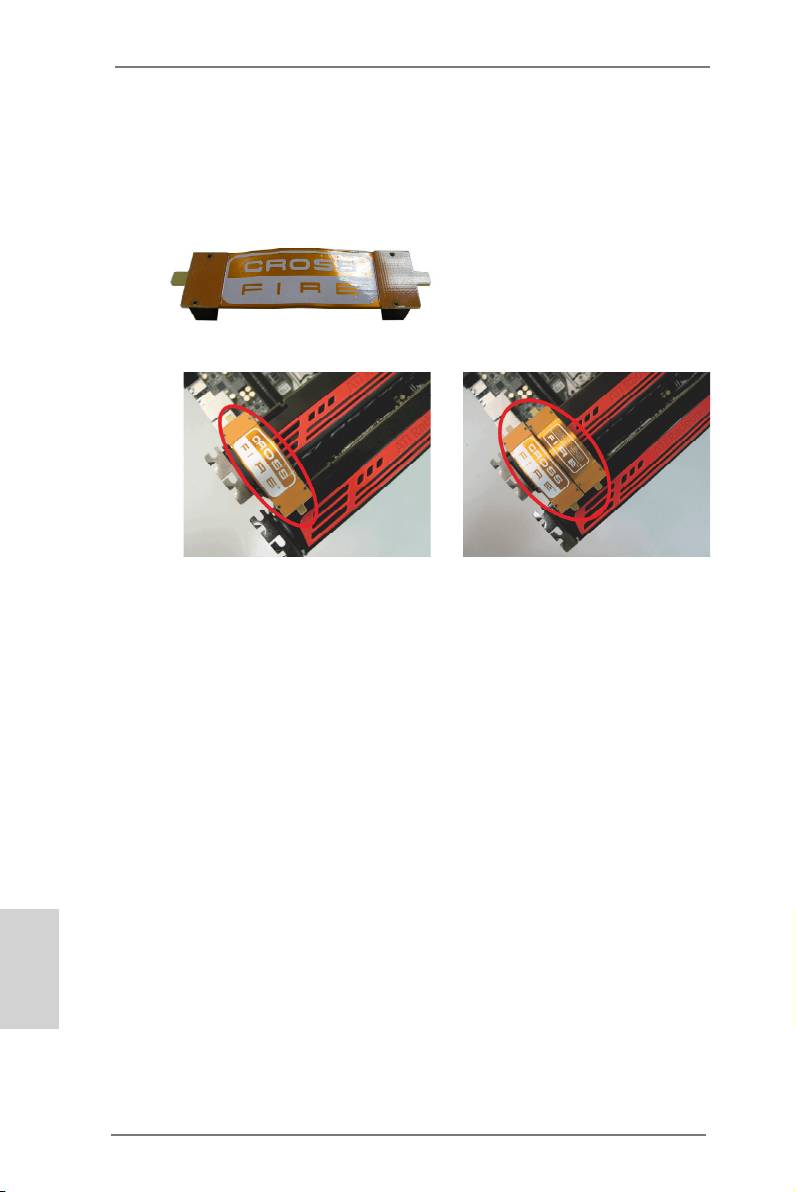

2.8 CrossFireX

, 3-Way CrossFireX

and Quad CrossFireX

Operation Guide

TM

TM

This motherboard supports CrossFireX

, 3-way CrossFireX

and Quad

TM

TM

CrossFireX

. CrossFireX

technology offers the most advantageous means

available of combining multiple high performance Graphics Processing Units (GPU)

in a single PC. Combining a range of different operating modes with intelligent

TM

software design and an innovative interconnect mechanism, CrossFireX

enables

the highest possible level of performance and image quality in any 3D application.

TM

®

TM

Currently CrossFireX

is supported by Windows

XP with Service Pack 2 / Vista

TM

TM

®

/ 7 OS. 3-way CrossFireX

and Quad CrossFireX

are supported by Windows

TM

TM

Vista

/ 7 OS only. Please check AMD’s website for AMD CrossFireX

driver

updates.

1. If a customer incorrectly congures their system they will not see the performance

TM

TM

TM

benets of CrossFireX

. All three CrossFireX

components, a CrossFireX

TM

TM

Ready graphics card, a CrossFireX

Ready motherboard and a CrossFireX

Edition co-processor graphics card, must be installed correctly to benet from the

TM

CrossFireX

multi-GPU platform.

TM

2. If you pair a 12-pipe CrossFireX

Edition card with a 16-pipe card, both cards

TM

will operate as 12-pipe cards while in CrossFireX

mode.

2.8.1 Graphics Card Setup

TM

2.8.1.1 Installing Two CrossFireX

-Ready Graphics Cards

TM

TM

Different CrossFireX

cards may require different methods to enable CrossFireX

TM

feature. For other CrossFireX

cards that AMD has released or will release in the

future, please refer to AMD graphics card manuals for detailed installation guide.

Step 1. Insert one Radeon graphics card into PCIE1 slot and the other Radeon

graphics card to PCIE3 slot. Make sure that the cards are properly seated

on the slots.

English

25

ASRock Z77 Extreme4-M Motherboard

®

TM

TM

For Windows

7 / 7 64-bit / Vista

/ Vista

64-bit OS:

Right click the desktop, choose “Personalize”, and select the “Display

Settings” tab so that you can adjust the parameters of the multi-monitors

according to the steps below.

A. Click the number ”2” icon.

B. Click the items “This is my main monitor” and “Extend the desktop onto

this monitor”.

C. Click “OK” to save your change.

D. Repeat steps A through C for the display icons identied by the number

three to eight.

6. Use Surround Display. Click and drag the display icons to positions representing

the physical setup of your monitors that you would like to use. The placement of

display icons determines how you move items from one monitor to another.

HDCP Function

HDCP function is supported on this motherboard. To use HDCP

function with this motherboard, you need to adopt a monitor

that supports HDCP function as well. Therefore, you can enjoy

the superior display quality with high-denition HDCP

encryption contents. Please refer to the instructions below for

more details about HDCP function.

What is HDCP?

HDCP stands for High-Bandwidth Digital Content Protection, a

®

specication developed by Intel

for protecting digital

entertainment content that uses the DVI interface. HDCP is a

copy protection scheme to eliminate the possibility of

intercepting digital data midstream between the video source,

or transmitter - such as a computer, DVD player or set-top box -

and the digital display, or receiver - such as a monitor, television

or projector. In other words, HDCP specication is designed to

protect the integrity of content as it is being transmitted.

English

Products compatible with the HDCP scheme such as DVD

players, satellite and cable HDTV set-top-boxes, as well as few

entertainment PCs requires a secure connection to a compliant

display. Due to the increase in manufacturers employing HDCP

in their equipment, it is highly recommended that the HDTV or

LCD monitor you purchase is compatible.

32

ASRock Z77 Extreme4-M Motherboard

2.10 ASRock Smart Remote Installation Guide

ASRock Smart Remote is only used for ASRock motherboards with CIR header.

Please refer to below procedures for the quick installation and usage of ASRock

Smart Remote.

Step1. Find the CIR header located next

to the USB 2.0 header on ASRock

USB 2.0 header (9-pin, black)

motherboard.

CIR header (4-pin, gray)

USB_PWR

Step2. Connect the front USB cable to the

P-

USB 2.0 header (as below, pin 1-5)

P+

and the CIR header. Please make

GND

DUMMY

sure the wire assignments and the

pin assignments are matched

correctly.

GND

IRTX

IRRX

ATX+5VSB

Step3. Install Multi-Angle CIR Receiver to

the front USB port. If Multi-Angle

CIR Receiver cannot successfully

receive the infrared signals from

MCE Remote Controller, please try

to install it to the other front USB

port.

3 CIR sensors in different angles

1. Only one of the front USB port can support CIR function. When

the CIR function is enabled, the other port will remain USB

function.

2. Multi-Angle CIR Receiver is used for front USB only. Please do

not use the rear USB bracket to connect it on the rear panel.

Multi-Angle CIR Receiver can receive the multi-direction infrared

signals (top, down and front), which is compatible with most of

English

the chassis on the market.

3. The Multi-Angle CIR Receiver does not support Hot-Plug

function. Please install it before you boot the system.

* ASRock Smart Remote is only supported by some of ASRock's motherboards. Please refer to

ASRock's website for the motherboard support list: http://www.asrock.com

33

ASRock Z77 Extreme4-M Motherboard

2.11 Jumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose

pin1 and pin2 are “Short” when jumper cap

is placed on these 2 pins.

Jumper Setting Description

Clear CMOS Jumper

(CLRCMOS1)

(see p.2, No. 15)

Clear CMOSDefault

Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the

system parameters to default setup, please turn off the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a

jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,

please do not clear the CMOS right after you update the BIOS. If you need

to clear the CMOS when you just nish updating the BIOS, you must boot

up the system rst, and then shut it down before you do the clear-CMOS ac-

tion. Please be noted that the password, date, time, user default prole, 1394

GUID and MAC address will be cleared only if the CMOS battery is removed.

English

34

ASRock Z77 Extreme4-M Motherboard

2.12 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

Serial ATA2 Connectors These four Serial ATA2 (SATA2)

(SATA2_2_3: see p.2, No. 14)

connectors support SATA data

(SATA2_4: see p.2, No. 21)

SATA2_3

SATA2_2

cables for internal storage

(SATA2_5: see p.2, No. 20)

devices. The current SATA2

SATA2_4

interface allows up to 3.0 Gb/s

SATA2_5

data transfer rate.

Serial ATA3 Connectors These four Serial ATA3 (SATA3)

(SATA3_A0_A1: see p.2, No. 12)

connectors support SATA data

(SATA3_0_1: see p.2, No. 13)

cables for internal storage

devices. The current SATA3

interface allows up to 6.0 Gb/s

data transfer rate. If the eSATA3

SATA3_1 SATA3_A1

SATA3_0 SATA3_A0

port on the rear I/O has been

connected, the internal

SATA3_A1 will not funtion.

Serial ATA (SATA) Either end of the SATA data

Data Cable cable can be connected to the

(Optional)

SATA / SATA2 / SATA3 hard

disk or the SATA2 / SATA3

connector on this motherboard.

Print Port Header This is an interface for print port

(25-pin LPT1)

cable that allows convenient

(see p.2, No. 28)

connection of printer devices.

English

35

ASRock Z77 Extreme4-M Motherboard

USB 2.0 Headers Besides four default USB 2.0

(9-pin USB_6_7)

ports on the I/O panel, there are

(see p.2, No. 25)

three USB 2.0 headers on this

motherboard. Each USB 2.0

header can support two USB 2.0

ports.

(9-pin USB_8_9)

(see p.2, No. 24)

(9-pin USB_10_11)

(see p.2, No. 23)

USB 3.0 Header Besides two default USB 3.0

(19-pin USB3_12_13)

ports on the I/O panel, there is

(see p.2, No. 9)

one USB 3.0 header on this

motherboard. This USB 3.0

header can support two USB 3.0

ports.

Infrared Module Header This header supports an

(5-pin IR1)

optional wireless transmitting

(see p.2, No. 19)

and receiving infrared module.

English

Consumer Infrared Module Header This header can be used to

(4-pin CIR1)

connect the remote controller

(see p.2, No. 26)

receiver.

36

ASRock Z77 Extreme4-M Motherboard

Front Panel Audio Header This is an interface for front

(9-pin HD_AUDIO1)

panel audio cable that allows

(see p.2, No. 33)

convenient connection and

control of audio devices.

1. High Denition Audio supports Jack Sensing, but the panel wire on the

chassis must support HDA to function correctly. Please follow the

instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

header as below:

A. Connect Mic_IN (MIC) to MIC2_L.

B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

C. Connect Ground (GND) to Ground (GND).

D. MIC_RET and OUT_RET are for HD audio panel only. You don’t need

to connect them for AC’97 audio panel.

E. To activate the front mic.

®

For Windows

XP / XP 64-bit OS:

Select “Mixer”. Select “Recorder”. Then click “FrontMic”.

®

TM

TM

For Windows

7 / 7 64-bit / Vista

/ Vista

64-bit OS:

Go to the “FrontMic” Tab in the Realtek Control panel. Adjust

“Recording Volume”.

System Panel Header This header accommodates

(9-pin PANEL1)

several system front panel

(see p.2, No. 18)

functions.

Connect the power switch, reset switch and system status indicator on the

chassis to this header according to the pin assignments below. Note the

positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may congure

the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset

English

switch to restart the computer if the computer freezes and fails to perform a

normal restart.

37

ASRock Z77 Extreme4-M Motherboard

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED

is on when the system is operating. The LED keeps blinking when the sys-

tem is in S1/S3 sleep state. The LED is off when the system is in S4 sleep

state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED

is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly

consists of power switch, reset switch, power LED, hard drive activity LED,

speaker and etc. When connecting your chassis front panel module to this

header, make sure the wire assignments and the pin assign-ments are

matched correctly.

Chassis Speaker Header Please connect the chassis

(4-pin SPEAKER 1)

speaker to this header.

(see p.2, No. 16)

Power LED Header Please connect the chassis

(3-pin PLED1)

power LED to this header to

(see p.2, No. 17)

indicate system power status.

The LED is on when the system

is operating. The LED keeps

blinking in S1/S3 state. The

LED is off in S4 state or S5

state (power off).

Chassis and Power Fan Connectors Please connect the fan cables

(4-pin CHA_FAN1)

to the fan connectors and match

(see p.2, No. 22)

the black wire to the ground pin.

CHA_FAN1 and CHA_FAN2

English

(3-pin CHA_FAN2)

supports Fan Control.

(see p.2, No. 35)

(3-pin PWR_FAN1)

(see p.2, No. 2)

38

ASRock Z77 Extreme4-M Motherboard

CPU Fan Connectors Please connect the CPU fan

(4-pin CPU_FAN1)

cable to the connector and

(see p.2, No. 3)

match the black wire to the

ground pin.

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

CPU fan still can work successfully even without the fan speed control function.

If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this

motherboard, please connect it to Pin 1-3.

Pin 1-3 Connected

3-Pin Fan Installation

(3-pin CPU_FAN2)

(see p.2, No. 1)

12

24

ATX Power Connector Please connect an ATX power

(24-pin ATXPWR1)

supply to this connector.

(see p.2, No. 8)

1

13

Though this motherboard provides 24-pin ATX power connector,

12

24

it can still work if you adopt a traditional 20-pin ATX power supply.

To use the 20-pin ATX power supply, please plug your

power supply along with Pin 1 and Pin 13.

20-Pin ATX Power Supply Installation

1

13

ATX 12V Power Connector Please connect an ATX 12V

(8-pin ATX12V1)

power supply to this connector.

(see p.2, No. 4)

Though this motherboard provides 8-pin ATX 12V power connector, it can still work

if you adopt a traditional 4-pin ATX 12V power supply. To use the 4-pin ATX power

supply, please plug your power supply along with Pin 1 and Pin 5.

English

8 5

4-Pin ATX 12V Power Supply Installation

4 1

39

ASRock Z77 Extreme4-M Motherboard

Serial port Header This COM1 header supports a

(9-pin COM1)

serial port module.

(see p.2, No. 27)

HDMI_SPDIF Header HDMI_SPDIF header, providing

(2-pin HDMI_SPDIF1)

SPDIF audio output to HDMI

(see p.2, No. 34)

VGA card, allows the system to

connect HDMI Digital TV/

projector/LCD devices. Please

connect the HDMI_SPDIF

connector of HDMI VGA card to

this header.

English

40

ASRock Z77 Extreme4-M Motherboard

2.13 Driver Installation Guide

To install the drivers to your system, please insert the support CD to your optical

drive rst. Then, the drivers compatible to your system can be auto-detected and

listed on the support CD driver page. Please follow the order from top to bottom to

install those required drivers. Therefore, the drivers you install can work properly.

®

TM

TM

2.14 Installing Windows

7 / 7 64-bit / Vista

/ Vista

64-bit With

RAID Functions

®

TM

TM

If you want to install Windows

7 / 7 64-bit / Vista

/ Vista

64-bit on your SATA

/ SATA2 / SATA3 HDDs with RAID functions, please refer to the document at the

following path in the Support CD for detailed procedures:

..\ RAID Installation Guide

®

TM

TM

2.15 Installing Windows

7 / 7 64-bit / Vista

/ Vista

64-bit / XP /

XP 64-bit Without RAID Functions

®

TM

TM

If you want to install Windows

7 / 7 64-bit / Vista

/ Vista

64-bit / XP / XP 64-bit

OS on your SATA / SATA2 / SATA3 HDDs without RAID functions, please follow the

procedures below according to the OS you install.

®

2.15.1 Installing Windows

XP / XP 64-bit Without RAID Functions

®

If you want to install Windows

XP / XP 64-bit OS on your SATA / SATA2 / SATA3

HDDs without RAID functions, please follow the steps below.

Using SATA / SATA2 / SATA3 HDDs without NCQ function

STEP 1: Set Up UEFI.

A. Enter UEFI SETUP UTILITY Advanced screen Storage Conguration.

B. Set the option “SATA Mode Selection” to [IDE]. (For SATA2_2 to SATA2_5,

SATA3_0 and SATA3_1 ports.)

Set the option “ASMedia SATA3 Mode” to [IDE]. (For SATA3_A0 and SATA3_A1

ports.)

®

STEP 2: Install Windows

XP / XP 64-bit OS on your system.

English

41

ASRock Z77 Extreme4-M Motherboard
