ASRock AD2700-ITX: 2. Installation

12

ASRock  AD2700-ITX / AD2500-ITX  Motherboard

English

2. Installation

This is a Mini-ITX form factor (6.7" x 6.7", 17.0 x 17.0 cm) motherboard. Before you

install the motherboard, study the con

fi

 guration of your chassis to ensure that the

motherboard

fi

 ts into it.

Make sure to unplug the power cord before installing or removing the

motherboard. Failure to do so may cause physical injuries to you and

damages to motherboard components.

2.1  Screw Holes

Place screws into the holes indicated by circles to secure the motherboard to the

chassis.

Do not over-tighten the screws!  Doing so may damage the motherboard.

2.2  Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

1.   Unplug the power cord from the wall socket before touching any component.

2.   To avoid damaging the motherboard components due to static electricity,

NEVER place your motherboard directly on the carpet or the like. Also

remember to use a grounded wrist strap or touch a safety grounded object

before you handle components.

3.   Hold components by the edges and do not touch the ICs.

4.   Whenever you uninstall any component, place it on a grounded antistatic pad or

in the bag that comes with the component.

      Before you install or remove any component, ensure that the power is

      switched off or the power cord is detached from the power supply.

      Failure to do so may cause severe damage to the motherboard, peripherals,

      and/or components.

13

ASRock  AD2700-ITX / AD2500-ITX  Motherboard

English

2.3 Installation of Memory Modules (SO-DIMM)

AD2700-ITX / AD2500-ITX

motherboard provides two 2

04

-pin DDR3 (Double Data

Rate 3) SO-DIMM slots.

1. It is not allowed to install a DDR or DDR2 memory module into DDR3

    slot; otherwise, this motherboard and SO-DIMM may be damaged.

2. Please install the memory module from DDR3_A2 slot for the

fi

 rst

    priority.

Installing a SO-DIMM

Please make sure to disconnect power supply before adding or

removing SO-DIMMs or the system components.

Step 1.  Unlock a SO-DIMM slot by pressing the retaining clips outward.

Step 2.  Align a SO-DIMM on the slot such that the notch on the SO-DIMM

matches the break on the slot.

The SO-DIMM only

fi

 ts in one correct orientation. It will cause perma-

nent damage to the motherboard and the SO-DIMM if you force the SO-

DIMM into the slot at incorrect orientation.

Step 3.  Firmly insert the SO-DIMM into the slot until the retaining clips at both

ends fully snap back in place and the SO-DIMM is properly seated.

notch

break

notch

break

14

ASRock  AD2700-ITX / AD2500-ITX  Motherboard

English

2.4 Expansion Slot (PCI Slot)

There is 1 PCI slot on this motherboard.

PCI slot:

  The PCI slot is used to install expansion card that has the 32-bit PCI

 interface.

Installing an expansion card

Step 1.

Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2.

Remove the system unit cover (if your motherboard is already installed

in a chassis).

Step 3.

Remove the bracket facing the slot that you intend to use. Keep the

screws for later use.

Step 4.

Align the card connector with the slot and press

fi

 rmly until the card is

completely seated on the slot.

Step 5.

Fasten the card to the chassis with screws.

Step 6.

Replace the system cover.

15

ASRock  AD2700-ITX / AD2500-ITX  Motherboard

English

2. If you have installed onboard VGA driver from our support CD to your system

    already, you can freely enjoy the bene

fi

 ts of dual monitor function after your

    system boots. If you haven’t installed onboard VGA driver yet, please install

    onboard VGA driver from our support CD to your system and restart your

    computer.

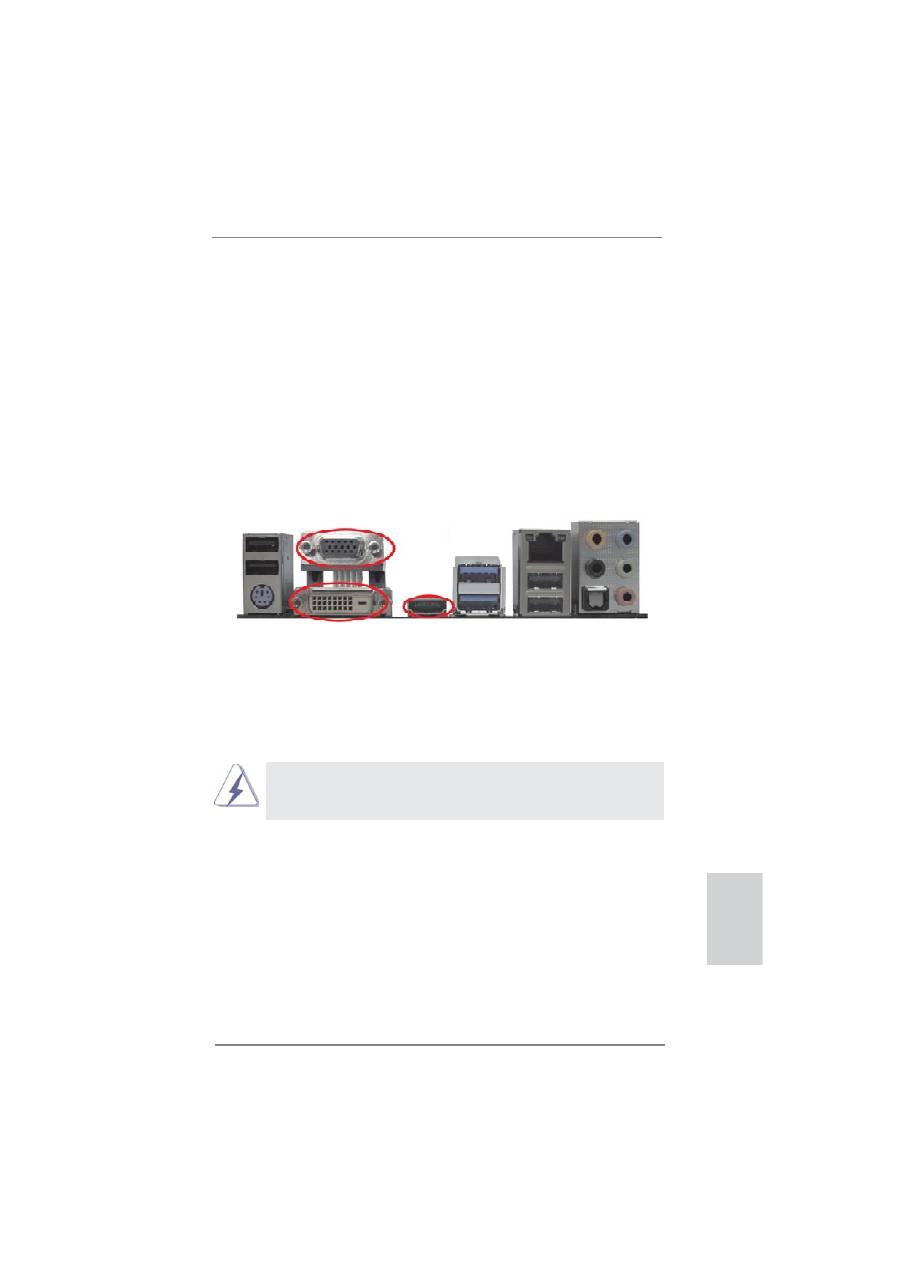

2.5 Dual Monitor Feature

This motherboard supports dual monitor feature. With the internal VGA output sup-

port (DVI-D, D-Sub and HDMI), you can easily enjoy the bene

fi

 ts of dual monitor

feature without installing any add-on VGA card to this motherboard. This mother-

board also provides independent display controllers for DVI-D, D-Sub and HDMI to

support dual VGA output so that DVI-D, D-sub and HDMI can drive same or different

display contents.

To enable dual monitor feature, please follow the below steps:

1. Connect DVI-D monitor cable to DVI-D port on the I/O panel, connect D-Sub

    monitor cable to D-Sub port on the I/O panel, or connect HDMI monitor

    cable to HDMI port on the I/O panel.

D-Sub, DVI-D and HDMI monitors cannot be enabled at the same time.

You can only choose the combination: DVI-D + HDMI, DVI-D + D-Sub,

or HDMI + D-Sub.

HDMI port

D-Sub port

DVI-D port

16

ASRock  AD2700-ITX / AD2500-ITX  Motherboard

English

HDCP Function

HDCP function is supported on this motherboard. To use HDCP

function with this motherboard, you need to adopt the monitor

that supports HDCP function as well. Therefore, you can enjoy

the superior display quality with high-de

fi

 nition HDCP

encryption contents. Please refer to below instruction for more

details about HDCP function.

  What

is

HDCP?

HDCP stands for High-Bandwidth Digital Content Protection,

  a

speci

fi

 cation developed by Intel

®

 for protecting digital

entertainment content that uses the DVI interface. HDCP is a

copy protection scheme to eliminate the possibility of

intercepting digital data midstream between the video source,

or transmitter - such as a computer, DVD player or set-top box -

and the digital display, or receiver - such as a monitor, television

or projector. In other words, HDCP speci

fi

 cation is designed to

protect the integrity of content as it is being transmitted.

Products compatible with the HDCP scheme such as DVD

players, satellite and cable HDTV set-top-boxes, as well as few

entertainment PCs requires a secure connection to a compliant

display. Due to the increase in manufacturers employing HDCP

in their equipment, it is highly recommended that the HDTV or

LCD monitor you purchase is compatible.

17

ASRock  AD2700-ITX / AD2500-ITX  Motherboard

English

* ASRock Smart Remote is only supported by some of ASRock motherboards. Please refer to

  ASRock website for the motherboard support list: http://www.asrock.com

USB 2.0 header (9-pin, blue)

CIR header (4-pin, white)

2.6 ASRock Smart Remote Installation Guide

ASRock Smart Remote is only used for ASRock motherboard with CIR header.

Please refer to below procedures for the quick installation and usage of ASRock

Smart Remote.

Step1.

Find the CIR header located next

to the USB 2.0 header on ASRock

 motherboard.

Step2.

Connect the front USB cable to the

USB 2.0 header (as below, pin 1-5)

and the CIR header. Please make

sure the wire assignments and the

pin assignments are matched

 correctly.

1 2

4

3

5

USB_PWR

P-

P+

GND

ATX+5VSB

IRRX

IRTX

GND

DUMMY

Step3. Install

Multi-Angle CIR Receiver to

the front USB port. If Multi-Angle

 CIR

Receiver cannot successfully

receive the infrared signals from

MCE Remote Controller, please try

to install it to the other front USB

 port.

3 CIR sensors in different angles

1.

Only one of the front USB port can support CIR function. When

the CIR function is enabled, the other port will remain USB

 function.

2.

Multi-Angle CIR Receiver is used for front USB only. Please do

not use the rear USB bracket to connect it on the rear panel.

Multi-Angle CIR Receiver can receive the multi-direction infrared

signals (top, down and front), which is compatible with most of

the chassis on the market.

3.

The Multi-Angle CIR Receiver does not support Hot-Plug

function. Please install it before you boot the system.

18

ASRock  AD2700-ITX / AD2500-ITX  Motherboard

English

2.7 Jumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose

pin1 and  pin2 are “Short” when jumper cap

is placed on these 2 pins.

Jumper Setting

Description

Clear CMOS

(CLRCMOS1,

2-pin

jumper)

(see p.2 or 3  No. 13)

Note: CLRCMOS1 allows you to clear the data in CMOS. The data in CMOS in-

cludes system setup information such as system password, date, time, and

system setup parameters. To clear and reset the system parameters to de-

fault setup, please turn off the computer and unplug the power cord from the

power supply. After waiting for 15 seconds, use a jumper cap to short 2 pins

on CLRCMOS1 for 5 seconds.

2-pin jumper

19

ASRock  AD2700-ITX / AD2500-ITX  Motherboard

English

2.8 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

Serial ATA2 Connectors

These two Serial ATA2 (SATA2)

(SATAII_1: see p.2 or 3, No. 16)

connectors support SATA data

(SATAII_2: see p.2 or 3, No. 8)

cables for internal storage

devices. The current SATA2

interface allows up to 3.0 Gb/s

data transfer rate.

USB 2.0 Headers

Besides the default USB 2.0

(9-pin USB6_7)

ports on the I/O panel, there

(see p.2 or 3  No. 15)

are two USB 2.0 headers on

this motherboard. Each

USB 2.0 header can support

two USB 2.0 ports.

(9-pin USB8_9)

(see p.2 or 3  No. 9)

SA

TAII_2

SA

TAII_1

Consumer Infrared Module Header

This header can be used to

(4-pin CIR1)

connect the remote controller

(see p.2 or 3  No. 12)

 receiver.

1

ATX+5VSB

IRTX

GND

IRRX

Serial ATA (SATA)

Either end of the SATA data

Data Cable

cable can be connected to the

(Optional)

SATA / SATA2 hard disk or the

SATA2 connector on this

 motherboard.

1

USB_PWR

P-8

GND

DUMMY

USB_PWR

P+8

GND

P-9

P+9

3.5mm Audio Cable

Either end of the 3.5mm audio

(Optional)

cable can be connected to the

portable audio devices, such

as MP3 player and mobile

phone or the Line-in port of

 your

PC.

20

ASRock  AD2700-ITX / AD2500-ITX  Motherboard

English

System Panel Header

This header accommodates

(9-pin PANEL1)

several system front panel

(see p.2 or 3  No. 11)

 functions.

Connect the power switch, reset switch and system status indicator on the

chassis to this header according to the pin assignments below. Note the

positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may con

fi

 gure

the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset

switch to restart the computer if the computer freezes and fails to perform a

normal restart.

J_SENSE

OUT2_L

1

MIC_RET

PRESENCE#

GND

OUT2_R

MIC2_R

MIC2_L

OUT_RET

Front Panel Audio Header

This is an interface for front

(9-pin HD_AUDIO1)

panel audio cable that allows

(see p.2 or 3  No. 19)

convenient connection and

control of audio devices.

1. High De

fi

 nition Audio supports Jack Sensing, but the panel wire on

    the chassis must support HDA to function correctly. Please follow the

    instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

    header as below:

    A. Connect Mic_IN (MIC) to MIC2_L.

    B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

    C. Connect Ground (GND) to Ground (GND).

    D. MIC_RET and OUT_RET are for HD audio panel only. You don’t

         need to connect them for AC’97 audio panel.

    E. To activate the front mic.

         Go to the "FrontMic" Tab in the Realtek Control panel. Adjust

         “Recording Volume”.

Infrared Module Header

This header supports an

(5-pin IR1)

optional wireless transmitting

(see p.2 or 3  No. 10)

and receiving infrared module.

1

IRTX

+5VSB

DUMMY

IRRX

GND

21

ASRock  AD2700-ITX / AD2500-ITX  Motherboard

English

Chassis Speaker Header

Please connect the chassis

(4-pin SPEAKER 1)

speaker to this header.

(see p.2 or 3  No. 14)

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED

is on when the system is operating. The LED keeps blinking when the sys-

tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep

state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED

is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly

consists of power switch, reset switch, power LED, hard drive activity LED,

speaker and etc. When connecting your chassis front panel module to this

header, make sure the wire assignments and the pin assign-ments are

matched correctly.

ATX Power Connector

Please connect an ATX power

(24-pin ATXPWR1)

supply to this connector.

(see p.2 or 3  No. 7)

12

 1

24

13

20-Pin ATX Power Supply Installation

Though this motherboard provides 24-pin ATX power connector,

it can still work if you adopt a traditional 20-pin ATX power supply.

To use the 20-pin ATX power supply, please plug your

power supply along with Pin 1 and Pin 13.

12

 1

24

13

Chassis Fan Connector

Please connect the fan cable

(3-pin CHA_FAN1)

to the fan connector and

(see p.2 or 3  No. 5)

match the black wire to the

ground

pin.

CPU Fan Connector

Please connect the CPU fan

(3-pin CPU_FAN1)

cable to the connector and

(see p.2 or 3  No. 3)

match the black wire to the

ground

pin.

GND

+12V

CPU_FAN_SPEED

22

ASRock  AD2700-ITX / AD2500-ITX  Motherboard

English

2.9   Driver Installation Guide

To install the drivers to your system, please insert the support CD to your optical

drive

fi

 rst. Then, the drivers compatible to your system can be auto-detected and

listed on the support CD driver page. Please follow the order from up to bottom side

to install those required drivers. Therefore, the drivers you install can work properly.

2.10   Installing Windows

®

 7 on SATA / SATAII HDDs

If you want to install Windows

®

 7 OS on your SATA / SATAII HDDs, please follow

below steps.

Using SATA / SATAII HDDs with NCQ function

STEP 1: Set up UEFI.

A. Enter UEFI SETUP UTILITY        Advanced screen        Storage Con

fi

 guration.

B. Set the option “SATA Mode” to [AHCI].

STEP 2: Install Windows

®

 7 OS on your system.

Using SATA / SATAII HDDs without NCQ function

STEP 1: Set up UEFI.

A. Enter UEFI SETUP UTILITY        Advanced screen        Storage Con

fi

 guration.

B. Set the option “SATA Mode” to [IDE].

STEP 2: Install Windows

®

 7 OS on your system.

Serial port Header

This COM1 header supports a

(9-pin COM1)

serial port module.

(see p.2 or 3  No. 2)

Print Port Header

This is an interface for print

(25-pin LPT1)

port cable that allows

(see p.2 or 3  No. 1)

convenient connection of printer

 devices.

1

AFD#

ERROR#

PINIT#

GND

SLIN#

STB#

SPD0

SPD1

SPD2

SPD3

SPD4

SPD5

SPD6

SPD7

ACK#

BUSY

PE

SLCT
