1. Penjelasan

Terimakasih untuk membeli papan induk penghasilan kontrol kualitas keras terus-

menerus ASRock’s yang dapat dipercaya. Dia dapat menyajikan pertunjukan baik

dengan bentuknya sesuai dengan janji kualitas dan ketahanan ASRock’s.

Buku Pedoman Instalasi Cepat ini mengandung perkenalan papan induk dan insta-

lasi langkah-demi-langkah. Informasi lebih terperinci tentang papan induk ini dapat

dilihat dalam buku tangan pemakai dalam Support CD.

Karena spesikasi papan induk dan software BIOS barangkali dapat diperbarui,

isi dalam buku pedoman ini akan mengikuti perubahan tanpa peringatan. Dalam

kondisi terjadinya modikasi buku pedoman ini, versi baru akan diperlihatkan

dalam website ASRock tanpa peringatan lebih. Anda dapat mendapatkan kartu-

kartu yang paling baru dan daftar bantuan CPU pada website ASRock.

Website ASRock http://www.asrock.com

1.1 Isi Paket

Papan Induk A55M-HVS ASRock

(Faktor Form Mikro ATX: 8.9-in x 8.5-in, 22.6 cm x 21.6 cm)

Pemimpin Instalasi Cepat A55M-HVS ASRock

Support CD A55M-HVS ASRock

2 x Kabel satu serial Data ATA (SATA) (bebas-pilih)

1 x Satu Pelindung I/O

Bahasa Indonesia

152

ASRock A55M-HVS Motherboard

1.2 Spesifikasi

Podium - Faktor Form Mikro ATX: 8.9-in x 8.5-in, 22.6 cm x 21.6 cm

- Kapasitor Solid untuk daya CPU

CPU - Menggunakan Stopkontak FM1 100W processor

TM

- Dapat digunakan AM’s Cool ‘n’ Quiet

Technology

- UMI-Link GEN2

Grup Chip - AMD A55 FCH (Hudson-D2)

Ingatan - Teknologi ingatan DDR3 dwisaluran

- 2 x Alur DDR3 DIMM

- Menggunakan DDR3 2400+(OC)/1866/

1600/1333/1066/800

- Kapasitas paling banyak: 16GB

Alur Ekspansi - 1 x PCI Express 2.0 x16 slot

- 1 x PCI Express 2.0 x1 slot

- 1 x Alur PCI

TM

- Mendukung AMD

Dual Graphics

Diagram - AMD Radeon HD 65XX/64XX Graphics

- DirectX 11, Pixel Shader 5.0

- Ingatan sama Max. 512MB

- Output VGA Ganda: mendukung port HDMI dan D-Sub

melalui pengontrol tampilan independen

- Mendukung HDMI 1.4a Technology dengan resolusi

maksimal hingga 1920x1200 @ 60Hz

- Mendukung D-Sub dengan resolusi maksimal hingga

1920x1600 @ 60Hz

- Mendukung Auto Lip Sync, Deep Color (12bpc), xvYCC

dan HBR (High Bit Rate Audio) dengan HDMI (memerlukan

monitor HDMI yang kompatibel)

- Mendukung Blu-ray Stereoscopic 3D dengan HDMI 1.4a

TM

- Mendukung AMD Video

Tenang: Baru video pasca

kemampuan pengolahan untuk pengurangan jutter otomatis

pada rumah / online video

- Mendukung fungsi HDCP dengan port HDMI

- Mendukung pemutaran 1080p Blu-ray (BD) / HD-DVD

dengan port HDMI

®

Audio - 5.1 CH HD Audio (VIA

VT1705 Audio Codec)

TM

Bahasa Indonesia

- Mendukung THX TruStudio

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Menggunakan Wake-On-LAN

153

ASRock A55M-HVS Motherboard

- Mendukung Deteksi Kabel LAN

- Mendukung Energy Efcient Ethernet 802.3az

- Mendukung PXE

Papan Belakang I/O Panel

I/O - 1 x Port Mouse PS/2

- 1 x Port Keyboard PS/2

- 1 x Port D-Sub

- 1 x Port HDMI

- 6 x Port USB 2.0 siap-dipakai

- 1 x RJ-45 LAN Port LED (ACT/LINK LED dan SPEED LED)

- HD Audio Jack: Line in/Penyuara Depan/mikropon

Penghubung - 6 x penghubung SATA2 3.0Gb/s, dapat digunakan RAID

(RAID 0, RAID 1 dan RAID 10), NCQ, AHCI dan fungsi

fungsi “Hot Plug”

- 1 x header IR

- 1 x header CIR

- 1 x port header Print

- 1 x port header COM

- Penghubung KIPAS CPU/casis/Power

- Penghubung power 24 pin ATX

- Penghubung power 8 pin 12V

- Penghubung audio panel dapan

- 3 x USB 2.0 header (menggunakan 6 port USB 2.0)

Ciri-ciri BIOS - 32Mb AMI Legal BIOS

- AMI UEFI Legal BIOS dengan dukungan GUI

- Menggunakan “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Menggunakan jumperfree

- Penyokong AMBIOS 2.3.1

- Penyesuaian berbagai tegangan DRAM, VDDP, SB

Sokongan CD - Penggerak, kegunaan, Software AntiVirus (Versi Cobaan),

CyberLink MediaEspresso 6.5 Trial

Fitur Unik - ASRock Extreme Tuning Utility (AXTU)

Bahasa Indonesia

- ASRock Instant Boot

- ASRock Instant Flash

- ASRock APP Charger

- ASRock XFast USB

- ASRock XFast LAN

154

ASRock A55M-HVS Motherboard

- Hybrid Booster:

- ASRock U-COP

Penjaga - Perasa Suhu CPU

Hardware - Perasa Suhu Casis

- Pengukur Kipas CPU/casis/Power

- Kipas diam CPU/Casis

- Kontrol Multi-Kecepatan Kipas CPU/casis

- Penjagaan voltasi: +12V, +5V, +3.3V, Vcore

®

®

TM

OS - dapat digunakan Microsoft

Windows

7 / 7 64-bit / Vista

/

TM

Vista

64-bit / XP SP3 / XP 64-bit

Sertikasi - FCC, CE, WHQL

- ErP/EuP Ready (memerlukan catu daya ErP/EuP ready)

* Untuk informasi rinci, silakan kunjungi website kami: http://www.asrock.com

PERHATIAN

Overclocking dapat pasti menimbulkan risiko, seperti pengaturan susunan BIOS,

penggunaan Untied Overclocking Technology, atau pemakaian perlengkapan

overclocking lain. Overclocking barangkali mengganggu stabilitas sistem Anda, atau

menimbulkan kerusakan terhadap komponen dan alat sistem Anda. Anda

seharusnya.

Bahasa Indonesia

155

ASRock A55M-HVS Motherboard

Installing OS on a HDD Larger Than 2TB in AHCI Mode

®

This motherboard is adopting UEFI BIOS that allows Windows

OS to be installed

on a large size HDD (>2TB). Please follow below procedure to install the operating

system.

®

TM

1. Please make sure to use Windows

Vista

64-bit (with SP1 or above) or

®

Windows

7 64-bit.

2. Press <F2> or <Delete> at system POST. Set AHCI Mode in UEFI Setup Utility >

Advanced > Storage Conguration > SATA Mode.

3. Choose the item “UEFI:xxx“ to boot in UEFI Setup Utility > Boot > Boot Option #1.

®

(“xxx” is the device which contains your Windows

installation les. Normally it is

an optical drive.) You can also press <F11> to launch boot menu at system POST

and choose the item “UEFI:xxx“ to boot.

®

4. Start Windows

installation.

English

156

ASRock A55M-HVS Motherboard

Installing OS on a HDD Larger Than 2TB in RAID Mode

®

This motherboard is adopting UEFI BIOS that allows Windows

OS to be installed

on a large size HDD (>2TB). Please follow below procedure to install the operating

system.

®

TM

1. Please make sure to use Windows

Vista

64-bit (with SP1 or above) or

®

Windows

7 64-bit.

2. Press <F2> or <Delete> at system POST. Set RAID Mode in UEFI Setup Utility >

Advanced > Storage Conguration > SATA Mode.

3. Choose onboard RAID 3TB+ unlocker > UEFI Mode For GPT partition. Press

<F10> to save the change and exit.

4. Press <F11> to enter Boot Manual. Choose UEFI : Built - in EFI Shell.

5. Key in drvcfg, for example you will see below:

Drv[4E] Ctrl[B5] Lang[eng]

6. Key in dh [Drv number], for example: key in dh 4E.

English

157

ASRock A55M-HVS Motherboard

7. And then key in drvcfg –s [Drv number] [Ctrl number] to enter Raid Utility.

For example: key in drvcfg –s 4E B5.

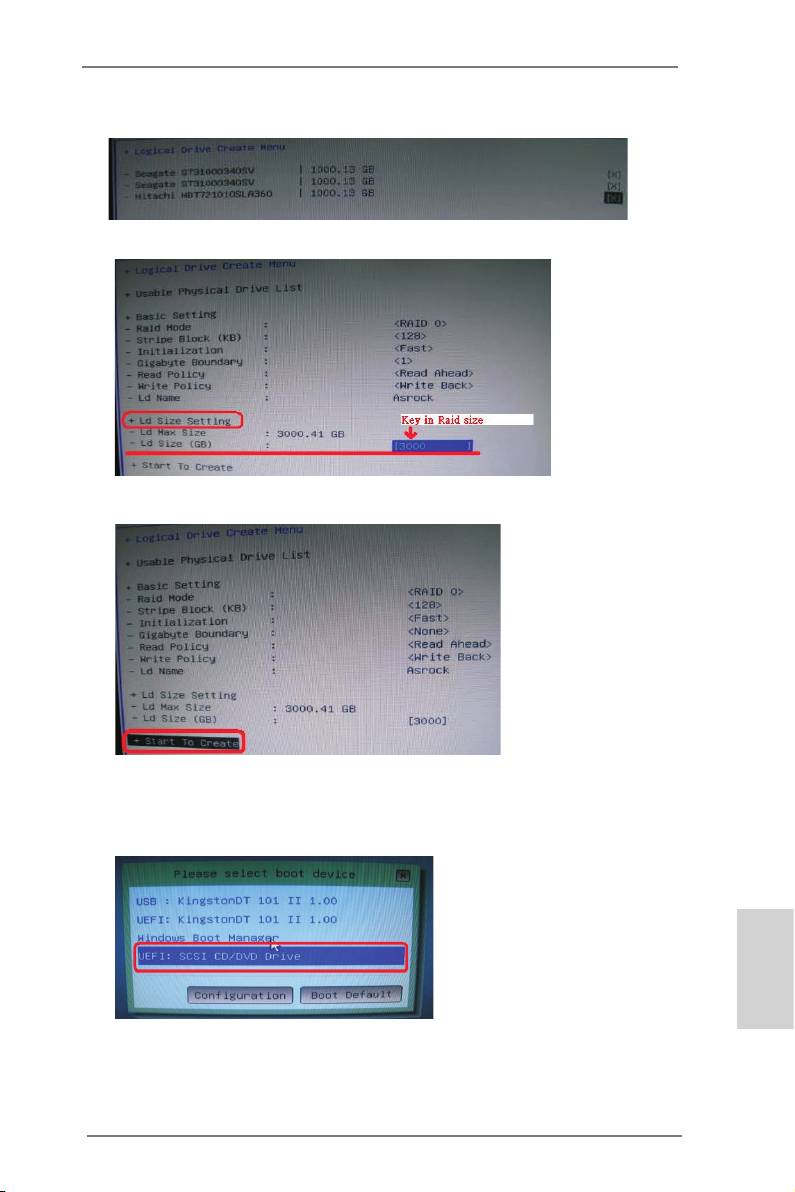

8. Choose Logical Drive Main Menu to set up Raid Drive.

9. Choose Logical Drive Create Menu to create a Raid Drive.

10. Choose Usable Physical Drive List to select Raid HDD.

English

158

ASRock A55M-HVS Motherboard

11. Press Space on keyboard to toggle checkbox.

12. Choose Ld Size setting, and key in the Raid size.

13. After set up Raid size, please click Start to Create.

14. Press <F10> to exit Utility.

15. During reboot, please press <F11> to enter Boot Manual. Choose UEFI: SCSI

CD/DVD Drive.

English

®

TM

* This option only shows on Windows

7 64-bit and Vista

64-bit OS.

159

ASRock A55M-HVS Motherboard

®

16. Follow Windows

Installation Guide to install OS.

®

TM

If you install Windows

7 64-bit / Vista

64-bit in a large hard disk (ex. Disk

®

volume > 2TB), it may take more time to boot into Windows

or install driver/

utilities. If you encounter this problem, you will need to following instructions

to x this problem.

®

TM

Windows

Vista

64-bit:

®

Microsoft

does not provide hotfix for this problem. Below steps are

®

Microsoft

suggested solution:

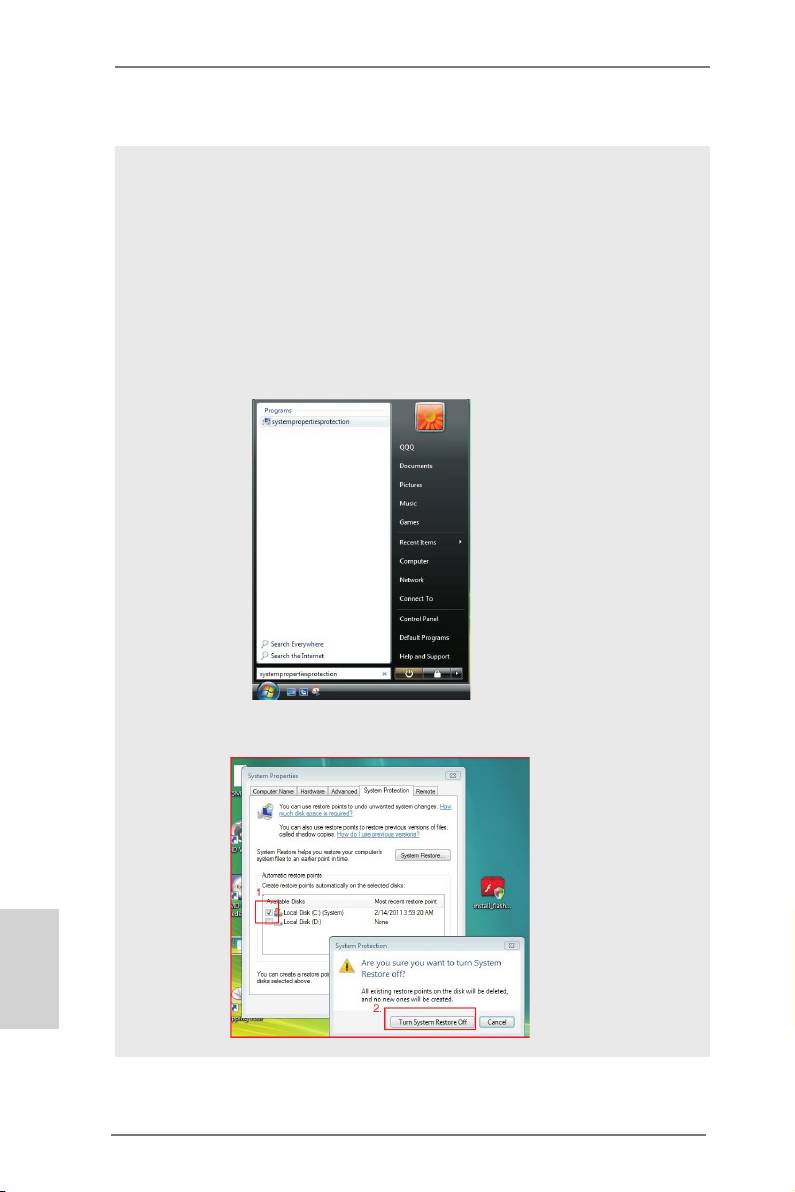

A. Disable System Restore.

a. Type “systempropertiesprotection” in the Start Menu. Then press

"Enter".

b. De-select Local Disks for System Restore. Then Click “Turn System

Restore Off” to conrm. Then Press “Ok”.

English

160

ASRock A55M-HVS Motherboard

B. Disable “Volume Shadow Copy” service.

a. Type “computer management” in the Start Menu, then press “Enter”.

b. Go to “Services and Applications>Services”; Then double click “Volume

Shadow Copy”.

c. Set “Startup type” to “Disable” then Click “OK”.

English

161

ASRock A55M-HVS Motherboard

C. Reboot your system.

D. After reboot, please start to install motherboard drivers and utilities.

®

Windows

7 64-bit:

A. Please request the hotx KB2505454 thru this link:

http://support.microsoft.com/kb/2505454/

®

B. After installing Windows

7 64-bit, install the hotx kb2505454.

(This may take long time; >30 mins.)

C. Reboot your system. (It may take about 5 mins to boot.)

®

D. The Windows

will install this hotx then reboot by itself.

E. Please start to install motherboard drivers and utilities.

17. Finish.
