2.6 Expansion Slots (PCI and PCI Express Slots)

There are 2 PCI slots and 4 PCI Express slots on this motherboard.

PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI

interface.

PCIE slots: PCIE1 (PCIE 2.0 x1 slot) is used for a PCI Express x1 lane width card,

such as a Gigabit LAN card, SATA2 card, etc.

PCIE2 (PCIE 3.0 x16 slot) is used for PCI Express x16 lane width

graphics cards, or to install PCI Express graphics cards to support

TM

TM

CrossFireX

or SLI

function.

PCIE3 (PCIE 3.0 x16 slot) is used for PCI Express x8 lane width graph-

ics cards, or to install PCI Express graphics cards to support CrossFi-

TM

TM

reX

or SLI

function.

PCIE4 (PCIE 2.0 x16 slot) is used for PCI Express x4 lane width graph-

ics cards, or to install PCI Express graphics cards to support 3-Way

TM

CrossFireX

function.

1. In single VGA card mode, it is recommended to install a PCI Express

x16 graphics card on PCIE2 slot.

TM

TM

2. In CrossFireX

mode or SLI

mode, please install the PCI Express

x16 graphics cards on PCIE2 and PCIE3 slots. Therefore, both these

two slots will work at x8 bandwidth.

TM

3. In 3-Way CrossFireX

mode, please install the PCI Express x16

graphics cards in PCIE2, PCIE3 and PCIE4 slots. PCIE2 and PCIE3

will work at x8 bandwidth, while PCIE4 works at x4 bandwidth.

4. Please connect a chassis fan to the motherboard’s chassis fan

connector (CHA_FAN1, CHA_FAN2 or CHA_FAN3) when using

multiple graphics cards for better thermal environment.

5. Only PCIE2 and PCIE3 slots support Gen 3 speed. To run the PCI

Express in Gen 3 speed, please install an Ivy Bridge CPU. If you

install a Sandy Bridge CPU, the PCI Express will run only at PCI

Express Gen 2 speed.

English

21

ASRock Z77 Extreme3 Motherboard

Installing an expansion card

Step 1. Before installing an expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2. Remove the system unit cover (if your motherboard is already installed

in a chassis).

Step 3. Remove the bracket facing the slot that you intend to use. Keep the

screws for later use.

Step 4. Align the card connector with the slot and press rmly until the card is

completely seated on the slot.

Step 5. Fasten the card to the chassis with screws.

Step 6. Replace the system cover.

English

22

ASRock Z77 Extreme3 Motherboard

TM

TM

2.7 SLI

and Quad SLI

Operation Guide

®

TM

TM

This motherboard supports NVIDIA

SLI

and Quad SLI

(Scalable Link Interface)

technology that allows you to install up to two identical PCI Express x16 graphics

®

TM

®

cards. Currently, NVIDIA

SLI

technology supports Windows

XP / XP 64-bit /

TM

TM

®

TM

Vista

/ Vista

64-bit / 7 / 7 64-bit / 8 / 8 64-bit OS. NVIDIA

Quad SLI

technology

®

TM

TM

support Windows

Vista

/ Vista

64-bit / 7 / 7 64-bit / 8 / 8 64-bit OS only. Please

follow the installation procedures in this section.

Requirements

TM

TM

1. For SLI

technology, you should have two identical SLI

-ready graphics

®

TM

cards that are NVIDIA

certied. For Quad SLI

technology, you should

TM

have two identical Quad SLI

-ready graphics cards (dual-GPU on each

®

graphics card) that are NVIDIA

certied.

®

TM

2. Make sure that your graphics card driver supports NVIDIA

SLI

®

technology. Download the driver from NVIDIA

website

(www.nvidia.com).

3. Make sure that your power supply unit (PSU) can provide at least the

minimum power required by your system. It is recommended to use

®

®

NVIDIA

certied PSU. Please refer to NVIDIA

website for details.

2.7.1 Graphics Card Setup

TM

2.7.1.1 Installing Two SLI

-Ready Graphics Cards

TM

®

Step 1. Install the identical SLI

-ready graphics cards that are NVIDIA

certied

because different types of graphics cards will not work together properly.

(Even the GPU chips version shall be the same.) Insert one graphics card

into PCIE2 slot and the other graphics card to PCIE3 slot. Make sure that

the cards are properly seated on the slots.

English

Step2. If required, connect the auxiliary power source to the PCI Express

graphics cards.

23

ASRock Z77 Extreme3 Motherboard

Step3. Align and insert the ASRock SLI_Bridge_2S Card to the goldngers on

each graphics card. Make sure the ASRock SLI_Bridge_2S Card is rmly

in place.

ASRock SLI_Bridge_2S Card

Step4. Connect a VGA cable or a DVI cable to the monitor connector or the DVI

connector of the graphics card that is inserted to PCIE2 slot.

English

24

ASRock Z77 Extreme3 Motherboard

2.7.2 Driver Installation and Setup

Install the graphics card drivers to your system. After that, you can enable the Multi-

®

Graphics Processing Unit (GPU) feature in the NVIDIA

nView system tray utility.

Please follow the below procedures to enable the multi-GPU feature.

®

For Windows

XP / XP 64-bit OS:

TM

(For SLI

mode only)

®

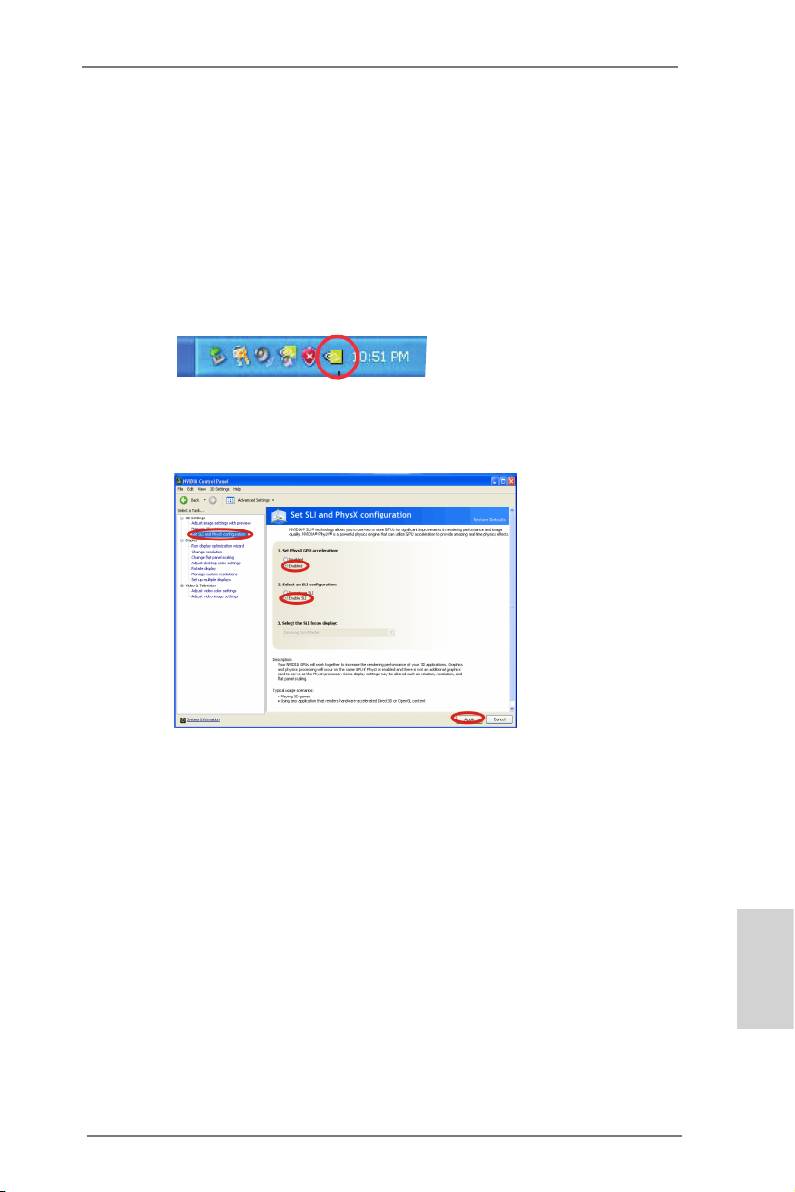

A. Double-click NVIDIA Settings icon on your Windows

taskbar.

B. From the pop-up menu, select Set SLI and PhysX conguration. In

Set PhysX GPU acceleration item, please select Enabled. In Select

an SLI conguration item, please select Enable SLI. And click Apply.

C. Reboot your system.

TM

D. You can freely enjoy the benet of SLI

feature.

English

25

ASRock Z77 Extreme3 Motherboard

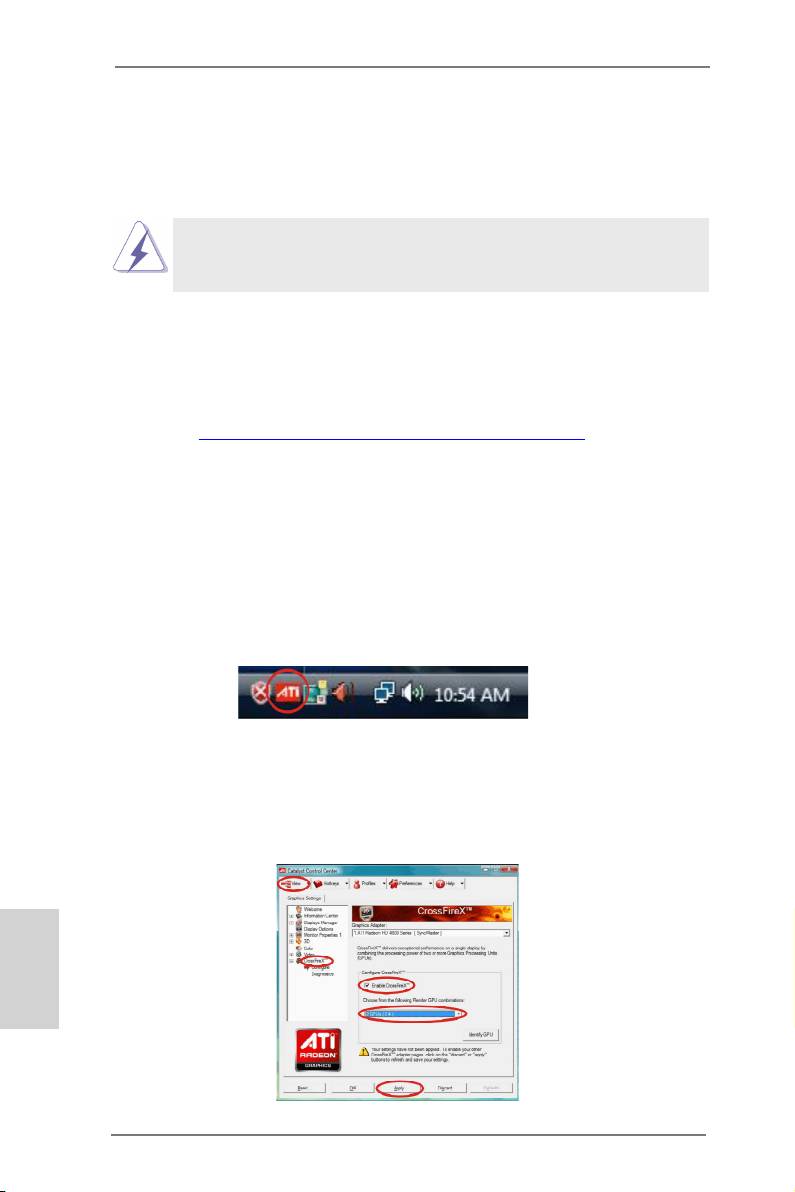

2.9 Jumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose

pin1 and pin2 are “Short” when jumper cap

is placed on these 2 pins.

Jumper Setting Description

Clear CMOS Jumper

(CLRCMOS1)

(see p.2, No. 18)

Clear CMOSDefault

Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the

system parameters to default setup, please turn off the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a

jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,

please do not clear the CMOS right after you update the BIOS. If you need

to clear the CMOS when you just nish updating the BIOS, you must boot

up the system rst, and then shut it down before you do the clear-CMOS ac-

tion. Please be noted that the password, date, time, user default prole, 1394

GUID and MAC address will be cleared only if the CMOS battery is removed.

English

32

ASRock Z77 Extreme3 Motherboard

2.10 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

Serial ATA2 Connectors These four Serial ATA2 (SATA2)

(SATA2_2_3: see p.2, No. 13)

connectors support SATA data

SATA2_3 SATA2_2

(SATA2_4_5: see p.2, No. 14)

cables for internal storage

devices. The current SATA2

interface allows up to 3.0 Gb/s

SATA2_5 SATA2_4

data transfer rate.

Serial ATA3 Connectors These two Serial ATA3 (SATA3)

(SATA3_0_1: see p.2, No. 12)

connectors support SATA data

SATA3_1 SATA3_0

cables for internal storage

devices. The current SATA3

interface allows up to 6.0 Gb/s

data transfer rate.

Serial ATA (SATA) Either end of the SATA data

Data Cable cable can be connected to the

(Optional)

SATA / SATA2 / SATA3 hard

disk or the SATA2 / SATA3

connector on this motherboard.

USB 2.0 Headers Besides four default USB 2.0

(9-pin USB4_5)

ports on the I/O panel, there are

(see p.2, No. 22)

two USB 2.0 headers on this

motherboard. Each USB 2.0

header can support two USB 2.0

ports.

(9-pin USB6_7)

(see p.2, No. 21)

English

33

ASRock Z77 Extreme3 Motherboard

USB 3.0 Header Besides two default USB 3.0

(19-pin USB3_2_3)

ports on the I/O panel, there is

(see p.2, No. 9)

one USB 3.0 header on this

motherboard. This USB 3.0

header can support two USB 3.0

ports.

Infrared Module Header This header supports an

(5-pin IR1)

optional wireless transmitting

(see p.2, No. 26)

and receiving infrared module.

English

34

ASRock Z77 Extreme3 Motherboard

VbusVbus

Vbus

IntA_P5_SSRX-

IntA_P4_SSRX-

IntA_P5_SSRX+

IntA_P4_SSRX+

GND

GND

IntA_P5_SSTX-

IntA_P4_SSTX-

IntA_P5_SSTX+

IntA_P4_SSTX+

GND

GND

IntA_P5_D-

IntA_P4_D-

IntA_P5_D+

IntA_P4_D+

DUMMY

Consumer Infrared Module Header This header can be used to

(4-pin CIR1)

connect the remote

(see p.2 No. 23)

controller receiver.

Front Panel Audio Header This is an interface for front

GND

P RESENCE#

M IC_RET

(9-pin HD_AUDIO1)

panel audio cable that allows

OUT_RET

(see p.2, No. 27)

convenient connection and

1

control of audio devices.

O UT2_L

J _SENSE

O UT2_R

M IC2_R

M IC2_L

1. High Denition Audio supports Jack Sensing, but the panel wire on the

chassis must support HDA to function correctly. Please follow the

instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

header as below:

A. Connect Mic_IN (MIC) to MIC2_L.

B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

C. Connect Ground (GND) to Ground (GND).

D. MIC_RET and OUT_RET are for HD audio panel only. You don’t need

to connect them for AC’97 audio panel.

E. To activate the front mic.

®

For Windows

XP / XP 64-bit OS:

Select “Mixer”. Select “Recorder”. Then click “FrontMic”.

®

TM

TM

For Windows

8 / 8 64-bit / 7 / 7 64-bit / Vista

/ Vista

64-bit OS:

Go to the “FrontMic” Tab in the Realtek Control panel. Adjust

“Recording Volume”.

System Panel Header This header accommodates

(9-pin PANEL1)

several system front panel

(see p.2, No. 16)

functions.

Connect the power switch, reset switch and system status indicator on the

chassis to this header according to the pin assignments below. Note the

positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may congure

the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset

switch to restart the computer if the computer freezes and fails to perform a

normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED

is on when the system is operating. The LED keeps blinking when the sys-

tem is in S1/S3 sleep state. The LED is off when the system is in S4 sleep

state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED

is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly

consists of power switch, reset switch, power LED, hard drive activity LED,

speaker and etc. When connecting your chassis front panel module to this

header, make sure the wire assignments and the pin assign-ments are

matched correctly.

Chassis Speaker Header Please connect the chassis

(4-pin SPEAKER 1)

speaker to this header.

(see p.2, No. 15)

Power LED Header Please connect the chassis

1

(3-pin PLED1)

power LED to this header to

PLED-

PLED+

(see p.2, No. 17)

PLED+

indicate system power status.

The LED is on when the system

English

is operating. The LED keeps

blinking in S1/S3 state. The

LED is off in S4 state or S5

state (power off).

35

ASRock Z77 Extreme3 Motherboard

Chassis and Power Fan Connectors Please connect the fan cables

(4-pin CHA_FAN1)

to the fan connectors and match

(see p.2, No. 20)

the black wire to the ground pin.

GND

FAN_SPEED_CONTROL

+12V

CHA_FAN_SPEED

CHA_FAN1, CHA_FAN2 and

(3-pin CHA_FAN2)

CHA_FAN3 support Fan

(see p.2, No. 34)

Control.

(3-pin CHA_FAN3)

(see p.2, No. 10)

(3-pin PWR_FAN1)

(see p.2, No. 5)

CPU Fan Connectors Please connect the CPU fan

FAN_S PEED_CONTROL

CPU_FAN_SPEED

(4-pin CPU_FAN1)

cable to the connector and

+ 12V

(see p.2, No. 3)

GND

match the black wire to the

ground pin.

1 2 3 4

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

CPU fan still can work successfully even without the fan speed control function.

If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this

motherboard, please connect it to Pin 1-3.

Pin 1-3 Connected

3-Pin Fan Installation

(3-pin CPU_FAN2)

GND

+ 12V

(see p.2, No. 4)

CPU_FAN_SPEED

ATX Power Connector Please connect an ATX power

12

24

(24-pin ATXPWR1)

supply to this connector.

(see p.2, No. 8)

1

13

English

Though this motherboard provides 24-pin ATX power connector,

12

24

it can still work if you adopt a traditional 20-pin ATX power supply.

To use the 20-pin ATX power supply, please plug your

power supply along with Pin 1 and Pin 13.

20-Pin ATX Power Supply Installation

1

13

36

ASRock Z77 Extreme3 Motherboard

ATX 12V Power Connector Please connect an ATX 12V

8 5

(8-pin ATX12V1)

power supply to this connector.

4 1

(see p.2, No. 1)

Though this motherboard provides 8-pin ATX 12V power connector, it can still work

if you adopt a traditional 4-pin ATX 12V power supply. To use the 4-pin ATX power

supply, please plug your power supply along with Pin 1 and Pin 5.

8 5

4-Pin ATX 12V Power Supply Installation

4 1

Serial port Header This COM1 header supports a

(9-pin COM1)

serial port module.

(see p.2, No. 24)

HDMI_SPDIF Header HDMI_SPDIF header, providing

1

(2-pin HDMI_SPDIF1)

SPDIF audio output to HDMI

GND

SPDIFOUT

(see p.2, No. 25)

VGA card, allows the system to

connect HDMI Digital TV/

projector/LCD devices. Please

connect the HDMI_SPDIF

connector of HDMI VGA card to

this header.

English

37

ASRock Z77 Extreme3 Motherboard

2.11 Driver Installation Guide

To install the drivers to your system, please insert the support CD to your optical

drive rst. Then, the drivers compatible to your system can be auto-detected and

listed on the support CD driver page. Please follow the order from up to bottom side

to install those required drivers. Therefore, the drivers you install can work properly.

®

TM

2.12 Installing Windows

8 / 8 64-bit / 7 / 7 64-bit / Vista

/

TM

Vista

64-bit With RAID Functions

®

TM

TM

If you want to install Windows

8 / 8 64-bit / 7 / 7 64-bit / Vista

/ Vista

64-bit

on your SATA / SATA2 / SATA3 HDDs with RAID functions, please refer to the

document at the following path in the Support CD for detailed procedures:

..\ RAID Installation Guide

®

RAID mode is not supported under Windows

XP / XP 64-bit.

®

TM

2.13 Installing Windows

8 / 8 64-bit / 7 / 7 64-bit / Vista

/

TM

Vista

64-bit / XP / XP 64-bit Without RAID Functions

®

TM

TM

If you want to install Windows

8 / 8 64-bit / 7 / 7 64-bit / Vista

/ Vista

64-bit / XP

/ XP 64-bit OS on your SATA / SATA2 / SATA3 HDDs without RAID functions, please

follow below procedures according to the OS you install.

®

2.13.1 Installing Windows

XP / XP 64-bit Without RAID

Functions

®

If you want to install Windows

XP / XP 64-bit OS on your SATA / SATA2 / SATA3

HDDs without RAID functions, please follow below steps.

®

AHCI mode is not supported under Windows

XP / XP 64-bit.

English

Using SATA / SATA2 / SATA3 HDDs without NCQ function

STEP 1: Set Up UEFI.

A. Enter UEFI SETUP UTILITY Advanced screen Storage Conguration.

B. Set the option “SATA Mode Selection” to [IDE].

®

STEP 2: Install Windows

XP / XP 64-bit OS on your system.

38

ASRock Z77 Extreme3 Motherboard

®

TM

2.13.2 Installing Windows

8 / 8 64-bit / 7 / 7 64-bit / Vista

/

TM

Vista

64-bit Without RAID Functions

®

TM

TM

If you want to install Windows

8 / 8 64-bit / 7 / 7 64-bit / Vista

/ Vista

64-bit OS

on your SATA / SATA2 / SATA3 HDDs without RAID functions, please follow below

steps.

Using SATA / SATA2 / SATA3 HDDs without NCQ function

STEP 1: Set Up UEFI.

A. Enter UEFI SETUP UTILITY Advanced screen Storage Conguration.

B. Set the option “SATA Mode Selection” to [IDE].

®

TM

TM

STEP 2: Install Windows

8 / 8 64-bit / 7 / 7 64-bit / Vista

/ Vista

64-bit OS on

your system.

Using SATA / SATA2 / SATA3 HDDs with NCQ function

STEP 1: Set Up UEFI.

A. Enter UEFI SETUP UTILITY Advanced screen Storage Conguration.

B. Set the option “SATA Mode Selection” to [AHCI].

®

TM

TM

STEP 2: Install Windows

8 / 8 64-bit / 7 / 7 64-bit / Vista

/ Vista

64-bit OS on

your system.

English

39

ASRock Z77 Extreme3 Motherboard

3. BIOS Information

The Flash Memory on the motherboard stores BIOS Setup Utility. When you start up

the computer, please press <F2> or <Del> during the Power-On-Self-Test (POST)

to enter BIOS Setup utility; otherwise, POST continues with its test routines. If you

wish to enter BIOS Setup after POST, please restart the system by pressing <Ctl>

+ <Alt> + <Delete>, or pressing the reset button on the system chassis. The BIOS

Setup program is designed to be user-friendly. It is a menu-driven program, which

allows you to scroll through its various sub-menus and to select among the prede-

termined choices. For the detailed information about BIOS Setup, please refer to the

User Manual (PDF le) contained in the Support CD.

4. Software Support CD information

®

®

This motherboard supports various Microsoft

Windows

operating systems: 8 / 8

TM

TM

64-bit / 7 / 7 64-bit / Vista

/ Vista

64-bit / XP / XP 64-bit. The Support CD that

came with the motherboard contains necessary drivers and useful utilities that will

enhance motherboard features. To begin using the Support CD, insert the CD into

your CD-ROM drive. It will display the Main Menu automatically if “AUTORUN” is

enabled in your computer. If the Main Menu does not appear automatically, locate

and double-click on the le “ASSETUP.EXE” from the BIN folder in the Support CD

to display the menus.

English

40

ASRock Z77 Extreme3 Motherboard
