PL-100

PowerLine 85 Mbps Ethernet Adapter

Quick Start Guide

Version 1.00

Edition 1

4/2005

Table of Contents

ENGLISH 1

DEUTSCH 5

ESPAÑOL 9

FRANÇAIS 13

ITALIANO 17

РУССКИЙ 21

SVENSKA 25

繁體中文 29

ENGLISH

ENGLISH

The PL-100 PowerLine 85 Mbps Ethernet Adapter transforms a house’s existing

electrical wiring into a powerful networking infrastructure. The PL-100 plugs into an

ordinary outlet to easily extend a cable/DSL broadband connection or existing

Ethernet (LAN) network to any other electrical outlet in any room of a house, all

without the need for any new cabling.

The PL-100 supports up to an 85 Mbps data rate over common power lines while

providing 56-bit DES Link Encryption for a safe and secure network. Easy to install,

simply plug the PL-100 into an outlet and connect it to any broadband modem or

router, and then plug each PC, home entertainment device, gaming console or

network-ready printer into a power socket with another PL-100.

Key Features

• Up to an 85 Mbps data rate over power lines

• No new wiring to install

• HomePlug V1.01 compatible

Connections

1

ENGLISH

Connecting the PL-100 to a Cable/DSL Modem and Ethernet Switch

1 Connect an Ethernet cable to the port on the PL-100.

2 Connect the other end of this Ethernet cable to an available Ethernet LAN

port of your router or switch (or modem-router device).

3 Plug the PL-100 into a wall socket.

4 Confirm that the PWR, LINK and ETHN LEDs on the PL-100 are on.

5 Install software (PL-100 Configuration Utility) from the ZyXEL resource CD

(see User’s Guide for detailed software installation and setup).

2

ENGLISH

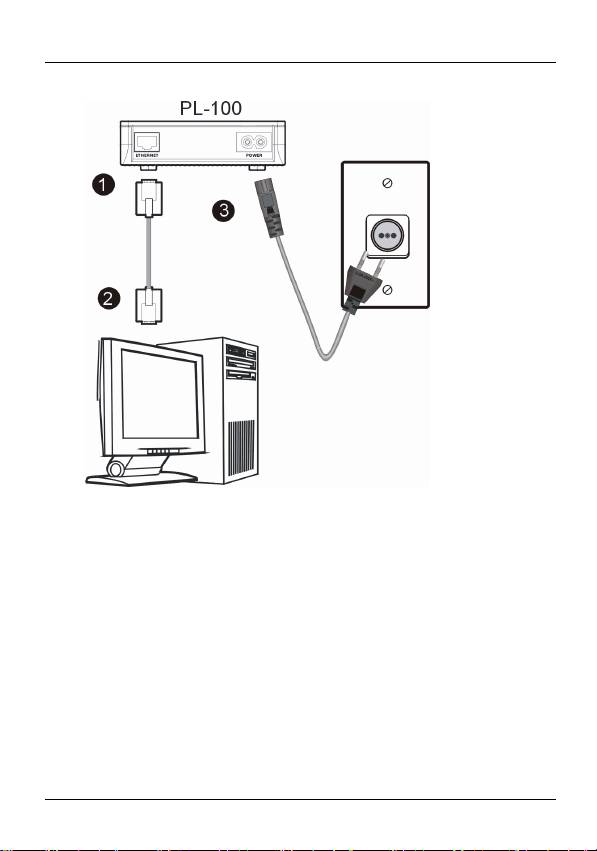

Connecting the PL-100 to a Computer

1 Connect an Ethernet cable to the port on the PL-100.

2 Connect the other end of this Ethernet cable to the Ethernet port of your

computer.

3 Plug the PL-100 into a wall socket that is near your computer.

4 Confirm that the PWR, LINK and ETHN LEDs on the PL-100 are on.

Troubleshooting

The PWR LED is off when the PL-100 is plugged into an outlet.

• Make sure the outlet is working by plugging another electric device into it. If it

is working, plug in the PL-100 again. If the PL-100 LED still does not light,

contact our technical support.

The

LINK

LED is off and the PL-100 is not detecting another Homeplug device.

3

ENGLISH

• Use the PL-100 Configuration Utility to detect all other Homeplug devices on

your power line network. Try plugging a second Homeplug device into an

adjacent socket (to your PL-100) and see if the lights light up. If you are still

having a problem, please contact our technical support line.

The

ETHN

LED is off, the Ethernet port does not detect a LAN connection.

• Check the Ethernet adapter on your computer and make sure it’s enabled and

working properly.

Check that all Ethernet cables are securely connected at all ports and are the

correct type (Cat-5 or higher).

4
