Drive Useful information

The speed is set by using the differently adjusting

wheel. The motor speed can be read off the LED

display. For example, a value of 13.6 corresponds

to 13,600 rpm.

The drive unit opens up a wide range of possibili-

ties for dispersion technology in the conventional

laboratory with a respective performance output

of approximately 500 watts at 25,000 rpm.

The dispersion effectiveness is heavily dependent

on the product of the shear gradient and the time

the particles spend in the shear zone. The opti-

mum range for the circumferential velocity of the

rotor/stator arrangement is 6-24 m/s.

A processing time of a few minutes is usually

sufficient to produce the desired fineness. Long

processing times bring only insignificant impro-

vements in the obtainable fineness; the energy

expended serves merely to increase the tempera-

ture of the medium.

Dispersion is the dissolution and diffusion of a so-

lid, liquid or gaseous phase in a liquid that is not

consolute with that phase.

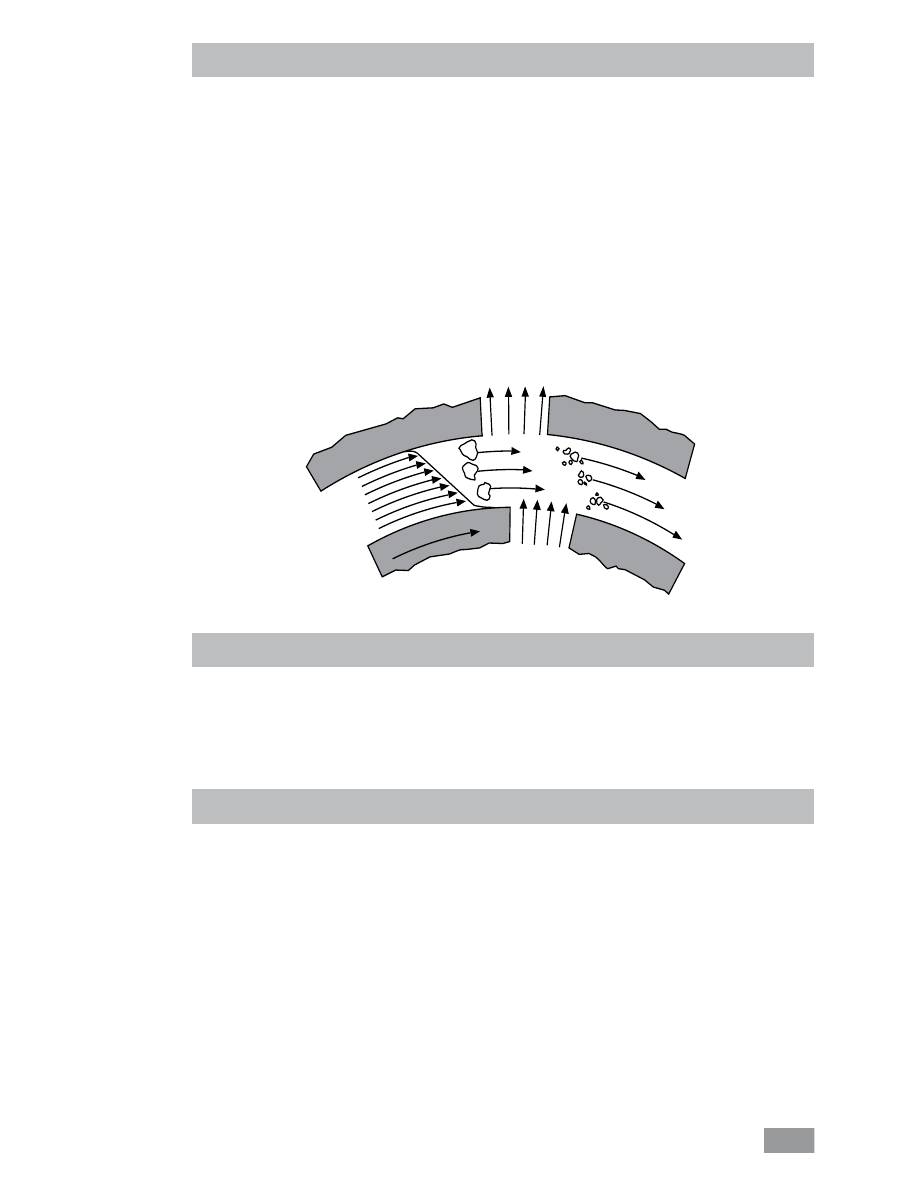

The rotor/stator principle

Due to the high rotation speed of the rotor, the

medium to be processed is automatically drawn

axially into the dispersion head and then forced

radially through the slots in the rotor/stator arran-

gement. The high accelerations acting on the ma-

terial produce extremely strong shear and thrust

forces. In addition, high turbulence occurs in the

shear gap between rotor and stator, which provi-

des optimum mixing of the suspension.

R O

T O

R

S T

AT

O R

Assembly of boom and stand

To ensure safe operation the driving unit is faste-

ned to the plate stand R 1826 (pos. 5) by means

of a cross sleeve (pos. 3).

In order to enhance the stability of the mecha-

nical arrangement, the driving unit has to be

mounted as close as possible to the stand pillar

The delivered extension arm is mounted as fol-

lows (overview fig. 1):

• Insert extension arm (pos. 1) into flange

• Screw in the cheese head screw  (pos. 2)

•  Firmly  tighten  cheese  head  screw    (pos.  2)

   using the DIN 911 A/f 4 screwdriver

Vibrations may cause the cylinder head screw

(pos. 2) to loosen. Therefore, for your own sa-

fety, periodically check that the extension arm is

secure. If necessary, retighten the cylinder head

screw (pos. 2).
