TM

TM

2.7 SLI

and Quad SLI

Operation Guide

®

TM

TM

This motherboard supports NVIDIA

SLI

and Quad SLI

(Scalable Link Interface)

technology that allows you to install up to two identical PCI Express x16 graphics

®

TM

®

®

cards. Currently, NVIDIA

SLI

technology supports all Windows

OS. NVIDIA

TM

®

TM

Quad SLI

technology supports Windows

Vista

/ 7 / 8 OS only. Please follow the

installation procedures in this section.

Requirements

TM

TM

1. For SLI

technology, you should have two identical SLI

-ready graphics

®

cards that are NVIDIA

certied. For Quad SLI technology, you should have

two identical Quad SLI ready graphics cards (dual-GPU on each graphics

card) that are NVIDIA certied.

®

TM

2. Make sure that your graphics card driver supports NVIDIA

SLI

technology.

®

Download the driver from NVIDIA

website (www.nvidia.com).

3. Make sure that your power supply unit (PSU) can provide at least the

®

minimum power required by your system. It is recommended to use NVIDIA

®

certied PSU. Please refer to NVIDIA

website for details.

2.7.1 Graphics Card Setup

TM

2.7.1.1 Installing Two SLI

-Ready Graphics Cards

TM

®

Step 1. Install the identical SLI

-ready graphics cards that are NVIDIA

certied

because different types of graphics cards will not work together properly.

(Even the GPU chips version shall be the same.) Insert one graphics card

into PCIE2 slot and the other graphics card to PCIE4 slot. Make sure that

the cards are properly seated on the slots.

English

Step2. If required, connect the auxiliary power source to the PCI Express

graphics cards.

21

ASRock Z77 Extreme6/TB4 Motherboard

Step3. Align and insert the ASRock SLI_Bridge_2S Card to the goldngers on

each graphics card. Make sure the ASRock SLI_Bridge_2S Card is rmly

in place.

ASRock SLI_Bridge_2S Card

Step4. Connect a VGA cable or a DVI cable to the monitor connector or the DVI

connector of the graphics card that is inserted into PCIE2 slot.

English

22

ASRock Z77 Extreme6/TB4 Motherboard

2.7.2 Driver Installation and Setup

Install the graphics card drivers to your system. After that, you can enable the Multi-

®

Graphics Processing Unit (GPU) feature in the NVIDIA

nView system tray utility.

Please follow the below procedures to enable the multi-GPU feature.

®

For Windows

XP / XP 64-bit OS:

TM

(For SLI

mode only)

®

A. Double-click NVIDIA Settings icon on your Windows

taskbar.

B. From the pop-up menu, select Set SLI and PhysX conguration. In

Set PhysX GPU acceleration item, please select Enabled. In Select

an SLI conguration item, please select Enable SLI. And click Apply.

C. Reboot your system.

TM

D. You can freely enjoy the benets of SLI

.

English

23

ASRock Z77 Extreme6/TB4 Motherboard

®

TM

TM

For Windows

Vista

/ Vista

64-bit / 7 / 7 64-bit / 8 / 8 64-bit OS:

TM

TM

(For SLI

and Quad SLI

mode)

A. Click the Start icon on your Windows taskbar.

B. From the pop-up menu, select All Programs, and then click NVIDIA

Corporation.

C. Select NVIDIA Control Panel tab.

D. Select Control Panel tab.

E. From the pop-up menu, select Set SLI and PhysX conguration. In

Set PhysX GPU acceleration item, please select Enabled. In Select

an SLI conguration item, please select Enable SLI. And click Apply.

English

F. Reboot your system.

TM

TM

G. You can freely enjoy the benets of SLI

or Quad SLI

.

TM

®

* SLI

appearing here is a registered trademark of NVIDIA

Technologies Inc., and is used

only for identication or explanation and to the owners’ benet, without intent to infringe.

24

ASRock Z77 Extreme6/TB4 Motherboard

TM

TM

2.8 CrossFireX

and Quad CrossFireX

Operation Guide

TM

TM

TM

This motherboard supports CrossFireX

and Quad CrossFireX

. CrossFireX

technology offers the most advantageous means available of combining multiple

high performance Graphics Processing Units (GPU) in a single PC. Combining a

range of different operating modes with intelligent software design and an innovative

TM

interconnect mechanism, CrossFireX

enables the highest possible level of

TM

performance and image quality in any 3D application. Currently CrossFireX

is

®

TM

®

supported by all Windows

OS. Quad CrossFireX

is supported by Windows

TM

TM

Vista

/ 7 / 8 OS only. Please check AMD’s website for AMD CrossFireX

driver

updates.

1. If a customer incorrectly congures their system they will not see the performance

TM

TM

TM

benets of CrossFireX

. All three CrossFireX

components, a CrossFireX

TM

TM

Ready graphics card, a CrossFireX

Ready motherboard and a CrossFireX

Edition co-processor graphics card, must be installed correctly to benet from the

TM

CrossFireX

multi-GPU platform.

TM

2. If you pair a 12-pipe CrossFireX

Edition card with a 16-pipe card, both cards

TM

will operate as 12-pipe cards while in CrossFireX

mode.

TM

2.8.1 Installing Two CrossFireX

-Ready Graphics Cards

TM

TM

Different CrossFireX

cards may require different methods to enable CrossFireX

TM

feature. For other CrossFireX

cards that AMD has released or will release in the

future, please refer to AMD graphics card manuals for detailed installation guide.

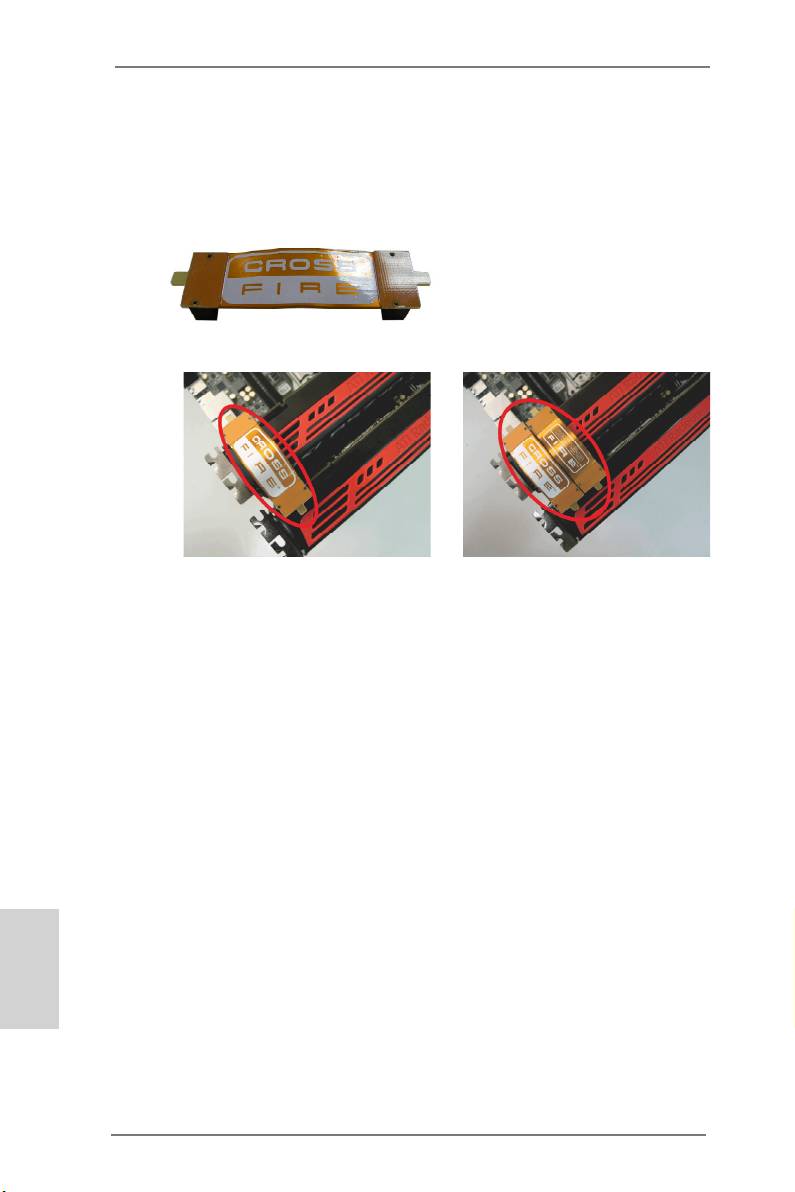

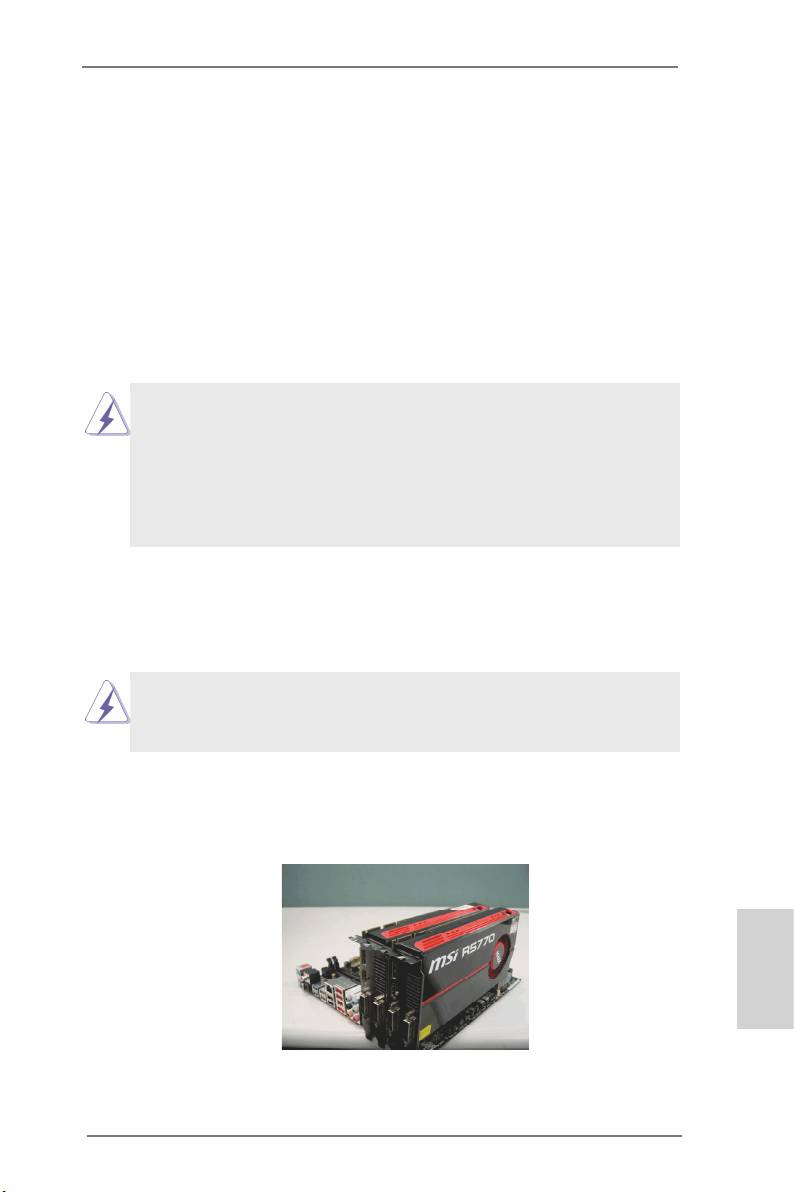

Step 1. Insert one Radeon graphics card into PCIE2 slot and the other Radeon

graphics card to PCIE4 slot. Make sure that the cards are properly seated

on the slots.

English

25

ASRock Z77 Extreme6/TB4 Motherboard

®

TM

TM

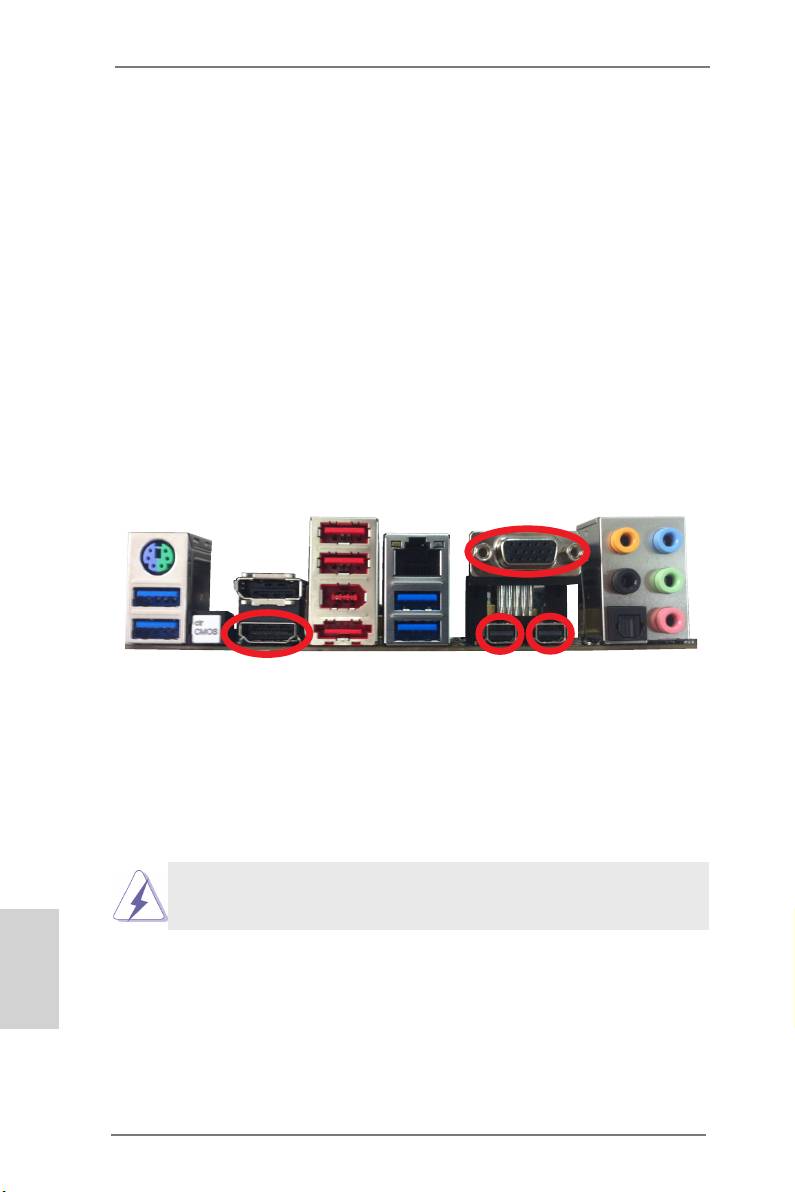

For Windows

8 / 8 64-bit / 7 / 7 64-bit / Vista

/ Vista

64-bit OS:

Right click the desktop, choose “Personalize”, and select the “Display

Settings” tab so that you can adjust the parameters of the multi-monitors

according to the steps below.

A. Click the number ”2” icon.

B. Click the items “This is my main monitor” and “Extend the desktop onto

this monitor”.

C. Click “OK” to save your change.

D. Repeat steps A through C for the display icons identied by the

numbers.

6. Use Surround Display. Click and drag the display icons to positions representing

the physical setup of your monitors that you would like to use. The placement of

display icons determines how you move items from one monitor to another.

HDCP

HDCP is supported on this motherboard. To use HDCP with this

motherboard, you need to adopt a monitor that supports HDCP

as well. Therefore, you can enjoy the superior display quality

with high-denition HDCP encryption contents. Please refer to

the instructions below for more details about HDCP.

What is HDCP?

HDCP stands for High-Bandwidth Digital Content Protection, a

®

specication developed by Intel

for protecting digital

entertainment content that uses the DVI interface. HDCP is a

copy protection scheme to eliminate the possibility of

intercepting digital data midstream between the video source,

or transmitter - such as a computer, DVD player or set-top box -

and the digital display, or receiver - such as a monitor, television

or projector. In other words, HDCP specication is designed to

protect the integrity of content as it is being transmitted.

English

Products compatible with the HDCP scheme such as DVD

players, satellite and cable HDTV set-top-boxes, as well as few

entertainment PCs requires a secure connection to a compliant

display. Due to the increase in manufacturers employing HDCP

in their equipment, it is highly recommended that the HDTV or

LCD monitor you purchase is compatible.

32

ASRock Z77 Extreme6/TB4 Motherboard

2.11 ASRock Smart Remote Installation Guide

ASRock Smart Remote is only used for ASRock motherboards with a CIR header.

Please refer to the procedures below for the quick installation and usage of ASRock

Smart Remote.

Step1. Find the CIR header located next

to the USB 2.0 header on your

USB 2.0 header (9-pin, black)

ASRock motherboard.

CIR header (4-pin, gray)

USB_PWR

Step2. Connect the front USB cable to the

P-

USB 2.0 header (as below, pin 1-5)

P+

and the CIR header. Please make

GND

DUMMY

sure the wire assignments and the

pin assignments are matched

correctly.

GND

IRTX

IRRX

ATX+5VSB

Step3. Install the Multi-Angle CIR Receiver to the front USB port.

Step4. Boot up your system. Press <F2> or <Del> to enter the BIOS Setup Utility.

Make sure the option "CIR Controller" is set to [Enabled].

(Advanced -> Super IO Conguration -> CIR Controller -> [Enabled])

If you cannot nd this option, please shut down your system and install

the Multi-Angle CIR Receiver to the other front USB port then try again.

Step5. Enter Windows. Execute ASRock's support CD and install the CIR Driver.

(It is listed at the bottom of driver list.)

English

33

ASRock Z77 Extreme6/TB4 Motherboard

3 CIR sensors in different angles

1. Only one of the front USB ports can support CIR. When CIR is

enabled, the other ports will remain USB ports.

2. The Multi-Angle CIR Receiver is used for the front USB only.

Please do not use the rear USB bracket to connect it on the rear

panel. The Multi-Angle CIR Receiver can receive multi-directional

infrared signals (top, down and front), which is compatible with

most of the chassis on the market.

3. The Multi-Angle CIR Receiver does not support Hot-Plug. Please

install it before you boot the system.

* ASRock Smart Remote is only supported by some ASRock motherboards. Please refer to

ASRock's website for the motherboard support list: http://www.asrock.com

English

34

ASRock Z77 Extreme6/TB4 Motherboard

2.12 Jumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose

pin1 and pin2 are “Short” when jumper cap

is placed on these 2 pins.

Jumper Setting Description

Clear CMOS Jumper

(CLRCMOS1)

(see p.2, No. 21)

Clear CMOSDefault

Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the

system parameters to default setup, please turn off the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a

jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,

please do not clear the CMOS right after you update the BIOS. If you need

to clear the CMOS when you just nish updating the BIOS, you must boot

up the system rst, and then shut it down before you do the clear-CMOS ac-

tion. Please be noted that the password, date, time, user default prole, 1394

GUID and MAC address will be cleared only if the CMOS battery is removed.

The Clear CMOS Switch has the same function as the Clear CMOS

jumper.

English

35

ASRock Z77 Extreme6/TB4 Motherboard

2.13 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

Serial ATA2 Connectors These four Serial ATA2 (SATA2)

(SATA2_2_3: see p.2, No. 13)

connectors support SATA data

(SATA2_4_5: see p.2, No. 14)

cables for internal storage

devices. The current SATA2

interface allows up to 3.0 Gb/s

data transfer rate.

SATA2_4 SATA2_2

SATA2_5 SATA2_3

Serial ATA3 Connectors These four Serial ATA3 (SATA3)

(SATA3_A1_A2: see p.2, No. 11)

connectors support SATA data

(SATA3_0_1: see p.2, No. 12)

cables for internal storage

devices. The current SATA3

interface allows up to 6.0 Gb/s

data transfer rate. If the eSATA3

SATA3_0 SATA3_A1

SATA3_1 SATA3_A2

port on the rear I/O has been

connected, the internal

SATA3_A2 will not funtion.

Serial ATA (SATA) Either end of the SATA data

Data Cable cable can be connected to the

(Optional)

SATA / SATA2 / SATA3 hard

disk or the SATA2 / SATA3

connector on this motherboard.

English

USB 2.0 Headers Besides two default USB 2.0

(9-pin USB2_3)

ports on the I/O panel, there are

(see p.2, No. 25)

three USB 2.0 headers on this

motherboard. Each USB 2.0

header can support two USB 2.0

ports.

36

ASRock Z77 Extreme6/TB4 Motherboard

(9-pin USB4_5)

(see p.2, No. 26)

(9-pin USB6_7)

(see p.2, No. 27)

USB 3.0 Header Besides four default USB 3.0

(19-pin USB3_4_5)

ports on the I/O panel, there is

(see p.2, No. 8)

one USB 3.0 header on this

motherboard. This USB 3.0

header can support two USB 3.0

ports.

Infrared Module Header This header supports an

(5-pin IR1)

optional wireless transmitting

(see p.2, No. 30)

and receiving infrared module.

Consumer Infrared Module Header This header can be used to

(4-pin CIR1)

connect the remote controller

(see p.2, No. 28)

receiver.

Front Panel Audio Header This is an interface for front

(9-pin HD_AUDIO1)

panel audio cable that allows

(see p.2, No. 32)

convenient connection and

English

control of audio devices.

37

ASRock Z77 Extreme6/TB4 Motherboard

1. High Denition Audio supports Jack Sensing, but the panel wire on the

chassis must support HDA to function correctly. Please follow the

instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

header as below:

A. Connect Mic_IN (MIC) to MIC2_L.

B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

C. Connect Ground (GND) to Ground (GND).

D. MIC_RET and OUT_RET are for HD audio panel only. You don’t need

to connect them for AC’97 audio panel.

E. To activate the front mic.

®

For Windows

XP / XP 64-bit OS:

Select “Mixer”. Select “Recorder”. Then click “FrontMic”.

®

TM

TM

For Windows

8 / 8 64-bit / 7 / 7 64-bit / Vista

/ Vista

64-bit OS:

Go to the “FrontMic” Tab in the Realtek Control panel. Adjust

“Recording Volume”.

System Panel Header This header accommodates

(9-pin PANEL1)

several system front panel

(see p.2, No. 20)

functions.

Connect the power switch, reset switch and system status indicator on the

chassis to this header according to the pin assignments below. Note the

positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may congure

the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset

switch to restart the computer if the computer freezes and fails to perform a

normal restart.

PLED (System Power LED):

English

Connect to the power status indicator on the chassis front panel. The LED

is on when the system is operating. The LED keeps blinking when the sys-

tem is in S1/S3 sleep state. The LED is off when the system is in S4 sleep

state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED

is on when the hard drive is reading or writing data.

38

ASRock Z77 Extreme6/TB4 Motherboard

The front panel design may differ by chassis. A front panel module mainly

consists of power switch, reset switch, power LED, hard drive activity LED,

speaker and etc. When connecting your chassis front panel module to this

header, make sure the wire assignments and the pin assign-ments are

matched correctly.

Chassis Speaker Header Please connect the chassis

(4-pin SPEAKER 1)

speaker to this header.

(see p.2, No. 22)

Power LED Header Please connect the chassis

(3-pin PLED1)

power LED to this header to

(see p.2, No. 18)

indicate system power status.

The LED is on when the system

is operating. The LED keeps

blinking in S1/S3 state. The

LED is off in S4 state or S5

state (power off).

Chassis and Power Fan Connectors Please connect the fan cables

(4-pin CHA_FAN1)

to the fan connectors and match

(see p.2, No. 23)

the black wire to the ground pin.

CHA_FAN1, CHA_FAN2 and

(3-pin CHA_FAN2)

CHA_FAN3 supports Fan

(see p.2, No. 41)

Control.

(3-pin CHA_FAN3)

(see p.2, No. 24)

(3-pin PWR_FAN1)

(see p.2, No. 9)

39

ASRock Z77 Extreme6/TB4 Motherboard

FAN_SPEED

+12V

GND

CPU Fan Connectors Please connect the CPU fan

(4-pin CPU_FAN1)

cable to the connector and

(see p.2, No. 3)

match the black wire to the

ground pin.

English

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

CPU fan still can work successfully even without the fan speed control function.

If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this

motherboard, please connect it to Pin 1-3.

Pin 1-3 Connected

3-Pin Fan Installation

(3-pin CPU_FAN2)

FAN_SPEED

(see p.2, No. 4)

+12V

GND

12

24

ATX Power Connector Please connect an ATX power

(24-pin ATXPWR1)

supply to this connector.

(see p.2, No. 7)

1

13

Though this motherboard provides 24-pin ATX power connector,

12

24

it can still work if you adopt a traditional 20-pin ATX power supply.

To use the 20-pin ATX power supply, please plug your

power supply along with Pin 1 and Pin 13.

20-Pin ATX Power Supply Installation

1

13

8 5

ATX 12V Power Connector Please connect an ATX 12V

(8-pin ATX12V1)

power supply to this connector.

(see p.2, No. 1)

4 1

Though this motherboard provides 8-pin ATX 12V power connector, it can still work

if you adopt a traditional 4-pin ATX 12V power supply. To use the 4-pin ATX power

supply, please plug your power supply along with Pin 1 and Pin 5.

8 5

English

4-Pin ATX 12V Power Supply Installation

4 1

40

ASRock Z77 Extreme6/TB4 Motherboard
