2.6 Expansion Slots (PCI Express Slots)

There are 4 PCI Express slots on this motherboard.

PCIE slots: PCIE1 (PCIE 3.0 x16 slot) is used for PCI Express x16 lane width

graphics cards, or to install PCI Express graphics cards to support

TM

TM

CrossFireX

or SLI

function.

PCIE2 (PCIE 2.0 x1 slot) is used for a PCI Express x1 lane width card,

such as a Gigabit LAN card, SATA2 card, etc.

PCIE3 (PCIE 3.0 x16 slot) is used for PCI Express x8 lane width graph-

ics cards, or to install PCI Express graphics cards to support CrossFi-

TM

TM

reX

or SLI

function.

PCIE4 (PCIE 2.0 x16 slot) is used for PCI Express x4 lane width graph-

ics cards, or to install PCI Express graphics cards to support 3-Way

TM

CrossFireX

. And for installing ASRock Game Blaster.

1. In single VGA card mode, it is recommended to install a PCI Express

x16 graphics card on PCIE1 slot.

TM

TM

2. In CrossFireX

mode or SLI

mode, please install the PCI Express

x16 graphics cards on PCIE1 and PCIE3 slots. Therefore, both these

two slots will work at x8 bandwidth.

TM

3. In 3-Way CrossFireX

mode, please install PCI Express x16

graphics cards on PCIE1, PCIE3 and PCIE4 slots. Therefore, PCIE1

and PCIE3 slots will work at x8 bandwidth while PCIE4 slot will work

at x4 bandwidth.

4. Please connect a chassis fan to the motherboard’s chassis fan

connector (CHA_FAN1 or CHA_FAN2) when using multiple graphics

cards for better thermal environment.

5. Only PCIE1 and PCIE3 slots support Gen 3 speed. To run the PCI

Express in Gen 3 speed, please install an Ivy Bridge CPU. If you

install a Sandy Bridge CPU, the PCI Express will run only at PCI

Express Gen 2 speed.

Installing an expansion card

Step 1. Before installing an expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2. Remove the system unit cover (if your motherboard is already installed

in a chassis).

Step 3. Remove the bracket facing the slot that you intend to use. Keep the

English

screws for later use.

Step 4. Align the card connector with the slot and press rmly until the card is

completely seated on the slot.

Step 5. Fasten the card to the chassis with screws.

Step 6. Replace the system cover.

21

Fatal1ty Z77 Professional-M Series Motherboard

TM

TM

2.7 SLI

and Quad SLI

Operation Guide

®

TM

TM

This motherboard supports NVIDIA

SLI

and Quad SLI

(Scalable Link Interface)

technology that allows you to install up to two identical PCI Express x16 graphics

®

TM

®

cards. Currently, NVIDIA

SLI

technology supports Windows

XP / XP 64-bit /

TM

TM

®

TM

Vista

/ Vista

64-bit / 7 / 7 64-bit OS. NVIDIA

Quad SLI

technology support

®

TM

TM

Windows

Vista

/ Vista

64-bit / 7 / 7 64-bit OS only. Please follow the installation

procedures in this section.

Requirements

1. For SLITM technology, you should have two identical SLITM-ready graphics

®

cards that are NVIDIA

certied. For Quad SLITM technology, you should

have two identical Quad SLITM-ready graphics cards (dual-GPU on each

®

graphics card) that are NVIDIA

certied.

®

TM

2. Make sure that your graphics card driver supports NVIDIA

SLI

®

technology. Download the driver from NVIDIA

website

(www.nvidia.com).

3. Make sure that your power supply unit (PSU) can provide at least the

minimum power required by your system. It is recommended to use

®

®

NVIDIA

certied PSU. Please refer to NVIDIA

website for details.

2.7.1 Graphics Card Setup

TM

2.7.1.1 Installing Two SLI

-Ready Graphics Cards

TM

®

Step 1. Install the identical SLI

-ready graphics cards that are NVIDIA

certied

because different types of graphics cards will not work together properly.

(Even the GPU chips version shall be the same.) Insert one graphics card

into PCIE1 slot and the other graphics card to PCIE3 slot. Make sure that

the cards are properly seated on the slots.

English

Step2. If required, connect the auxiliary power source to the PCI Express

graphics cards.

22

Fatal1ty Z77 Professional-M Series Motherboard

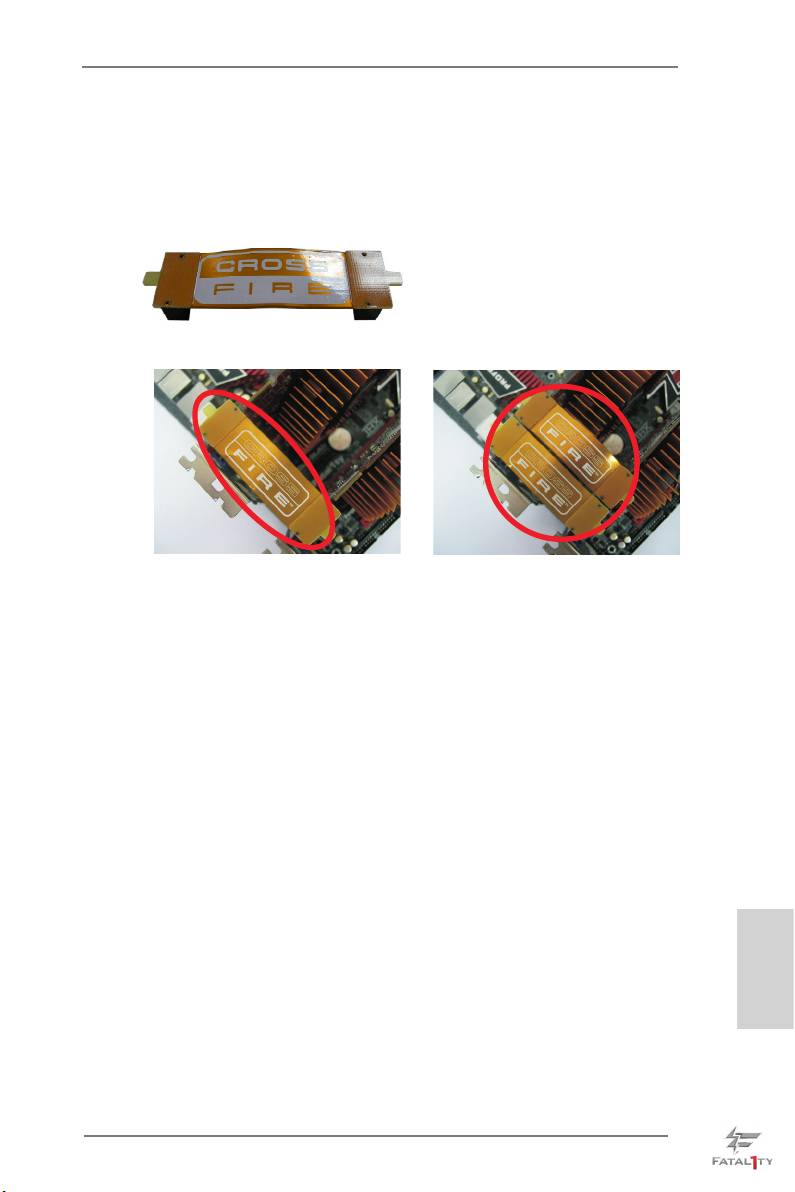

Step3. Align and insert ASRock SLI_Bridge Card to the goldfingers on each

graphics card. Make sure ASRock SLI_Bridge Card is rmly in place.

ASRock SLI_Bridge Card

Step4. Connect a VGA cable or a DVI cable to the monitor connector or the DVI

connector of the graphics card that is inserted to PCIE1 slot.

English

23

Fatal1ty Z77 Professional-M Series Motherboard

2.7.2 Driver Installation and Setup

Install the graphics card drivers to your system. After that, you can enable the Multi-

®

Graphics Processing Unit (GPU) feature in the NVIDIA

nView system tray utility.

Please follow the below procedures to enable the multi-GPU feature.

®

For Windows

XP / XP 64-bit OS:

TM

(For SLI

mode only)

®

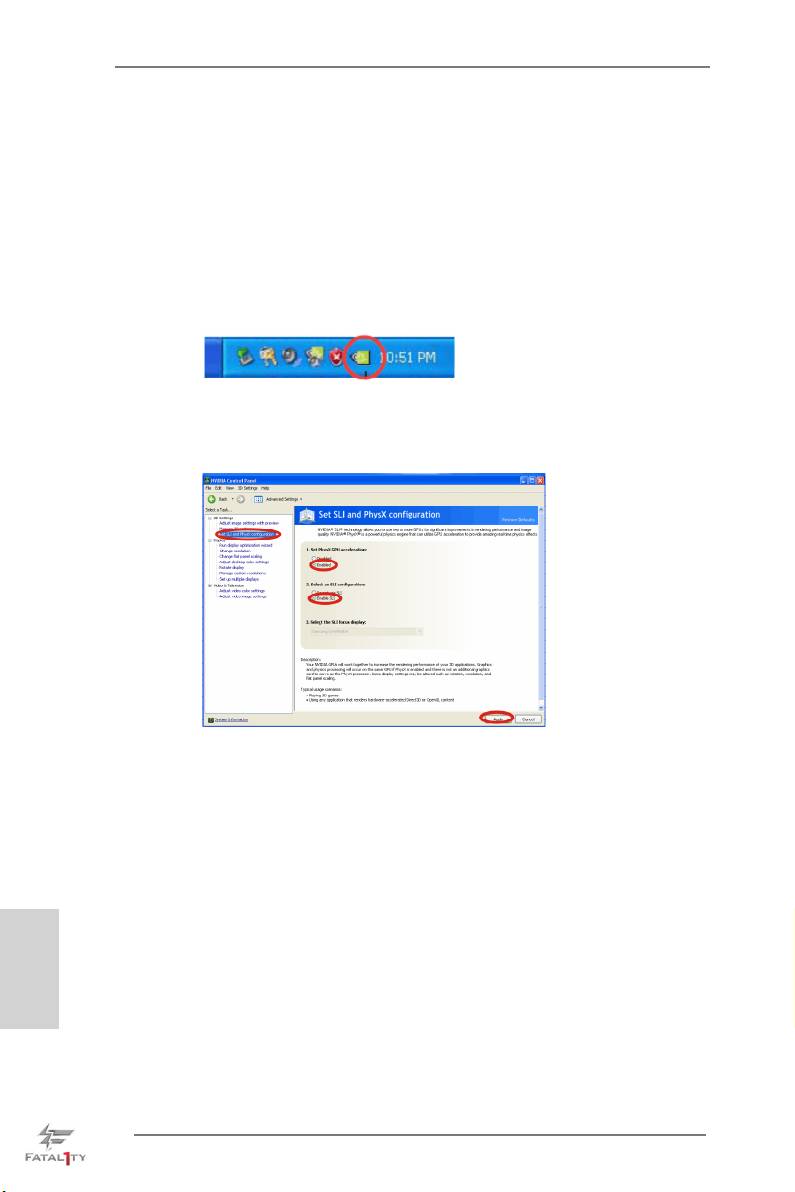

A. Double-click NVIDIA Settings icon on your Windows

taskbar.

B. From the pop-up menu, select Set SLI and PhysX conguration. In

Set PhysX GPU acceleration item, please select Enabled. In Select

an SLI conguration item, please select Enable SLI. And click Apply.

C. Reboot your system.

TM

D. You can freely enjoy the benet of SLI

feature.

English

24

Fatal1ty Z77 Professional-M Series Motherboard

®

TM

TM

For Windows

Vista

/ Vista

64-bit / 7 / 7 64-bit OS:

TM

TM

(For SLI

and Quad SLI

mode)

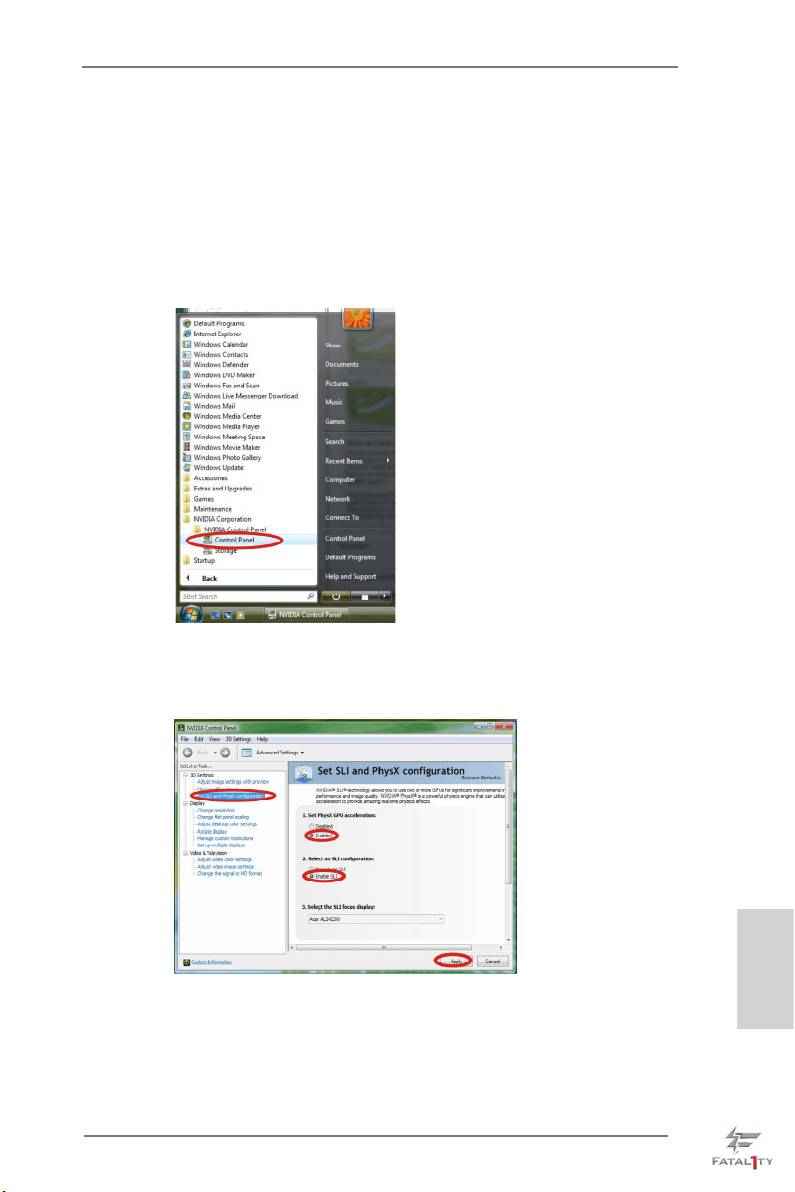

A. Click the Start icon on your Windows taskbar.

B. From the pop-up menu, select All Programs, and then click NVIDIA

Corporation.

C. Select NVIDIA Control Panel tab.

D. Select Control Panel tab.

E. From the pop-up menu, select Set SLI and PhysX conguration. In

Set PhysX GPU acceleration item, please select Enabled. In Select

an SLI conguration item, please select Enable SLI. And click Apply.

F. Reboot your system.

English

TM

TM

G. You can freely enjoy the benet of SLI

or Quad SLI

feature.

TM

®

* SLI

appearing here is a registered trademark of NVIDIA

Technologies Inc., and is used

only for identication or explanation and to the owners’ benet, without intent to infringe.

25

Fatal1ty Z77 Professional-M Series Motherboard

2.9 Dual Monitor and Surround Display Features

Dual Monitor Feature

This motherboard supports dual monitor feature. With the internal VGA output sup-

port (DVI-D, D-Sub, HDMI and DisplayPort), you can easily enjoy the benets of

dual monitor feature without installing any add-on VGA card to this motherboard.

This motherboard also provides independent display controllers for DVI-D, D-Sub,

HDMI and DisplayPort to support dual VGA output so that DVI-D, D-sub, HDMI and

DisplayPort can drive same or different display contents.

To enable dual monitor feature, please follow the below steps:

1. Connect DVI-D monitor cable to DVI-D port on the I/O panel, connect D-Sub

monitor cable to D-Sub port on the I/O panel, connect HDMI monitor cable to

HDMI port on the I/O panel, or connect DisplayPort monitor cable to DisplayPort

on the I/O panel.

D-Sub port

DisplayPort

DVI-D port

HDMI port

2. If you have installed onboard VGA driver from our support CD to your system

already, you can freely enjoy the benets of dual monitor function after your

system boots. If you haven’t installed onboard VGA driver yet, please install

onboard VGA driver from our support CD to your system and restart your

computer.

D-Sub, DVI-D, HDMI and DisplayPort monitors cannot be enabled at the

same time. You can only choose two of them.

English

32

Fatal1ty Z77 Professional-M Series Motherboard

Surround Display Feature

This motherboard supports surround display upgrade. With the internal VGA output

support (DVI-D, D-Sub, HDMI and DisplayPort) and external add-on PCI Express

VGA cards, you can easily enjoy the benets of surround display feature.

Please refer to the following steps to set up a surround display environment:

1. Install the PCI Express VGA card on PCIE1, PCIE3 and PCIE4 slots. Please refer

to page 21 for proper expansion card installation procedures for details.

2. Connect a DVI-D monitor cable to the DVI-D port on the I/O panel, connect a

D-Sub monitor cable to the D-Sub port on the I/O panel, connect a HDMI monitor

cable to the HDMI port on the I/O panel, or connect a DisplayPort monitor cable

to the DisplayPort on the I/O panel. Then connect other monitor cables to the

corresponding connectors of the add-on PCI Express VGA card on PCIE1, PCIE3

and PCIE4 slots.

3. Boot your system. Press <F2> or <Del> to enter UEFI setup. Enter “Share

Memory” option to adjust the memory capability to [32MB], [64MB], [128MB],

[256MB] or [512MB] to enable the function of D-sub. Please make sure that the

value you select is less than the total capability of the system memory. If you do

not adjust the UEFI setup, the default value of “Share Memory”, [Auto], will

disable D-Sub function when an add-on VGA card is inserted to this motherboard.

4. Install the onboard VGA driver and the add-on PCI Express VGA card driver to

your system. If you have installed the drivers already, there is no need to install

them again.

5. Set up a multi-monitor display.

®

For Windows

XP / XP 64-bit OS:

Right click the desktop, choose “Properties”, and select the “Settings” tab

so that you can adjust the parameters of the multi-monitor according to

the steps below.

A. Click the “Identify” button to display a large number on each monitor.

B. Right-click the display icon in the Display Properties dialog that you

wish to be your primary monitor, and then select “Primary”. When

you use multiple monitors with your card, one monitor will always be

Primary, and all additional monitors will be designated as Secondary.

C. Select the display icon identied by the number 2.

D. Click “Extend my Windows desktop onto this monitor”.

E. Right-click the display icon and select “Attached”, if necessary.

English

F. Set the “Screen Resolution” and “Color Quality” as appropriate for the

second monitor. Click “Apply” or “OK” to apply these new values.

G. Repeat steps C through E for the display icon identied by the

numbers three to eight.

33

Fatal1ty Z77 Professional-M Series Motherboard

®

TM

TM

For Windows

7 / 7 64-bit / Vista

/ Vista

64-bit OS:

Right click the desktop, choose “Personalize”, and select the “Display

Settings” tab so that you can adjust the parameters of the multi-monitor

according to the steps below.

A. Click the number ”2” icon.

B. Click the items “This is my main monitor” and “Extend the desktop onto

this monitor”.

C. Click “OK” to save your change.

D. Repeat steps A through C for the display icon identied by the number

three to eight.

6. Use Surround Display. Click and drag the display icons to positions representing

the physical setup of your monitors that you would like to use. The placement

of display icons determines how you move items from one monitor to another.

HDCP Function

HDCP function is supported on this motherboard. To use HDCP

function with this motherboard, you need to adopt the monitor

that supports HDCP function as well. Therefore, you can enjoy

the superior display quality with high-denition HDCP

encryption contents. Please refer to below instruction for more

details about HDCP function.

What is HDCP?

HDCP stands for High-Bandwidth Digital Content Protection,

®

a specication developed by Intel

for protecting digital

entertainment content that uses the DVI interface. HDCP is a

copy protection scheme to eliminate the possibility of

intercepting digital data midstream between the video source,

or transmitter - such as a computer, DVD player or set-top box -

and the digital display, or receiver - such as a monitor, television

or projector. In other words, HDCP specication is designed to

protect the integrity of content as it is being transmitted.

English

Products compatible with the HDCP scheme such as DVD

players, satellite and cable HDTV set-top-boxes, as well as few

entertainment PCs requires a secure connection to a compliant

display. Due to the increase in manufacturers employing HDCP

in their equipment, it is highly recommended that the HDTV or

LCD monitor you purchase is compatible.

34

Fatal1ty Z77 Professional-M Series Motherboard

2.10 ASRock Smart Remote Installation Guide

ASRock Smart Remote is only used for ASRock motherboard with CIR header.

Please refer to below procedures for the quick installation and usage of ASRock

Smart Remote.

Step1. Find the CIR header located next

to the USB 2.0 header on ASRock

USB 2.0 header (9-pin, black)

motherboard.

CIR header (4-pin, gray)

USB_PWR

Step2. Connect the front USB cable to the

P-

USB 2.0 header (as below, pin 1-5)

P+

and the CIR header. Please make

GND

DUMMY

sure the wire assignments and the

pin assignments are matched

correctly.

1

2

3

4

5

GND

IRTX

IRRX

ATX+5VSB

Step3. Install Multi-Angle CIR Receiver to

the front USB port. If Multi-Angle

CIR Receiver cannot successfully

receive the infrared signals from

MCE Remote Controller, please try

to install it to the other front USB

port.

3 CIR sensors in different angles

1. Only one of the front USB port can support CIR function. When

the CIR function is enabled, the other port will remain USB

function.

2. Multi-Angle CIR Receiver is used for front USB only. Please do

not use the rear USB bracket to connect it on the rear panel.

Multi-Angle CIR Receiver can receive the multi-direction infrared

signals (top, down and front), which is compatible with most of

English

the chassis on the market.

3. The Multi-Angle CIR Receiver does not support Hot-Plug

function. Please install it before you boot the system.

* ASRock Smart Remote is only supported by some of ASRock motherboards. Please refer to

ASRock website for the motherboard support list: http://www.asrock.com

35

Fatal1ty Z77 Professional-M Series Motherboard

2.11 Jumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose

pin1 and pin2 are “Short” when jumper cap

is placed on these 2 pins.

Jumper Setting Description

Clear CMOS Jumper

(CLRCMOS1)

(see p.4, No. 22)

Clear CMOSDefault

Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the

system parameters to default setup, please turn off the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a

jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,

please do not clear the CMOS right after you update the BIOS. If you need

to clear the CMOS when you just nish updating the BIOS, you must boot

up the system rst, and then shut it down before you do the clear-CMOS ac-

tion. Please be noted that the password, date, time, user default prole, 1394

GUID and MAC address will be cleared only if the CMOS battery is removed.

The Clear CMOS Switch has the same function as the Clear CMOS

jumper.

English

36

Fatal1ty Z77 Professional-M Series Motherboard

2.12 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

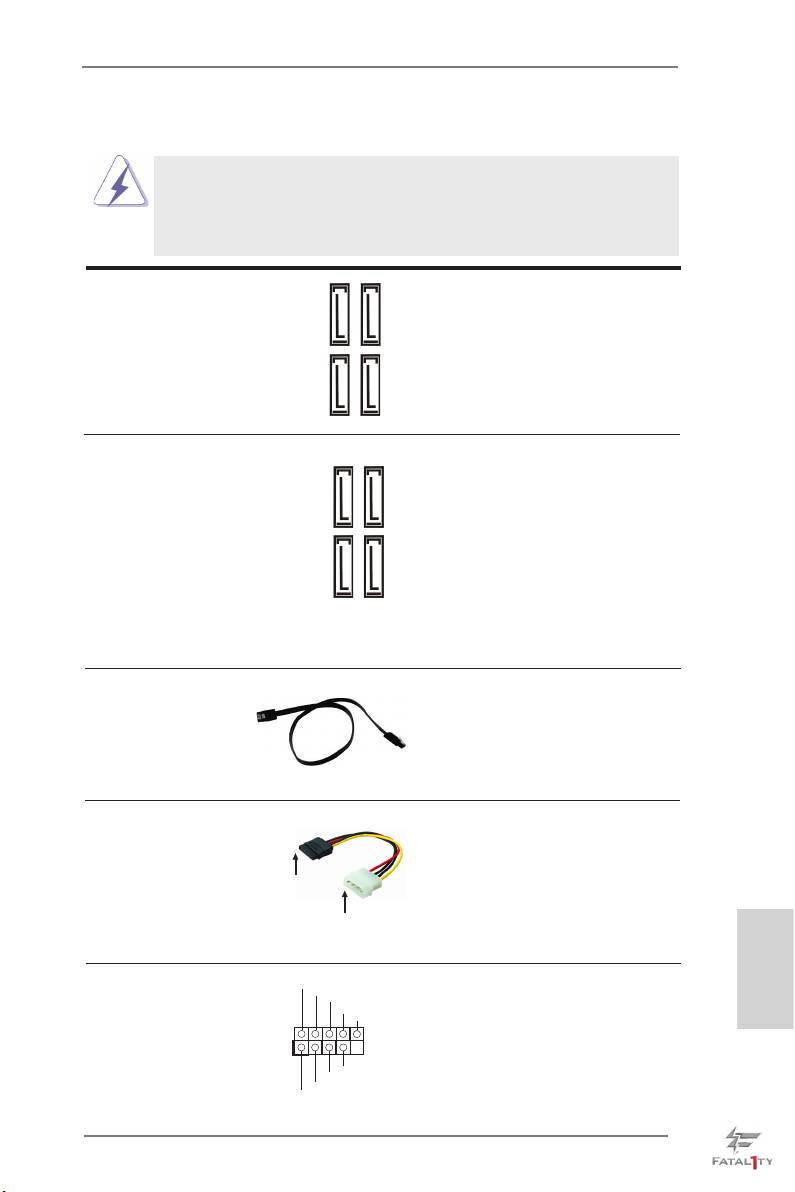

Serial ATA2 Connectors These four Serial ATA2 (SATA2)

(SATA2_2_3: see p.4, No. 12)

connectors support SATA data

SATA2_2 SATA2_3

(SATA2_4_5: see p.4, No. 13)

cables for internal storage

devices. The current SATA2

interface allows up to 3.0 Gb/s

SATA2_4 SATA2_5

data transfer rate.

Serial ATA3 Connectors These four Serial ATA3 (SATA3)

(SATA3_A1_A2: see p.4, No. 10)

connectors support SATA data

SATA3_A1 SATA3_A2

(SATA3_0_1: see p.4, No. 11)

cables for internal storage

devices. The current SATA3

interface allows up to 6.0 Gb/s

SATA3_0 SATA3_1

data transfer rate. If the eSATA3

port on the rear I/O has been

connected, the internal

SATA3_A2 will not function.

Serial ATA (SATA) Either end of the SATA data

Data Cable cable can be connected to the

(Optional)

SATA / SATA2 / SATA3 hard

disk or the SATA2 / SATA3

connector on this motherboard.

Serial ATA (SATA) Please connect the black end

Power Cable of SATA power cable to the

(Optional)

power connector on each drive.

connect to the SATA

Then connect the white end of

HDD power connector

SATA power cable to the power

connect to the

power supply

connector of the power supply.

USB 2.0 Headers Besides two default USB 2.0

U SB_PWR

P-3

(9-pin USB_2_3)

ports on the I/O panel, there are

P +3

English

GND

DUMMY

(see p.4, No. 23)

three USB 2.0 headers on this

1

motherboard. Each USB 2.0

GND

header can support two USB 2.0

P +2

P-2

U SB_PWR

ports.

37

Fatal1ty Z77 Professional-M Series Motherboard

(9-pin USB_4_5)

(see p.4, No. 24)

(9-pin USB_6_7)

(see p.4, No. 25)

USB 3.0 Header Besides four default USB 3.0

(19-pin USB3_2_3)

ports on the I/O panel, there is

(see p.4, No. 9)

one USB 3.0 header on this

motherboard. This USB 3.0

header can support two USB 3.0

ports.

Infrared Module Header This header supports an

(5-pin IR1)

optional wireless transmitting

(see p.4, No. 28)

and receiving infrared module.

Consumer Infrared Module Header This header can be used to

(4-pin CIR1)

connect the remote

(see p.4 No. 26)

controller receiver.

Front Panel Audio Header This is an interface for front

GND

P RESENCE#

M IC_RET

(9-pin HD_AUDIO1)

panel audio cable that allows

OUT_RET

(see p.4, No. 30)

convenient connection and

1

control of audio devices.

O UT2_L

J _SENSE

O UT2_R

English

M IC2_R

M IC2_L

1. High Denition Audio supports Jack Sensing, but the panel wire on the

chassis must support HDA to function correctly. Please follow the

instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

header as below:

A. Connect Mic_IN (MIC) to MIC2_L.

B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

38

Fatal1ty Z77 Professional-M Series Motherboard

C. Connect Ground (GND) to Ground (GND).

D. MIC_RET and OUT_RET are for HD audio panel only. You don’t need

to connect them for AC’97 audio panel.

E. To activate the front mic.

®

For Windows

XP / XP 64-bit OS:

Select “Mixer”. Select “Recorder”. Then click “FrontMic”.

®

TM

TM

For Windows

7 / 7 64-bit / Vista

/ Vista

64-bit OS:

Go to the “FrontMic” Tab in the Realtek Control panel. Adjust

“Recording Volume”.

System Panel Header This header accommodates

(9-pin PANEL1)

several system front panel

(see p.4, No. 15)

functions.

Connect the power switch, reset switch and system status indicator on the

chassis to this header according to the pin assignments below. Note the

positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may congure

the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset

switch to restart the computer if the computer freezes and fails to perform a

normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED

is on when the system is operating. The LED keeps blinking when the sys-

tem is in S1/S3 sleep state. The LED is off when the system is in S4 sleep

state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED

is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly

consists of power switch, reset switch, power LED, hard drive activity LED,

speaker and etc. When connecting your chassis front panel module to this

header, make sure the wire assignments and the pin assign-ments are

English

matched correctly.

39

Fatal1ty Z77 Professional-M Series Motherboard

Chassis Speaker Header Please connect the chassis

(4-pin SPEAKER 1)

speaker to this header.

(see p.4, No. 20)

Power LED Header Please connect the chassis

(3-pin PLED1)

power LED to this header to

(see p.4, No. 14)

indicate system power status.

The LED is on when the system

is operating. The LED keeps

blinking in S1/S3 state. The

LED is off in S4 state or S5

state (power off).

Chassis and Power Fan Connectors Please connect the fan cables

CH A_FAN_SPEED

(4-pin CHA_FAN1)

to the fan connectors and match

+1 2V

FA N_SPEED_CONTR OL

GN D

(see p.4, No. 21)

the black wire to the ground pin.

CHA_FAN1 and CHA_FAN2

(3-pin CHA_FAN2)

support Fan Control.

(see p.4, No. 37)

(3-pin PWR_FAN1)

(see p.4, No. 36)

CPU Fan Connectors Please connect the CPU fan

FAN_SPEED_CONTROL

4

(4-pin CPU_FAN1)

cable to the connector and

CPU_FAN_SPEED

3

+ 12V

2

(see p.4, No. 3)

match the black wire to the

GND

1

ground pin.

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

CPU fan still can work successfully even without the fan speed control function.

If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this

motherboard, please connect it to Pin 1-3.

Pin 1-3 Connected

3-Pin Fan Installation

(3-pin CPU_FAN2)

English

(see p.4, No. 4)

ATX Power Connector Please connect an ATX power

12

24

(24-pin ATXPWR1)

supply to this connector.

(see p.4, No. 7)

1

13

40

Fatal1ty Z77 Professional-M Series Motherboard
