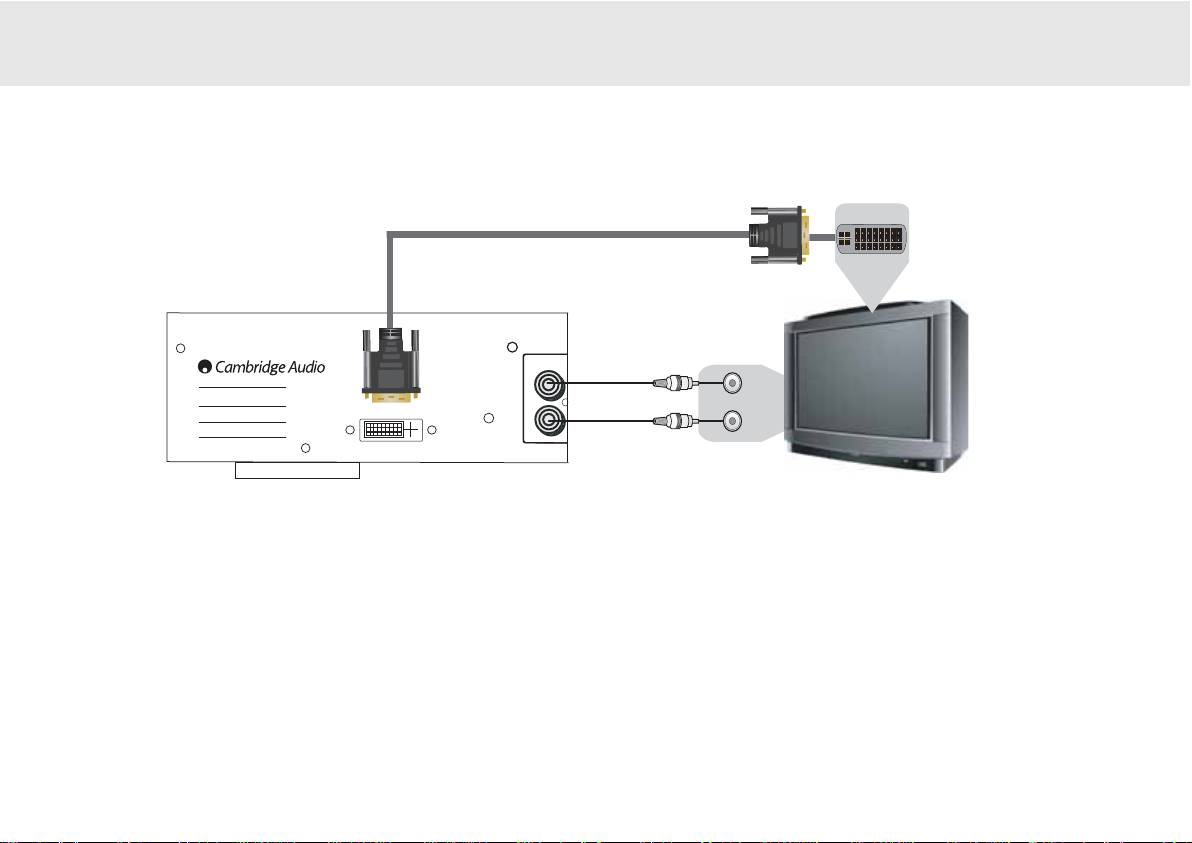

Connecting to a Digital TV set with DVI-D (DVD89 only)
To
select
the
DVI-DD
output
mode
(Press the DVI/HDMI button on the remote)
2-CH Out
L
DVD80 Series DVD Player
Power Rating: 100-240V AC 50/60Hz
Max Power Consumption: 40W
Caution
Risk of electric shock
Do not open
Avis
Risque de choc electrique
Ne pas ouvrir
R
Achtung
Vorm offnen des gerates
Netzstecker ziehen
DVI OUT
85/86/89 DVD player
DVI-DD
DVDI-D allows the transfer of the digital video signal from the DVD player
NTSC
PAL
to the television without the need for Digital to Analogue conversation.
This reduces signal loss resulting in the purest transfer of video
Default - HDMi Off
Default - HDMi Off
information.
Press
once
480p
1. 576p
Press
again
720p
60Hz
2. 720p
>>
>>
50Hz
Press again
1080i
3. 1080i
Progressive scanning is also available from Component Video Outs -
NTSC & PAL. See page 19 for more information.
Note:
When in analogue output mode, the general setup page is set to
P-Scan.
80 Series DVD player 9

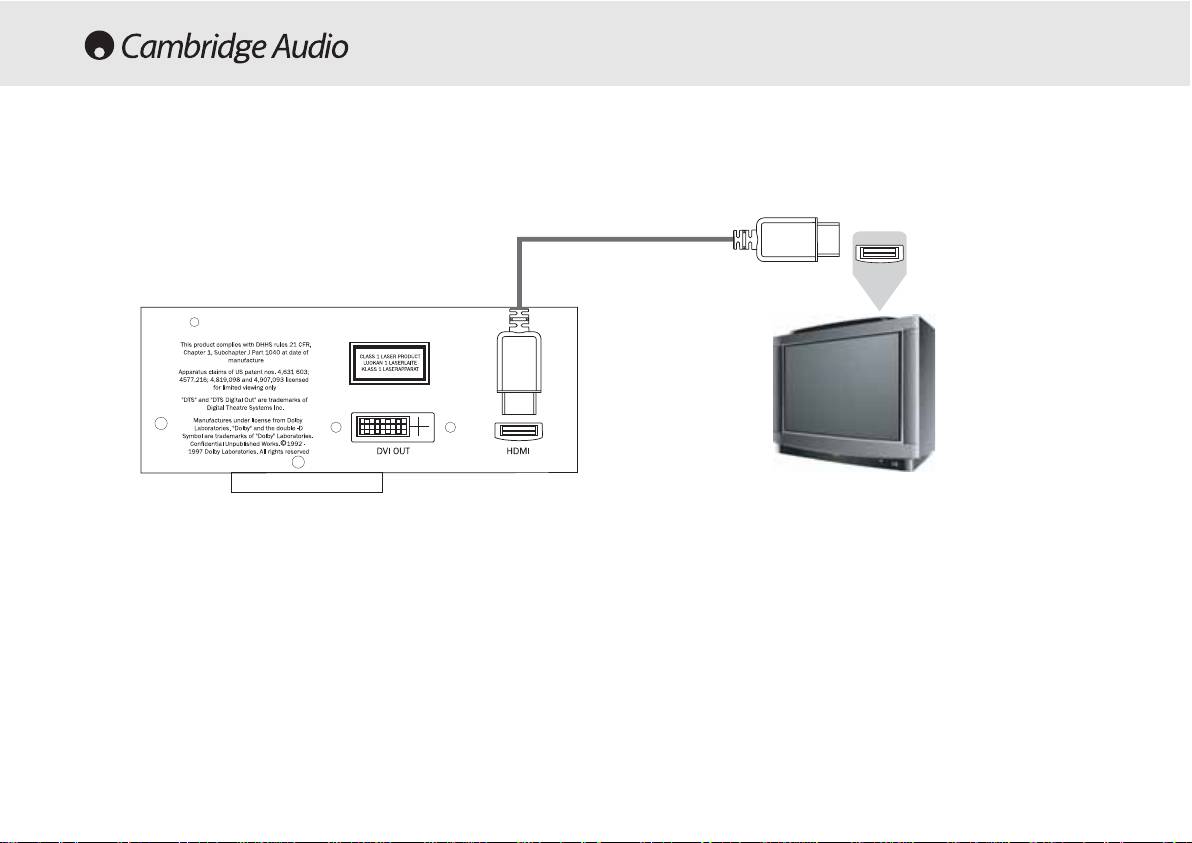

Connecting to a Digital TV set with HDMI (DVD89 only)
HDMI
To
select
the
HDMI
output
mode
(Press the DVI/HDMI button on the remote)
The DVD89 also features a HDMI (High-Definition Multi-media
NTSC
PAL
Interface) an industry-supported, uncompressed, all-digital audio/video
interface.
Default - HDMi Off
Default - HDMi Off
Press
once
480p
1. 576p
HDMI transfers the digital audio and video signals from the DVD player
Press
again
720p
>>
60Hz
2. 720p
>>
50Hz
to the television without the need for Digital to Analogue conversation.
Press
again
1080i
3. 1080i
This reduces signal loss resulting in the purest transfer of video and
Progressive scanning is also available from Component Video Outs -
audio information.
NTSC & PAL. See page 19 for more information.
Note:
When in analogue output mode, the general setup page is set to
P-Scan.
10 80 Series DVD player
