Alexika RV 10 basic V: EN
EN: Alexika RV 10 basic V
21
Source language: German
EN
Contents
General hazard
Danger of being burnt!
Explication of warning symbols
Page
CE-Declaration of conformity
3
Explication of warning symbols
21
Warranty 21
Safety instructions
22
Correct use
23
Unpacking 24
Useful information
24
Setting up
25
Drive RV 10 basic/ digital
Heating bath
Glassware
Hose system
Interfaces and outputs
29
Commissioning 30
Maintenance and cleaning
31
Accessories 32
Error codes
34
Technical data
35
Solvent table (excerpt)
35
In accordance with
IKA
®
warranty conditions, the warranty period is 24
months. For claims under the warranty please contact your local dea-
ler. You may also send the machine direct to our factory, enclosing the
delivery invoice and giving reasons for the claim. You will be liable for
freight costs.
Warranty
The warranty does not cover worn out parts, nor does it apply to faults
resulting from improper use, insuffi cient care or maintenance not carried
out in accordance with the instructions in this operating manual.
22
Safety instructions
• Use the HB 10.2 cover or the HB 10.1 spray guard.
• Only use the device under an all side-closed exhaust, or a compa rable
protective device.
• Adapt the quantity and the type of distilland to the size of the distilla-
tion equipment. The cooler must work properly. Monitor the coolant
flow rate at the cooler outlet.
• The glass equipment must always be ventilated when working under
normal pressure (e.g. open outlet at cooler) in order to prevent a pres-
sure build-up.
• Please note that dangerous concentrations of gases, vapours or parti-
culate matter can escape through the outlet at the cooler. Take appro-
priate action to avoid this risk, for example, downstream cold traps,
gas wash bottles or an effective extraction system.
• Evacuated glass vessels must not be heated on one side; the evapora-
ting flask must rotate during the heating phase.
• The glassware is designed for operation under a vacuum of up to 1
mbar. The equipment must be evacuated prior to heating (see chap-
ter ”Commissioning”). The equipment must only be aired again after
cooling. When carrying out vacuum distillation, uncondensed vapours
must be condensed out or safely dissipated. If there is a risk that the
distillation residue could disintegrate in the presence of oxygen, only
inert gas must be admitted for stress relief
•
Caution!
Avoid peroxide formation. Organic peroxides can accumula-
te in distillation and exhaust residues and explode while decomposing!
Keep liquids that tend to form organic peroxides away from light, in
particular from UV rays and check them prior to distillation and ex-
haust for the presence of peroxides. Any existing peroxides must be
eliminated. Many organic compounds are prone to the formation of
peroxides e.g. dekalin, diethyl ether, dioxane, tetrahydrofuran, as well
as unsaturated hydrocarbons, such as tetralin, diene, cumene and al-
dehydes, ketones and solutions of these substances
.
•
Danger of burning!
The heating bath, tempering medium, evapora-
tor piston and glass assembly can become hot during operation and
remain so for a long time afterwards! Let the components cool off
before continuing work with the device.
•
ATTENTION!
Avoid delayed boiling! Never heat the evaporating flask
in the heating bath without switching on the rotary drive!Sudden fo-
aming or exhaust gases indicate that flask content is beginning to de-
compose. Switch off heating immediately. Use the lifting mechanism
to lift the evaporator piston out of the heating bath. Evacuate the
danger zone and warn those in the surrounding area!
•
Caution!
Never operate the device when the evaporator piston is rota-
ting and the lift is raised.
Start at low speed and lower the evaporating
flask into the heating bath, increase to desired speed. Otherwise hot
tempering medium may be sprayed out!
• Set the speed of the drive so no tempering medium is sprayed out as a
result of the evaporator piston rotating in the heating bath. If neces-
sary reduce the speed.
• Do not touch rotating parts during operation.
•
Imbalance may result in uncontrolled resonance behaviour of the device
or assembly. Glass apparatus may be damaged or destroyed. In the
event of unbalance or unusual noises, switch off the appliance imme-
diately or reduce the speed.
• A vacuum may form inside the glassware in case of power outage.
• The appliance does not start up again automatically following a cut in
the power supply.
• The device is only disconnected from the power supply network if the
device power switch is off or the plug is pulled out.
• if the device power switch is off or the plug is pulled out.
• The socket for the mains cord must be easily accessible.
For your protection
•
Read the operating instructions in full before
starting up and follow the safety instructions.
• Keep the operating instructions in a place where they
can be accessed by everyone.
• Ensure that only trained staff work with the appliance.
• Follow the safety instructions, guidelines, occupational health and
safety and accident prevention regulations.
When working under a
vacuum in particular!
• Wear your personal protective equipment in accordance with the ha-
zard category of the medium to be processed. Otherwise there is a
risk of:
- splashing liquids,
- body parts, hair, clothing and jewellery getting caught,
- injury as a result of glass breakage.
•
Caution!
Inhalation of or contact with media such as poisonous li-
quids, gases, spray mist, vapours, dusts or biological and microbiologi-
cal materials can be hazardous to user.
• Set up the device in a spacious area on an even, stable, clean, non-slip,
dry and fireproof surface.
• Ensure that there is sufficient space above the device as the glass as-
sembly may exceed the height of the device.
•
Prior to each use, always check the device, accessories and especially
the glass parts for damage. Do not use damaged components.
• Ensure that the glass assembly is tension-free! Danger of cracking as
a result of:
- stress due to incorrect assembly,
- external mechanical hazards,
- local temperature peaks.
• Ensure that the stand does not start to move due to vibrations respec-
tively unbelance.
• Beware of hazards due to:
- flammable materials,
- combustible media with a low boiling temperature.
•
Caution!
Only process and heat up media that has
a flash point higher than the adjusted safe tempe-
rature limit of the heating bath that has been set.
The safe temperature limit of the heating bath must al-
ways be set to at least 25 °C lower than the fire point of the media
used.
• Do
not
operate the appliance in explosive atmospheres, with hazar-
dous substances or under water.
• Only process media that will not react dangerously to the extra energy
produced through processing. This also applies to any extra energy
produced in other ways, e.g. through light irradiation.
• Tasks with the device must only be performed when operation is mo-
nitored.
• Operation with excess pressure is not permitted (for cooling water
pressure see "Technical Data")
• Do not cover the ventilation slots of the device in order to ensure ade-
quate cooling of the drive.
• There may be electrostatic discharges between the medium and the
drive which could pose a direct danger.
• The appliance is not suitable for manual operation.
• Safe operation is only guaranteed with the accessories described in the
”Accessories” chapter.
• Refer to the operating instructions for the HB 10 heating bath.
• Refer to the operating instructions for the accessories, e.g. vacuum
pump.
• Position the positive pressure outlet of the vacuum pump under a fume
hood.
23
front plate or the main switch on the back right side of the device using
the maximum total weight of 3.1 kg.
The evaporating flask is lifted out of the heating bath.
When using for the first time or after a long period of inactivity, proceed
as follows: use the motor to move the lift several times to the top and
bottom positions by pressing the lift function keys prior to interrupting
the power supply.
Note: Switching off and disconnecting the power supply shows a delay
compared to switching off using the "Power" switch on the front panel.
If the safety lift is not working, please contact the
IKA
®
Service depart-
ment.
For the evaporating equipment (evaporating flask plus contents), the ma-
ximum permissible weight is 3.0 kg! With larger loads there is the risk of
broken glass on the steam pipe!
Ensure that the safety lift has been powered down.
When working with large loads, always use low speeds. Unbalanced
loads can result in a broken steam pipe!
• Removable parts must be refitted to the appliance to prevent the infil-
tration of foreign objects, liquids etc..
• Protect the appliance and accessories from bumps and impacts.
Safety lift
When the device is switched off or the power supply disconnected, the
internal safety lift removes the evaporating flask from the heating bath.
When the safety lift is powered off, it is designed for a maximum total
weight (glassware and solvent) of 3.1 kg.
Sample calculation of total weight with vertical glassware and a 1 litre
flask:
Condenser + receiving flask + evaporating flask + consumables =
1200 g + 400 g + 280 g + 100 g = 1980 g
Maximum solvent load = 3100 g – 1980 g = 1320 g
Due to the design, the safety lift cannot be guaranteed for higher loads!
When using other types of condensers such as dry ice or intensive con-
densers as well as when using return distillation distributors with slip-on
condensers, it may be necessary to reduce the load by the added weight
of the glass apparatus.
Thus, prior to distillation, check whether the lift goes up without power
when laden with the glassware and distillation material.
The safety lift must be checked daily prior to operation. Use the motor
to move the lift to the lowest position and press the "Power" key on the
For protection of the equipment
• The voltage stated on the type plate must correspond to the mains
voltage.
• Socket must be earthed (protective ground contact).
• The appliance may only be opened by experts.
Correct use
•
Range of use
- Laboratories
- Schools
- Pharmacies
- Universities
The safety of the user cannot be guaranteed if the appliance is ope-
rated with accessories that are not supplied or recommended by the
manufacturer or if the appliance is operated improperly contrary to the
manufacturer’s specifi cations or if the appliance or the printed circuit
board are modifi ed by third parties.
•
Use
Together with the accessories recommended by
IKA
®
, the device is
suitable for:
- quick and gentle distillation of liquids
- evaporation of solutions and suspensions
- crystallisation, synthesis or cleaning of fine chemicals
- drying of powder and granulate material
- recycling of solvents
Mode of operation: Tabletop device
24
Unpacking
•
Unpacking
- Please unpack the device carefully
- In the case of any damage a fact report must be sent immediately
(post, rail or forwarder)
•

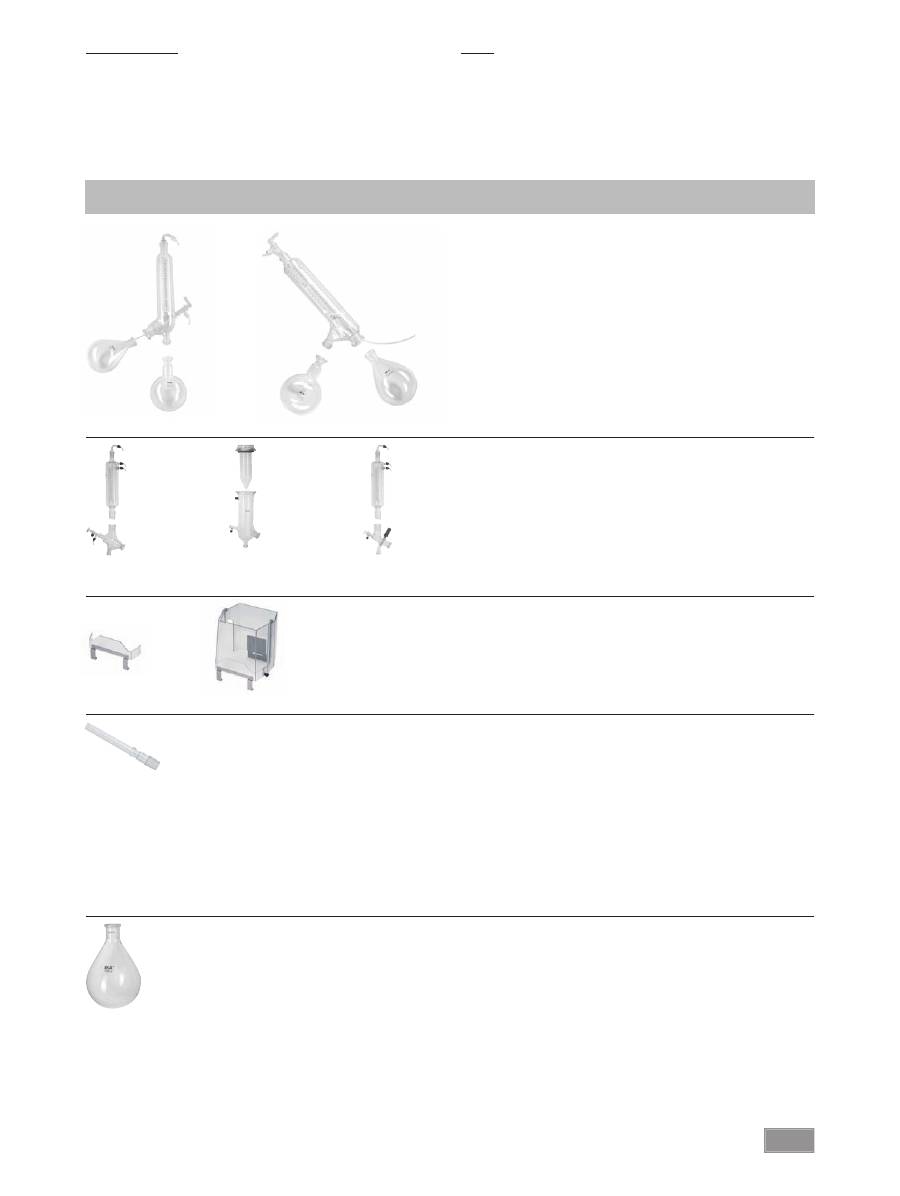

Delivery scope
see table
RV 10 basic V
x
x x
x x x x x
RV 10 b
asic V
C
x x x x x x x x
RV 10 b
asic D x x x x x x x x
RV 10 b
asic DC
x x x x x x x x
RV 10 digital V
x x x
x x x x x
RV 10 digital VC
x x
x
x x x x x
RV 10 d
igital D x x x x x x x x
RV 10 digital DC
x x
x x x x x x
Drive RV 10 basic
Drive RV 10 digital
Heating bath HB 10
Vertical glasswar
e RV 10.1
Vertical glasswar
e RV 10.10 coated
Diagonal Glasswar
e RV 10.2
Diagonal Glasswar
e RV 10.20 coated
W
oulff bottle
Br
acket
Cooler locking device, compl.
Ring spanner
Oper
ating instructions
Useful information
Speed, temperature, piston size and system pressure all affect the eva-
porator air capacity.
The optimum capacity of the flow-through condenser is approx. 60%.
This corresponds to condensation on approx. 2/3 of the cooling coil.
With larger capacities there is the risk that the uncondensed solvent va-
pour will be extracted.
The device is equipped with a piston-operated safety mechanism. The
glass apparatus may contain a vacuum following interruption to the po-
wer supply; vent the system before switching back on. If the power cuts
out, the evaporator piston is automatically lifted out of the heating bath
by an integrated gas spring.
CAUTION!
The safety lift must be checked daily prior to operation. For
more information see the section entitled "Safety Instructions - Safety
Lift"!
Distillation is a thermal separating process for liquid compounds based
on substance-specific, pressure-dependent boiling points through evapo-
ration and subsequent condensation.
The boiling point temperature decreases with decreasing external pressu-
re which means that work is usually done under reduced pressure. In this
way the heating bath can be maintained at a constant temperature (e.g.
60 °C). Using the vacuum, the boiling point is set with a steam tempe-
rature of approx. 40 °C. The cooling water for the condensation cooler
should not be warmer than 20 °C (60-40-20 rule).
A chemical resistant membrane pump with a vacuum controller should
be used to create the vacuum. The pump is protected from solvent resi-
due by the addition of a Woulff bottle and/or a vacuum separator.
Working with a jet pump to create a vacuum can only be recommended
to a limited extent as the solvents may contaminate the environment
when using these systems.
25

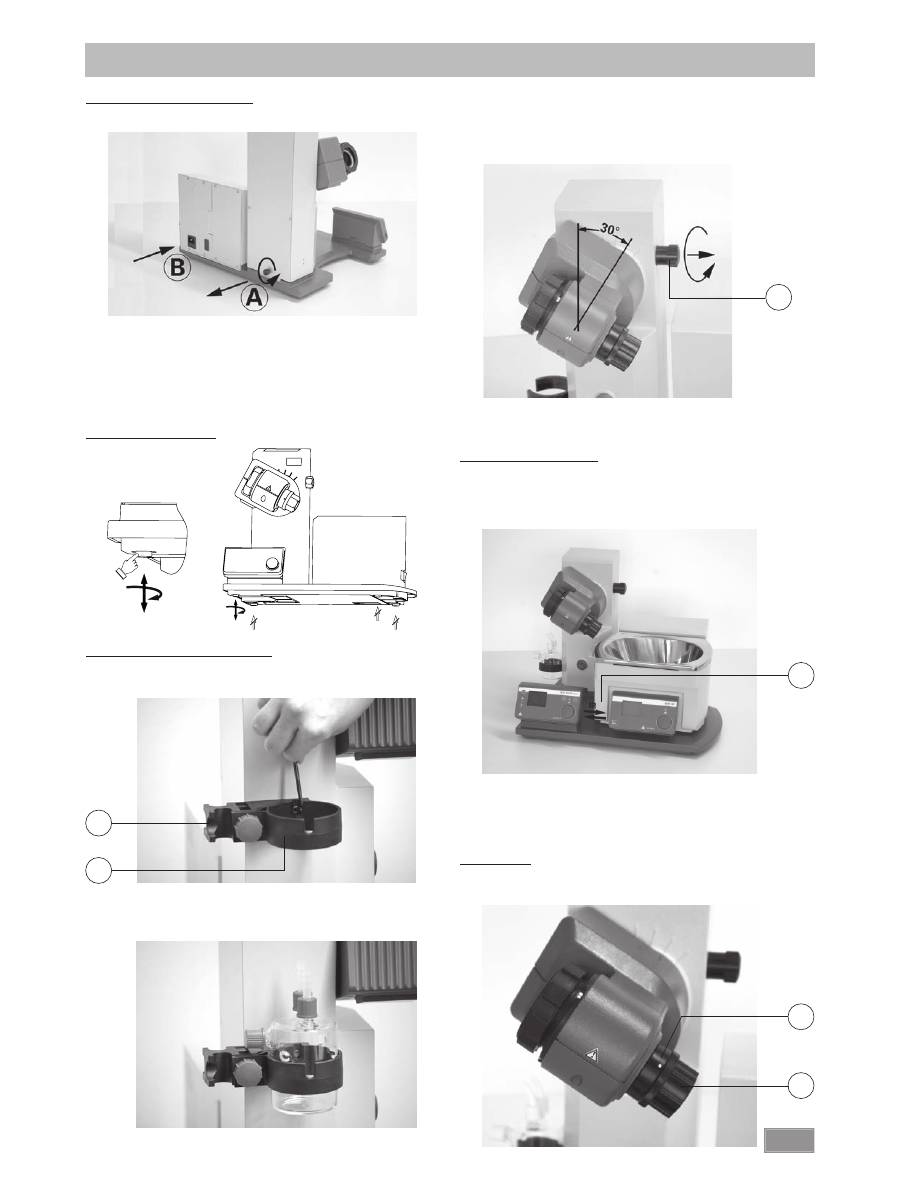

Setting up
Remove the clamping device for the angle setting of the rotation drive
on the right side of the lift by rotating the knurled screw counter clock-
wise (by lightly pressing and turning at the same time, the knurled
screw comes out farther).
Set the drive at an angle of approx. 30° (Fig. 7).
Then secure the rotation drive from being accidentally turned by tigh-
tening the knurled screw in a clockwise direction.
Heating bath HB 10
Caution!
Refer to the chapter entitled "Commissioning" in the heating
bath instruction manual!
Place the heating bath on the stand of the rotation drive and push it
into the left position (Fig. 8).
Note: Data is exchanged between the drive unit and the heating bath by
means of an infrared link (F). Please note that reliable communication is
only guaranteed when the infrared beam has clear line-of-sight to the
detector.
Glassware
Open the locking device of the steam pipe by turning it 60° counter
clockwise (D), (fig. 9).
Drive RV 10 basic/digtal
Caution!
Loosen transportation lock (Fig. 4a)!
Hold the lift with your hand and remove the thumb screw on the back
of the appliance (A).
Once the transportation lock has been removed, the lift moves slowly
to its upper end position. The distance is approx. 140 mm.
Connect the device to the power supply (B) using the supplied power
cord (B).
Adjustable base (Fig. 4b)
Mounting the Woulff bottle (Fig. 5)
Fit the hose connecting piece (C) on the left side of the lift.
Mount the holder (D) onto the hose connecting piece (C).
Insert the bottle and attach the supplied hose connectors to the bottle
(Fig. 6).
Fig. 4a
Fig. 4b
E
F
G
H
Fig. 7
Fig. 8
Fig. 9
Fig. 5
Fig. 6
C
D
26
First use - Fitting the seal RV 10.8001
Insert vapour tube (1).
Insert seal RV 10.8001 (2).
Slide the union nut (3b) over the flange on the condenser (3a).
Also slide the annular spring (3c) over the flange on the condenser (3a).
Position the condenser (3a) on top of the seal (2).
Tighten the cap nut hand-screwed (3b).
Note: Follow the mounting instructions for the glassware
Assembling the vertical glassware cooler locking device
Assemble the condenser locking device according to the diagram (fig.
12).
Mount the plate (I) using the thumb screw (J).
Put the support rod (L) on the plate (I) and attach it with the screw
nut (K).
Attach the rubber protector (M).
Fasten the Velcro
®
band (N) to the support rod (L).
Secure the vertical glassware with the Velcro
®
band (N).
Feed the steam pipe in until it stops.
Then lock the locking device by turning it clockwise by 60° (Fig. 10).
Check the axial locking device on the steam pipe.
Push-off mechanism
The plastic screw nut (H) helps loosen tight-fitting piston ground-in con-
nections (Fig. 10).
Hold the locking device (G) and loosen the plastic screw nut (H).
To do so, hold the tight-fitting evaporator piston and turn the plastic
screw nut (H) until the evaporator piston neck.
Note: Prior to commissioning, hand-tighten the plastic screw nut (H) left-
aligned. This will hold the steam pipe locking device (G) firmly in place.
Fitting the condenser seal
Place the RV 10.8001 condenser seal in the condenser receptacle and
fit the glassware to the device according to the assembly instructions
(Fig. 11 a,b, c and d).
Fig. 10
H
Fig. 11a
Fig. 11b
1
2
3a
3b
Fig. 11c
Fig. 12
I
J
M
N
L
K
G
27
4
7
8
6
12
9
3
10
5
13
15
16
Rotary head
Glassware
RV 10.2 diagonal
RV 10.20 diagonal, coated
Glassware
RV 10.1 vertical
RV 10.10 vertical, coated
Rotary head
2
10
00
m
l
N
S2
9/
32
1
11
13
12
5
4
7
8
6
15
9
3
2
10
16
11
1
10
00
m
l
N
S2
9/
32
Mounting the glassware
Item Designation
Quantity Quantity
diagonal glassware
vertical Glassware
1
Receiving fl ask
1
1
2
Clamp NS 29 (stainless steel)
1
1
3
Steam pipe
1
1
4 Stopcock
1
1
5
Pipe tube
1
1
6
Condenser
1 Diagonal condenser
1 Vertical condenser
7
Connection
1 Introduction sleeve
1 Vacuum connection
8
Clamp NS 29 (plastic)
1
1
9
Seal RV 10.8001
1
1
10
Evaporator piston 1000 ml
1
1
11
Ball joint clamp RV 05.10
1
1
12
Screw joint cap
4
4
13
Hose connection
4
4
15
Locking nut
1
1
16
Spring ring
1
1
28
Hose system

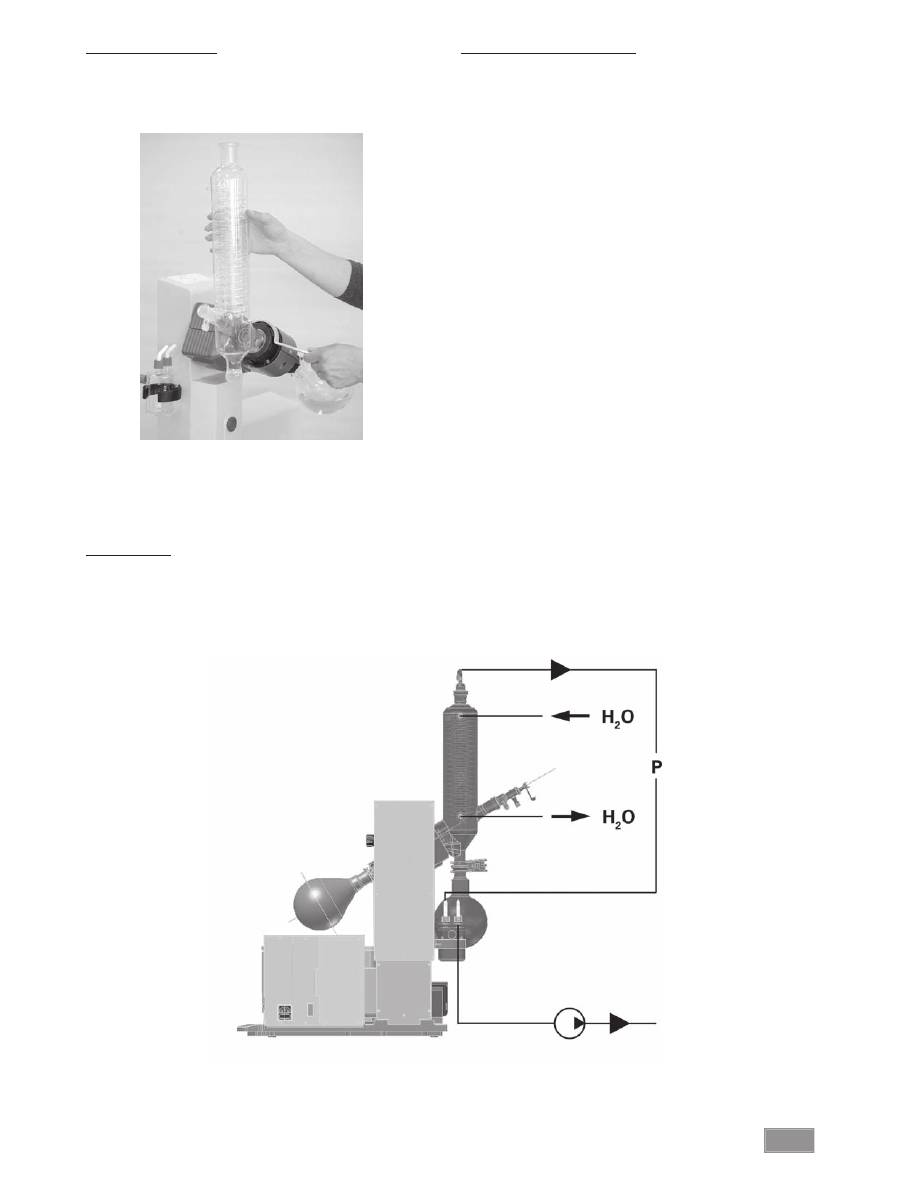

Connect the water hoses to the condenser according to the counter-flow principle (Fig. 14).
Install the vacuum connections to the condenser, Woulff bottle, vacuum controller with valve and vacuum pump.
Always connect the vacuum hose to the condenser at the high-test point to minimise solvent losses during suctioning.
Use typical laboratory vacuum hoses with an inside diameter of 8 mm and a wall thickness of 5 mm (see "Accessories").
Fig. 14
Description of special condensers
•
RV 10.3 Vertical-intensive condenser with manifold
This vertical-intensive condenser features a double jacket design for
particularly efficient condensation.
AAlso available with coating (RV 10.30)
•
RV 10.4 Dry ice condenser
Dry ice condenser for distilling low-boiling solvents.
Cooling by dry ice, no cooling water required. Maximum condensati-
on thanks to low temperatures.
Also available with coating (RV 10.40)
(Cannot be used in automatic mode for the RV10 control)
•
RV 10.5 Vertical-condenser with manifold and cut-off valve for
reflux distillation
Also available with coating (RV 10.50)
•
RV 10.6 Vertical-intensive condenser with manifold and cut-off
valve for reflux distillation
This vertical-intensive action condenser features a double jacket de-
sign for particularly efficient reflux distillation.
Also available with coating (RV 10.60)
Removing the condenser
Use the ring spanner provided to loosen union nuts that are tightly
fitted.
Loosen the union nut by turning anticlockwise.
Remove the Velcro
®
.
Fig. 13
29
- Each individual command (incl. parameters and data) and each response
are terminated with Blank CR Blank LF (Code: hex 0x20 hex 0x0d hex
0x20 hex 0x0A) and have a maximum length of 80 characters.
- The decimal separator in a number is a dot (Code: hex 0x2E).
The above details correspond as far as possible to the recommendations
of the NAMUR working party (NAMUR recommendations for the design of
electrical plug connections for analogue and digital signal transmission on
individual items of laboratory control equipment, rev. 1.1.
The NAMUR commands and the additional specific
IKA
®
co mmands serve
only as low level commands for communication between the rotary eva-
porator and the PC. With a suitable terminal or communications program-
me these commands can be transmitted directly to the rotary evaporator.
The
IKA
®
software package, labworldsoft, provides a convenient tool for
controlling rotary evaporator and collecting data under MS Windows, and
includes graphical entry features, for motor speed ramps for example.
The following table summarises the (NAMUR) commands understood by
the
IKA
®
control equipment.
Abbreviations used:
X,y
=
Numbering parameter (integer)
m
=
Variable value, integer
n
=
Variable value, floating-point number
X
=
4
Speed
X
=
60
Interval time (1-60 seconds, 1 <= m >= 60)
X
=
61
Timer (1-199 minutes, 1 <= m >= 199)
X
=
62
Direction of lift (m=2-> lift up , m=1-> lift down)
NAMUR Commands Function
IN_NAME
Request designation
IN_PV_X
Read actual value
X = 4
IN_SOFTWARE
Request software Id-number,
date and version
IN_SP_X
Read target value input
X = 4
OUT_SP_X m
Set target value to m
X = 1,60,61,62
RESET
Switch to normal operation
START_X
Switch on appliance (remote) function
X = 4,60,61,62
STATUS
Status outpu
0:Manual operation without interruption
1:Automatic operation Start (without interruption)
ERROR z (z error number see table)
STOP_X
Switch off appliance function. The variable
X = 1,60, 61, 62
set with OUT_SP_X remains
Data transfer
HB 10
The heating bath transfers data via IR interfaces. These are located on the
left display side of the heating bath or on the right side of the drive unit.
Do not place any objects between the two operating units as otherwise
the data transfer may be interrupted (Fig. 15)!
RV10 digital
The RS 232 interface at the back of the device is fitted with a 9-pole
SUB-D jack and can be connected to a PC. The pins have serial signals.
Using the laboratory device software “labworldsoft”, the device can be
operated in “Remote” mode.
Note: Please note the system requirements as well as the operating ins-
tructions and help section included with the software.
Serial interface RS 232 (V24)
Configuration
- The functions of the interface lines between the device and the au-
tomation system are a selection from the signals specified in the EIA
standard RS232 C, as per DIN 66 020 Part 1.
- For the electrical characteristics of the interface and the allocation of
signal status, standard RS 232 C applies in accordance with DIN 66
259 part 1.
- Transmission procedure: asynchronous character transmission in start-
stop mode.
- Type of transmission: full duplex.
- Character format: character representation in accordance with data for-
mat in DIN 66 022 for start-stop mode. 1 start bit; 7 character bits; 1
parity bit (even); 1 stop bit.
- Transmission speed: 9600 bit/s.
- Data flow control: none
- Access procedure: data transfer from the device to the computer takes
place only at the computer’s request.
Command syntax and format
The following applies to the command set:
- Commands are generally sent from the computer (Master) to the device
(Slave).
- The stirrer machine sends only at the computer’s request. Even fault
indications cannot be sent spontaneously from the stirrer machine to
the computer (automation system).
- Commands are transmitted in capital letters.
- Commands and parameters including successive parameters are sepa-
rated by at least one space (Code: hex 0x20).
PC 1.1 Cable (Fig. 16)
This cable is required to connect the 9-pin connector to a PC.
Interfaces and outputs
Fig. 15
IR
Fig. 16
30
The unit is ready for service when the
mains plug has been plugged in.
On/Off switch (Fig. 17)
Switch on the device on the right side of the device.
Device functions activated.
Function keys (see page 4)
•
“Power” key (1)
Press the "Power" key once
“Stand-by” mode
Press the "Power" key again
Device functions reactivated
“Software version” display changes to "Parameter” display.
Note: The device must first be switched on at the on/off switch on the
right side of the device.
Note: The device is not dead or deenergised until the on/off switch has
been switched to off (right side of device)!
•
Lift position key "
" (2)
When you press the “ ”key, the lift goes up.
When you release the “ ” key, the lift stops and remains in that
position.
•
Lift position key
"
" (3)
When you press the “ “key, the lift goes down.
When you release the “ “ key, the lift stops and remains in that
position.
•
Rotating knob (4)
Setting the speed
Turn the rotating knob
Setting the speed
Speed setting accuracy: + 5 rpm,
Speed range 20-270 rpm
Note: When you select the speed > 100 rpm, smooth start is automati-
cally activated.
Start / Stop Rotation drive
Press the rotating knob
otation drive starts
Press the rotating knob again
Rotation drive stops
•
Timer key (5)
Press the “Timer” key.
The timer block appears on the display, the “TIMER” indicator flashes.
Set the target value “Timer” on the knob by turning (1 to 199 minutes).
Save the “Timer” target value by pressing the "Timer" key again.
Starting the “Timer” function:
- Automatic when rotation drive is running
- Start the rotation drive.
Note: Once the timer has run out, there is a beep, the rotation finishes
and the lift goes up.
Commissioning
The previously saved value appears on the display.
Deactivate the timer by setting the target value to “0”.
•
Int key (6)
Interval cycle for right-left running (change of direction) of the evapora-
tor piston in seconds.
Press the “Int” key.
The interval block appears on the display, the “INT” indicator flashes.
Set the target value “Int” on the knob by turning (1 to 60 minutes).
Starting the “Int” function:
- Automatic when rotation drive is running
- Start the rotation drive
Note: In interval mode the maximum speed is limited to 200 rpm.
Save the “Int” target value by pressing the "Int" key again.
Deactivate the interval by setting the target value to “0”.
Display (see page 4)
•
Display "REMOTE" (10)
(only RV 10 digital)
Remote control via PC in connection with software “labworldsoft” is active.
•
Display "888 rpm" (20)
Current target and actual speed indicator in revolutions per minute [rpm].
When the device is switched on the most recently selected target value
"speed" appears.
•
Display (30)
Rotation drive active.
•
Display "TIMER" (40)
Time lapse control active.
Indication of remaining distillation time in minutes [min].
Note: With the software "labworldsoft", RV 10 digital can also switch off
the heating bath once the timer has run out.
•
Display "INT" (50)
Interval mode activated.
•
Display "E01" (20)
--- not pictured ---
Error codes, see chapter entitled "Error Codes”.
Setting the lower end stop
Caution!
Depending on the size of the piston, the setting angle of the
rotation drive and the position of the heating bath and lift, the eva-
porator piston can be in contact with the bottom of the heating bath.
Caution - glass may break!
Limit the lower lift position with the variable end stop.
Press the “ ” key until the lift reaches the desired position.
Note: The evaporator piston should be 2/3 immersed in the heating
bath.
To adjust the stop element (Q), press the centre button (R) on the front
of the lift (Fig. 18).
Move the stop (Q) to the desired position (Fig. 19)
Press the “ ” key until the lift has reached the upper end stop.
Note: The path is limited from 0 – 6 cm.
Fig. 17
31
Check that the limit stop is functioning properly:
Lower the lift by holding down the “ ” key.
The drive stops automatically when the preset desired lower end po-
sition has been reached.
Move the drive back to the upper position.
To activate the safety lift following a long period of inactivity, use the
motor to move the lift to the top or bottom position several times prior
to starting distillation. (See the section entitled Safety Instructions - Sa-
fety Lift)!
Filling the evaporator piston
Prior to filling the evaporator piston, a vacuum controller is used to regu-
late the glass apparatus to the target pressure.
Now fill the evaporator piston using the backfeed line.
Due to the vacuum present, the solvent is suctioned into the evapo-
rator piston. This enables you to keep solvent loss due to suctioning
to a minimum.
You can also fill the evaporator piston manually prior to creating the
vacuum. The evaporator piston should not be filled more than half its
volume.
Note:
Caution!
The maximum allowed load (evaporator piston and
contents) is 3 kg.
Setting up the heating bath
Refer also to the operating instructions for the heating bath IKA
®
HB 10!
Move the lift to the bottom position and check the position of the
heating bath in relation to the evaporator piston. When using larger
evaporator pistons (2 or 3 litres) or depending on the angle of the
rotation drive, you can move the heating bath 50 mm to the right.
Fill the heating bath with the tempering medium until the evaporator
piston is surrounded by tempering medium to 2/3 of its volume.
Switch on the rotation drive and slowly increase the speed
Note: Avoid creating waves.
Switch on the heating bath using the main on/off switch.
Note: Avoid stress on the glass due to different evaporator piston and
heating bath temperatures when lowering the evaporator piston into
the heating bath!
Note: If non-original accessories are used that are not supplied by
IKA
®
,
then it is possible that the 50 mm travel range provided by the heating
bath will not be sufficient. This applies in particular when using 3 L eva-
porator flasks with foam brake.
Use the
IKA
®
RV 10.3000 mounting plate to extend the heating bath
travel range by 150 mm.
Fig. 18
Q
R
Fig. 19
Fig. 20
Maintenance and cleaning
The device is maintenance-free. It is subject only to the natural wear and
tear of components and their statistical failure rate.
The seal on the glass condenser should be checked at regular intervals
and replaced if necessary.
For cleaning disconnect the main plug.
To clean the device use only water with a detergent that contains tensi-
des, or use isopropylalcohol for stubborn soiling.
Safety lift
The safety lift must be checked daily prior to operation!
After a long period of inactivity (approx. four weeks), use the motor to
move the lift to the top or bottom position several times prior to starting
distillation. (See the section entitled Safety Instructions - Safety Lift)! If the
safety lift is not working, please contact the IKA® Service department.
32
Accessories
RV 10.1
NS 29/32 Vertical glassware (1)
RV 10.10
NS 29/32 Vertical glassware, coated (1)
RV 10.2
NS 29/32 Diagonal glassware (2)
RV 10.20
NS 29/32 Diagonal glassware, coated (2)
RV 10.700
NS 29/42 Vertical glassware (1)
RV 10.710
NS 29/42 Vertical glassware, coated (1)
RV 10.800
NS 29/42 Diagonal glassware (2)
RV 10.810
NS 29/42 Diagonal glassware, coated (2)
RV 10.900
NS 24/40 Vertical glassware (1)
RV 10.910
NS 24/40 Vertical glassware, coated (1)
RV 10.1000
NS 24/40 Diagonal glassware (2)
RV 10.1010
NS 24/40 Diagonal glassware, coated (2)
RV 10.3
Vertical-intensive condenser with manifold(1)
RV 10.30
Vertical-intensive condenser with manifold, coated (1)
RV 10.4
Dry ice condenser (2)
RV 10.40
Dry ice condenser, coated (2)
RV 10.5
Vertical-condenser with manifold and cut-off valve (no picture)
RV 10.50
Vertical-condenser with manifold and cut-off valve, coated (no picture)
RV 10.6
Vertical-intensive condenser with manifold and cut-off valve
for reflux distillation (3)
RV 10.60
Vertical-intensive condenser with manifold and cut-off valve
for reflux distillation (3)
HB 10.1
Protection shield (Heating bath HB 10) (1)
HB 10.2
Protection cover (Heating bath HB 10) (2)
RV 10.70
NS 29/32 Steam pipe
RV 10.71
NS 24/29 Steam pipe
RV 10.72
NS 29/42 Steam pipe
RV 10.73
NS 24/40 Steam pipe
RV 10.74
NS 29/32 Steam pipe, short,
for reflux distillation
RV 10.75
NS 24/29 Steam pipe, short,
for reflux distillation
RV 10.76
NS 29/42 Steam pipe, short,
for reflux distillation
RV 10.77
NS 24/40 Steam pipe, short,
for reflux distillation
RV 10.80
NS 29/32 Evaporator piston 50 ml
RV 10.81
NS 29/32 Evaporator piston 100 ml
RV 10.82
NS 29/32 Evaporator piston 250 ml
RV 10.83
NS 29/32 Evaporator piston 500 ml
RV 10.84
NS 29/32 Evaporator piston 1000 ml
RV 10.85
NS 29/32 Evaporator piston 2000 ml
RV 10.86
NS 29/32 Evaporator piston 3000 ml
RV 10.90
NS 24/32 Evaporator piston 50 ml
RV 10.91
NS 24/32 Evaporator piston 100 ml
RV 10.92
NS 24/32 Evaporator piston 250 ml
RV 10.93
NS 24/32 Evaporator piston 500 ml
RV 10.94
NS 24/32 Evaporator piston 1000 ml
RV 10.95
NS 24/32 Evaporator piston 2000 ml
RV 10.96
NS 24/32 Evaporator piston 3000 ml
RV 10.97
NS 24/40 Evaporator piston 1000 ml
Spare parts order
When ordering spare parts, please give:
- Machine type
- Manufacturing number, see type plate
- Item and designation of the spare part,
see
www.ika.com
, spare parts diagram and spare parts list
.
Repair
In case of repair the device has to be cleaned and free from any mate-
rials which may constitute a health hazard. For this use the "certifi cate
of compliance" included or download the form from the
IKA
®
website
www.ika.com
.
If you require servicing, return the appliance in its original packaging.
Storage packaging is not suffi cient. Please also use suitable transport
packaging.
33
RV 10.2001
NS 29/42 Evaporator piston 50 ml
RV 10.2002
NS 29/42 Evaporator piston 100 ml
RV 10.2003
NS 29/42 Evaporator piston 250 ml
RV 10.2004
NS 29/42 Evaporator piston 500 ml
RV 10.87
NS 29/42 Evaporator piston 1000 ml
RV 10.2005
NS 29/42 Evaporator piston 2000 ml
RV 10.2006
NS 29/42 Evaporator piston 3000 ml
RV 10.2007
NS 24/40 Evaporator piston 50 ml
RV 10.2008
NS 24/40 Evaporator piston 100 ml
RV 10.2009
NS 24/40 Evaporator piston 250 ml
RV 10.2010
NS 24/40 Evaporator piston 500 ml
RV 10.2011
NS 24/40 Evaporator piston 1000 ml
RV 10.2012
NS 24/40 Evaporator piston 2000 ml
RV 10.2013
NS 24/40 Evaporator piston 3000 ml
RV 10.100
KS 35/20 Receiving flask 100 ml
RV 10.101
KS 35/20 Receiving flask 250 ml
RV 10.102
KS 35/20 Receiving flask 500 ml
RV 10.103
KS 35/20 Receiving flask 1000 ml
RV 10.104
KS 35/20 Receiving flask 2000 ml
RV 10.105
KS 35/20 Receiving flask 3000 ml
RV 10.200
KS 35/20 Receiving flask, coated 100 ml
RV 10.201
KS 35/20 Receiving flask, coated 250 m
RV 10.202
KS 35/20 Receiving flask, coated 500 ml
RV 10.203
KS 35/20 Receiving flask, coated 1000 ml
RV 10.204
KS 35/20 Receiving flask, coated 2000 ml
RV 10.205
KS 35/20 Receiving flask, coated 3000 ml
RV 10.300
NS 29/32 Powder piston 500 ml
RV 10.301
NS 29/32 Powder piston 1000 ml
RV 10.302
NS 29/32 Powder piston 2000 ml
RV 10.303
NS 24/29 Powder piston 500 ml
RV 10.304
NS 24/29 Powder piston 1000 ml
RV 10.305
NS 24/29 Powder piston 2000 ml
RV 10.2014
NS 29/32 Powder piston 500 ml
RV 10.2015
NS 29/32 Powder piston 1000 ml
RV 10.2016
NS 29/32 Powder piston 2000 ml
RV 10.217
NS 24/40 Powder piston 500 ml
RV 10.218
NS 24/40 Powder piston 1000 ml
RV 10.219
NS 24/40 Powder piston 2000 ml
RV 10.400
NS 29/32 Evaporator cylinder 500 ml
RV 10.401
NS 29/32 Evaporator cylinder 1500 ml
RV 10.402
NS 24/29 Evaporator cylinder 500 ml
RV 10.403
NS 24/29 Evaporator cylinder 1500 ml
RV 10.2020
NS 29/42 Evaporator cylinder 500 ml
RV 10.2021
NS 29/42 Evaporator cylinder 1500 ml
RV 10.2022
NS 24/40 Evaporator cylinder 500 ml
RV 10.2023
NS 24/40 Evaporator cylinder 1500 ml
RV 10.500
NS 29/32 Foam brake
RV 10.501
NS 24/29 Foam brake
RV 10.2024
NS 29/42 Foam brake
RV 10.2025
NS 24/40 Foam brake
RV 10.600
NS 29/32 Distillation spider with 6 sleeves
RV 10.601
NS 29/32 Distillation spider with 12 sleeves
RV 10.602
NS 29/32 Distillation spider with 20 sleeves
RV 10.603
NS 24/29 Distillation spider with 6 sleeves
RV 10.604
NS 24/29 Distillation spider with 12 sleeves
RV 10.605
NS 24/29 Distillation spider with 20 sleeves
RV 10.2026
NS 29/42 Distillation spider with 6 sleeves
RV 10.2027
NS 29/42 Distillation spider with 12 sleeves
RV 10.2028
NS 29/42 Distillation spider with 20 sleeves
34
Any malfunctions during operation will be identified by an error message on the display (only RV 10 digital).
Once a serious error message has been displayed, the lift moves to the top end position and the device can no longer be operated. The lift can be
operated again.
Proceed as follows in such cases:
GSwitch off device using the main switch
Carry out corrective measures
Restart device
Error Effect
Cause
Correction
code
E01
No or too little rotation
Cable break
Reduce the volume in the evaporator piston
Load too large
Motor blocked
E02
No communication with the
Interface hidden or dirty
Check / clean the interface
heating bath
If the actions described fail to resolve the fault or another error code is displayed then take one of the following steps:
- contact the
IKA
®
service department,
- send the device for repair, including a short description of the fault.
RV 10.2029
NS 24/40 Distillation spider with 6 sleeves
RV 10.2030
NS 24/40 Distillation spider with 12 sleeves
RV 10.2031
NS 24/40 Distillation spider with 20 sleeves
RV 10.610
Distilling sleeve 20 ml
RV 10.606
NS 29/32 Distillation spider with 5 flasks 50 ml
RV 10.607
NS 29/32 Distillation spider with 5 flasks 100 ml
RV 10.608
NS 24/29 Distillation spider with 5 flasks 50 ml
RV 10.609
NS 24/29 Distillation spider with 5 flasks 100 ml
RV 10.2032
NS 29/42 Distillation spider with 5 flasks 50 ml
RV 10.2033
NS 29/42 Distillation spider with 5 flasks 100 ml
RV 10.2034
NS 24/40 Distillation spider with 5 flasks 50 ml
RV 10.2035
NS 24/40 Distillation spider with 5 flasks 100 ml
RV 10.3000
Extension plate
RV 10.8001
Seal, PTFE compound
PC 1.1
Cable
Labworld
soft
®
Error codes
35
Technical Data
only RV 10 basic
only RV 10 digital
Operating voltage range
Vac
100 - 230 + 10%
Rated voltage
Vac
100 - 230
Frequence
Hz
50 / 60
Power input without heating bath
W
75
Power input in operation “Stand by”
W
3,3
Speed
rpm 20-280
Speed display
digital
Dimensions of visible display area (W x H)
mm
48 x 35
Display
7 segment display
Multiple languages
-
Right and left movement/ interval operation
yes
Smooth start
yes
Lift
automatically
Lifting speed
mm/s
50
Stroke
mm 140
Setting of lower end stop
60 mm, contactless
Head angle adjustable
0° - 45°
Timer
min 1-199
Interval
sec 1-60
Integrated vacuum controller
-
Interface
-
RS 232
Ramp programming
-
with accessory labworld
soft
®
Distillation processes programmable
-
with accessory labworld
soft
®
Remote control
-
with accessory labworld
soft
®
Cooling surface
cm
2
1200
(Standard condenser RV 10.1,10.10,10.2,10.20)
Fuse
2xT1, 6A 250V 5x20
Perm. On-time
%
100
Perm. ambient temperature
°C
5-40
Perm. humidity rel.
%
80
Protection acc. to DIN EN 60529
IP 20
Protection class
I
Overvoltage category
II
Contamination level
2
Weight (no glassware; no heating bath)
kg
16,8
17,5
Dimensions (W x D x H)
mm
500 x 410 x 430
Operation at a terrestrial altitude
m
max. 2000 above sea level
Subject to technical changes!
Solvent table (excerpt)
Solvent
Formula
Pressure for
boiling point
40 °C in mbar
Acetic acid
C2H4O2 44
Acetone
C3H6O 556
Acetonitrile
C2H3N 226
N-Amylalcohol,
C5H12O 11
n-Pentanol
n-Butanol
C4H10 25
tert. Butanol,
C4H10O 130
2-Methyl-2-Propanol
Butylacetate
C6H12O2 39
Chlorobenzene
C6H5CI 36
Chloroform
CHCI3 474
Cyclohexane
C6H12 235
Dichloromethane,
CH2CI2 atm.press.
Methylenechloride
Diethylether
C4H10O atm.press.
1,2,-Dichloroethylene (trans)
C2H2CI2
751
Diisopropylether
C6H14O 375
Dioxane
C4H8O2 107
Dimethylformamide (DMF)
C3H7NO
11
Ethanol
C2H6O 175
Solvent
Formula
Pressure for
boiling point
40 °C in mbar
Ethylacetate
C4H8O2 240
Ethylmethylketone C4H8O 243
Heptane
C7H16 120
Hexane
C6H14 335
Isopropylalcohol
C3H8O 137
Isoamylalcohol,
C5H12O 14
3-Methyl-1-Butanol
Methanol
CH4O 337
Pentane
C5H12 atm.press.
n-Propylalcohol
C3H8O 67
Pentachloroethane C2HCI5 13
1,1,2,2,-Tetrachloroethane C2H2CI4
35
1,1,1,-Trichloroethane C2H3CI3 300
Tetrachloroethylene C2CI4 53
Tetrachloromethane CCI4 271
Tetrahydrofurane (THF)
C4H8O
357
Toluene
C7H8 77
Trichloroethylene
C2HCI3 183
Water
H2O 72
Xylene
C8H10 25
