Settings - Configuration

Playback

Press Configuration in the main menu and then Play-

back to search for video recordings after an event or a

marking, or to view your saved images.

Continous Recording

The following settings are available:

141

A1 - A4

Camera to be set

Record Type

Schedule, motion detection, alarm or mo-

tion detection and/or alarm, manual re-

cording, all

File Type

Locked, unlocked, all

Start Time

End Time

Enter the date and time

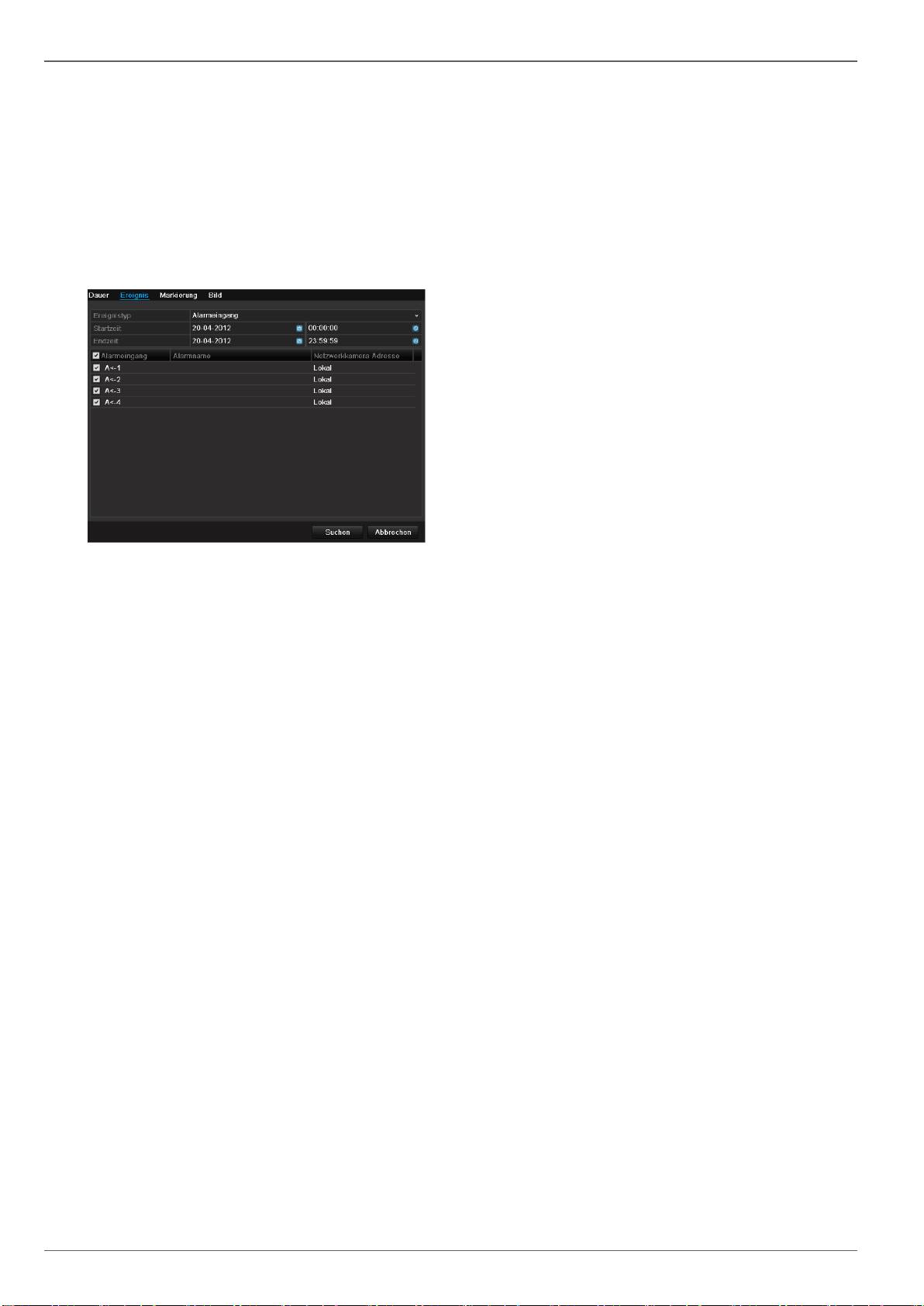

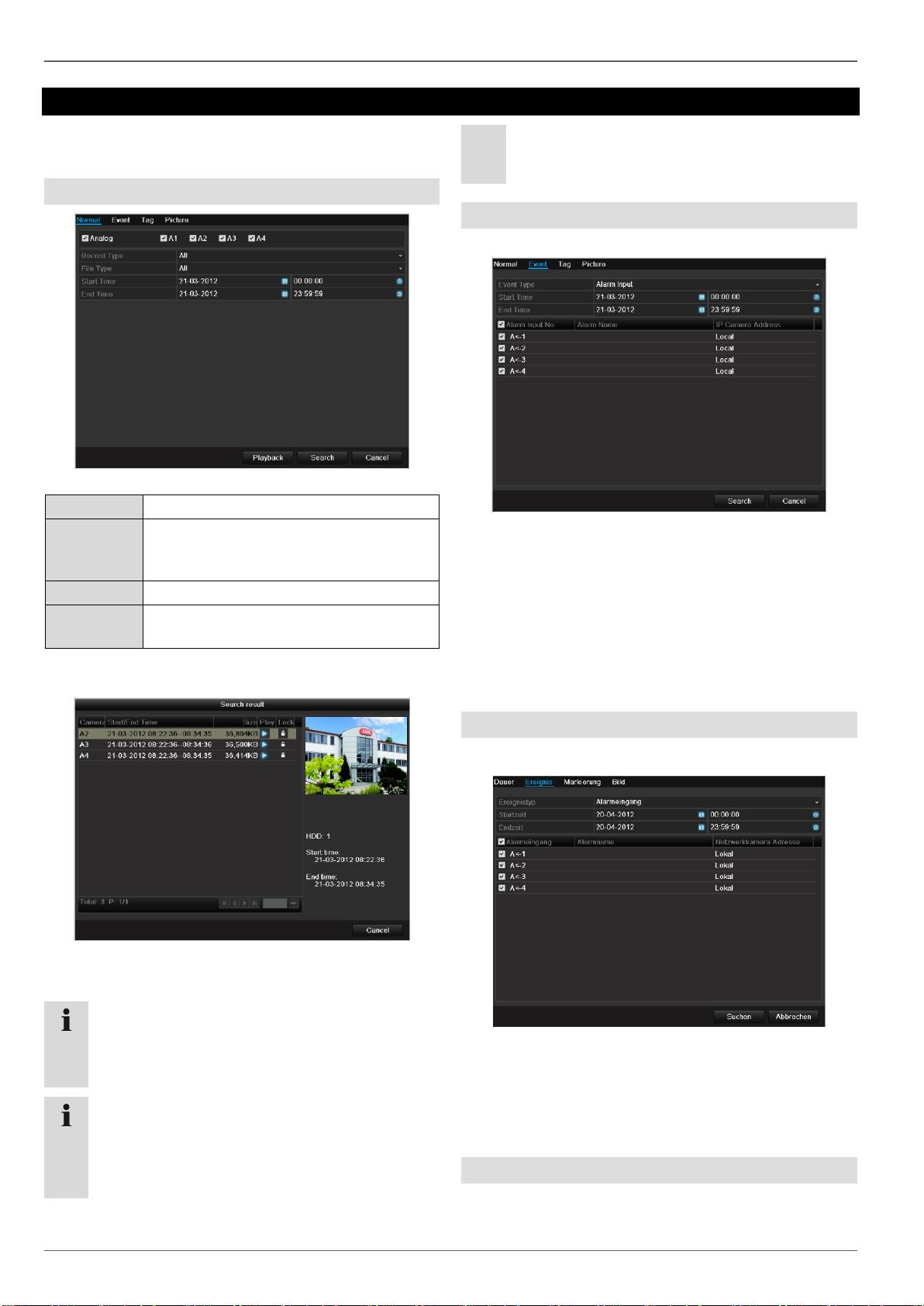

Click on Search to search for recordings with the cor-

responding settings. The results are then shown:

Select the recording by clicking on the line and then

on “Play”-symbol.

Note

You can return to events search at any time in the

playback mode by performing a right click and se-

lecting ‘Video Search’.

Note

The sub-menus ‘Tag’ and ‘Picture’ are almost iden-

tical with the menu described above and are there-

fore not listed separately.

In the sub-menu ‘Tag’, searching does not take

place according to recording type, rather according

to identification or a keyword of the markings’

name

Event

Please klick on the TAB „Event“.

A list with all alarm inputs is displayed.

Select at ‘Event type’ whether the search should take

place at alarm ‘Alarm input’ or motion ‘Motion recognition’

after recording.

Select one or more alarm inputs by activating the check

box.

Klick on Search.

Select one of more alarm recordings on the list that ap-

pears. Click on Details to receive more exact information

on the recordings.

Marking

Click on the “Marking” tab.

Select one or more network cameras by activating the

checkbox.

Click on Search.

Select one or more markings from the list which appears.

Click on Details to obtain more information about the

markings.


Click on the “Image” tab.

Settings - Configuration

Select one or more network cameras by activating the

checkbox.

Click on Search.

Select one or more images from the list which appears.

Click on Details to obtain more information about the im-

ages.

142

Maintenance

Maintenance

143

Note

This menu is used for device maintenance, and

should only be operated by experienced users.

Menu

Setting

P.

System Info

Device information (serial num-

ber, firmware status etc.)

143

Log Search

A search of recordings or in-

formation (S.M.A.R.T. HDD

status) can be made in the log

file according to certain criteria

(alarms, exceptions, operation

or information).

143

Import/Export

Used to export or import the

settings

144

Upgrade

Carries out a firmware upgrade

144

Default

System reset

145

Network

Displays the transmission and

reception rate of the recorder

145

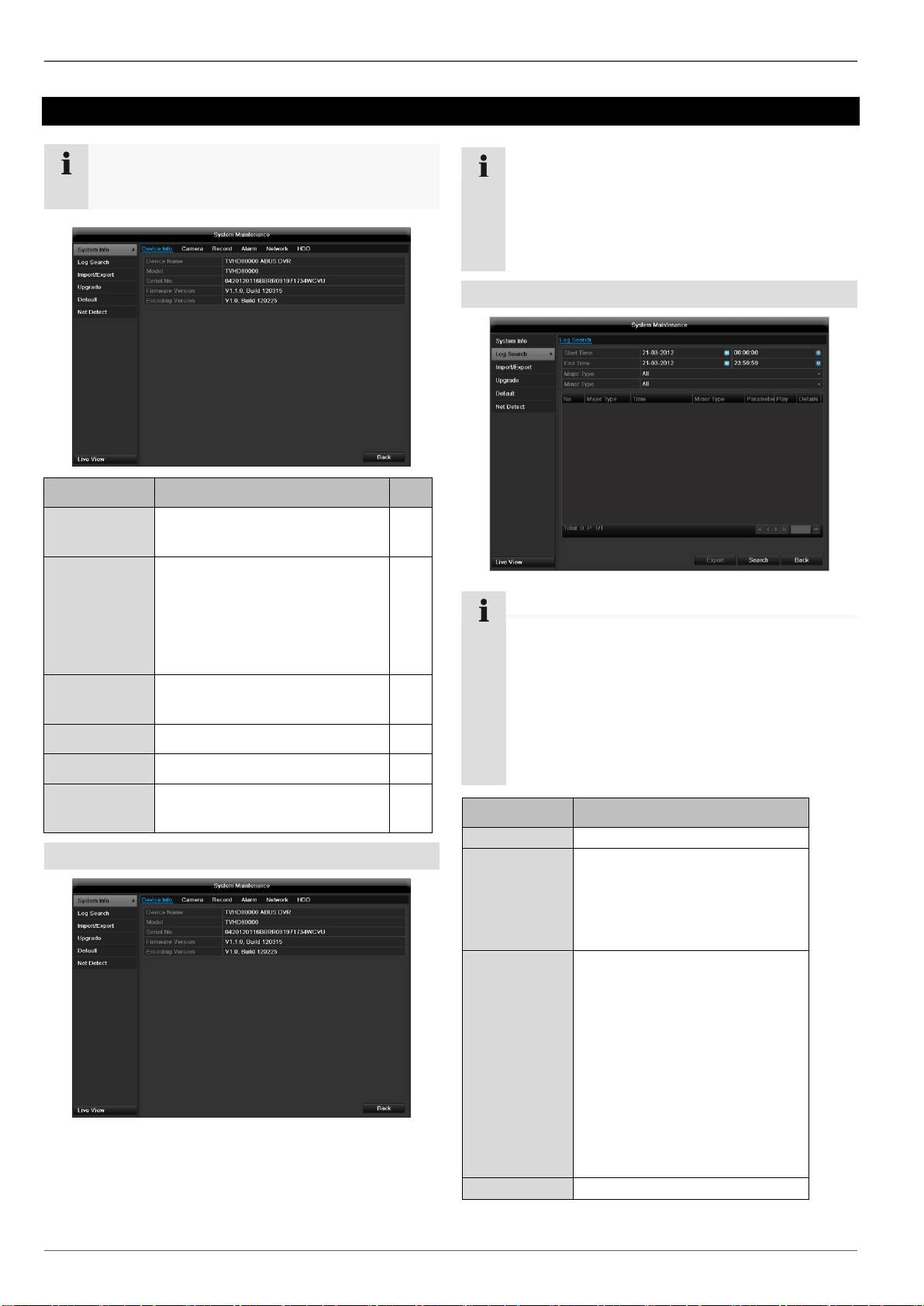

System Info

Note

The information menu shows the technical data

for the device and information on the various set-

tings of the cameras, recording etc.

This can be useful for support queries, for exam-

ple.

Log Search

Note

An event search can be made according to the fol-

lowing main types, events and parameters:

All

Alarm

Exception

Operation

Information

Filter1

Filter2

All

-

Alarm

All

Alarm Input / Output

Start / Stop Motion Detec-

tion

Start / Stop Tamper-proof

Exception

All

Video Loss Signal

Video Signal Exception

Illegal Login

HDD Full

HDD Error

IP Conflicted

Network Disconnected

Record / Capture Exception

Input / recording resolution

mismatch

Operation

All

Maintenance

144

Power On

Abnormal Shutdown

Start / Stop Audio

Local Operation, e.g.:

Shutdown / Reboot / Login /

Logout / Configure Parame-

ters / Upgrade / Start Re-

cording

Remote Operation, e.g.:

Export Record File / Alarm

Arming / ...

Information

All

Local HDD Information

HDD S.M.A.R.T.

Start / Stop Recording

Start / Stop Capture

Delete Expired Record

NetHDD Information

1. Select the event you wish to search for in the log,

then select the sub-parameter.

2. Enter the date and time under “Start Time” and “End

Time”, then click on Search.

3. The results are then displayed:

The pages are changed using the navigation bar:

(1) (2) (3) (4) (5) (6)

Note

To scroll forwards or backwards press (3) or (2).

To jump to the first or last page press (4) or (1).

To go to a specific page number enter it in (5) and

confirm by clicking (6).

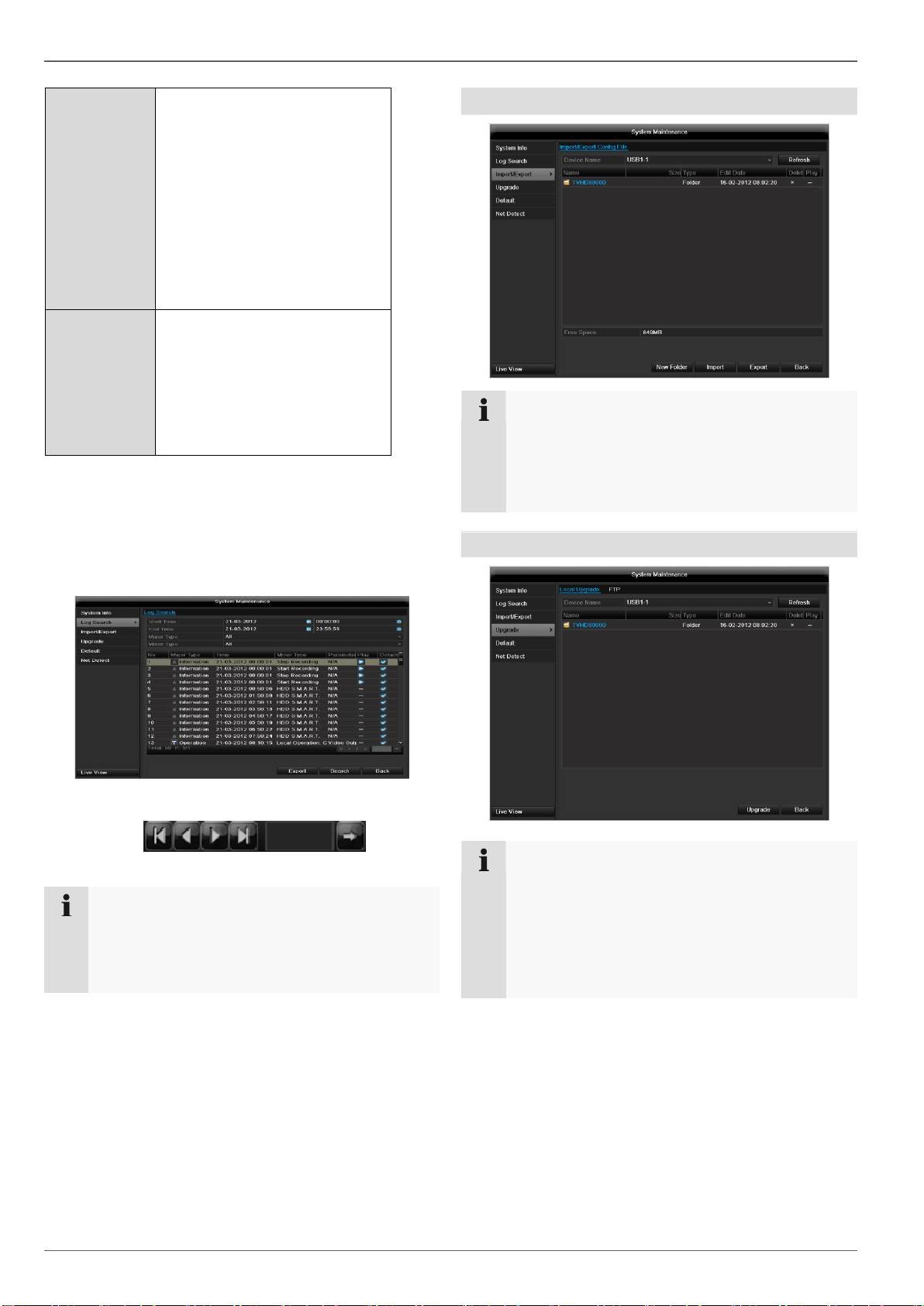

Import / Export

Click on Details to see more detailed information.

Click on Play to start the recording for the event,

when necessary.

Click on Export to back up the log file on a USB me-

dium.

Note

The configuration data contains all settings made

on the device since the start of operation. This

data can be saved on a USB medium. You can

then configure another device identically, for ex-

ample.

Upgrade

Note

A device upgrade can be made from a USB de-

vice or over the network via FTP.

Copy the upgrade file to the main directory of a

USB stick.

Connect the USB stick to a USB port on the

device.

1. Select the USB port (click on Refresh, if necessary).

2. Select the upgrade file and click on Upgrade.

3. Wait until the device reboots.

4. Check the firmware status in the “Maintenance”

menu under “System Info”.

Maintenance

Default

145

Note

In this process, the device is reset to the factory de-

fault settings.

Warning

All settings made since the start of operation

are deleted (cameras, recording settings, PTZ,

alarms etc.)!

Avoid data loss by backing up the settings in

advance. These can be imported again follow-

ing the system reset.

Network

Note

Information regarding the network traffic and net-

work interfaces are shown here.

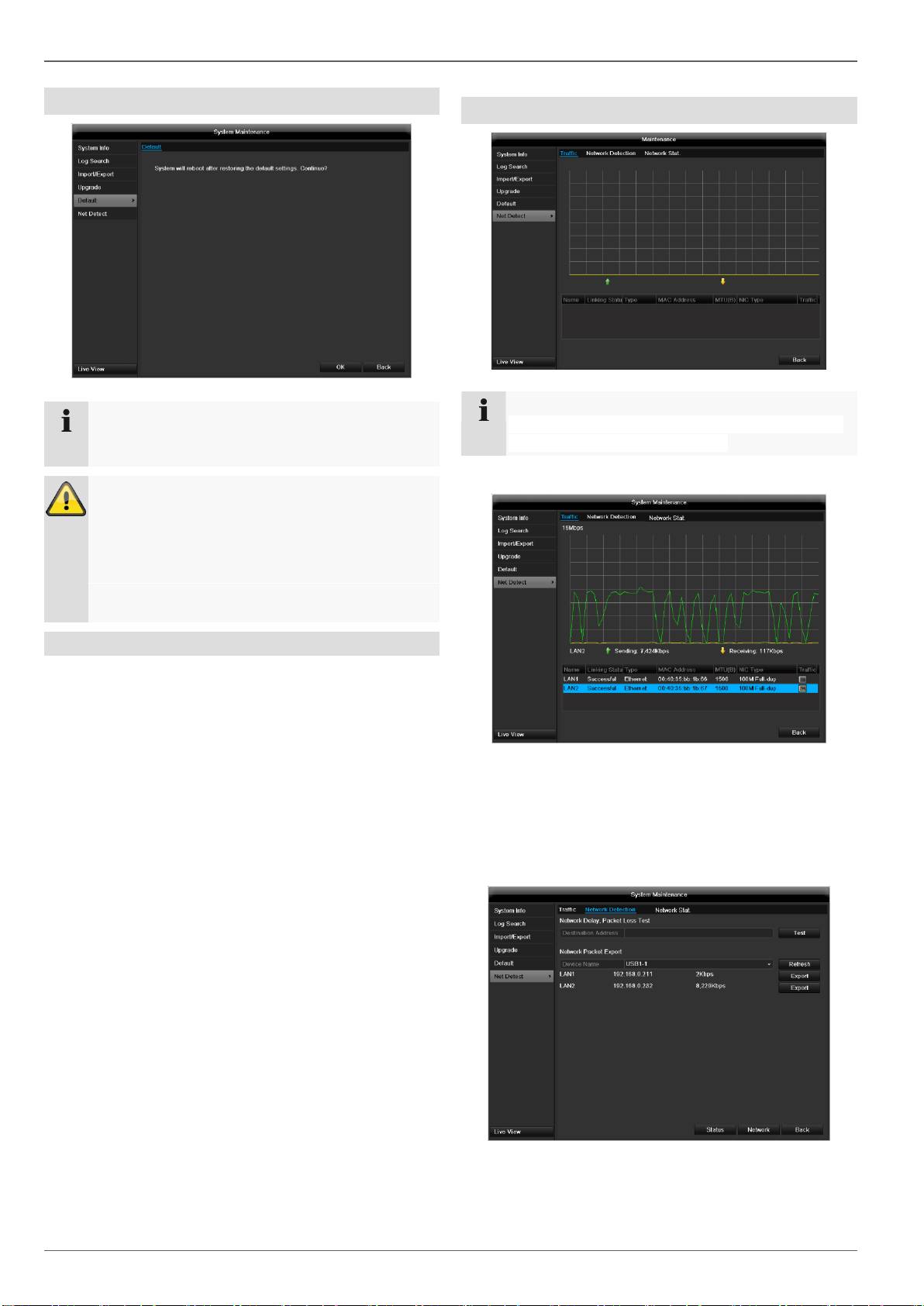

TAB network load

The amount of received and sent data is displayed

graphically.

Depending on the network settings, the status and infor-

mation for one or two network connections is shown in

the field underneath the graph.

TAB Network Detection

Maintenance

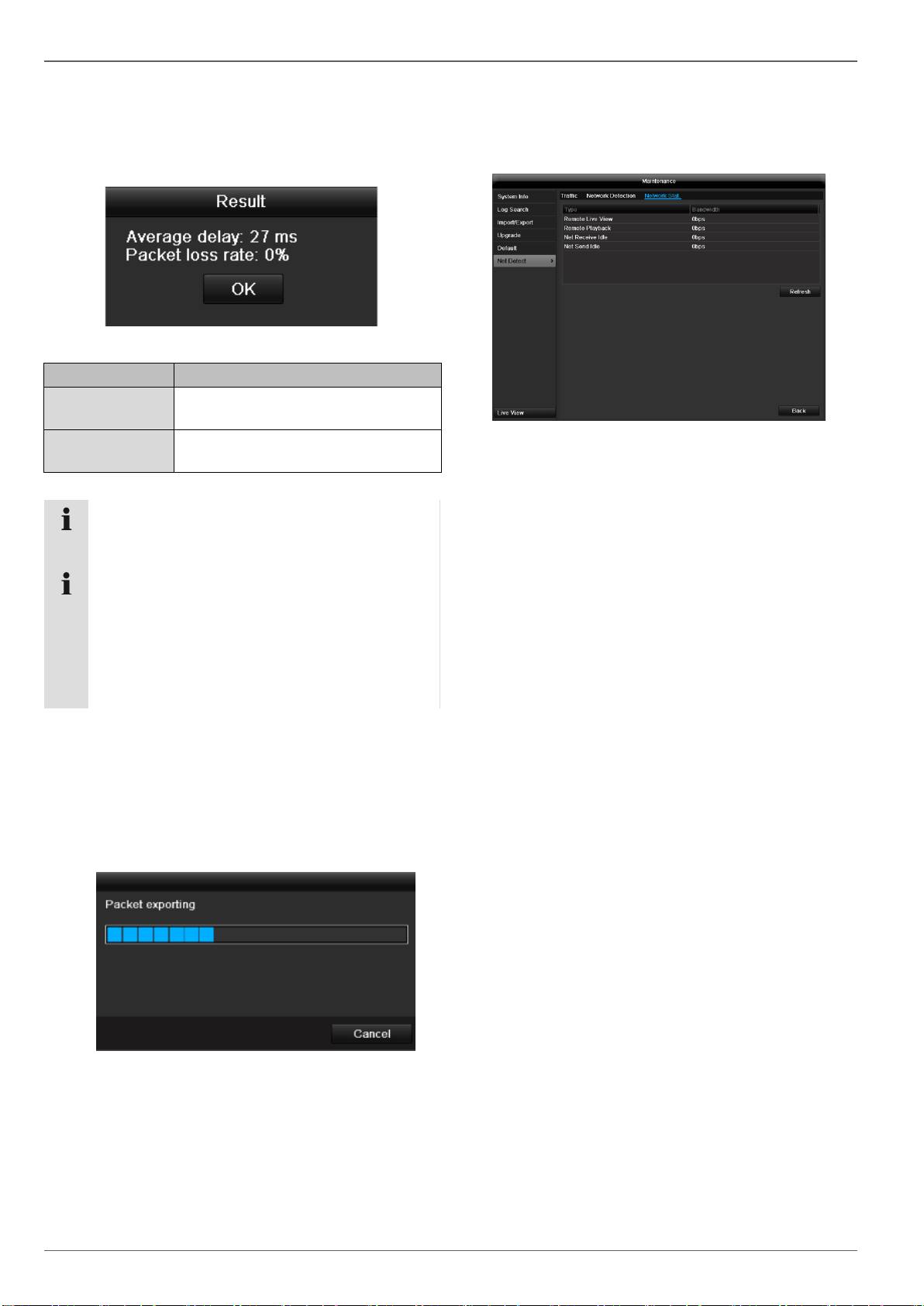

In “Destination Address”, you can check the connection

to another device, such as a computer (‘pinging’). Enter

the network address of the device to be checked (e.g.

192.168.0.25) and press Test.

Information on two parameters appears:

146

Parameter

Setting

Average

delay

The time the pinged device needs to

reply.

Packet loss

Rate:

Displays the percentage of packets

that were not transmitted

Note

If the packet loss rate is high, we recommend that

the “Network Test” is repeated.

Note

If the packet loss rate is still high, you should

check that the cables are correct and not dam-

aged.

The higher the packet loss rate, the poorer the

connection between the pinged device and re-

corder.

Click Network to change your network settings (see

p. 124).

TAB Network Stat.

Displays all used in- and outcoming bandwidth.

For “Network Packet Export”, you can export the settings

of the individual connections or depending on the set-

ting the connection.

4. For “Device Name”, select a storage medium to save

the settings to.

5. Click Export.

After the progress display finishes and initializa-

tion is successful, an information window ap-

pears. Close it with OK.

Click Status to display the status of the LAN connec-

tions (connected/not connected).

Video Export

Video Export

Duration

147

Note

The export function is used to store important re-

cordings on connected external media, such as:

USB media

USB HDD

DVD writer

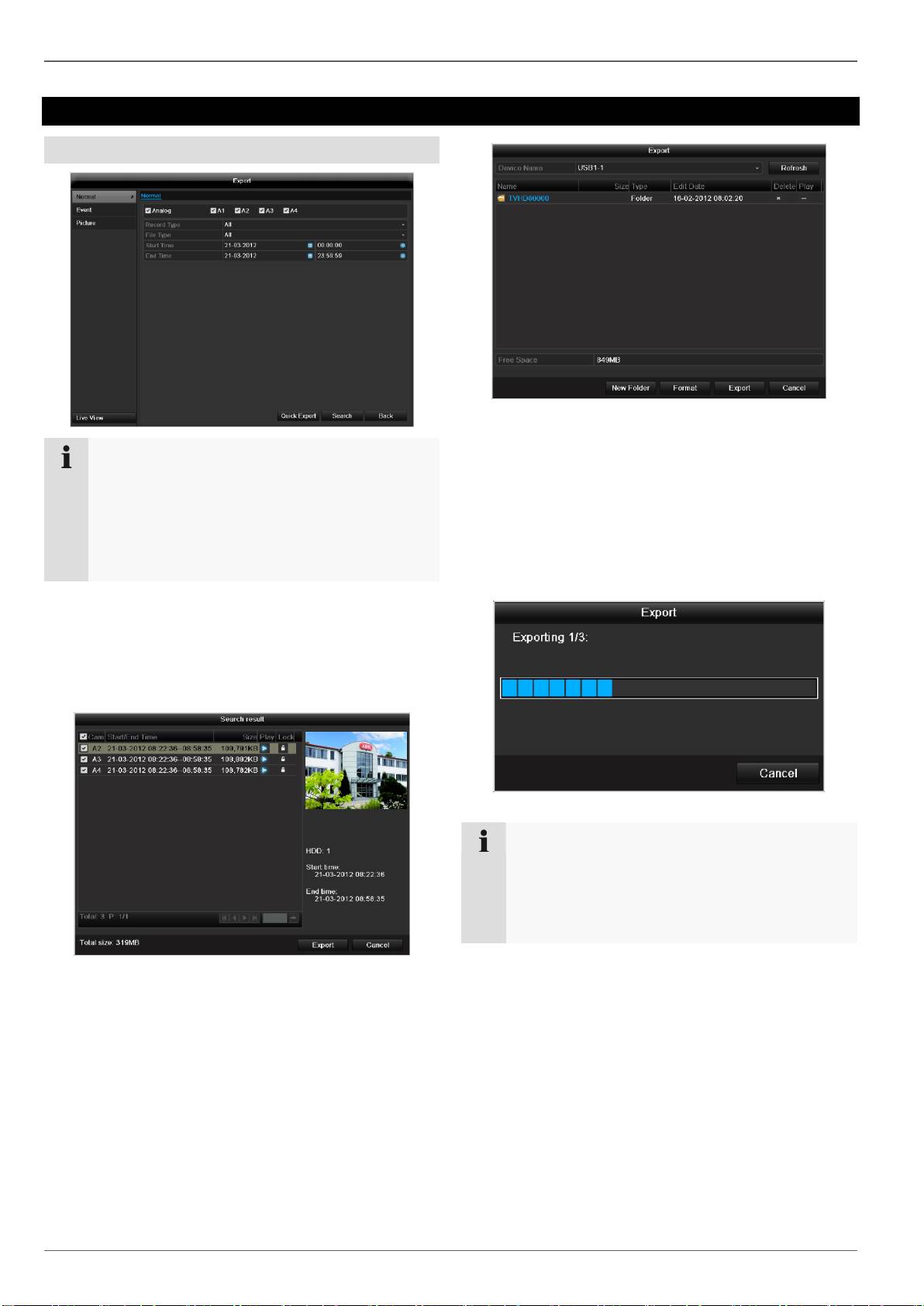

1. Select the connected medium used for data storage

from the drop-down menu.

2. If the medium is not displayed, click on Refresh.

If the medium is still not displayed, disconnect it from

the device and reconnect the medium again. See

also the manufacturer’s specifications.

3. Click on Export to start the export process. The pro-

gress of the export process is then displayed.

When “Quick export” is selected, all recordings of the

selected time span are exported. Please note that not

more than 24 hours can be exported.

1. Enter the parameters.

2. Click on “Details” to limit the search

The file size of the individual recording and the total

size of all found recordings are displayed.

By clicking the “Playback” symbol you can view the

respective recording.

To block or unblock a file click on the “Lock” symbol.

3. Click on Export to access the export screen.

Note

After the storage process is completed, the data on

the medium can be selected and played on the

player (which was also backed up). In this way,

you can check whether the export has been made

successfully.

Video Export

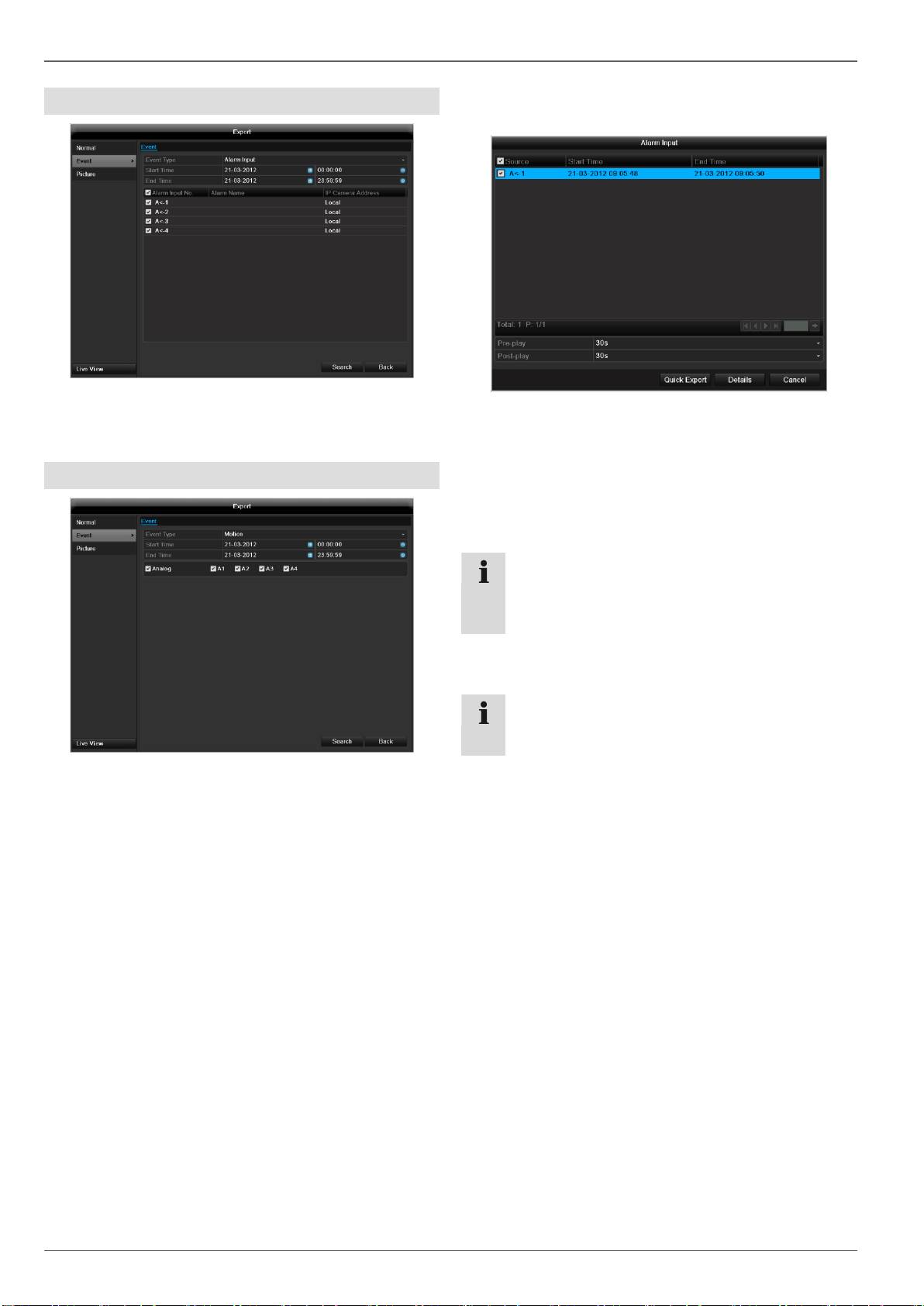

For both types of event, the following window appears af-

Event (event type ‘Alarm input’)

ter activating the Search button:

Define the time span of the recording being searched for

Select the files to be exported by activating or deactivat-

by means of the selection fields at “Start time” and “End

ing the check box. You can set the pre-alarm and post-

time”. Select the alarm input by activating or deactivating

alarm time at “Pre-play” or “Post-play”. In this way you

the check box and click Search.

can define the length of your export video.

Event (event type ‘Motion’)

Click on Details to view the selected video. For more ex-

act information on the Details window, see DURATION

(p. 147).

Define the time span of the recording being searched for

by means of the selection fields at “Start time” and “End

time”. Select the camera by activating or deactivating the

check box and click Search.

148

Note

The “Pre-play” recordings can only be viewed

when recording has been carried out before the

alarm.

Note

The sub-menus “Normal” and “Picture” are similar

and are therefore not listed separately.

Manual Management

Manual Management

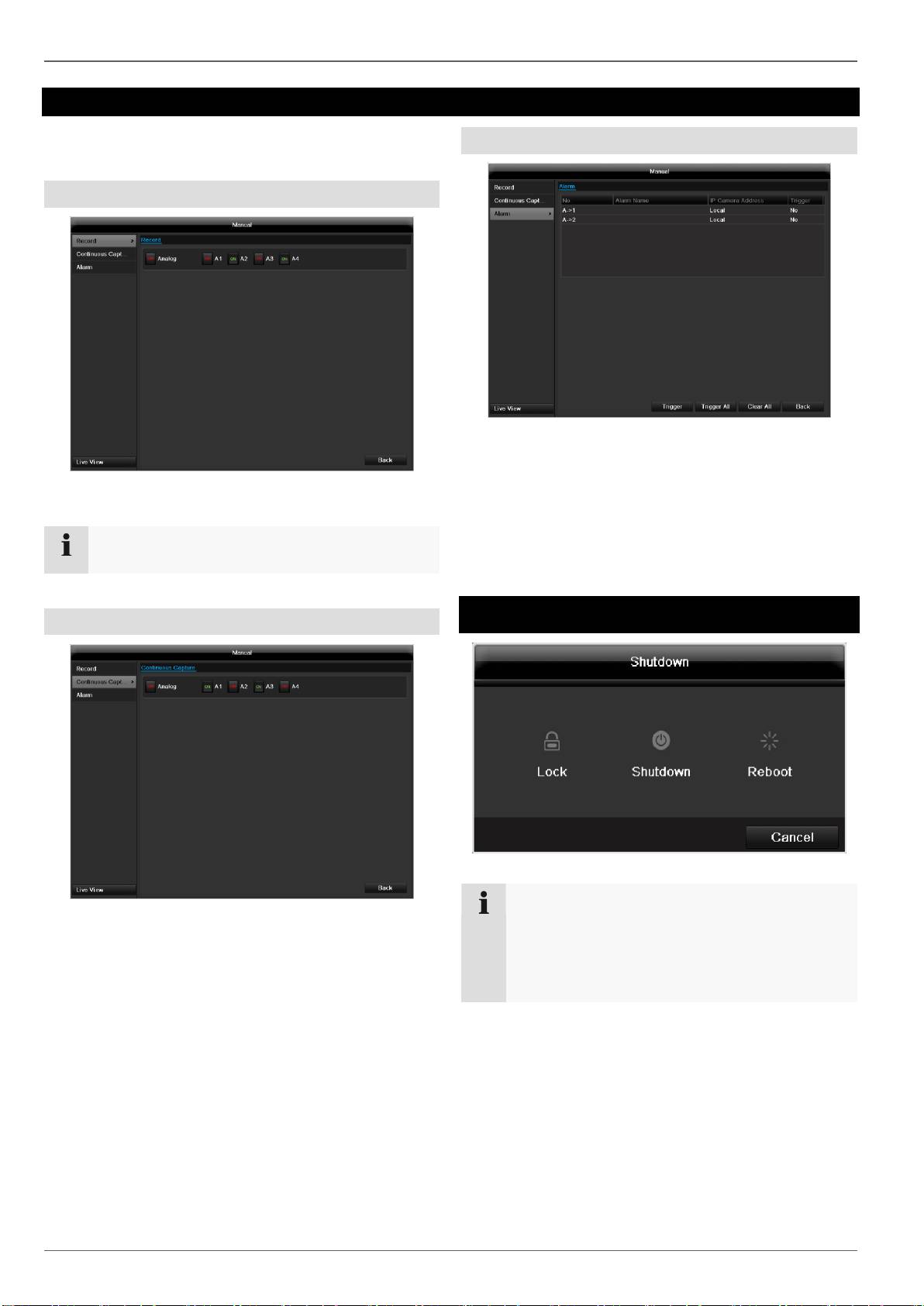

Press the REC button or go to panic recording in the

main menu in order to start a manual image / video re-

cording or to switch to an alarm output.

Record

Select the camera to start manual recording by click-

ing the corresponding button.

149

Note

Click “Analog” to record all connected cameras.

Alarm

In order to switch on one of the alarm outputs, select the

alarm output with a left click and click on Trigger for one,

or Trigger All, to switch on all outputs. To reset the out-

put(s) again, click on Clear or Clear all.

Continous Capture

Shutdown

Select the camera to manually record continuous instant

images. You can set the time interval in which these are

recorded in the recording menu (see p. 135).

Click the control button for this.

Note

Select “Lock” to lock the operating menu.

Select “ShutDown” to switch off the device.

Select “Reboot” to reboot the system (switch

off and back on).

Troubleshooting

Troubleshooting

Before calling the Service department, read the following information to determine the possible cause of a malfunction.

150

Malfunction

Cause

Solution

No power

Mains cable not connected

Connect the mains cable securely to the

socket

Power switch set to OFF

Turn the power switch to ON

No current in the power socket

Use another device on the socket, where

necessary

No image

Screen not set for reception

Set the correct video input mode until an

image from the recorder appears

Video cable not connected properly

Connect the video cable securely

Connected modem is switched off

Switch on the monitor

No sound

Audio cables not connected properly

Connect the audio cables securely

Devices connected over the audio cables

are not switched on

Switch on the devices connected over the

audio cables

Audio connection cable is damaged

Replace the cable

HDD is not working

Connection cables not connected properly

Connect the cables securely

HDD defective or not system-compatible

Replace with a recommended HDD

USB port not working

Device not supported

Connect a compatible USB medium

(USB 2.0)

USB hub is in use

Connect the USB medium directly

Network access not possible

Network cable connections are loose

Connect the network cable

Network settings are incorrect (DHCP, IP

address etc.)

Check the network configuration and cor-

rect it, ifnecessary (see page 124).

Remote control is not working

Batteries inserted with the wrong polarity or

are empty

Replace the batteries. To control the de-

vice with the remote control, point it at the

remote control sensor on the device

Remote control too far away from the re-

corder

Use the remote controller within 7 metres

from the device

Signal blocked by obstruction between the

remote control and recorder

Remove the obstruction

Lighting too bright or fluorescent tubes in

use?

Switch off strong fluorescent lighting in the

immediate vicinity

Recording not possible

No HDD or HDD is not initialised

Install and initialise the HDD

Sudden deactivation of the

device

Temperature inside the device is too high

Clean the device and remove any obstruc-

tions from the ventilation area

Device cleaning and care

Note

Your device requires no maintenance.

Protect the device from dust, dirt and moisture.

Technical data

Technical data

Subject is to alterations and errors. The dimensions are approximate values.

151

ABUS digital recorder

TVVR45030

Video compression

H.264, MPEG-4

Hybrid-compatible

-

Camera inputs

32

Camera outputs

none

Monitor outputs

Monitor: 1 x BNC (1.0 V p-p, 75 Ω), 1 x VGA, 1 x HDMI

Operating mode

Triplex

Resolution (live view)

HDMI:

1920*1080/60Hz(1080P),1600×1200/60Hz, 1280*1024/60Hz,

1280*720/60Hz1024*768/60Hz

VGA:

1920*1080/60Hz,1600×1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz1024*768/60Hz

BNC Output:

PAL: 704×576, NTSC: 704×480

Resolution @ frame rate per

camera (recording)

Max. 1920 x 1080p @ 25fps

Total frame rate

800 fps

Compression levels

Depends on used network camera

Pre-alarm/post-alarm memory

030 sec. / 5900 sec.

Storage medium

8x SATA HDD

Data backup

3 x USB 2.0

Views

1 / 4 / 6 / 8 / 9 / 16

Recording modes

Manual, schedule, motion detection, alarm, motion detection and alarm,

motion detection or alarm

Search modes

By event, date and time

Alarm inputs (NO/NC)

16

Alarm outputs

4 (Loading capacity: 12V DC/1 A)

User levels

2 (max. 31 users)

Network connection

2 x RJ45 10/100/1000 Mbps

Parallel network access

128 camera connections

Network functions

Live view, playback, data export, settings

DDNS

NTP

PTZ control

RS-485

PTZ protocols

PELCO-D, PELCO-P, Samsung, LG-MULTIX

Alarms

Acoustic warning, OSD signal, e-mail,CMS

Audio

Line In: 1 x Cinch (2.0 V p-p, 1000 Ω) – only for network transmission

Audio Out: 2 x Cinch (600 Ω)

Control

USB Mouse, remote control

Software

ABUS CMS software

OSD languages

German, English, French, Dutch, Danish, Italian, Polish, Czech, Spanish, Swedish

Power supply

100~240VAC

Power consumption

<55W (without HDD)

Operating temperature

-10 °C+55 °C

Dimensions (WxHxD)

470 x 90 x 445 mm

Weight

≤ 8 kg (without HDD)

Certification

CE

GlossaryTechnical data

HDD storage capacity

In addition to the actual storage capacity of the installed HDD, the required storage space for recording and surveil-

lance depends on the set resolution and frame rate of the recording.

On the included CD you can find a program in order to calculate the required amount of memory. In addition you find

this software for download on our homepage together with the ABUS CMS software.

Overview monitor output combination

152

HDMI

+

VGA

HDMI

+

CVBS

VGA

+

CVBS

HDMI

only

VGA

only

CVBS

only

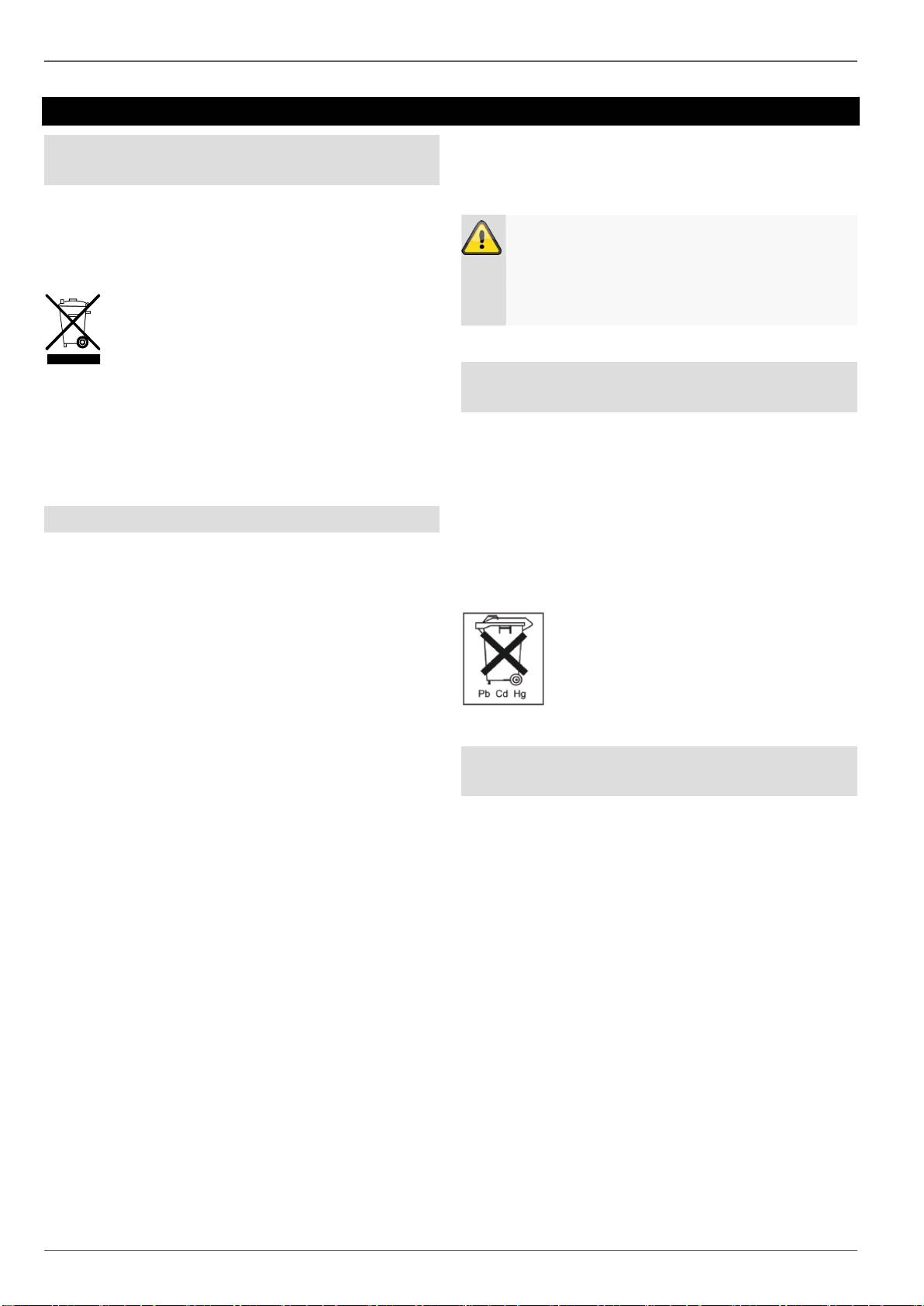

Disposal

Disposal

Information on the EU directive on waste

electrical and electronic equipment

To protect the environment, do not dispose of the device

with domestic waste at the end of its service life. It can be

disposed of at one of the appropriate collection points in

your country. Please obey your local regulations when

disposing of material.

153

Dispose of the device in accordance with EU di-

rective 2002/96/EC WEEE (Waste Electrical

and Electronic Equipment). If you have any

questions, please contact the department of

your local authority which is responsible for

waste disposal. Used equipment can be dis-

posed of, for example, by your local or munici-

pal authority, the local waste disposal company

or your dealer.

Change low batteries in good time.

Always change all the batteries at the same time and

use batteries of the same type.

Information on handling batteries

Always insert batteries with the correct polarity. Never

attempt to recharge the batteries supplied and do not

throw them into naked flames under any circum-

stances. Do not use different batteries at the same

time (old and new, alkaline and zinc-carbon etc.).

Remove the batteries if the device is not used for a

long period of time. If used improperly, there is a risk

of explosion and leaking batteries!

Take environmental protection into account used

batteries should not be disposed of in domestic

waste! They must be taken to a collection point for

used batteries.

Make sure that batteries are kept away from small

children. Children may put batteries in their mouths

and swallow them. This can cause serious harm to

their health. If this happens, consult a doctor immedi-

ately.

Do not charge normal batteries, heat them up or

throw them into naked flames (they may explode).

Important

Leaky or damaged batteries can cause chemical

burns on contact with the skin.

In this case, wear protective gloves.

Clean the battery compartment with a dry cloth.

Important information on disposing of

batteries

Your product uses batteries which are subject to the

European directive 2006/66/EC and may not be disposed

of with domestic waste.

Find out about the regulations for the separate collection

of batteries which apply in your country.

Proper disposal of batteries helps prevent harm to health

and the environment.

Batteries that contain harmful chemicals are labelled with

these signs:

Pb = battery contains lead

Cd = battery contains cadmium

Hg = battery contains mercury

Information on the European RoHS

directive

The device complies with the RoHS directive.

Compliance with the RoHS directive means that the

product or component does not contain more than the fol-

lowing maximum concentrations of the following sub-

stances in homogeneous materials, unless the substance

is part of an application that is excluded from the RoHS

directive:

a) 0.1% lead (by weight)

b) Mercury

c) Hexavalent chromium

d) Polybrominated biphenyl (PBB) and polybrominated

diphenyl ether

e) 0.01% cadmium (by weight)

Glossary

Glossary

Overview of specialist terms

1080i

Dual Stream

HDTV image signal with 1080 pixels and interlaced dis-

Dual stream is a video transmission method. A high-

play.

resolution recording and lower-resolution transmission

are made over the network, for example. The main

16:9

stream has a 4CIF resolution and the sub-stream has a

Cinematographic aspect ratio on widescreen displays.

CIF resolution.

720p

DVR

HDTV image signal with 1280 x 720 pixels and progres-

Digital Video Recorder A device used for recording dif-

sive display.

ferent video and audio sources (analogue, digital). The

CIF

data is compressed for recording and saved on hard disk

Common Intermediate Format

drives (HDD).

Originally planned for converting PAL to the NTSC stan-

H.264

dard. CIF corresponds to a video resolution of 352 x 288

(MPEG-4 AVC) Standard method for the highly-efficient

pixels (2CIF = 704 x 288 pixels; 4CIF = 704 x 576 pixels).

compression of video signals. Used on Blu-ray discs or

CINCH

video conference systems, for example.

Socket type used for analogue audio or CVBS video sig-

HDD

nals.

Hard Disk Drive

CVBS

Digital data storage on computers or DVRs.

Colour, Video, Blank and Sync The simplest variation

GIGABYTE

of video signals (also known as composite video). The

Unit of capacity for storage media (HDD, USB, SD/MMC

image quality is comparatively low.

cards).

DDNS

HDVR

Dynamic Domain Name System entry

Hybrid DVR DVR used for recording analogue cameras

Network service which provides and updates IP ad-

and network cameras.

dresses of its clients in a database.

http

DHCP

Hypertext Transfer Protocol

Dynamic Host Configuration Protocol

Method for transmitting data across networks. Primarily

Network protocol which allows the automatic connection

used for displaying websites in a browser.

of devices (clients) in existing networks. DHCP servers

INTERLACED

(e.g. Internet routers) automatically assign the IP ad-

Method for improving the picture quality of a video signal

dress, network mask, gateway, DNS server and WINS

without consuming extra bandwidth (scan pattern on

server (when required). Only the automatic acquisition of

every second line).

IP addresses must be activated for the client in this case.

IP address

Domain

An address in the computer network based on the Inter-

Name used for the identification of websites on the Inter-

net protocol. Allows different devices to identify them-

net (e.g. www.abus-sc.de).

selves in a network so that they are accessed specifi-

cally.

JPEG

Compression method for photo images with minimal loss.

Most digital cameras save photos in JPEG format.

154

MPEG

PPPoE

Moving Picture Experts Group International standard

PPP over Ethernet (point-to-point protocol)

for the compression of moving images. On some DVDs,

Network transmission method used for establishing a

the digital audio signals are compressed and recorded in

connection over dial-up lines. Used in ADSL connections,

this format.

for example).

NTP

PROGRESSIVE

Network Time Protocol

Method for displaying, storing or transmitting moving im-

Method for synchronising the time across networks.

ages in which all the lines of each frame are drawn in se-

SNTP (Simple Network Time Protocol) is also available,

quence. This is in contrast to the interlacing used in tradi-

offering a simplified protocol.

tional television systems.

NTSC

PTZ

Standard television format in the USA. The method is dif-

Pan-Tilt-Zoom

ferent from the European PAL system in certain ways. A

Pan, tilt and zoom function on motor-driven cameras.

full-screen NTSC image is comprised of 480 visible lines

RESOLUTION

and a total of 525 lines. 60 half-images are displayed per

Normal PAL television systems show images in 576

second. Compared to PAL, the system is more suscepti-

lines, normally with 768 pixels. HDTV works with at least

ble to colour errors.

1280 x 720 pixels.

PAL

SCREEN SIZE

Phase Alternating Line European colour TV system.

Size of the display from the bottom-left corner to the top-

Uses 576 visible image lines. Together with the lines

right corner in inches or centimetres.

used for signal management, a full-screen image is com-

prised of 625 lines. 50 half-images are displayed per

Browser

second. The phase position of the colour signal changes

Program for viewing websites on the Internet.

from line to line in the image.

USB

PANEL

Universal Serial Bus

Interior of a flatscreen display (e.g. LCD or plasma pan-

Serial bus connection, used for connecting media whilst

els).

in operation. Maximum data rate for USB 2.0: ca. 320

PC

Mbit/s (ca. 40 MB/s).

Personal Computer Can be used as a remote site, ei-

VGA

ther with the software supplied or over a browser.

Video Graphics Array Standard interface for analogue

Pixel

video signals in PCs (primarily deals with RGB signals).

Short for “picture element”, the smallest unit for digital

ZOLL (inches)

image transmission or display.

Typical unit of screen size. One inch is equivalent to 2.54

PIP

centimetres. The most common sizes of 16:9 displays

Picture in Picture Where two signal sources are shown

are 26 inch (66 cm), 32 inch (81 cm), 37 inch (94 cm), 42

on the screen at the same time. The second signal

inch (106 cm), 50 inch (127 cm) and 65 inch (165 cm).

source is stored above the first.

155

Internal HDD

Internal HDD

The internal hard disk drive (HDD) is very sensitive. Operate the device according to the following instructions in order

to avoid drive errors. Important recordings should be backed up on external media to avoid unexpected data loss.

156

Note

Do not move the device during operation.

Moisture inside the device can condense and lead to HDD malfunctions.

When the device is turned on, never remove the mains plug from the socket or interrupt the power supply us-

ing the safety switch.

Do not move the device immediately after switching it off. To move the device, carry out the following steps:

1. Wait until OFF has been shown on the display for at least two minutes.

2. Remove the mains plug from the socket.

3. Move the device.

Data on the HDD can be lost in the event of a power failure during operation. Use an uninterruptible power

supply (UPS)!

The HDD is very sensitive. Improper use or unsuitable surroundings can damage the HDD after some years

of use. This may be indicated by the playback stopping unexpectedly or visible “mosaic” effects in the image.

In some circumstances, there are no prior signs of a HDD malfunction.

In the event of a malfunction, no recordings can be played. The HDD must be replaced in this case.

ABUS Network video recorder NVR

TVVR45030

Manufacturer:

ABUS Security-Center GmbH & Co. KG

Linker Kreuthweg 5

86444 Affing (Germany)

Opmerkingen over de gebruikershandleiding

158

ABUS 32-Kanal

Netzwerk Videorekorder NVR

TVVR45030

Gebruikershandleiding

Version 1.0

159

Nederlands

Deze gebruiksaanwijzing hoort bij dit product.

Er staan belangrijke aanwijzingen in betreffende de ingebruikname en gebruik, ook als u dit product doorgeeft aan

derden.

Bewaar deze handleiding zorgvuldig, zodat u deze later nog eens kunt nalezen!

U vindt een opsomming van de inhoud in de inhoudsopgave met aanduiding van de paginanummers.

Neem de informatie in de aparte korte handleiding in acht en de opmerkingen op de CD resp. in de

meegeleverde documentatie over het onderwerp "Besturing per webinterface" en "Software".

Deze informatie vindt u op internet onder www.abus.com

Overzicht

Overzicht

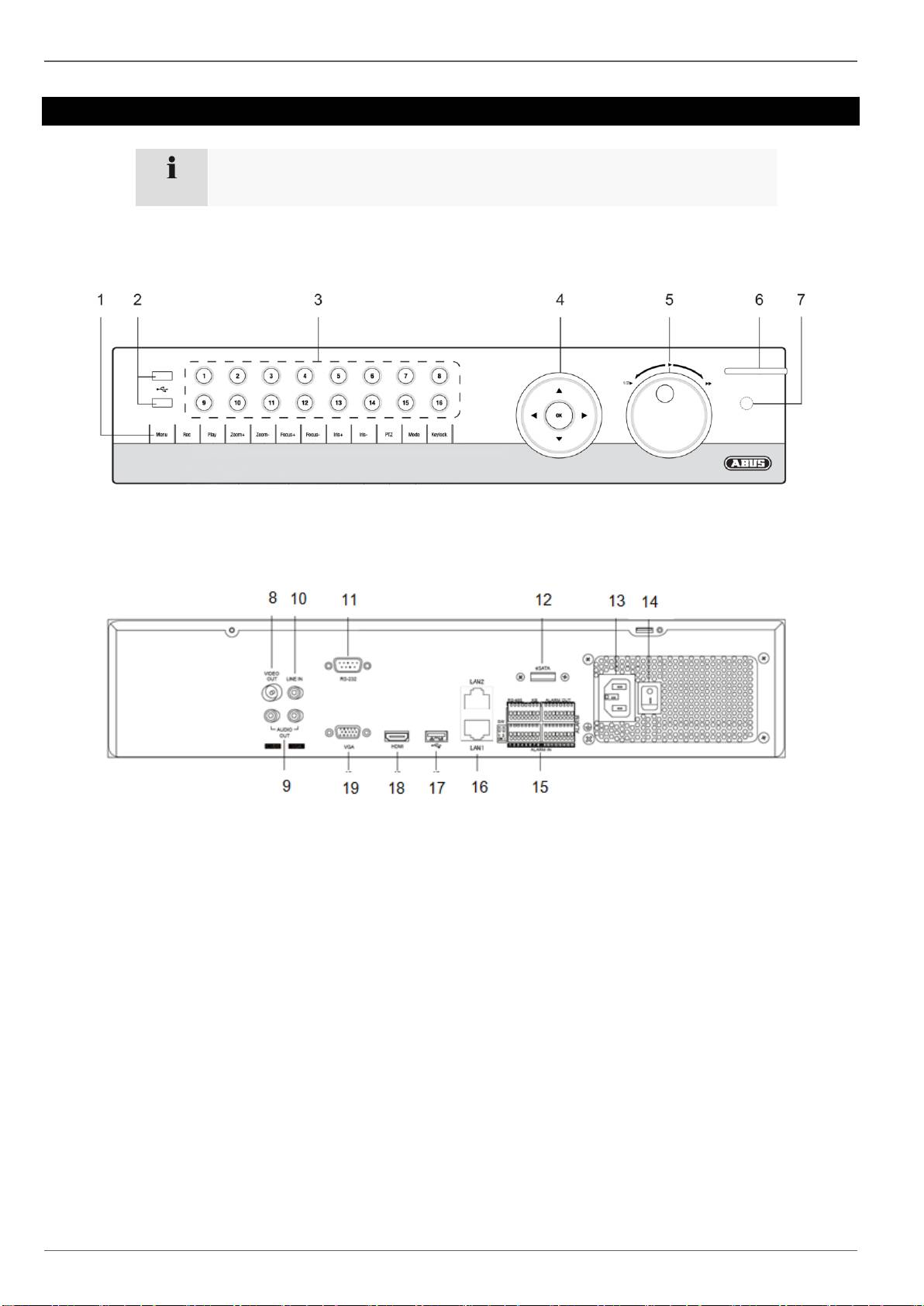

Voorkant

160

Zie Fehler! Kein gültiges Resultat für Tabelle. pag. 161.

Achterkant TVVR45030
