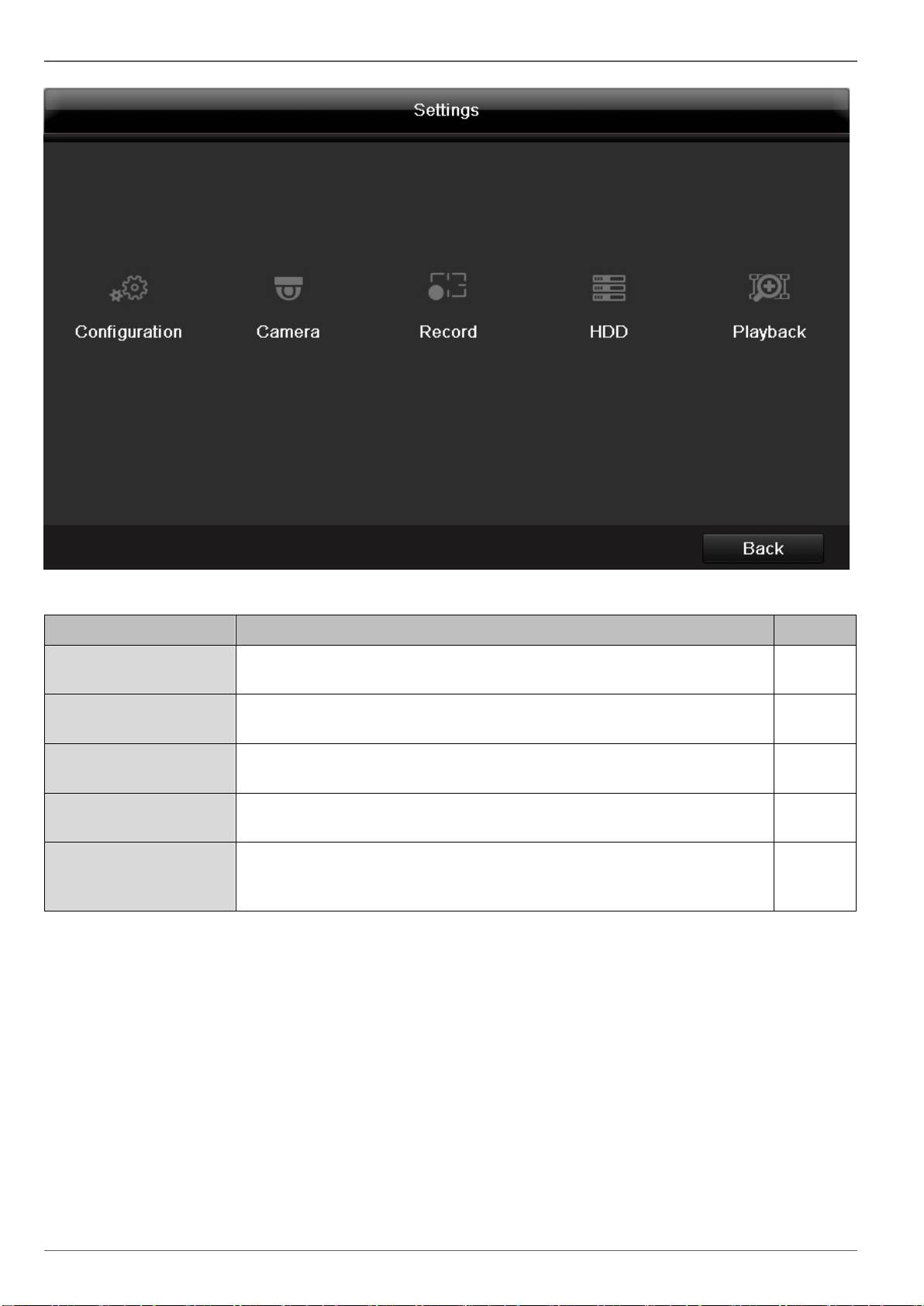

Main menu
Menu description
121
Menu
description
page
Configuration
Used for managing all device settings (General, Camera, Record, Network,
Alarm, PTZ, RS232, Display, Exception, User).
122

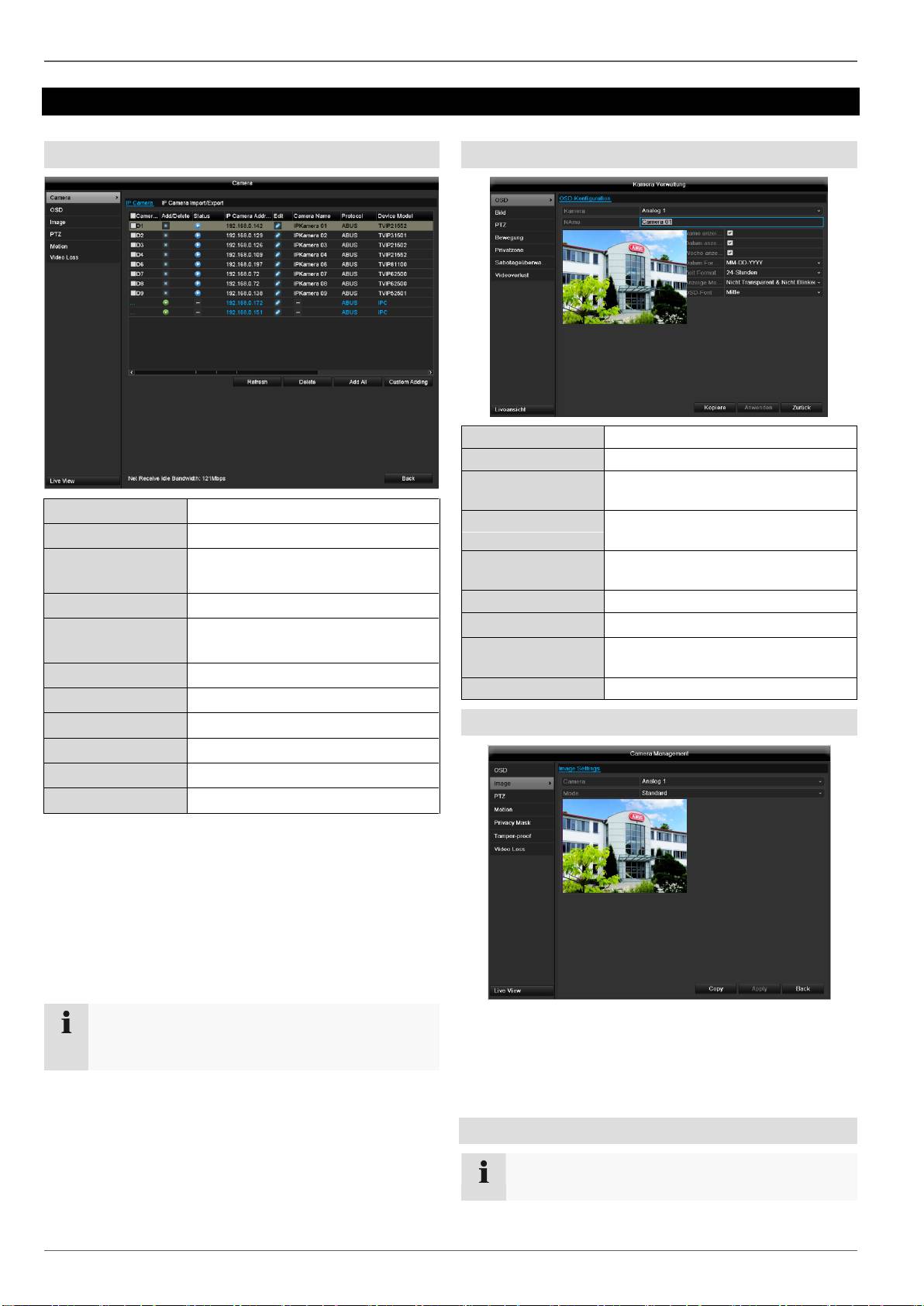

Camera
Menu for setting camera parameters (OSD configuration, image mode, PTZ
configuration, motion recognition etc.)
129

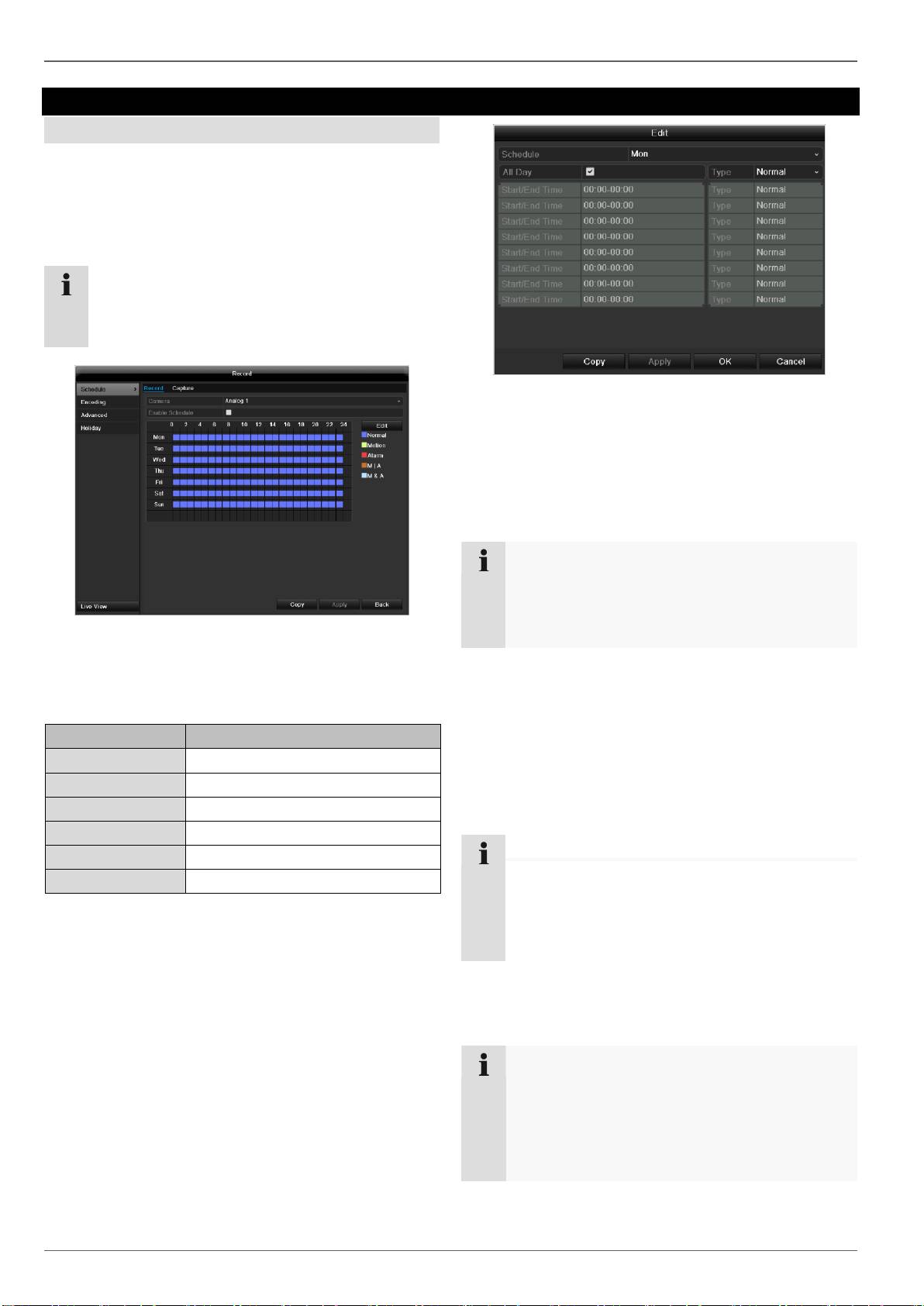

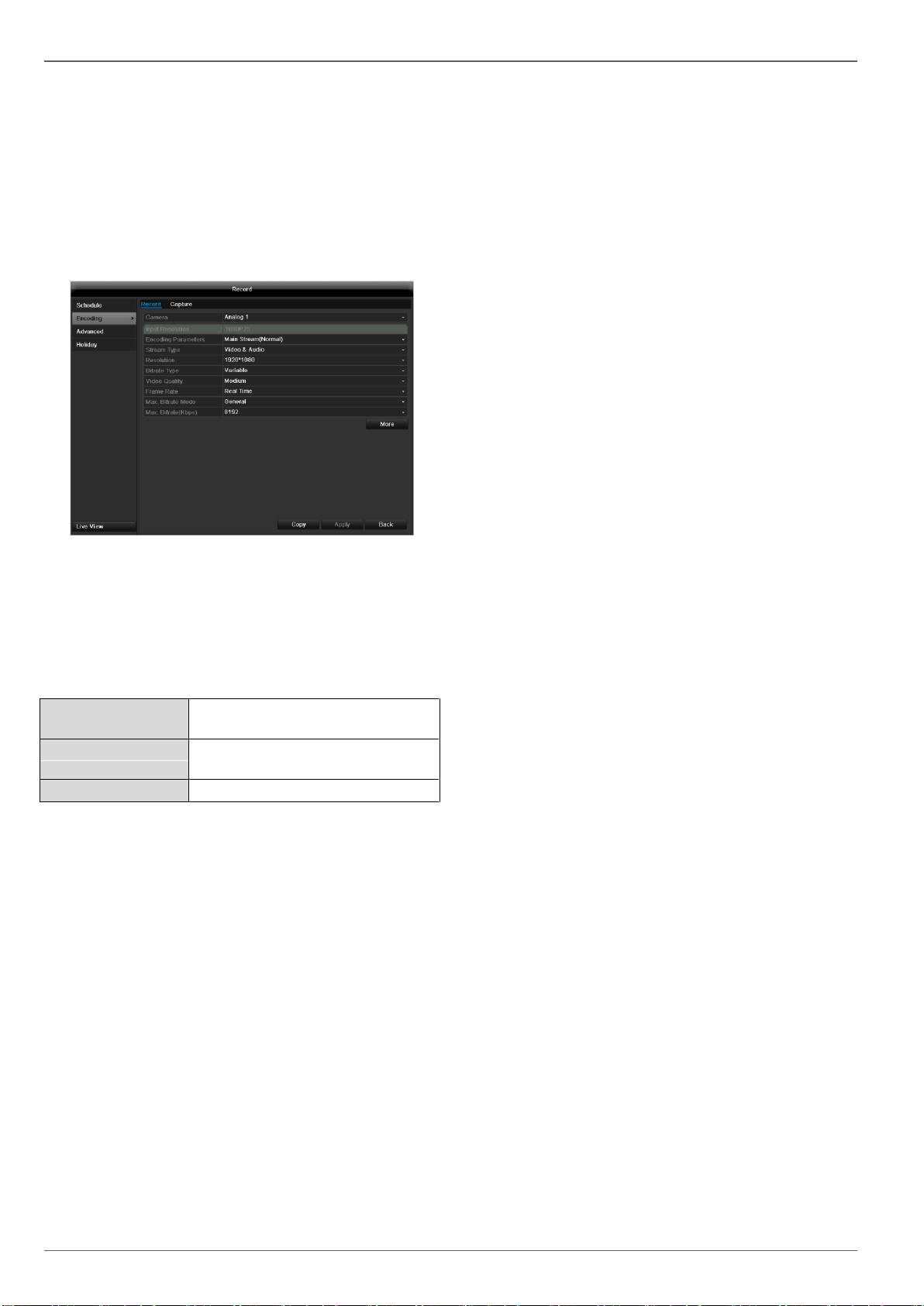

Record
Menu to set recording parameters (time plan, camera resolution, camera
stream etc.).
135

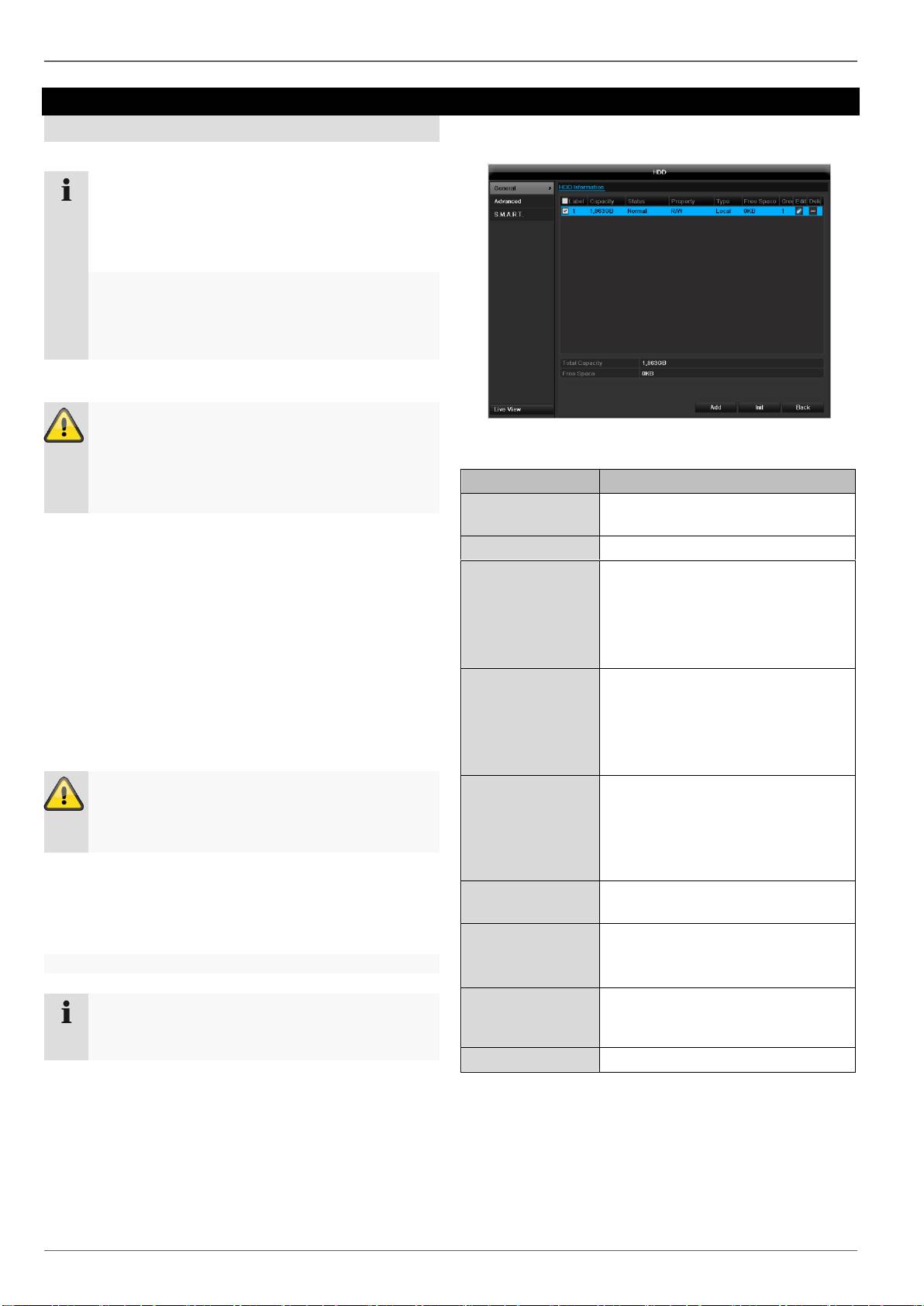

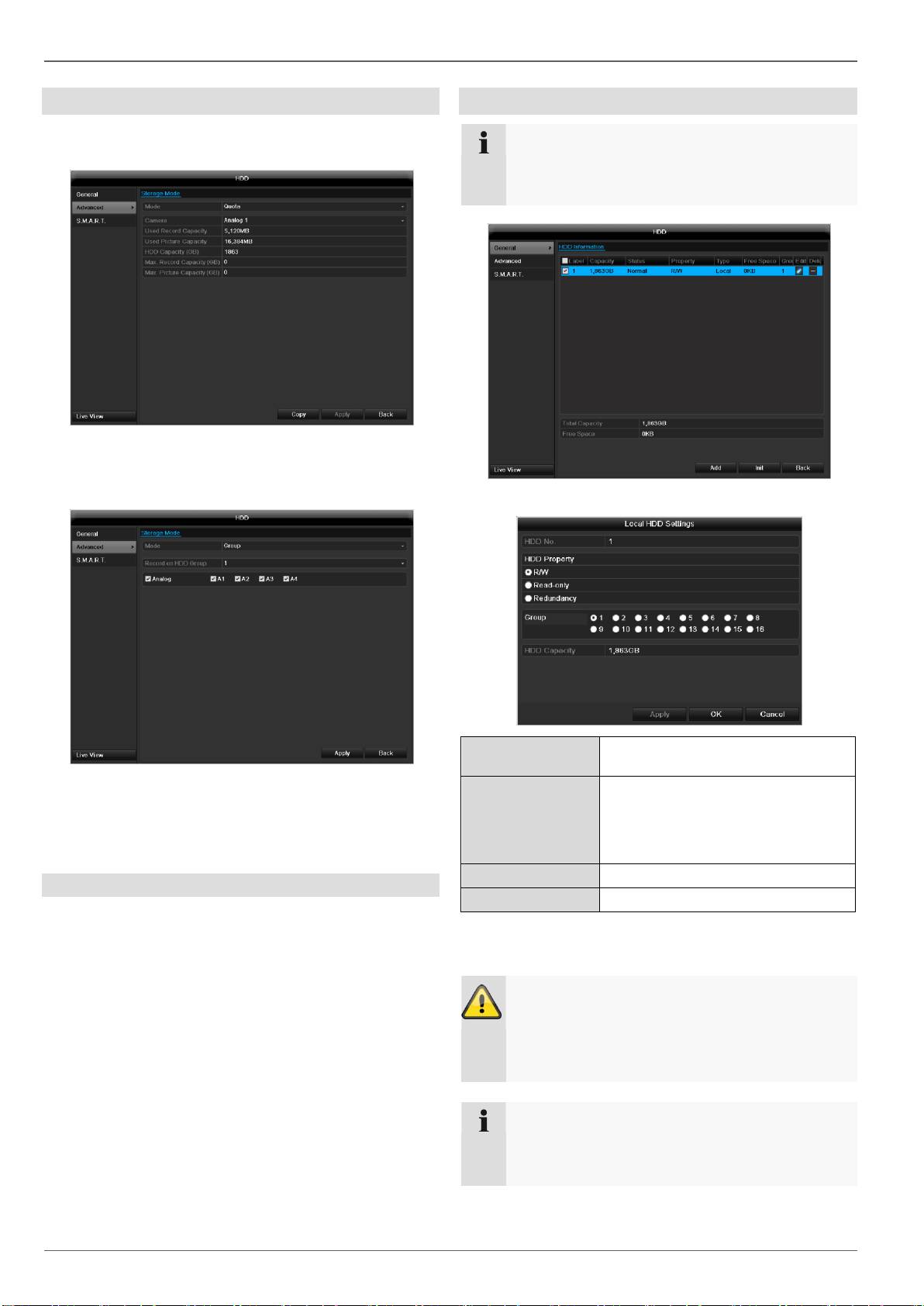

HDD
Used for initialising or managing installed HDDs (assigning read/write func-
tions, cameras, network HDD management etc.).
138
Playback
Parameter-controlled search for video or image recordings which were
started by events like alarms or motion recognition, as well as alarm events
and markings set in playback.
141
Settings - Configuration
Settings - Configuration
122
Note
The “Configuration” menu is used to manage all
device settings.
Warning
Ensure that the date and time are set correctly.
IMPORTANT:
Subsequent changes to the settings can lead
to data loss!
Ensure a data backup has been made in good
time beforehand.
Overview
Menu
Setting
Page
General
Language, video, time, date,
mouse pointer, password, time
zones and other settings
122
Network
Required network settings
(manual IP, DHCP, PPPOE,
DDNS etc.)
124

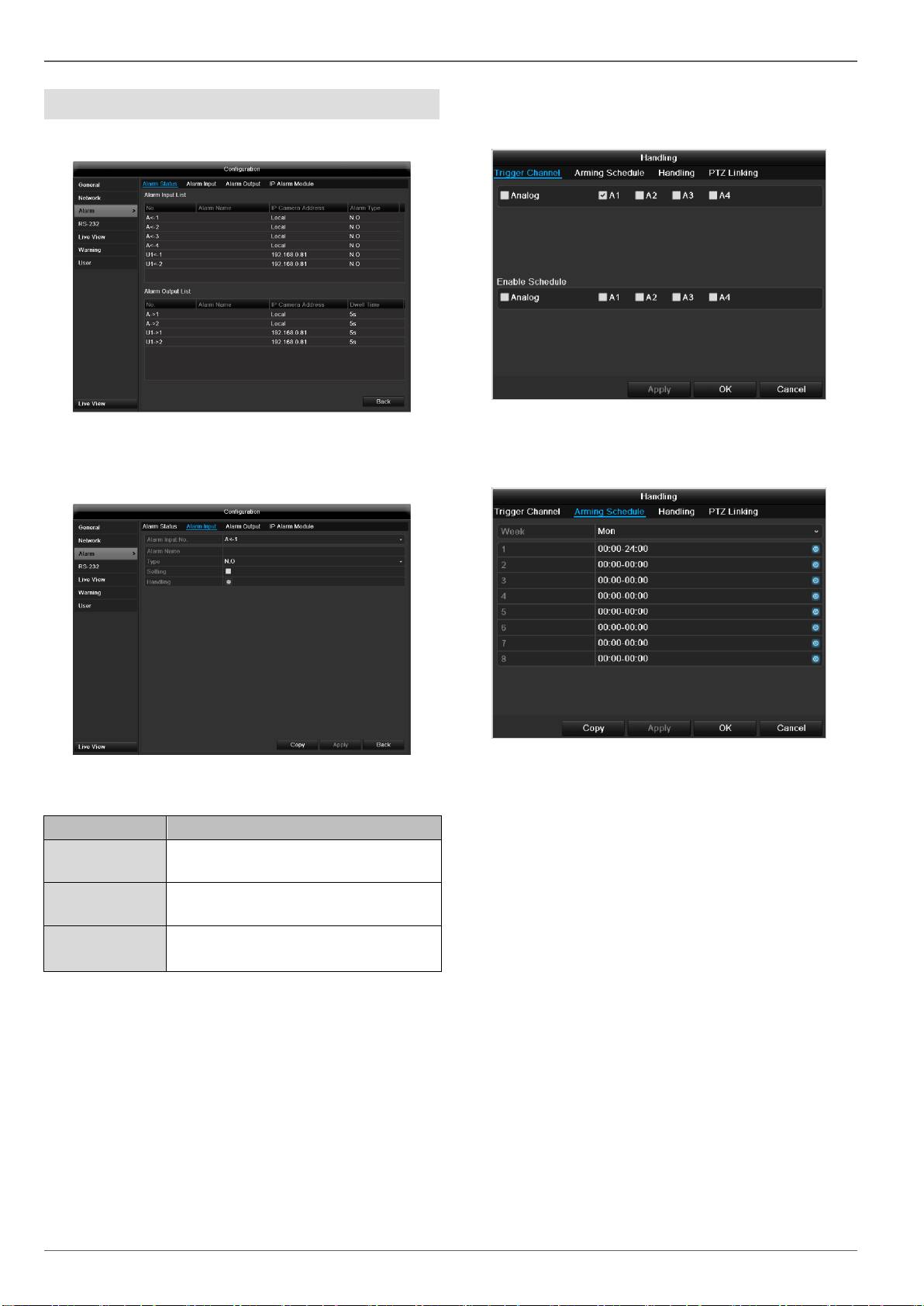

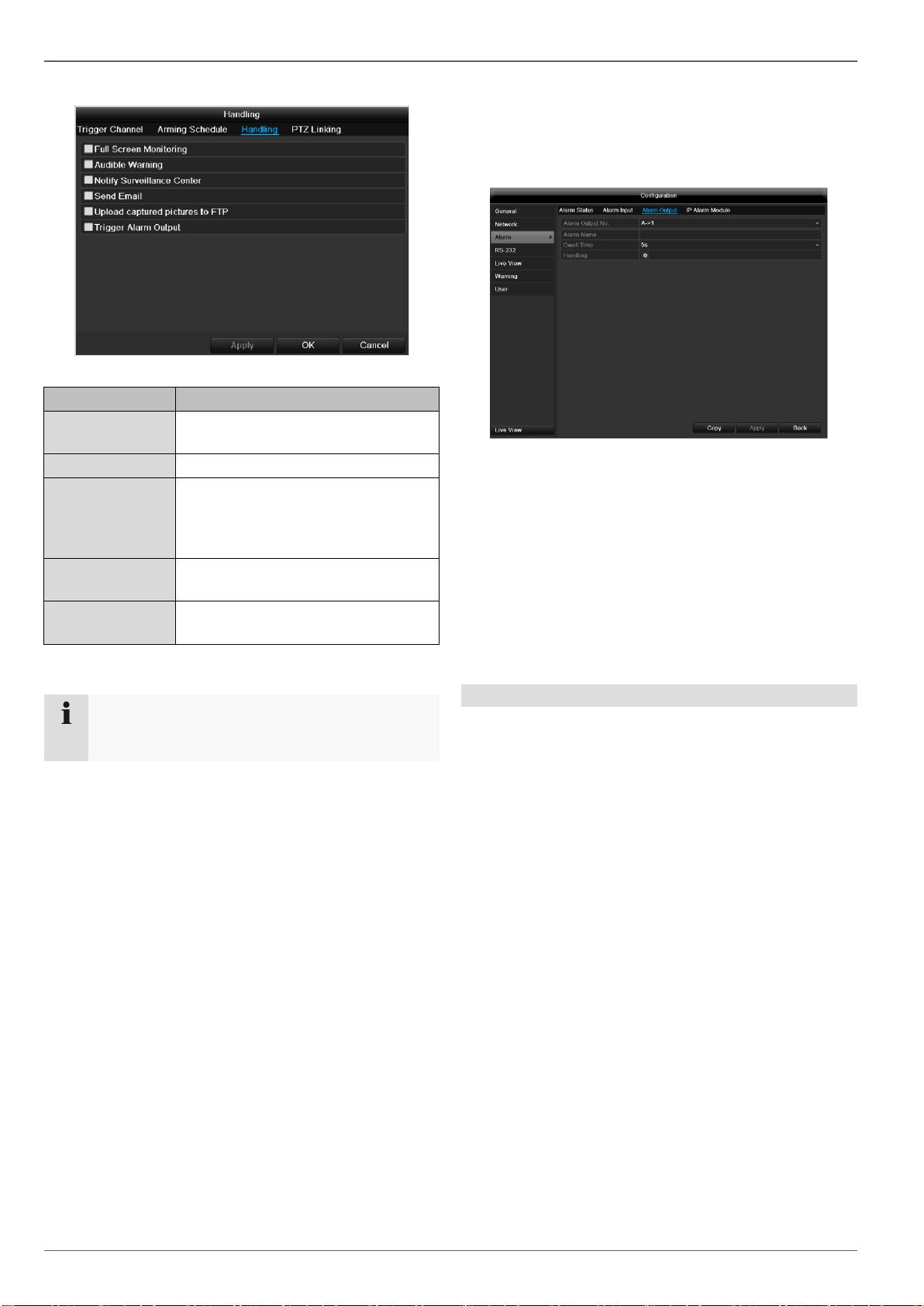

Alarm
Assignment and parameterisa-
tion of detectors to alarm inputs
and relay outputs
125
RS-232
Parameters on the serial con-
nection
130
Live View
Display settings and assign-
ment of the event output
130
Warning
Behaviour of the device in ex-
ceptional cases
(HDD full, network discon-
nected etc.)
130

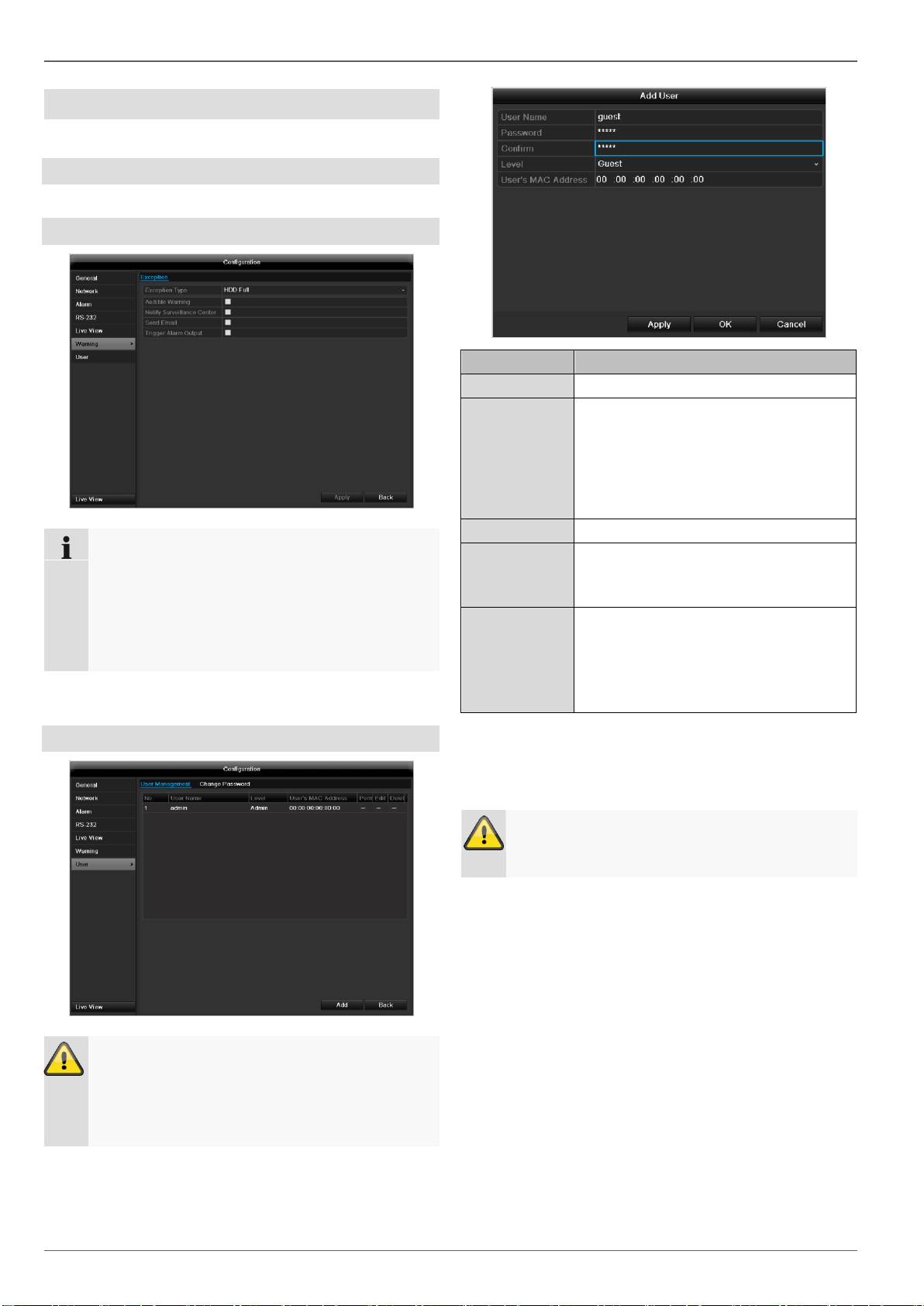

User
Adding and changing users,
assigning authorisation rights
130
Note
Pay attention to the instructions in the correspond-
ing sections.

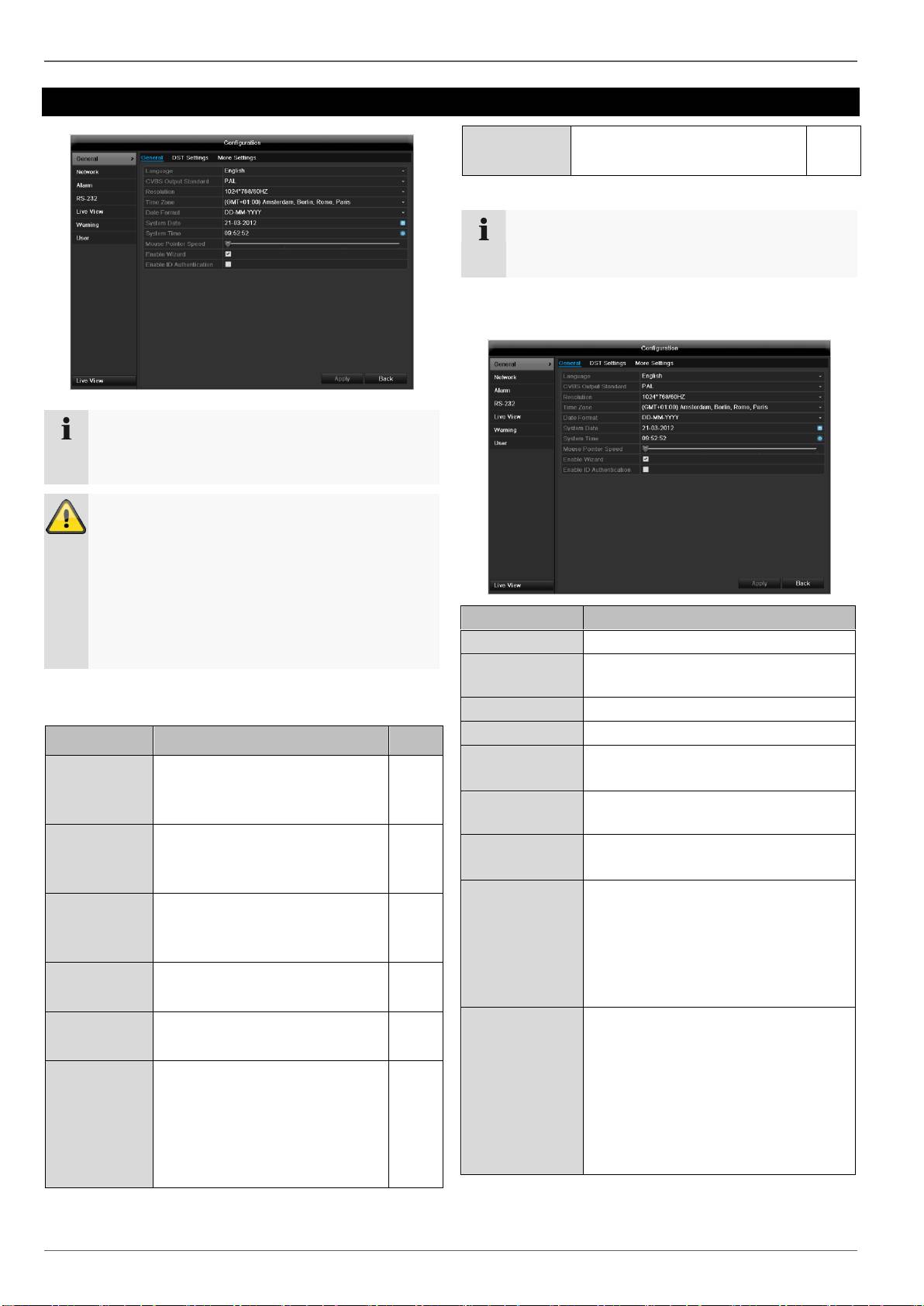

General
“General” tab
Setting
Language
Language on the OSD
CVBS Output
Standard
PAL / NTSC
Resolution
Resolution on the monitor
Time Zone
GMT (Greenwich Mean Time)
Date Format
MM-DD-YYYY, DD-MM-YYYY,
YYYY-MM-DD
System
Date/Time
Date and time
Mouse Pointer
Speed
Set on the scroll bar (left =
low speed; right = high speed)
Enable Wizard
Box not ticked:
Wizard will not appear after restart of
the device.
Box ticked:
Wizard will appear after restart of the
device.
Enable ID Au-
thentification
Box not ticked:
In order to enter a menu no password
has to be entered. At access by net-
work the password has to be entered.
Box ticked:
Password must be entered in order to
use the menu.
Settings - Configuration
123
TAB “DST set-
tings”
Setting
Auto DST Ad-
justment
With an activated check box, the de-
vice converts automatically to summer
time.
Enable DST
With an activated check box, an exact
start / end date can be selected
From / To
Date of DST start / end
DST Bias
Daylight Saving Time Bias: Correc-
tion of the DST to the reference time
TAB “More
Settings”
Setting
Device Name
Unique specification of the device
Device Number
Used for unique identification when
using remote control
Output Mode
Makes the image softer or sharper.
CVBS Output
Brightness
Scroll bar (left = darker;
right = brighter)
Operation
Timeout
Never / 1 to 30 minutes – regulates
how long the menu is shown
Confirm the settings by clicking Apply and leave the
menu with OK.
Network configuration
Correct network settings are essential in the following
cases:
When using remote control of the device and surveil-
lance over your server
Note
Please read the following basic instructions before
setting up the device.
Terms and definitions
An overview of relevant terms when using the device in a
network can be found below.
A network is a connection of at least two network-capable
devices.
Transmission types:
Wired networks (e.g. CAT5 cable)
Wireless networks (WLAN)
Other transmission types (Powerline)
All systems have certain similarities, but can also differ in
many ways.
Parameter
Setting
IP address
An IP address is the unique address of a
network device within a network.
This address may only appear once
within a network. Certain IP address
ranges are reserved for public networks
(e.g. the Internet).
Private ad-
dress range
e.g. 10.0.0.0 – 10.255.255.255
Subnet mask: 255.0.0.0
172.16.0.0 - 172.31.255.255
Subnet mask: 255.255.0.0
192.168.0.0 - 192.168.255.255
Subnet mask: 255.255.255.0
Subnet
mask
A subnet mask is a bit mask used for
making decisions and assignments dur-
ing routing.
255.255.255.0 is the standard subnet
mask in home networks.
Gateway
A gateway is a network device which al-
lows all other network devices to access
the Internet.
This can be the computer connected to
the DSL modem or – usually – the router
or access point within the network.
Parameter
Setting
Name
server
The name server is responsible for as-
signing a unique IP address to a web ad-
dress or URL (e.g. www.google.de). Also
known as DNS (Domain Name Server).
When a domain name is entered into a
browser, the DNS searches for the cor-
responding IP address of the server and
forwards the query on.
The IP of the provider’s DNS can be en-
tered here. However, it is often sufficient
to select the IP of the gateway. This then
forwards the queries independently to the
provider DNS.
DHCP
The DHCP server automatically assigns
the IP address, subnet mask, gateway
and name server to a network device.
DHCPs are available in current routers.
The DHCP service must be specially set
and activated (see the corresponding
manual for more information).
Note:
When using fixed IP addresses and a
DHCP server, make sure that the fixed IP
addresses are outside the address range
assigned by DHCP. Otherwise, problems
could occur.
Settings - Configuration
124
Port
A port is an interface used for communi-
cation by different programs. Certain
ports are fixed (23: Telnet, 21: FTP),
whilst others can be freely selected.
Ports are important for different applica-
tions (e.g. external access to the device
over a browser).
MAC ad-
dress
The MAC address (Media Access Con-
trol or Ethernet ID) is the specific hard-
ware address of the network adapter.
This is used for the unique identification
of the device in a computer network.
Network layout
The device must be physically connected to the network
over a CAT5 cable (see the connections on page 84).
Note
Pay attention to the specific information and in-
structions on the network devices.
Several switches, routers and access points can be con-
nected to each other. Firewalls and other security soft-
ware can affect the network.
Warning
When using a router, the network clients (e.g. the
recorder) can be connected to the Internet and
vice versa.
Make sure to use protective measures to prevent
unauthorised external access (e.g. firewall, chang-
ing passwords, changing ports)!
Network-configuration
TAB
Settings
General
Settings for the local net and selecting
the network mode.
PPPOE
PPPOE is used on ADSL connections
and when using modems in Germany.
Click on “Set” to enter the access data
(ID and password) for your provider.
DDNS
Server for Dynamic Domain Name Sys-
tem management. Used for updating
host names or DNS entries
NTP
Network Time Protocol
Server for time synchronisation
Used to specify the e-mail settings
which are sent as an e-mail to a spe-
cific address in the event of an alarm.
FTP
Configure the address of an FTP
server and the path for saving the files.
SNMP
Configure the parameters to receive in-
formation about the device status.
More Settings
Communication and HTTP port.
Settings - Configuration

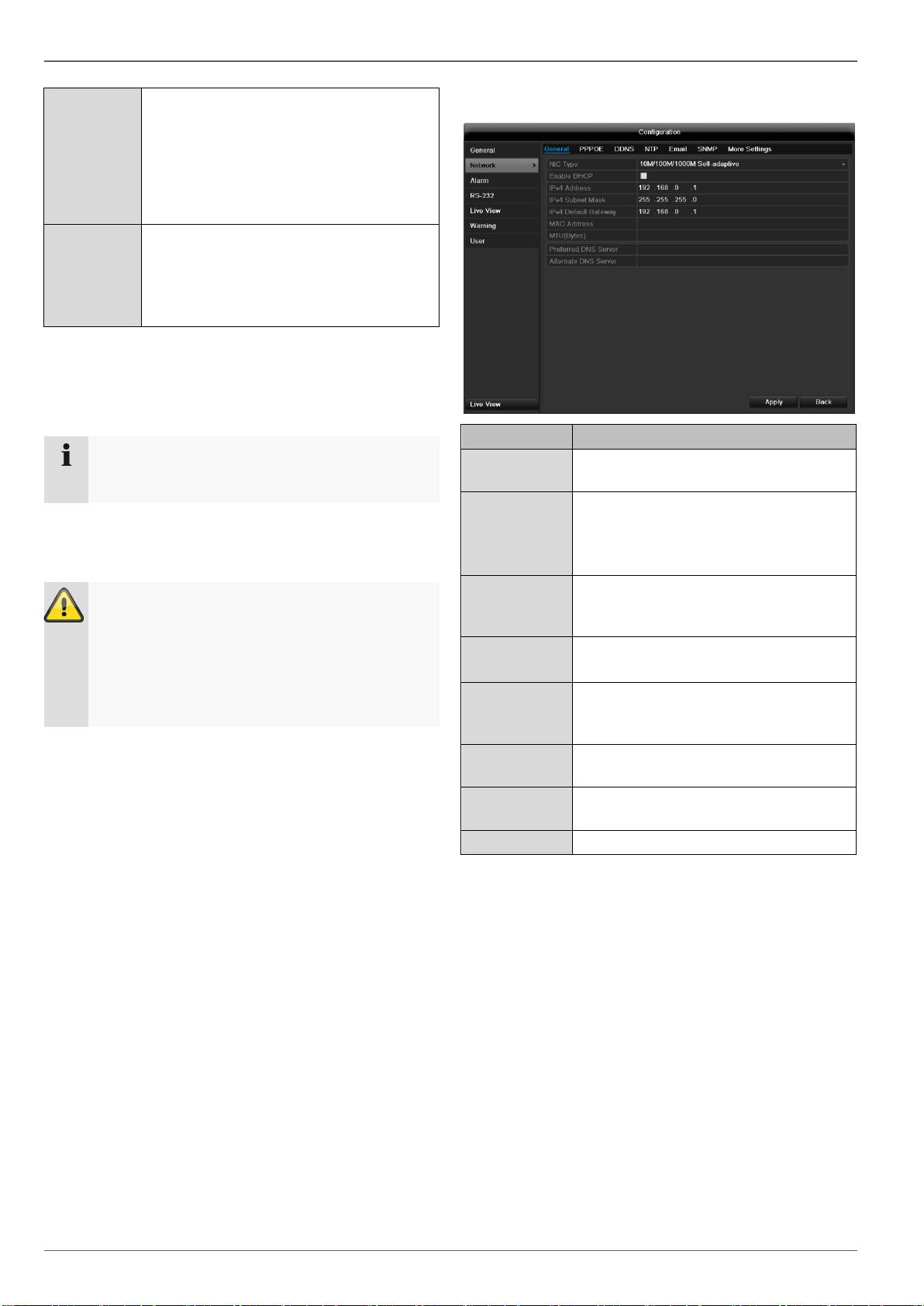

TAB General
125
Parameter
Setting
Working Mode
See explanation, p. 123
Select NIC
Select the connection for which to
make the network settings.
NIC Typ
Set the transmission speed of the in-
stalled network card here.
Tip: 10M/100/1000M self adaptive
Enable DHCP
Tick the box if the IP addresses are
assigned dynamically via DHCP in the
network.
DHCP activated: Subsequent entry
fields are inactive (parameters as-
signed via DHCP).
Note:
If the IP addresses are assigned
manually, ensure that DHCP is not ac-
tive (box not ticked).
IPv4 Adress
Address of the network device in the
network (manual assignment)
IPv4
Subnet Mask
Usually 255.255.255.0
IPv4 Default
Gateway
Address of the gateway for Internet ac-
cess
IPv6 Adress 1
Currently no functioning
IPv6 Adress 2
Currently no functioning
IPv6 Standard
Gateway
Currently no functioning
MAC Adress
Hardware address of the installed net-
work card
MTU (Bytes)
Describes the max. size of the largest
protocol data .
Preferred
DNS Server
Address of the Domain Name Server
(usually the IP address of the gateway)
Alternate DNS
IP address of the alternative DNS
server
Default Route
LAN 1 or LAN 2
Note
In certain modes some of these settings cannot be
selected.

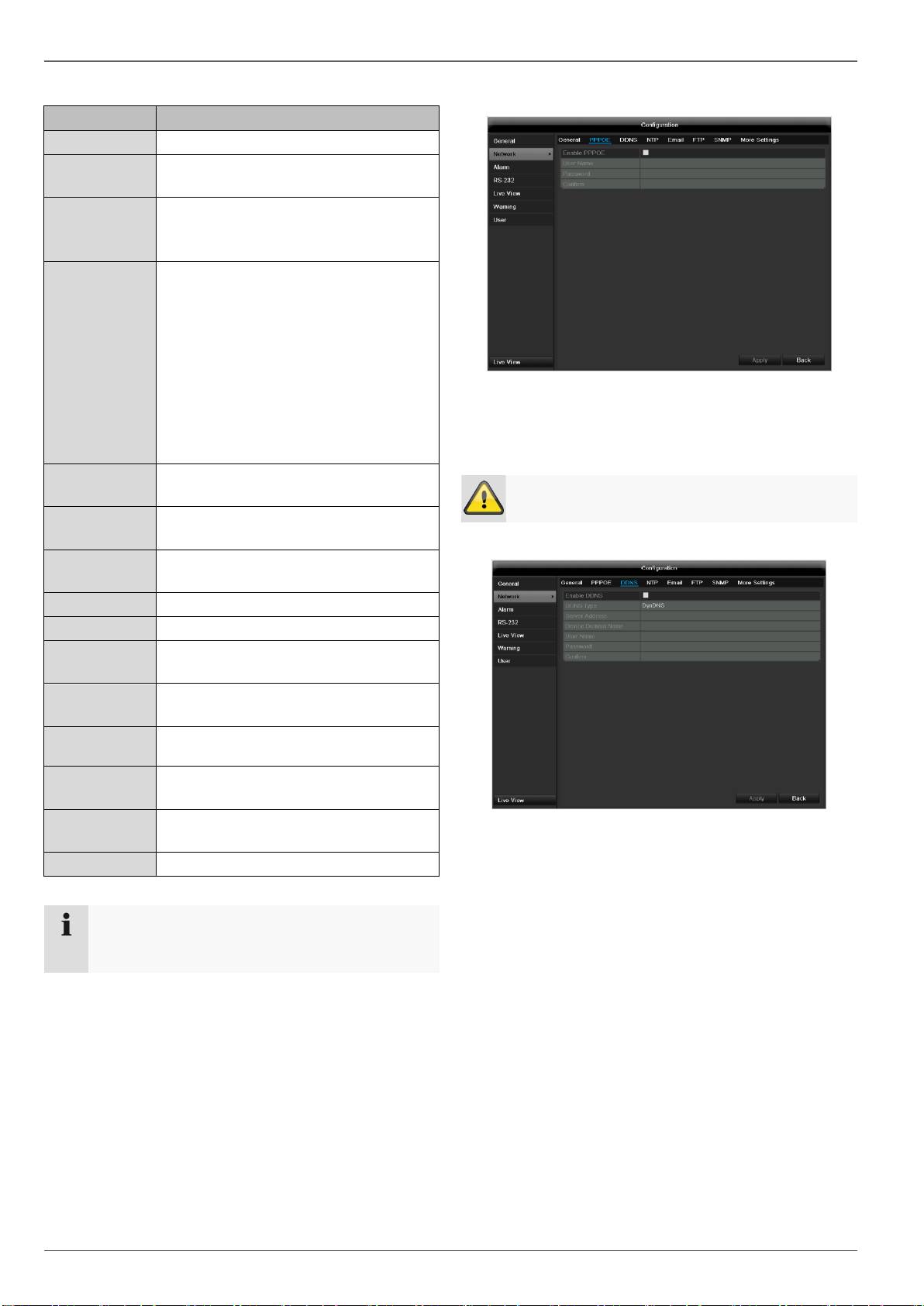

PPPOE
1. Tick the PPPOE box, enter the user name (Internet
access ID) and password, then confirm the pass-
word.
2. Confirm the settings by pressing Apply.
Warning
Use PPPOE only if there is no router available.
DDNS
1. To use the ABUS DDNS function, you must first set
up an account under www.abus-server.com. Please
note the FAQs on the website when doing this.
2. Tick the “Enable DDNS” box, enter ‘ABUS DDNS’ as
the “DDNS Type”, then enter www.abus-server.com
under “Server Address”.
3. Confirm the settings by pressing Apply. The IP ad-
dress of your Internet connection is now updated on
the server every minute.
Settings - Configuration

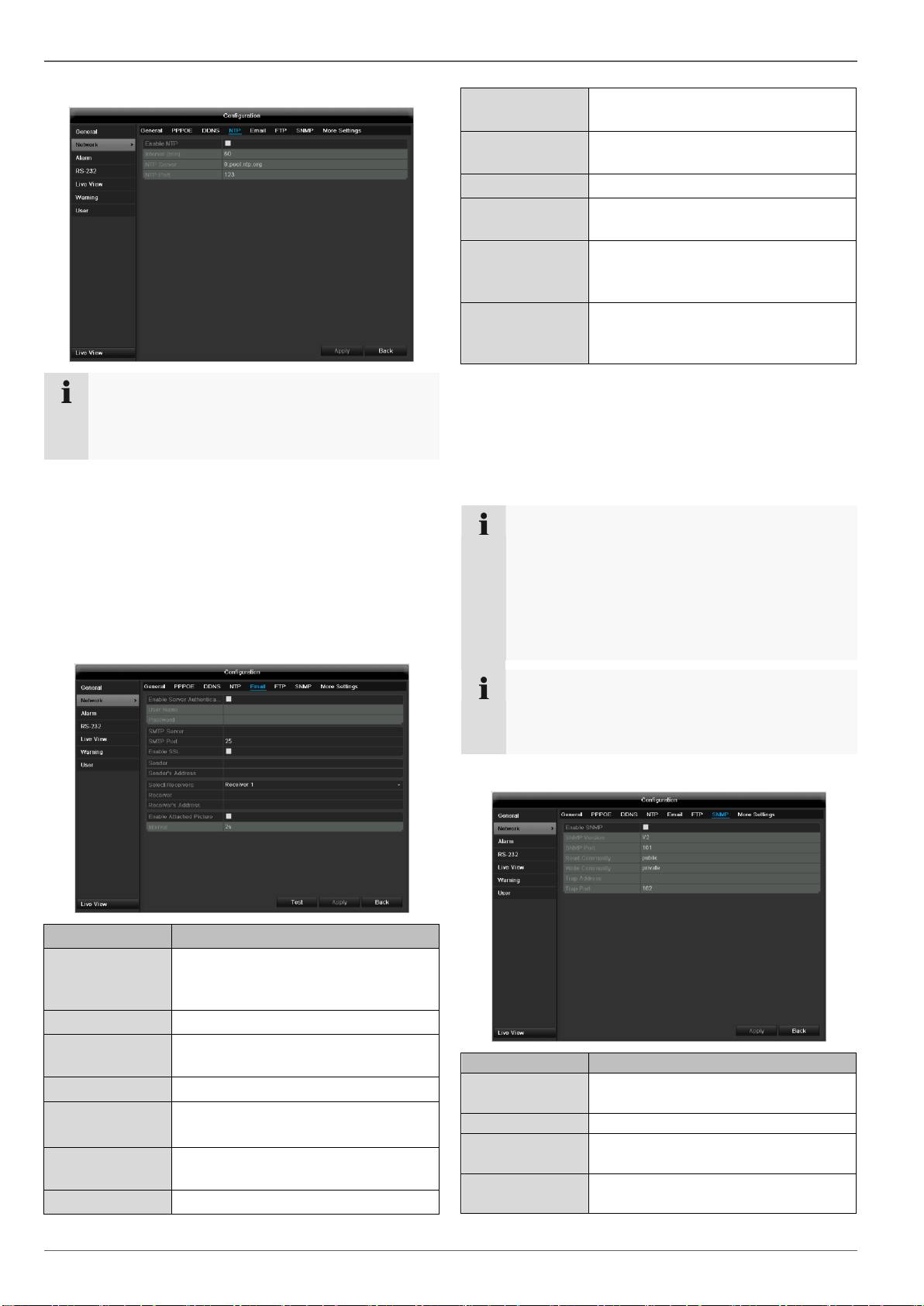

NTP
126
Note
The recorder can synchronise the time with an ex-
ternal server. Several server addresses are avail-
able on the Internet for this purpose.
1. Tick the “Enable NTP” box and then enter the inter-
val at which the synchronisation should be made
again. Enter the IP address of the NTP server and
the NTP port.
2. Confirm the settings by pressing Apply.
In the event of an alarm, the device can send a message
by e-mail. Enter the e-mail configuration here:
Parameter
Setting
Enable Server
Authentica...
Tick the box when authentication is
made on the server of the Internet
provider
User Name
E-mail account at the provider
Password
Password connected to the e-mail
account
SMTP Server
SMTP server address of the provider
SMTP Port
Enter the SMTP port here
(Default: 25)
Enable SSL
Tick the box to activate the e-mail
encryption
Sender
Name of the sender
Sender´s
Adresse
Corresponding e-mail address for
the e-mail account
Sender´s Re-
ceiver
Select three possible recipients for
the e-mail
Receiver
Enter the name of the recipient here
Receiver´s
Adresse
Enter the e-mail address of the
recipient here
Enable Attached
Tick the box when camera images
should also be sent with the e-mail
as photo files
Interval
Select the interval between the
individual recordings (2 to 5 sec-
onds)
1. Enter the parameters of the e-mail notification.
2. Click on Test to send a test e-mail.
3. Please clarify if your settings are correct and you
have received a confirmation mail. Then click on
Apply.
Note
The device sends an e-mail to the specified re-
cipients.
If the e-mail is not received, check the settings
and correct them.
If necessary, check the spam filter of your e-mail
client.
Note
Because of the cause of compatibility please do
only use E-Mail clients where a dial-up via SMTP
is possible.
SNMP
Parameter
Setting
Enable SNMP
Activate the checkbox to create a
connection to SNMP software
SNMP Version
Version of the SNMP system
SNMP Port
Enter the SNMP port
(Default: 161)
Read Community
Enter the “Key” according to the set-
tings of your SNMP software.
Settings - Configuration
127
Write Community
Enter the “Key” according to the set-
tings of your SNMP software.
Trap Adresse
Enter the IP address of the
SNMP manager
Trap Port
Enter the trap port
(Default: 162)
Note
SNMP is used for monitoring the device status.
For this you need SNMP software not available
from ABUS.
Confirm the settings by clicking Apply and leave the
menu with Back.

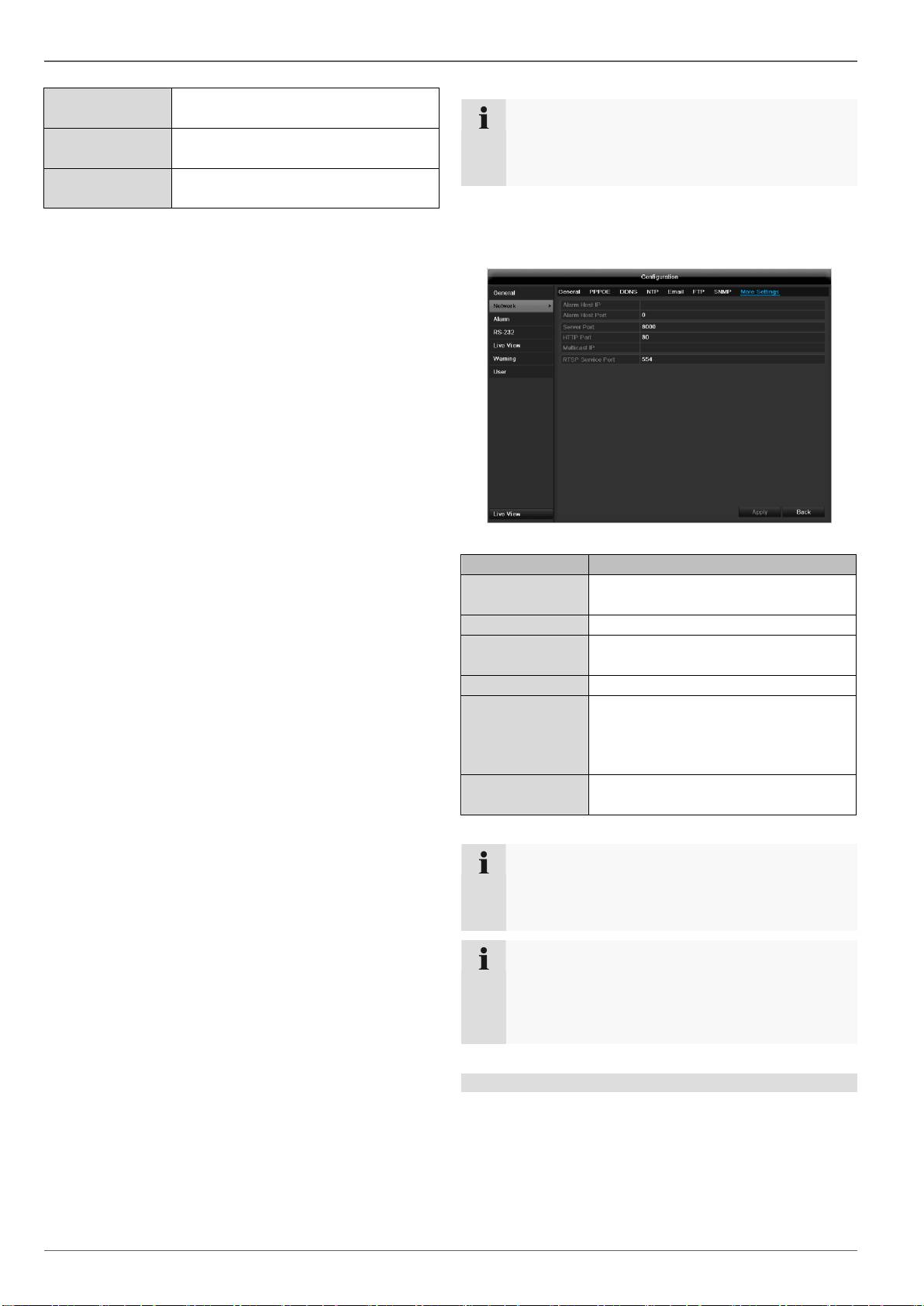

More settings
Parameter
Setting
Alarm Host IP
Network address of the PC where the
CMS is installed
Alarm Host Port
Port of your CMS Station
Server Port
Port for data communication (Gen-
eral: 8000)
HTTP Port
Port for web server (General: 80)
Multicast IP
In order to minimize traffic you can
enter a Multicast IP. The IP address
has to match the IP address of the
PC running the CMS software.
RTSP Service
Port
RTSP-port
(Default: 554)
Note
Server port 8000 and HTTP port 80 are the stan-
dard ports for remote clients and remote Internet
browser access.
Note
With Alarm Host IP/Port you configure the address
of your CMS software. The CMS software is noti-
fied when there is an alarm, and performs various
reactions depending on the setting.
Settings - Configuration
Alarm
Alarm status
Here you see a list with all the alarm inputs and outputs
and their current status.
Alarm input
Select a reaction in the case of an alarm by clicking
the ‘Setting’ symbol for “Handling”.
128
Parameter
Setting
Alarm Input No.
Select the alarm input to make the
settings
Alarm Name
Enter a clear description here (e.g.
door contact on warehouse)
Type
N.O.: Normally open circuit
N.C.: Normally closed circuit
Handling
TAB Trigger channel
Tick a checkbox to select which camera channel is trig-
gered in the case of an alarm.
TAB Arming schedule
Define the time at which the responses selected in
the TAB “Handling” are activated when there is an
alarm.
Click Copy to apply these settings for other days of
the week or the entire week.
Activate the alarm input by ticking the checkbox for
“Setting”.
Define the response of the recorder when there is an
alarm under “Handling”.
Click Copy to apply these settings for other cameras.
Confirm the settings by clicking Apply and leave the
menu with OK.
Settings - Configuration
TAB Handling
Define the response in the case of an alarm:
129
Parameter
Setting
Full Screen
Monitoring
A message appears on the monitor.
Audible Warning
The device emits a repeating tone.
Notify Surveil-
lance Center
Sends an alarm signal to a PC with
ABUS CMS software. The software
must be enabled and the recorder
set to surveillance mode on the PC.
Send E-Mail
An e-mail is sent to a specific e-mail
address (see page 124).
Trigger Alarm
Output
see also page Fehler! Textmarke
nicht definiert.
TAB PTZ Linking
Currently no functioning.
Alarm output
1. Select an alarm output to be configured in the
drop-down menu under “Alarm Output No.”.
2. Assign any name to the alarm output in “Alarm
Name”.
3. In “Dwell Time”, select how long the alarm is trig-
gered for.
4. In “Handling”, select the schedule for the alarm
output.
5. Click Copy to apply these settings for other alarm
outputs.
Confirm the settings by clicking Apply and leave the
6. Confirm the settings by clicking Apply and leave
menu with OK.
the menu with OK.
Note
To record with the aid of an alarm, you must set
up the schedule under Recording (see p. 135).
Settings - Configuration
RS-232
Currently no functioning.
Live view
See page 115.

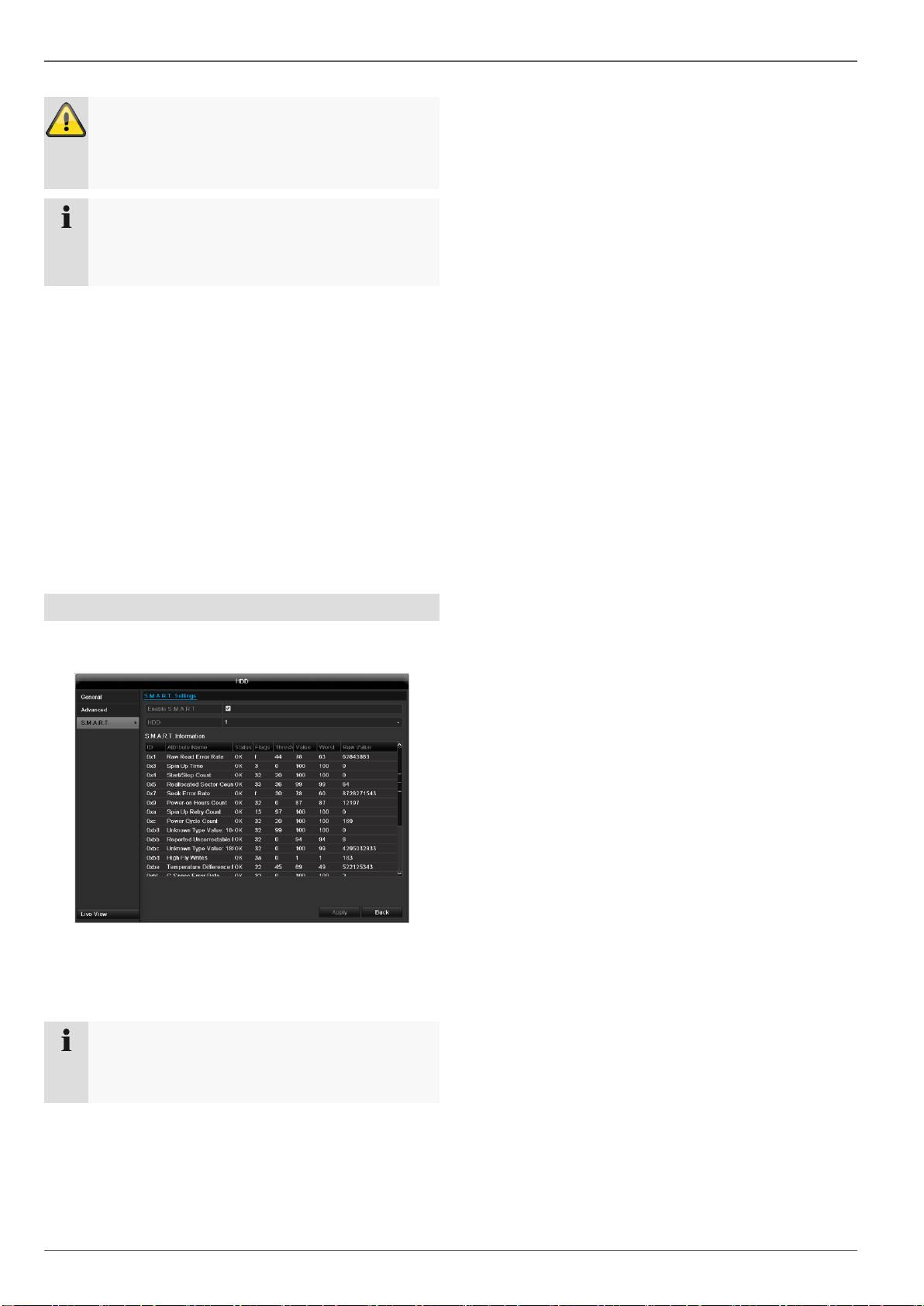

Warning
130
Note
Enter the trigger under “Exception Type”, for ex-
ample:
HDD Full
Disconnected
After doing this, specify the device behaviour.
Confirm the settings by clicking Apply and leave the
menu with Back.
User
Warning
Note down the admin password.
The following password is preset
“1 2 3 4 5”
You can add new users, delete existing users and
change the settings in the “User Management” menu.
1. To add a new user, select Add.
Parameter
Setting
User Name
Unique identification
Password
Access code for the device (device
management)
Note: Change all passwords on a regu-
lar basis, using a combination of letters
and numbers. Note down all pass-
words in a safe place.
Confirm
Enter the access code again here
Level
IMPORTANT:
More access rights can be set on the
Manager level than on the User level.
User's MAC
Address
MAC address of the network adapter
on the PC of the corresponding user
Note:
This limits access to the PC whose
MAC address is entered here!
2. Enter the name and password and confirm the
password in the field below.
3. Select the level and enter the MAC address.
4. Confirm the settings by clicking Apply.
Warning
Pay attention to the instructions below on assign-
ing access rights.

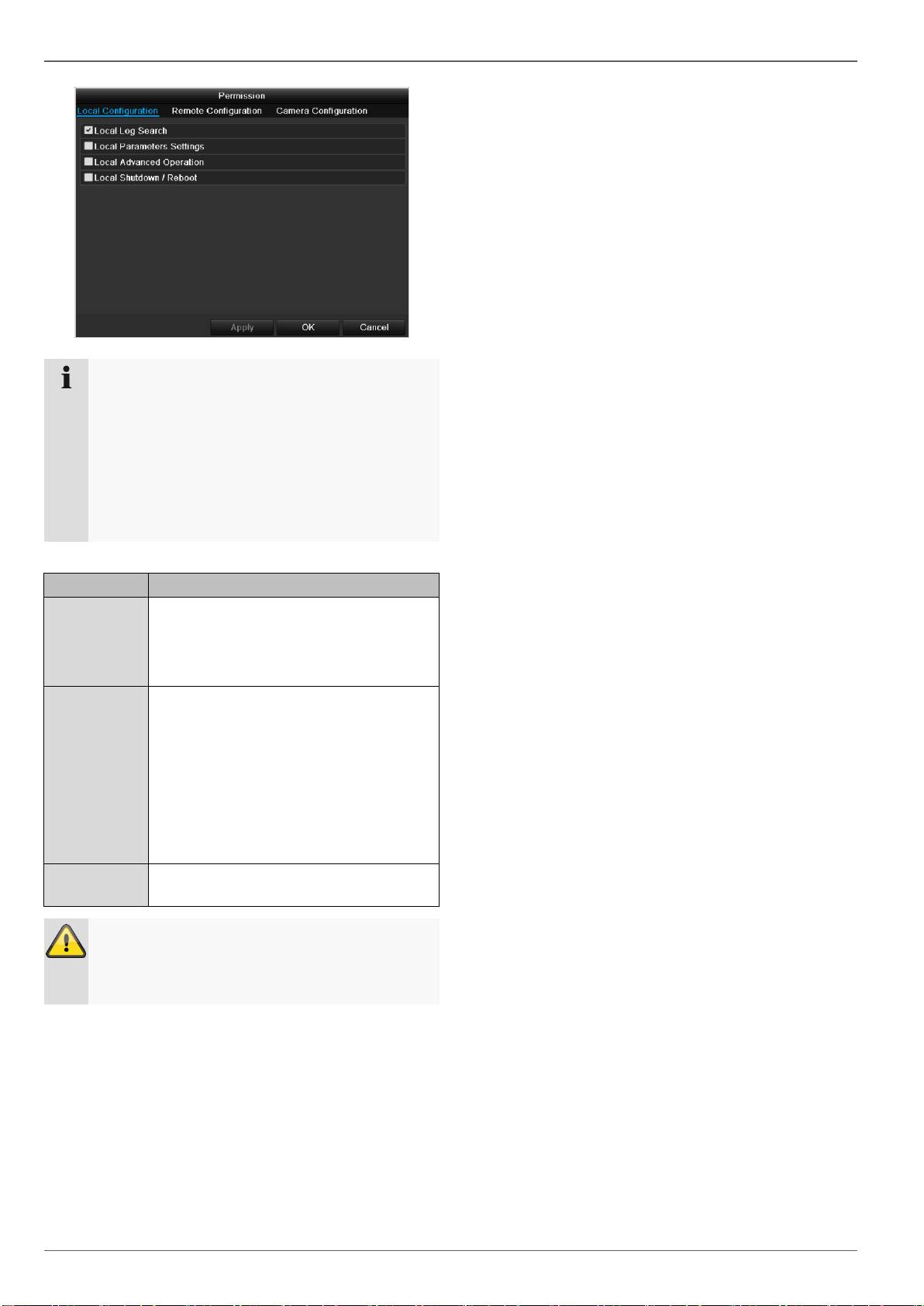

Permission
Control the access rights of the user by clicking the
“Permission” symbol. Only the access data of users
added manually can be changed:
Settings - Configuration
131
Note
The user can make the settings locally (i.e. on the
device) or change the parameters.
The user can access the device via the network
connection.
The “Camera Permission” tab is used to set ac-
cess rights for individual cameras (network or lo-
cal).
Parameter
Setting
Local
Configuration
Local Log Search
Local Parameters Settings
Local Advanced Operation
Local Shutdown / Reboot
Remote
Confguration
Remote Log Search
Remote Parameters Settings
Remote Serial Port Ctnrol
Remote Video Output Cntrol
Two-way Audio
Remote Alarm Control
Remote Advanced Operation
Remote ShutDown / Reboot
Camera
Configuration
Camera Permission
Warning
Change the general settings of the user (name,
password, level, MAC address) by clicking the
“Edit” symbol or in the TAB “Change password”.
Settings - Configuration
Camera
Camera
132
Camera
Shows the camera number
Add
Adds a new network camera
Network camera
address
Shows the set IP address of the
camera
Edit
Edit the camera
Name
Shows the name of the network
camera
Log
Displays the log
Device model
Shows the model
Refresh
Refreshes the list
Delete
Deletes a network camera
Add all
Add all existing network cameras
Custom
Settings for custom addition
Click the + sign to add a camera to the system.
Click “Refresh” to search the network for ABUS network
cameras.
Click “Add all” to add all existing network cameras.
Click “Custom” to add Onvif cameras..
Note
In some cases, you need to enter the user names,
password and http port by hand afterwards.
OSD
The available bandwidth shows you how much bandwidth
is still available for setting up the network camera.
Camera
Camera to be set
Camera Name
Allocation of camera name
Display Name
Activate / deactivate display of
camera name in the live view
Display Date
Activate / deactivate display of
date in the live view
Display Week
Activate / deactivate display of
week in the live view
Date Format
Selection of date display type
Time Format
12 hours / 24 hours
Display Mode
Settings relating to the presenta-
tion of camera name and date
OSD font
Changing the font size
Select the camera channel to be processed at “Camera”.
Adapt the camera image to light conditions at “Mode” by
means of specified settings or with user-defined settings.

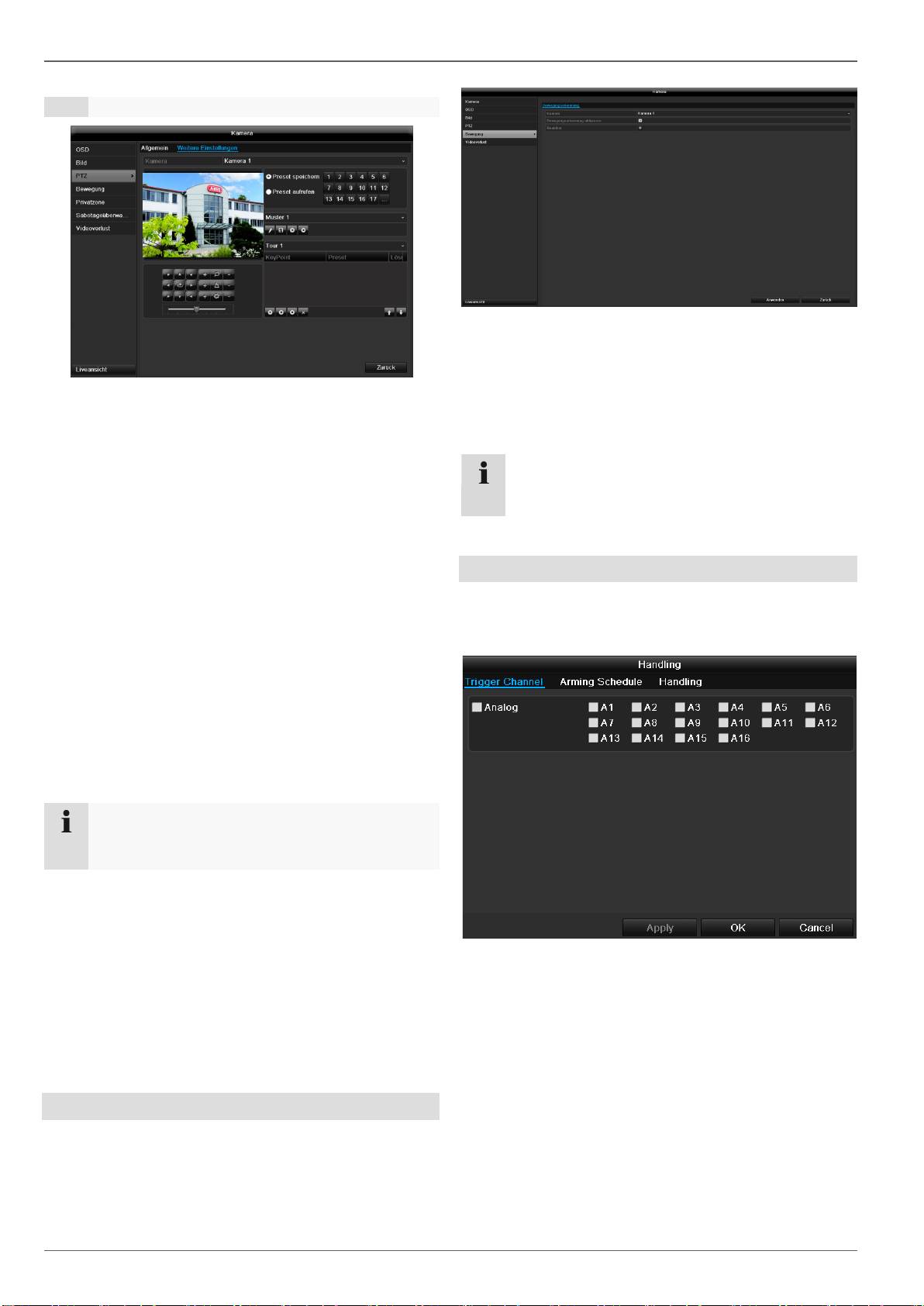

PTZ
Note
Here you can set up presets and patrols for the
Settings - Configuration
133
TVIP2xxxx network cameras.
Select the checkbox for motion detection.
The motion detection in the network camera must also be
activated. For further details, refer to the network camera
manual.
Saving and retrieving presets
1. Use the arrow buttons to move the network cam-
era to the required image section and save the
position, for example as Preset 1
2. Click on Call up to move to Preset 1.
Handling
Trigger Channel
Setting up and calling up patrols
When “Reaction” is clicked, the TAB Trigger channel
appears (only with motion recognition):
1. Create several presets to use for the patrol
2. Click on + to select a preset
3. Add more presets to set up the required patrol.
4. Then click on the play symbol to start the patrol.
Select one or more camera channels that should carry
out a reaction in the event of an alarm.
Confirm the settings by clicking Apply and leave the
menu with OK.
Motion
Select the camera channel under “Camera”.
Armin Schedule
Select the TAB Arming Schedule.
Note
You can also start the patrol directly in the live im-
age of the respective network camera.
Note
In order to record using the motion recognition, you
must set the time plan at recording (see p. 135).
Settings - Configuration

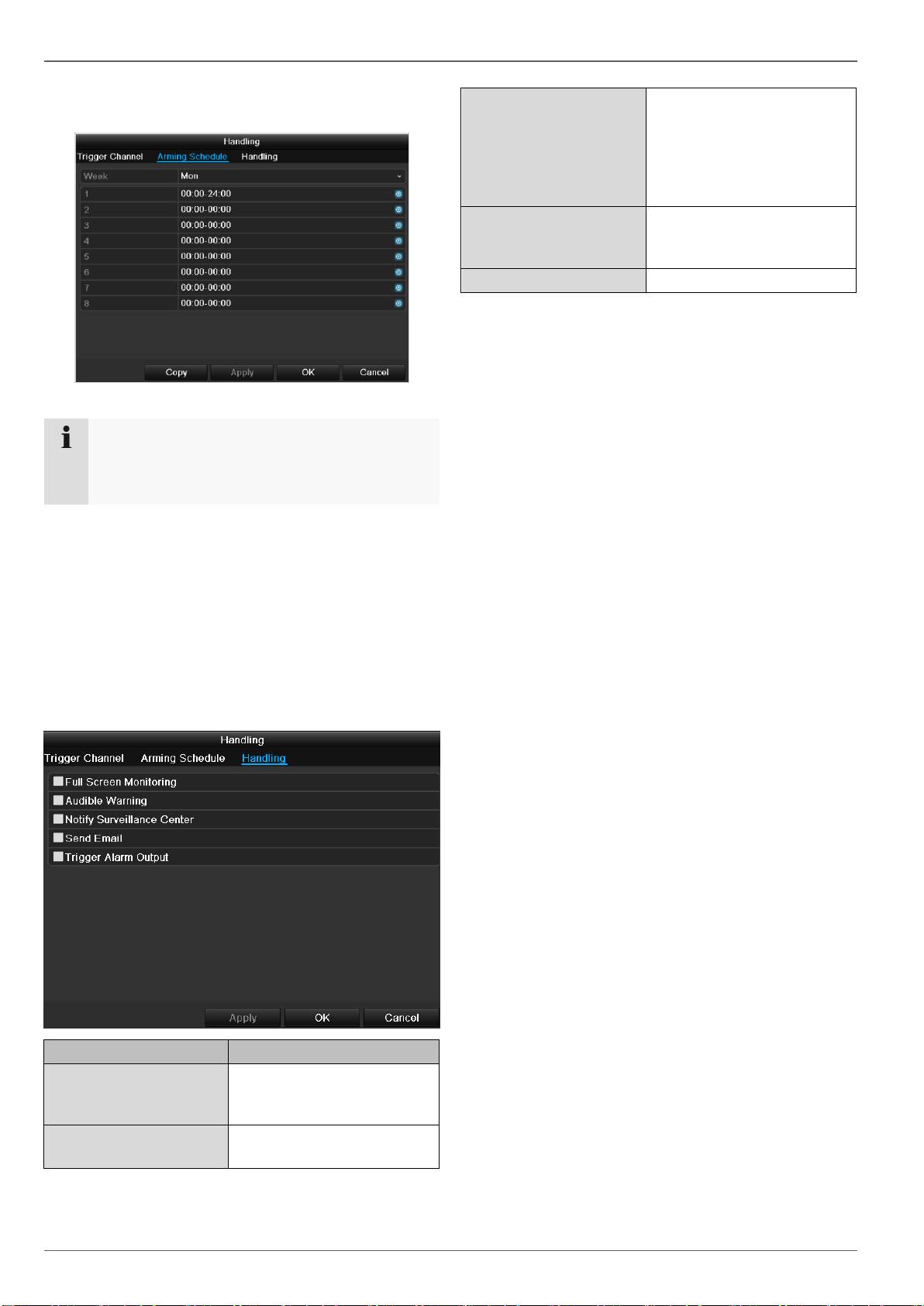

Here you set the times when the reactions in the TAB
Reaction are triggered.
1. Select the day and enter the schedule.
134
Note
You can define up to 8 time periods (each from
00:00 to 00:00). The times in the individual peri-
ods must not overlap.
2. Select whether the settings should be applied to all
days of the week with using Copy.
3. Confirm the settings by clicking Apply and leave the
menu with OK.
Handling
Click on the TAB Handling.
Here you can configure the behavior of the recorder dur-
ing a detected event (for example: motion got detected)
by clicking the respective check box.
Parameter
Notification
Full Screen Monitoring
The camera is displayed as
a full-screen picture in live
cast
Audible Warning
The device emits a repeat-
ing tone
Notify Surveillance Cen-
ter
Sends an alarm signal to a
PC with the ABUS CMS
software. For this, the soft-
ware must be running and
the recorder must be in sur-
veillance mode.
Send E-Mail
An e-mail is sent to a spe-
cific e-mail address (see
page 124)
Trigger Alarm Output
see page 124
Confirm the settings by clicking Apply and leave the
menu with OK
Settings - Configuration
Record
Setting up
Open the main menu and click on record:
Schedule
The schedule is used to specify the recording times and
triggers (recording type) for the cameras. Click on the
“Schedule” tab:
135
Note
Because there is no difference between the set-
tings for the TABs record and instant image, these
are only listed once.
In the OSD, the hours of the respective days are listed
from left to right (the days are listed from top to bottom).
A colour key is shown underneath the days (i.e. the re-
cording periods in the schedule are shown in colour ac-
cording to the trigger (recording types)).
Colour symbol
Key
Blue
Normal recording: Period in hours
Yellow
Motion detection
Light blue
Motion detection and alarm
Red
Alarm
Grey
No selection
Brown
Motion or alarm
1. Define the day to be set in the pull-down menu at
‘Schedule’.
2. Activate/deactivate ‘All day’. If the full day is active, no
definite times can be entered as the setting is now
valid for the whole day.
3. To make specific time settings, deactivate the “All
Day” box.
4. Specify the recording type in the drop-down menu:
Time
Motion detection
Alarm
Motion detection or alarm
Motion detection and alarm
Select the camera and click on the check box En-
able Schedule.
Click on Edit to specify the type and duration of the
time plan
5. When making a specific time setting, you can define
up to 8 time periods (each from 00:00 to 24:00). The
times in the individual periods must not overlap.
Note
The “Time” recording type defines the time win-
dow where a recording is made.
The other events (e.g. motion detection and/or
alarm) only trigger the recording after the specific
event has occurred.
Application example
Recording should run from 11:00 to 07:00. 2 time
zones must be set up for this:
1. 11:00 AM - 24:00PM
2. 00:00 AM - 7:00 AM
Note
To record using motion detection or the alarm, you
must first set this up in the Camera menu (see p.
Fehler! Textmarke nicht definiert. “Setting up of
zones”) or Configuration (see p. Fehler!
Textmarke nicht definiert.“Alarm”).
Settings - Configuration
At Copy you can take on this setting for other days or
the whole week.
6. Finalize your settings in the record screen with Apply
and then OK.
Encoding
TAB Record
The following setting options are available in this sub-
menu:
Confirm the settings by clicking on Apply and exit the
menu with OK.
Confirm the settings by clicking on Apply and leave the
menu with OK.
136
Pre-record
Recording period before an alarm
(in seconds)
Post-record
Recording period after an alarm
(in seconds)
Record Audio
Audio record yes/no
Settings - Configuration

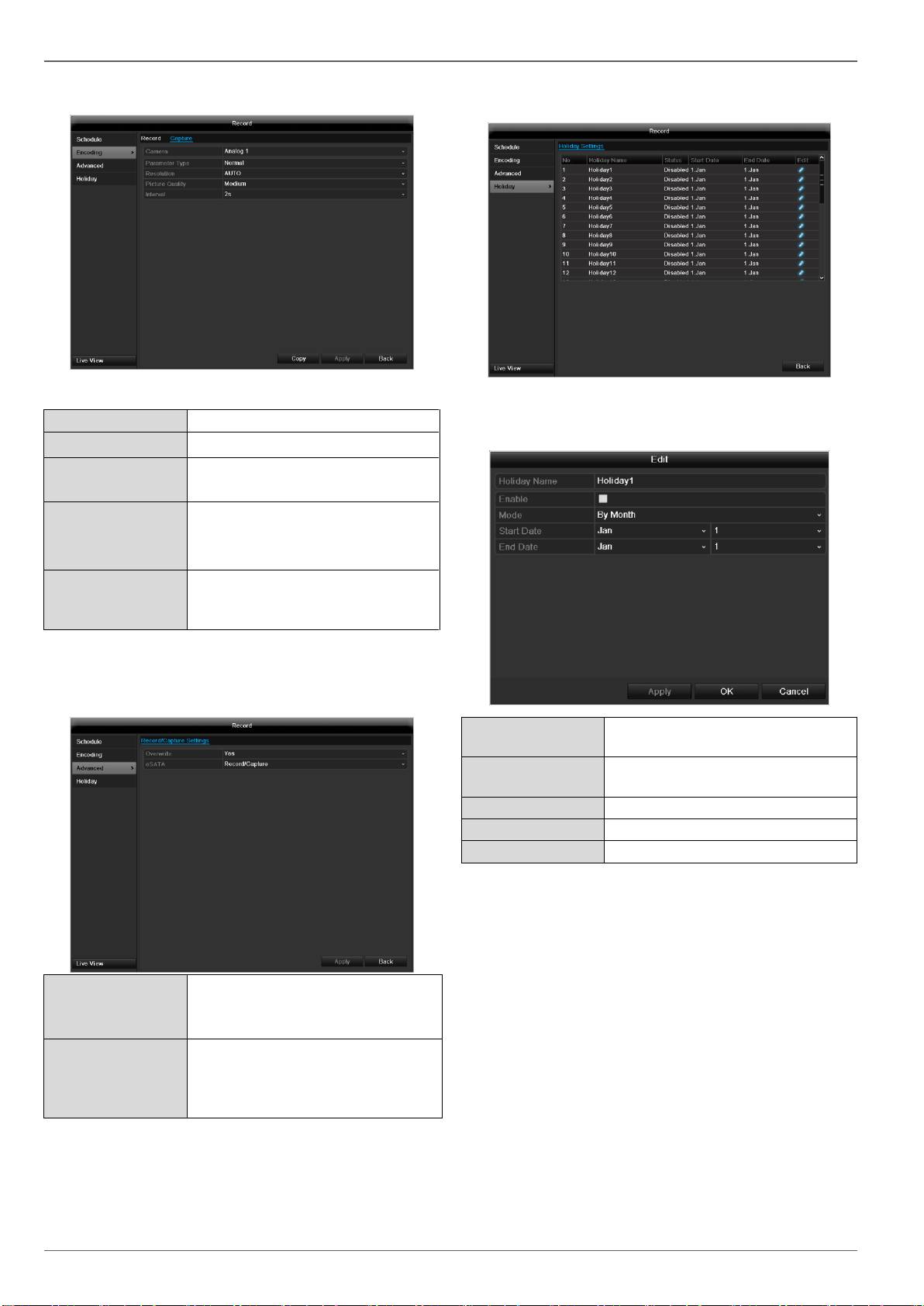

TAB Captured
The following parameters are adjustable:
137
Camera
Camera to be set
Parameter Type
Schedule or event
Resolution
Auto, 4CIF(704x576),
CIF(352x288), QCIF(176x144)
Picture Quality
different qualities
+++: middle quality
+++++: high quality
Interval
Single images are saved every 1-
5 seconds according to event or
time plan
Confirm the settings by clicking Apply and leave the
menu with Back.
Advanced settings (TVVR45030)
Overwrite
You can specify whether older re-
cordings are deleted when the
HDD memory is full
eSATA
Specify if an eSATA hard disc
connected by USB should be used
for exporting, or for additional re-
cording/image storing.
Holidays
In this sub-menu, 32 different recording settings for vaca-
tions or public holidays can be applied.
To apply these settings click on the “Edit” symbol:
Holiday Name
Manual name entry of the vaca-
tion or holiday
Enable
Activate or deactivate the set va-
cation
Mode
According to date / week / month
Start Date
Selection of start date / start time
End Date
Selection of end date / end time
Confirm your settings with Apply and OK.
Settings - Configuration
HDD
HDDs
138
Note
The device manages up to eight 3.5" SATA hard
disk drives (only TVVR45030).
For additional data security, an e-SATA hard disc
can be optionally connected.
Each of the installed HDDs must be initialised be-
fore the device can be used for recording. The de-
vice only detects the HDD and its assignment af-
ter initialisation has been made.
Warning
All data is deleted from the HDD during initialisa-
tion.
Ensure a data backup has been made in good
time beforehand.
Installing the HDD
1. Disconnect the device from the mains power and
open the cover.
2. Observe the applicable ESD guidelines when han-
dling electronic devices and ensure they are earthed.
3. Do not open the device in rooms with carpets or
other surfaces that can become electro statically
charged.
4. Avoid bodily contact with all components on the
PCB.
Warning
If you have questions regarding the information or
cannot find the information you need, please con-
tact your maintenance specialist.
Click on “HDD” in the menu to define settings relating to
hard disc administration
HDD Management parameters
5. Install the HDD and then connect it.
6. Reattach the cover and connect the device to the
mains power supply.
7. Switch on the device and start the HDD menu.
HDD information
Label
Shows the internal connection
number
Capacity
HDD capacity (in GB)
Status
Shows the current status of the
HDD:
Not initialised
Normal
Error
Property
Redundancy: Works redun-
dantly for data security
Read-only: Read-only protec-
tion
R/W: Read and write
Type
Local: Device HDD
NFS: Network HDD
If possible, avoid using NFS stor-
age due to compatibility problems
that may occur.
Free Space
Shows the approximate free mem-
ory for recordings
Group
HDD group (1 is preset)
Recordings can be assigned to
groups
Edit
Define hard disc settings (First ad-
just the camera groups; see also
p.32)
Delete
Removal of the hard disc
1. Select the HDD by ticking the corresponding box.
2. Start the process by clicking on Init.
3. Confirm the prompt by pressing OK.
4. The status bar shows the progress of the initialisa-
tion.
Note
If the initialised HDD is not displayed, check the
connections
Settings - Configuration
HDD settings of the cameras
Hard disc setting
Click on the sub-menu “Advanced”.
Mode: Quote
Specify the maximum recording size per camera on the
hard disc.
Mode: Group
1. Select a hard disc group in the drop-down menu.
2. By activating the check box, specify which cam-
eras should be saved on the hard disc group.
3. Click on Apply and confirm the restart in the next
window with OK.
139
Note
To be able to define these settings, you must have
allocated cameras to a hard disc group (see HDD
settings of cameras).
Click on the “Edit” symbol. A pop-up window appears:
HDD No.
Selecting hard disc by means of in-
ternal connection number
HDD Property
R/W: Readable and writable
Read-only: Write protection
Redundant: operating redun-
dantly for data security.
Group
Selection of hard disc group
HDD Capacity
Hard disc memory
Confirm the settings by clicking Apply and leave the
menu with OK.
Warning:
If only one HDD is installed and this is set to
“Read-only”, then the device cannot make re-
cordings.
Redundancy:
At least two HDDs are installed.
The redundant HDD makes an extra copy of the
recordings. This is used as a data backup.
Settings - Configuration
140
Warning:
If you want to use redundancy you have to acti-
vate the redundant storage in the recording menu
(see also p. 136)
R/W
At least one HDD must have the R/W status
(Read/Write). Otherwise, no recordings are possi-
ble.
Checking the HDD status
The status of each HDD can be checked in the “Mainte-
nance” menu. S.M.A.R.T. information (Self-Monitoring,
Analysis and Reporting Technology) is stored in the log
data.
Call up the log file and search according to the infor-
mation/S.M.A.R.T. HDD (see page 140).
Setting up the HDD alarm
You can specify alarms to inform you of HDD errors.
To do this, call up Warning in the “System Settings”
menu (see page 130).
S.M.A.R.T.
S.M.A.R.T. means Self-Monitoring Analysis and Report-
ing Technology.
Information on the hard disc status is displayed in this
sub-menu.
This information helps to recognize hard disc errors. For
this reason, do not deactivate this feature if possible.
Note
The log files saved for S.M.A.R.T. can be found in
the menu Maintenance at “Log search” (see page
143).
