inSTALLATion

Safety

inSTALLATion

7.  safety

Only a qualified contractor should carry out installation, commis-

sioning, maintenance and repair of the appliance.

7.1  general safety instructions

We guarantee trouble-free function and operational reliability only

if original accessories and spare parts intended for the appliance

are used.

7.2  instructions, standards and regulations

Note

Observe all applicable national and regional regulations

and instructions.

8.  appliance description

8.1  standard delivery

The following are delivered with the appliance:

- Safety valve

The safety valve supplied must not be used in Belgium.

For use here please use standard safety valves (see also

pricelist).

8.2  accessories

Pressure-tested taps are available as accessories.

9.  Preparations

9.1  installation site

The appliance is designed to be permanently wall-mounted to a

solid surface. Ensure the wall offers adequate load bearing ca-

pacity.

There should be a suitable drain near the appliance to drain off

the expansion water.

Always install the appliance vertically in a room free from the risk

of frost and near the draw-off point.

It may not be fitted in a corner since the screws for fixing the

appliance to the wall must remain accessible.

9.2  Fitting the wall mounting bracket

Note

Ensure that the temperature selector is accessible from

the front.

The mounting bracket attached to the appliance has hook-in slots,

which in most cases enables installation on the bolts that are

already in place from previous appliances.

f

f

Otherwise, transfer the dimensions for the holes to be drilled

on the wall (see chapter "Specification / Dimensions and

connections").

f

f

Drill the holes and secure the wall mounting bracket with

screws and rawl plugs. Select fixing materials in accordance

with the wall construction/condition.

f

f

Hook the appliance with wall mounting brackets on to the

screws or bolts. Observe the weight of the appliance when

empty (see chapter "Specification / Data table") and, if neces-

sary, ask another person to help.

f

f

Align the appliance horizontally.

20

 | PSH  Trend www.stiebel-eltron.com

inSTALLATion

installation

10.  installation

10.1  water connection

!

Material losses

Carry out all water connection and installation work in

accordance with regulations.

Operate the appliance only with pressure-tested taps.

10.1.1  Permissible materials

!

Material losses

When using plastic pipework, observe the manufacturer's

data and the chapter "Specification / Fault conditions".

cold water line

Galvanised steel, stainless steel, copper and plastic are approved

materials.

dHw line

Stainless steel, copper and plastic pipework are approved ma-

terials.

10.1.2  Fitting the safety valve

Note

The safety valve supplied must not be used in Belgium.

For use here please use standard safety valves (see also

pricelist).

Note

If the water pressure is greater than 0.6 MPa, install a

pressure reducing valve in the "cold water inlet".

The maximum permissible pressure must not be exceeded (see

chapter "Specification / Data table").

f

f

Install a type-tested safety valve in the cold water supply

line. Please note that, depending on the static pressure, you

may also need a pressure reducing valve.

f

f

Size the drain so that water can drain off unimpeded when

the safety valve is fully opened.

f

f

Fit the discharge pipe of the safety valve with a constant

downward slope and in a room free from the risk of frost.

f

f

The safety valve discharge aperture must remain open to the

atmosphere.

10.2  Power supply

WARNING Electrocution

Carry out all electrical connection and installation work

in accordance with relevant regulations.

Before any work on the appliance, disconnect all poles

from the power supply.

WARNING Electrocution

Only use a permanent connection to the power supply.

The appliance must be able to be separated from the

power supply by an isolator that disconnects all poles

with at least 3 mm contact separation.

WARNING Electrocution

Ensure that the appliance is earthed.

!

Material losses

Observe the type plate. The specified voltage must match

the mains voltage.

Power cable

DANGER Electrocution

The power cable must only be replaced (for example

if damaged) with the original spare part by a qualified

contractor authorised by the manufacturer.

The appliance is supplied with a flexible power cable with wire

ferrules and without plug, ready to connect.

f

f

If the power cable is of insufficient length, unclamp it from

the appliance. Use a suitable installation cable.

f

f

When routing the new power cable, ensure that it is water-

proof as it passes through the existing cable grommet, and is

correctly routed and connected inside the appliance.

En

gl

ish

www.stiebel-eltron.com

PSH  Trend |

21

inSTALLATion

commissioning

11.  commissioning

11.1  commissioning

Note

Fill the appliance with water prior to electrical connec-

tion. If you switch on the appliance while empty, the high

limit safety cut-out will switch it off.

f

f

Thoroughly flush out the cold water line before connecting

the appliance, so that no foreign matter gets into the water

heater or safety valve.

f

f

Open the shut-off valve in the cold water feed line.

f

f

Open a draw-off point until the appliance has filled up and

the pipework is free of air.

f

f

Adjust the flow rate. For this, observe the maximum permis-

sible flow rate with a fully opened tap (see chapter "Specifi-

cation / Data table").

f

f

If necessary reduce the flow rate at the butterfly valve of the

safety valve.

f

f

Turn the temperature selector to maximum.

f

f

Switch the mains power ON.

f

f

Check the function of the appliance. Ensure that the thermo-

stat switches off.

f

f

Check that the safety valve is working correctly.

11.1.1  appliance handover

f

f

Explain the function of the appliance and safety valve to

users and familiarise them with their operation.

f

f

Make users aware of potential dangers, especially the risk of

scalding.

f

f

Hand over these instructions.

11.2  recommissioning

See chapter "Commissioning".

12.  shutting down

f

f

Disconnect the appliance from the mains at the MCB/fuse in

the fuse box.

f

f

Drain the appliance. See chapter "Maintenance / Draining the

appliance".

13.  troubleshooting

Note

The high limit safety cut-out can respond at temperatures

below –15 °C. The appliance may be subjected to these

temperatures during storage or transport.

fault

cause

remedy

The water does not heat

up and the ON/OFF indi-

cator does not illuminate.

The high limit safety

cut-out has responded

because the controller is

faulty.

Remedy the cause of the

fault. Replace the con-

troller.

The high limit safety

cut-out has responded

because the temperature

has fallen below -15 °C.

Press the reset button

(see diagram).

The water does not heat

up and the ON/OFF indi-

cator illuminates.

The heating element is

faulty.

Replace the heating el-

ement.

The water does not heat

up sufficiently and the

ON/OFF indicator illumi-

nates.

The temperature control-

ler is faulty.

Replace the temperature

controller.

The heat-up time is very

long and the ON/OFF in-

dicator illuminates.

The heating element is

scaled up.

Descale the heating el-

ement.

The safety valve drips

when heating is switched

off.

The valve seat is contam-

inated.

Clean the valve seat.

Water pressure is too

high.

Install a pressure reduc-

ing valve.

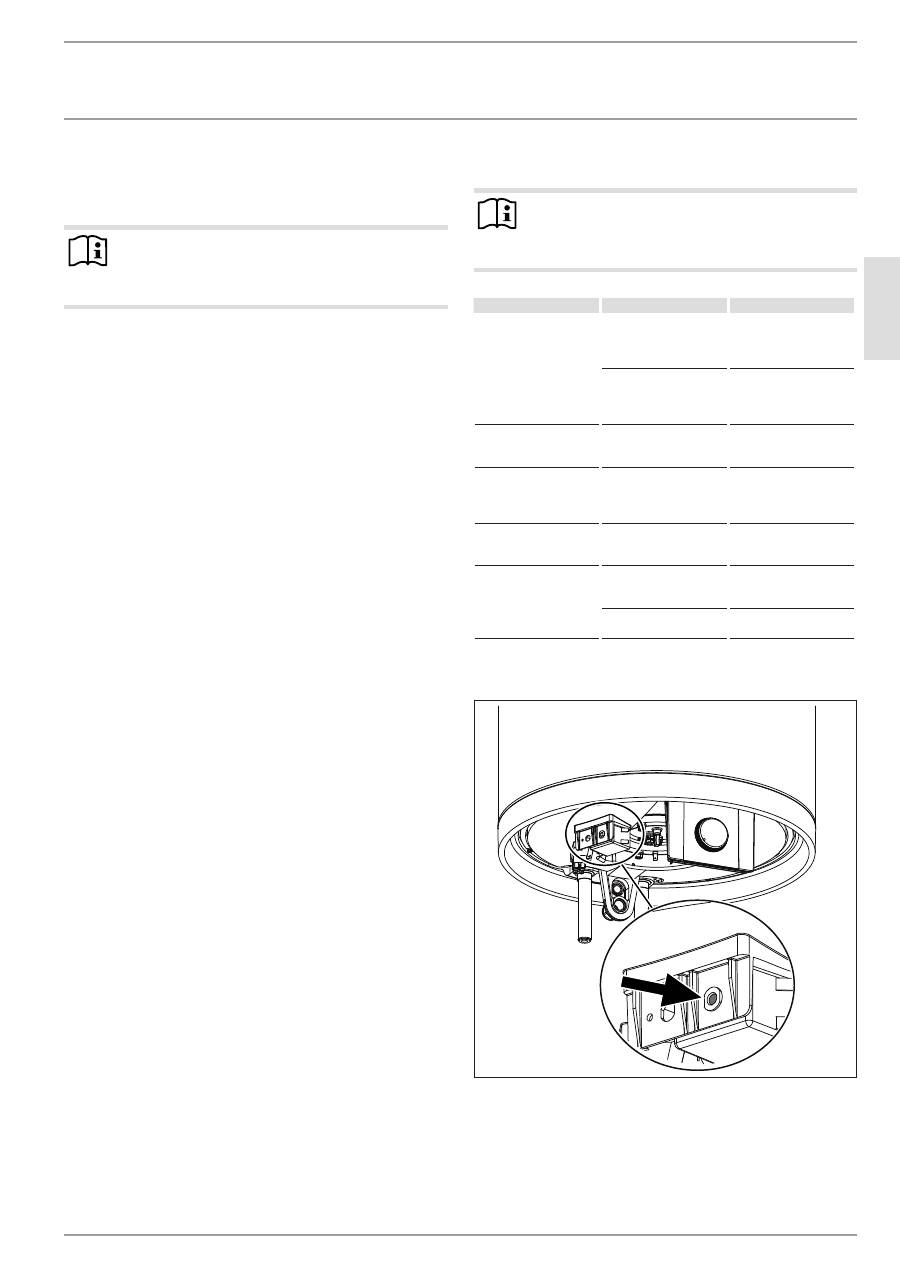

reset key, high limit safety cut-out

D

00000

37

14

3

22

 | PSH  Trend www.stiebel-eltron.com

inSTALLATion

Maintenance

14.  maintenance

WARNING Electrocution

Carry out all electrical connection and installation work

in accordance with relevant regulations.

Before any work on the appliance, disconnect all poles

of the appliance from the power supply.

If you need to drain the appliance, observe chapter "Draining the

appliance".

14.1  checking the safety valve

f

f

Test the safety valve regularly.

14.2  draining the appliance

WARNING Burns

Hot water may escape during the draining process.

If is necessary to drain the cylinder for maintenance or to protect

the whole installation from frost, proceed as follows:

f

f

Close the shut-off valve in the cold water feed line.

f

f

Open the DHW valves of all draw-off points until the appli-

ance is fully drained.

f

f

Drain any residual water from the safety valve.

14.3  checking / replacing the protective anode

f

f

Check the protective anode after the first year of use and re-

place if necessary.

f

f

Next, decide the time intervals at which further checks

should be carried out.

14.4  descaling

f

f

Remove loose scale deposits from the water heater.

f

f

If necessary, descale the inner cylinder with commercially

available descaling agents.

f

f

Only descale the flange after disassembly and never treat the

cylinder surface and protective anode with descaling agents.

14.5  anti-corrosion protection

Ensure that while carrying out maintenance work the anti-corro-

sion protection (560 Ω) is not damaged or removed. Reinsert the

anti-corrosion protection correctly after replacement.

D

00000

37

14

1

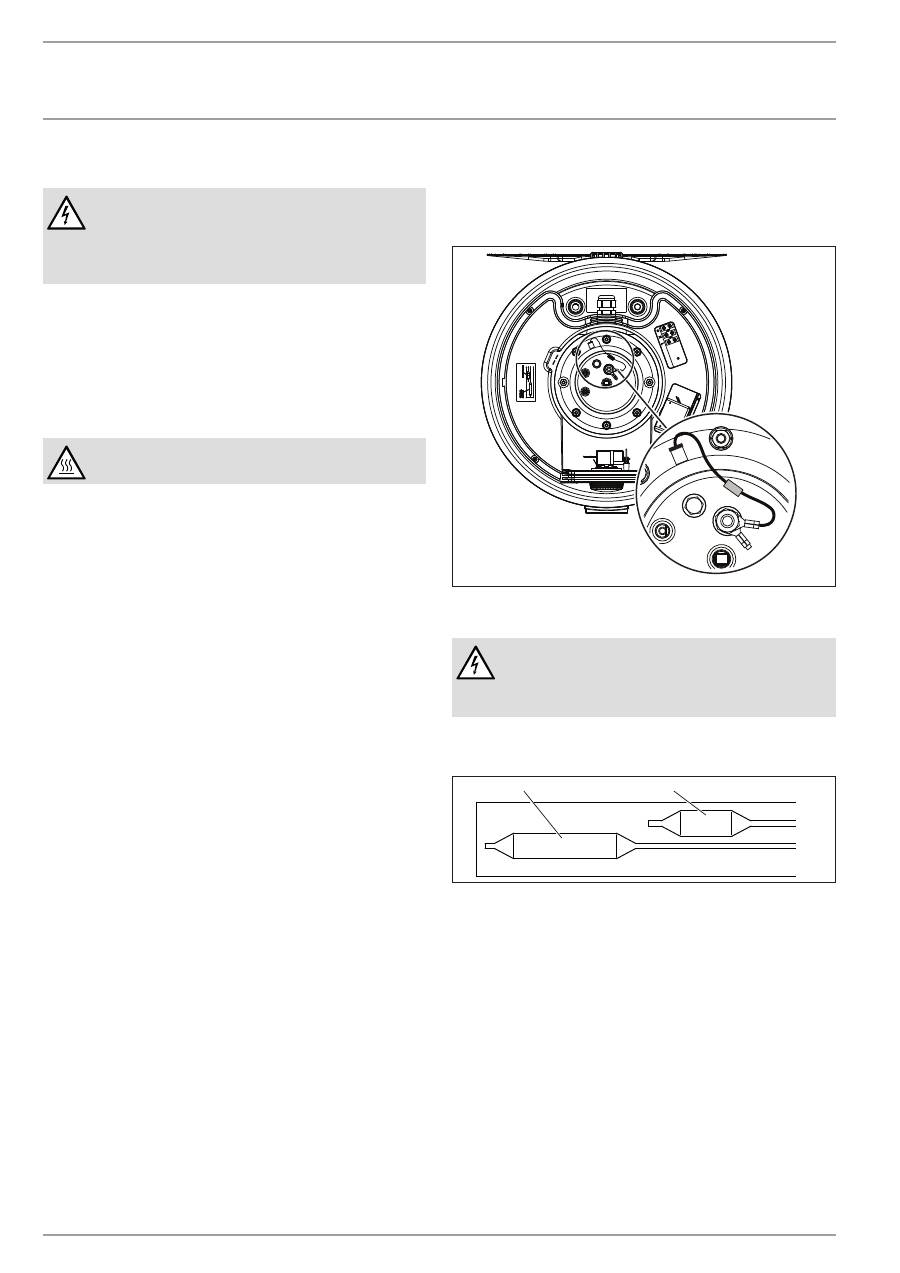

14.6  replacing the power cable

DANGER Electrocution

The power cable must only be replaced (for example

if damaged) with the original spare part by a qualified

contractor authorised by the manufacturer.

14.7  replacing the combined controller/limiter

D

00000

37

14

2

2

1

1  Controller sensor

2  Limiter sensor

f

f

Insert the controller sensor and the limiter sensor into the

sensor well as far as they will go.

En

gl

ish

www.stiebel-eltron.com

PSH  Trend |

23

inSTALLATion

Specification

15.  specification

15.1  dimensions and connections

c01

c06

i13

b01

a10

100

a40

a30

61

23

D

00000

37

13

5





PSH 30

Trend

PSH 50

Trend

PSH 80

Trend

PSH 100

Trend

PSH 120

Trend

PSH 150

Trend

PSH 200

Trend

a10  Appliance

Height

mm

635

890

860

1015

1170

1400

1705

a30  Appliance

Depth

mm

410

410

520

520

520

520

520

a40  Appliance

Diameter

mm

405

405

510

510

510

510

510

b01  Entry electrical cables

Threaded fitting



M20x1.5

(PG 16)

M20x1.5

(PG 16)

M20x1.5

(PG 16)

M20x1.5

(PG 16)

M20x1.5

(PG 16)

M20x1.5

(PG 16)

M20x1.5

(PG 16)

c01  Cold water inlet

Male thread

G 1/2 A

G 1/2 A

G 1/2 A

G 1/2 A

G 1/2 A

G 1/2 A

G 1/2 A

Rear clearance

mm

85.5

85.5

95

95

95

95

95

c06  DHW outlet

Male thread

G 1/2 A

G 1/2 A

G 1/2 A

G 1/2 A

G 1/2 A

G 1/2 A

G 1/2 A

Rear clearance

mm

85.5

85.5

95

95

95

95

95

i13  Wall mounting bracket

Height

mm

530

590

520

790

825

1060

1360

24

 | PSH  Trend www.stiebel-eltron.com

inSTALLATion

Specification

wall mounting bracket

30 - 50 l

184

265

300

360

80

�0

2�

07

�0

00

5

80 - 200 l

450

415

360

350

300

265

80

�0

2�

07

�0

00

6

15.2  wiring diagram

N

L

2

1

3

4

5

6

7

8

85

�0

2�

07

�0

01

0

1  Terminal

2  High limit safety cut-out

3  Temperature controller

4  ON/OFF indicator

5  Heating element

6  Electrical resistance 560 ohm

7  Anode

8  Cylinder

15.3  Heat-up diagrams

The heat-up time depends on the cylinder capacity, cold water

inlet temperature and heating output.

Graph assumes 15 °C cold water inlet temperature:

0

1

2

3

4

5

6

35

45

55

65

75

1

2

7

6

5

4

3

D

00000

37

21

4

X  Temperature setting [°C]

Y  Heat-up time [h]

1  150 l

2  200 l

3  120 l

4  100 l

5  80 l

6  50 l

7  30 l

15.4  Fault conditions

In the event of a fault, temperatures of up to 95 °C at 0.6 MPa

can occur.

En

gl

ish

www.stiebel-eltron.com

PSH  Trend |

25

15.5  data table





PSH 30

Trend

PSH 50

Trend

PSH 80

Trend

PSH 100

Trend

PSH 120

Trend

PSH 150

Trend

PSH 200

Trend

232080

232081

232082

232083

232084

232085

232086

Hydraulic data

Nominal capacity

l

30

50

80

100

120

150

200

Amount of mixed water 40 °C (15 °C/65 °C)

l

52

99

142

186

224

288

376

Electrical data

Connected load ~ 230 V

kW

2

2

2

2

2

2

3

Rated voltage

V

220-240

220-240

220-240

220-240

220-240

220-240

220-240

Phases

1/N/PE

1/N/PE

1/N/PE

1/N/PE

1/N/PE

1/N/PE

1/N/PE

Frequency

Hz

50/60

50/60

50/60

50/60

50/60

50/60

50/60

Single circuit operating mode

X

X

X

X

X

X

X

Heat-up time 2.0 kW (15 °C/60 °C)

h

0.80

1.33

2.13

2.66

3.20

4.00

Heat-up time 3.0 kW (15 °C/60 °C)

h

3.55

Application limits

Temperature setting range

°C

7-75

7-75

7-75

7-75

7-75

7-75

7-75

Max. permissible pressure

MPa

0.6

0.6

0.6

0.6

0.6

0.6

0.6

Test pressure

MPa

0.2

0.2

0.2

0.2

0.2

0.2

0.2

Max. permissible temperature

°C

95

95

95

95

95

95

95

Max. flow rate

l/min

23.5

23.5

23.5

23.5

23.5

23.5

23.5

Min. water inlet pressure

MPa

0.1

0.1

0.1

0.1

0.1

0.1

0.1

Max. water inlet pressure

MPa

0.6

0.6

0.6

0.6

0.6

0.6

0.6

Energy data

Standby energy consumption/24 h at 65 °C

kWh

0.53

0.72

0.79

0.98

1.14

1.33

1.61

Versions

Colour

White

White

White

White

White

White

White

IP rating

IP25

IP25

IP25

IP25

IP25

IP25

IP25

Sealed unvented type

X

X

X

X

X

X

X

Power cable

X

X

X

X

X

X

X

Power cable length approx.

mm

1000

1000

1000

1000

1000

1000

1000

Dimensions

Height

mm

635

890

860

1015

1170

1400

1705

Depth

mm

410

410

520

520

520

520

520

Diameter

mm

405

405

510

510

510

510

510

Weights

Weight, empty

kg

16.4

21.4

28.2

33.6

39.1

46.2

56.3

Weight, full

kg

46.4

71.4

108.2

133.6

159.1

196.2

256.3

wArrAnTy environMenT And recycLing

Warranty

The warranty conditions of our German companies do not

apply to appliances acquired outside of Germany. In countries

where our subsidiaries sell our products, it is increasingly the

case that warranties can only be issued by those subsidiaries.

Such warranties are only granted if the subsidiary has issued

its own terms of warranty. No other warranty will be granted.

We shall not provide any warranty for appliances acquired in

countries where we have no subsidiary to sell our products.

This will not affect warranties issued by any importers.

Environment and recycling

We would ask you to help protect the environment. After use,

dispose of the various materials in accordance with national

regulations.

inSTALLATion | wArrAnTy | environMenT And recycLing

Specification
