Vaddio HE120 Operating Instructions: How to install and connect the unit

How to install and connect the unit

Be absolutely sure to read through the “Read this first!” (page 5) and “Installation precautions” (pages 6 to 7).

The procedure given here is for the kind of installation where the unit is suspended from an overhead surface, but the same

steps are followed for a stand-alone installation.

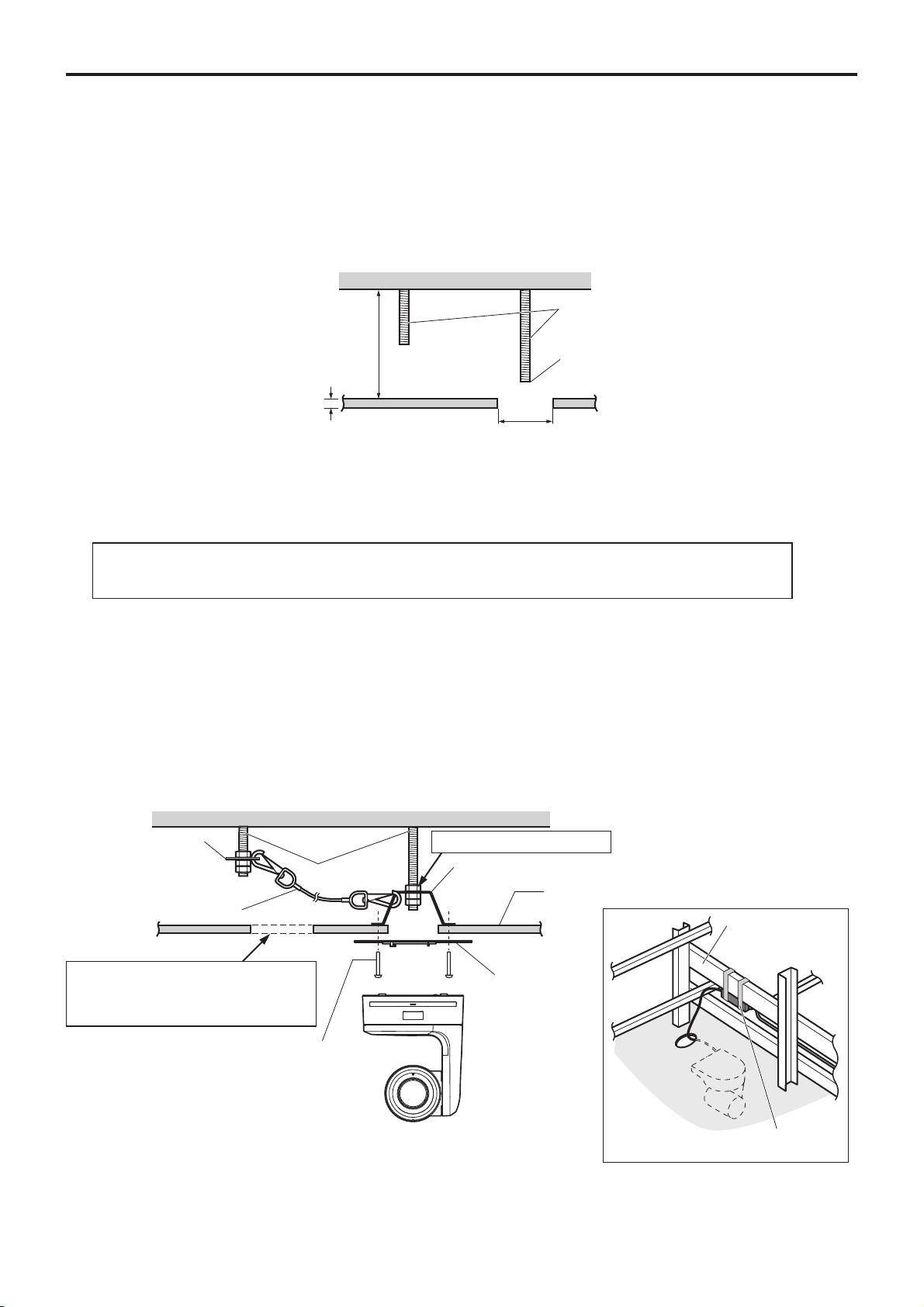

If the ceiling panel is not strong enough to bear the unit’s weight, use the kind of mount bracket that is supported

by anchor bolts between the concrete ceiling and ceiling panel. The unit supports the WV-Q105 direct ceiling mount

bracket which is used solely for combination cameras. Use this bracket to install the unit. (See page 12)

In a case like this, the holes (ø 60 mm [ø 2-3/8 inches]) for installing the direct ceiling mount bracket on the ceiling

must be drilled in the ceiling panel.

It is also recommended that you provide an inspection space or opening for access purposes in the area near where

the equipment is installed in order to facilitate installation and the wiring connections work.

See page 31 for details of the accessories.

1 Check the mounting space.

 Refer to the illustration, and determine where the unit is to be installed and in which direction it should be mounted.

Factor in the unit mounting area and include space for the wires extending from its rear panel.

 The asterisk () in the illustration marks the position and dimensions of the hole for mounting the mount bracket.

Unit: mm (inch)

Through-hole for cable

ø 40 mm (ø 1-9/16 inches)

(reference)

160 (6-5/16)

(Space for the wires from the

rear panel)

Unit mounting area

Hole for mounting the

main unit mounting screw

Hook for mounting the

drop-prevention wire

(Space for the wires)

320 (12-19/32) or more

Mount bracket

108 (4-1/4)

(

) Holes for mounting the

mount bracket: ø 4.5 mm  4

()46 (1-13/16)

88 (3-15/32) 136 (5-11/32)

90 (3-17/32)

Hole for checking the positioning

()83.5

(3-9/32)

Hole for installing the WV-Q105

direct ceiling mount bracket

176 (6-15/16)

[ø 60 mm (ø 2-3/8 inches)]

180 (7-3/32)

The front panel of the unit on this side.

Notes

 Before proceeding to install and connect the main unit, connect the LAN cable, HDMI cable, VGA cable, AC adaptor

cable and coaxial cables in the space above the ceiling panel, and then pass the cables through the cable holes.

 For a power outlet which is used on the ceiling, be absolutely sure to take measures to deal with the tracking that may

be caused by the accumulation of dust and other foreign matter.

8

How to install and connect the unit

(continued)

2 Mount the mount bracket onto the installation surface.

 Use the bracket mounting screws (M4, bind-head: 10 mm long) supplied with the unit.

 For proper clamping torque, securely attach the screws using the specified tools.

Screw diameter Clamping torque

M4 1.47 N · m {15 kgf · cm}

Installation

Instructions

Bracket mounting screws  4 (supplied)

(M4, bind-head)

Note

 Use only the screws supplied with the unit. Do not use any other screws such as wood screws, nails, etc.

3 Attach the drop-prevention wire.

 Loop the circle part of the drop-prevention wire, which has been attached to the bottom panel of the unit, around the end

of the hook part of the mount bracket.

 Pull the drop-prevention wire, and check that it has been attached securely to the hook.

End of hook

Drop-prevention

wire

 Loop the circle part of

 Pull the wire, and check that

the drop-prevention wire

it is securely attached to the

around the end of the hook

hook.

part of the mount bracket.

Notes

 Do not do this work while holding the camera head since doing so may result in malfunctioning of the unit.

 The drop-prevention wire is designed to be used for installation where the unit is suspended from an overhead

surface so do not subject it to the weight of units other than the unit.

9
