Vaddio HE120 Operating Instructions: Removing the camera

Removing the camera

1 Turn off the circuit breaker and power.

2 Remove the cable cover.

 Remove the screw (M3) for the cable cover used to secure the cover.

 Push the tab parts of the cover to disengage the cover.

3 Disconnect the cables.

Disconnect the power cable, video cable, and control cable, etc.

4 Remove the main unit mounting screw used to secure the unit and mount bracket.

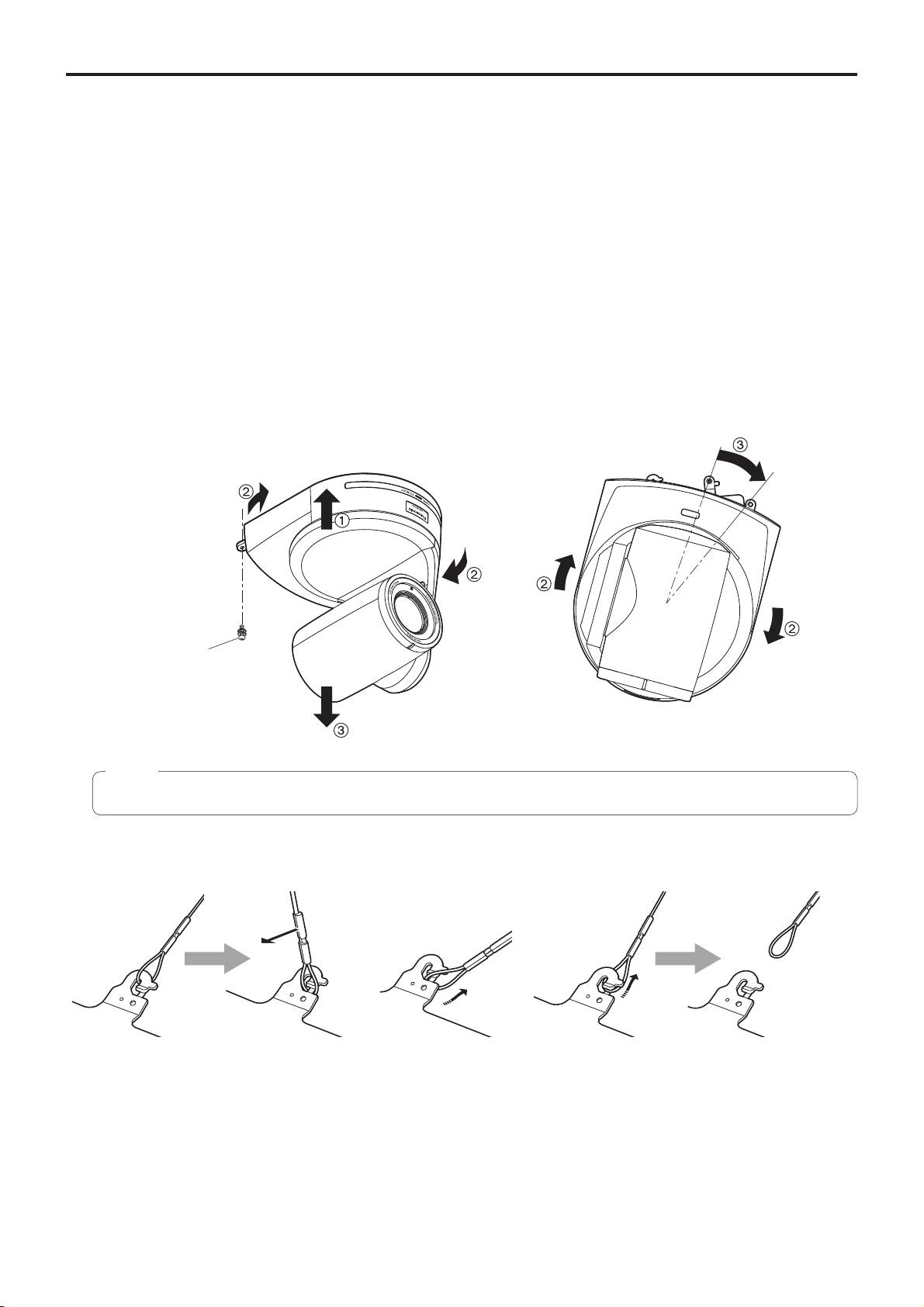

5 Push the unit (). Turn it approximately 20 degrees away from the installed position (),

and remove it ().

Approx.

20°

Main unit mounting

screw (M3 screw)

(with flat washer, spring

washer)

Note

 Do not do this work while holding the camera head since doing so may result in malfunctioning of the unit.

6 Disengage the drop-prevention wire from the mount bracket.

 Pull the drop-

 Twist the wire, and

 Pull the wire in the

prevention wire in the

remove the wire loop

direction shown by the

direction shown by the

through the opening in

arrow above, and simply

arrow above.

the hook.

pull it out.

14
