Televes DigiSlot DVB-T modulator, wall mount: 4. Encoders

10

DVB-T modulator

EN

4.6-

 Port

The UDP protocol port (like as 8001), you should use Output IP and new port to

receive IP Output data (like as udp://224.2.2.2:8001).

5)

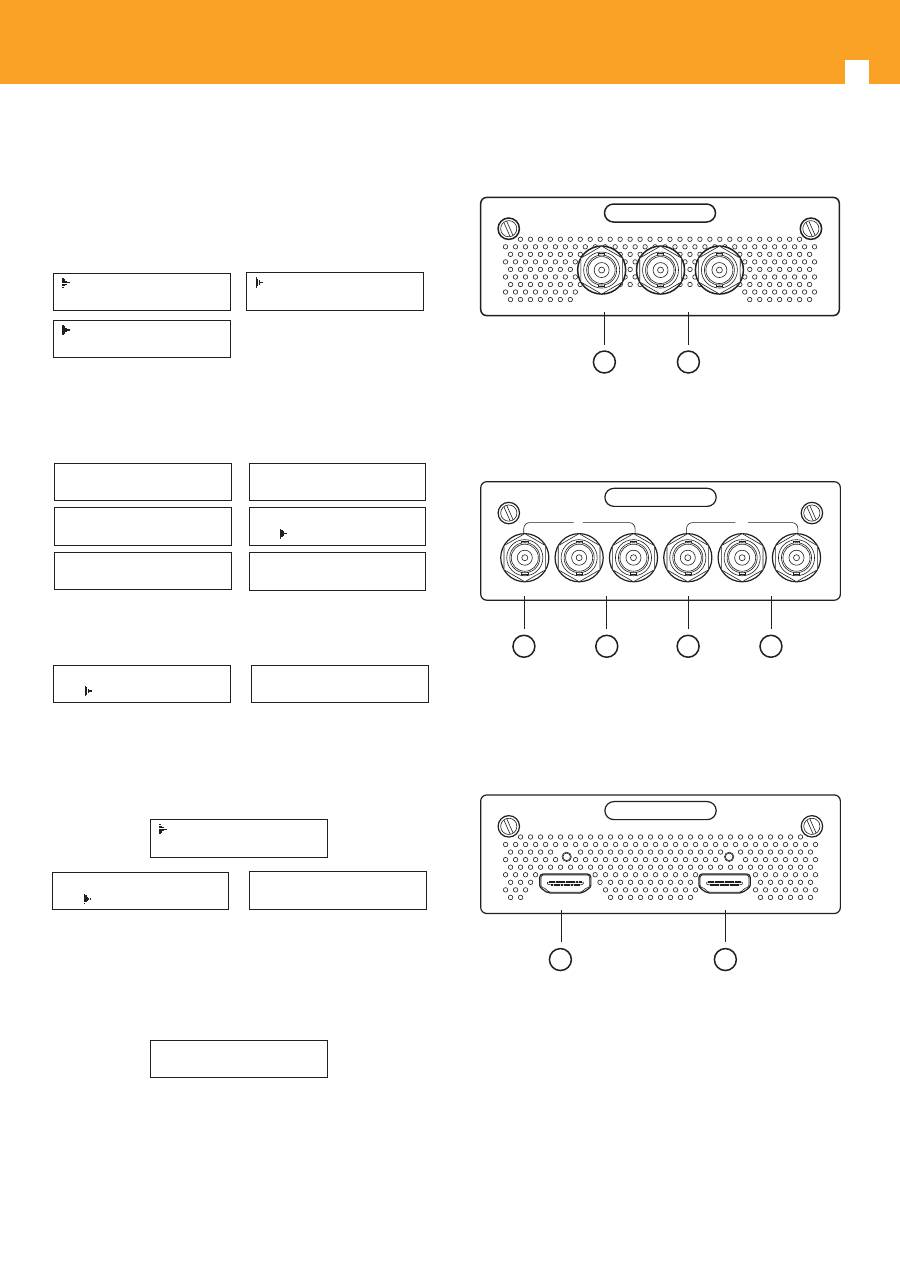

Network setting

After inter network setting, there are three Submenu Items for setting, just

show as the following LCD display pictures.

5.1 IP Address

5.2 Subnet Mask

5.3 Gateway

5.4 MAC Address

5.5 Reset Password

5.6 Web Manage Port

User can press “

UP/DOWN

” to choose this item. “

Enter

” and “

LEFT/RIGHT

” to

set the parameters.

Note

:

The MAC address is according to the factory setting, and it’s unique. The

display will respectively show as below

:

IP Address

192.168.000.136

Subnet mask

255.255.255.000

Gateway

192.168.000.001

MAC Address

201110140940

Reset pasword ?

    Yes   No

Web Manage Port

00080

6)

Save confi g

Users enter save confi g submenu for saving settings. Choose yes for confi rm set.

Save Configuration?

    Yes    No

Saving config ...

7)

Loading confi g

At this menu, user can press

UP/DOWN

 key to select and repress

ENTER

 to

confi rm. User can restore the device into the last saved confi guration  by

choosing “7.1” and restore the device into factory confi guration by choosing

“7.2” the display will show as below:

7.1 Load Saved CFG

7.2 Load Default

Load Saved CFG ?

    Yes   No

Loading config ...

Note

:

In the fi rst use of the product, it is recommended to “Load Default” before

starting with the confi guration

.

8)

Version

User can check the hardware version and software version of this equipment

when enter this submenu.

EncoderModulator

  SW 5.13b HW 5.0

4. Encoders

Ref. 554801 – 1 A/V Input (MPEG2)

C

V

BS

L ----

Audio

 ----

R

1 2

(1) CVBS input (video input)

(2) Unbalanced audio input (left and right)

Ref. 554802 – 2 A/V Inputs (MPEG2)

C

V

BS

L ----

Audio

 ----

R

C

V

BS

L ----

Audio

 ----

R

1

2

1 3 2 4

(1) CVBS input (video input) –Channel 1

(2) Unbalanced audio input (left and right) –Channel 1

(3) CVBS input (video input) –Channel 2

(4) Unbalanced audio input (left and right) –Channel 2

Ref. 554803 – 1 HDMI Input (MPEG4)

HD

M

I1HD

M

I2

1 2

(1) HDMI input –Channel 1

(2) HDMI input –Channel 2

Input resolutions

:  1280x720p60, 1280x720p50, 1920x1080i60, 1920x1080i50,

1920x1080p60, 1920x1080p50

Note

:

It is only possible to obtain on the output the signal of one input at a time

.

               When both inputs have signal at the same time, the signal on the output is

the one of HDMI1(if HDMI input is set in automatic see  chapter 5.2, otherwise

the output will be from the input selected).

Note

:

3D signal from Blu-ray 3D is not supported.

11

EN

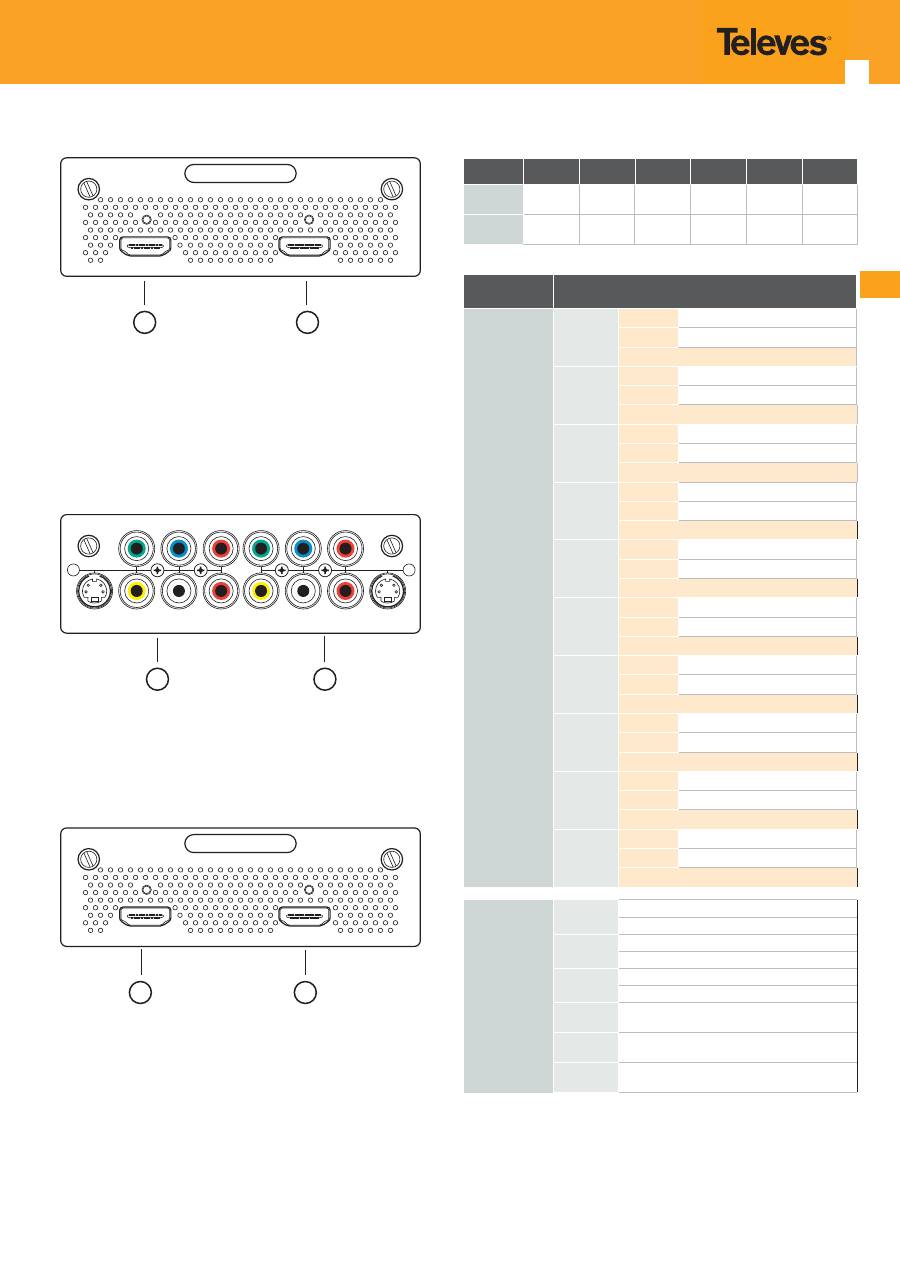

Ref. 554804 – 2 HDMI Inputs (MPEG4)

HD

M

I1

HD

M

I2

1 2

(1) HDMI input –Channel 1

(2) HDMI input –Channel 2

Input resolutions

:  1280x720p60, 1280x720p50, 1920x1080i60, 1920x1080i50,

1920x1080p60, 1920x1080p50

Note

:

3D signal from Blu-ray 3D is not supported.

Ref. 554812 – 2 CVBS/YPbPr/S-Video inputs (MPEG2)

CVBS

L----Audio----R

S-Video

L----Audio----R

1

2

S-Video

CVBS

Y

Pb

Pr

Y

Pb

Pr

1 2

(1) CVBS / YpbPr / S-Video inputs – Channel 1

(2) CVBS / YpbPr / S-Video inputs – Channel 2

Input resolutions YPbPr

:  720x480 60i, 720x576 50i

Ref. 554813 – 1 HDMI Input (MPEG2/MPEG4)

HD

M

I1

HD

M

I2

1 2

(1) HDMI input (video MPEG2/4, audio MPEG-2, MPEG-2 AAC, MPEG-4 AAC - Channel 1

(2) HDMI input (video MPEG2/4, audio MPEG-2, MPEG-2 AAC, MPEG-4 AAC - Channel 2

Input resolutions

:  1280x720p60, 1280x720p50, 1920x1080i60, 1920x1080i50,

1920x1080p60, 1920x1080p50

Note

:

It is only possible to obtain on the output the signal of one input at a time

.

               When both inputs have signal at the same time, the signal on the output is

the one of HDMI1(if HDMI input is set in automatic see  chapter 5.2, otherwise

the output will be from the input selected).

Note

:

3D signal from Blu-ray 3D is not supported.

4.1 Specifi cation

Ref.

554801

554802

554803

554804

554812

554813

Video

Compress.

MPEG-2 SD MPEG-2 SD

MPEG-4

(H264 HD)

MPEG-4

(H264 HD)

MPEG-2 SD MPEG-2/4

Audio

Compress.

MPEG-2

MPEG-2

MPEG-2

MPEG-2

MPEG-2

MPEG-2/4

Encoding

mode

MPEG-2 / H264 / AVC SD / HD

Input port

Option 1

Port 1

A

Port 2

A

RF input

Option 2

Port 1

B o C

Port 2

B o C

RF input

Option 3

Port 1

D o E

Port 2

D o E

RF input

Option 4

Port 1

A

Port 2

B o C

RF input

Option 5

Port 1

A

Port 2

D o E

RF input

Option 6

Port 1

A

Port 2

F

RF input

Option 7

Port 1

B o C

Port 2

D o E

RF input

Option 8

Port 1

B o C

Port 2

F

RF input

Option 9

Port 1

D o E

Port 2

F

RF input

Option 10

Port 1

F

Port 2

F

RF input

Legend

A

(554801)

One channel CVBS input

Unbalanced audio input

B

(554802)

Two channel CVBS input

Unbalanced audio input

C

(554812)

Two channels S-Video/YPbPr/CVBS input

Unbalanced audio input

D

(554803)

One channel HDMI MPEG4 (H264) input

E

(554813)

One channel HDMI MPEG2/4 (H264) input

F

(554804)

Two channels HDMI MPEG4 (H264) input

IMPORTANT

:

This equipment generates a delay of about 2 seconds between the signal at

inputs A/V and HDMI, and their corresponding outputs in RF and IP.

For this reason, the use of game consoles (eg PS3, XBox360 ...) as signal sources

is not recommended, because only watching movies is achieved, not being

able to really play.”
