Maintenance plan

7 Maintenance

Weekly

Every 500 operating hours

As required

Cleaning water inlet filter

X

X

Checking pump oil level

X

Changing pump oil

X

Cleaning water inlet filter

Checking the pump oil level

Changing the pump oil

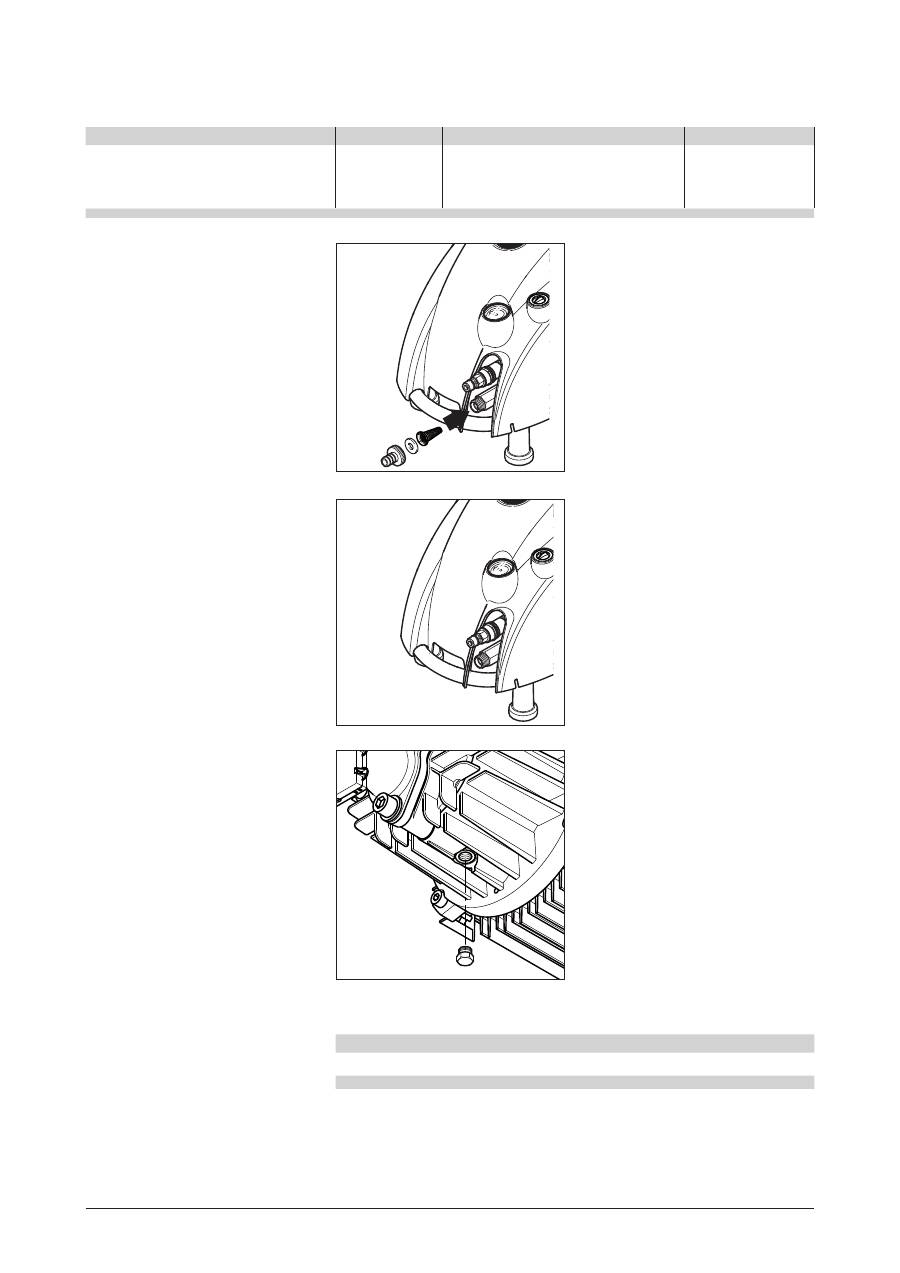

A water filter is fitted on the water

inlet to prevent large particles of

dirt from entering into the pump.

1.  Unscrew the quick-release

connection if mounted.

2.  Remove the filter and rinse it.

Replace damaged filter. Re-

place damaged filter.

1.  Check the oil level by lifting

off the cap. On level ground,

the oil should be just visible.

1.  Before changing the oil, allow

the cleaner to become warm.

2. Remove

cap.

3.  Loosen and remove drain

plug. Drain the oil into a suita-

ble container(min. 1 litre) and

dispose the oil in compliance

with regulations.

4.  Fit drain plug and refill with oil

according to chapter 9 Tech-

nical Data.

5.  Oil should just be visible

in the oil container at level

ground.

6.  Fit the cap.

CAUTION

Special pump oil is required if the cleaner is used near food.
