Fieldmann FDB 2005-E: 2. GENERAL SAFETY INSTRUCTIONS

General safety instructions

7

EN

MULTI FUNCTION TOOL OPERATING INSTRUCTIONS

Carefully read, remember and keep these safety instructions

WARNING! In the use of electric machines and power tools, it is necessary to respect

and follow the following safety instructions for the reasons of protection against electric

shock, personal injury and danger of fire. The term “power tool” in the instructions below

refers both to mains-operated (corded) power tool or battery-operated (cordless) power tool.

Save all warnings and instructions for future reference.

Workplace

Keep the work area clean and well lit. Cluttered or dark areas in the workplace invite

accidents. Store power tools that you don’t currently use.

Do not operate power tools in environments with danger of occurrence of a fire or explosion,

such as in the presence of flammable liquids, gases, or dust. Power tools create sparks

which may ignite the dust or fumes.

Keep unauthorised persons, especially children, away from the work area while operating

a power tool! Distractions can cause you to lose control over the performed activity. In no

event leave your power tool unattended. Keep the equipment away from animals.

Electrical Safety

Power tool plugs must match the mains socket outlet. Never modify the plug in any way.

Do not use any adapter plugs with earthed (grounded) power tools. Undamaged plugs and

matching outlets will reduce risk of electric shock. Damaged or fouled supply cables increase

the risk of electric shock. If the power cord is damaged, it must be replaced by a new power

cord which is available at the authorised service centre or the importer.

Avoid body contact with earthed or grounded surfaces such as pipes, radiators, cooking

ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or

grounded.

Do not expose power tools to rain or wet conditions. Never touch the power tool with wet

hands. Never wash the power tool under running water or immerse it in water.

Never use the supply cable for other than intended purposes. Never use the cord for carrying

or pulling the power tool. Never unplug the plug from the outlet by pulling the cable. Keep

electric cables away from sharp or hot objects to prevent mechanical damage.

The power tool was designed to be powered solely by alternating electric current. Always

check if the electric voltage matches the information specified in the type label of the power

tool.

Never use power tool with damaged electric cable or plug or which has been dropped or is in

any way damaged.

EN 8

General safety instructions

FDB 2005-E

If an extension cord is used, always check whether its technical parameters match the

information specified in the type label of the power tool. When operating a power tool

outdoors, use an extension cord suitable for outdoor use. If extension drums are used, these

must be rolled out to prevent overheating of the cord.

If a power tool is operated in a damp location or outdoors, its operation is only permitted if

connected to an electric circuit protected by a residual current device <30 mA. Use of residual

current device (RCD) reduces the risk of electric shock.

Hold the power tool by insulated gripping surfaces only as the cutting or drilling tool may

contact hidden wiring or its own power cord during operation.

Personal Safety

Be careful, stay alert and watch what you are doing when operating a power tool.

Concentrate on your work. Do not use a power tool while you are tired or under the influence

of drugs, alcohol or medication. A moment of inattention while operating power tools may

result in serious personal injury. Do not eat, drink and smoke while operating a power tool.

Use personal protective equipment. Always wear eye protection. Use protective equipment

corresponding to the type of work you are doing. Protective equipment such as dust mask,

non-skid safety shoes, hard hat, or hearing protection used in accordance with the working

conditions will reduce the risk of personal injury.

Prevent unintentional starting. Do not carry the power tool while it is energised or with

your finger on the switch or trigger. Ensure the switch or trigger is in the “off” position before

connecting to power source. Carrying power tools with your finger on the switch or energising

power tools that have the switch on may result in serious injuries.

Remove any adjusting key or wrench before turning the power tool on. An adjusting wrench or

a key left attached to a rotating part of the power tool may result in personal injury.

Keep proper footing and balance at all times. Do not overreach. Never overestimate your own

capabilities. Never use power tools while you are tired.

Dress properly. Wear work clothes. Do not wear loose clothing or jewellery. Keep your hair,

clothing, gloves and other part of your body away from moving or hot parts of the power tool.

Connect the equipment to dust exhaustion. If the tools are provided for the connection of dust

collection or exhaustion devices, ensure these are properly connected and used. Use of such

devices can reduce dust-related hazards.

Fix the work-piece tightly. Use a cabinet clamp or a cramp to fix the work-piece you are about

to machine.

Never use power tools if you are under the influence of alcohol, drugs, medication or other

narcotic or addictive substances.

This equipment is not intended for use by persons (including children) with limited physical,

sensual or mental capacities or lack of experience or knowledge unless they are supervised

or instructed about the use of the equipment by a person responsible for their safety. Children

must be supervised to make sure they are not playing with the equipment.

General safety instructions

9

EN

MULTI FUNCTION TOOL OPERATING INSTRUCTIONS

Power Tool Use and Maintenance

Always disconnect the power tool from the mains in case of any problem during the work,

before cleaning the power tool or its maintenance, during each transportation and after the

completion of the work! Never operate a power tool if it is damaged in any way.

Immediately stop working if the power tool generates abnormal noise or smell.

Do not overload the power tool. The power tool will operate better and safer if it is used at the

rate for which it was designed. Use correct power tool which is intended for the given activity.

The correct power tool will do the job it was designed for better and safer.

Do not use the power tool if it cannot be safely turned on and off using the control switch.

Use of such power tool is dangerous. Defective switches must be repaired by a certified

service provider.

Disconnect the tool from the power source before making any adjustments, changing

accessories or maintenance. Such preventive safety measure prevents the risk of starting the

power tool accidentally.

Store idle power tools out of the reach of children and unauthorised persons. Power tools can

be dangerous in the hands of untrained users. Store the power tools in a dry and safe place.

Keep the power tool in good condition. Check the adjustment of moving parts and their

mobility. Check for any damage to the protective guards or other parts which could affect

safe operation of the power tool. If damaged, have the power tool properly repaired before

further use. Many accidents are caused by poorly maintained power tools.

Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting

edges facilitate work, reduce the risk of injury and are easier to control. Use of accessories

other than those specified in the instructions for use could result in damage to the power tool

and cause injuries.

Use the power tool, accessories and tool bits etc. in accordance with these instructions and

in the manner intended for the particular type of power tool taking into account the working

conditions and the work to be performed. Use of the power tool for purposes other than those

the power tool was intended for could result in hazardous situations.

Use of Cordless Power Tools

Before inserting the battery, make sure the switch is in the “0-OFF” position. Inserting a battery

into a switched-on power tool could result in hazardous situations.

Charge batteries only using the chargers prescribed by the manufacturer. Using a charger

intended for other battery type could result in its damage and occurrence of fire.

Use only batteries intended for particular power tool. Use of different batteries could cause

injury or occurrence of fire.

If the battery is not used, keep it separately from metal objects such as clamps, keys, bolts

and other small metal items which could cause connection of one battery contact with the

other. Short-circuiting the battery could result in injury, burns or occurrence of fire.

EN 16

ON/OFF switch | Speed control wheel

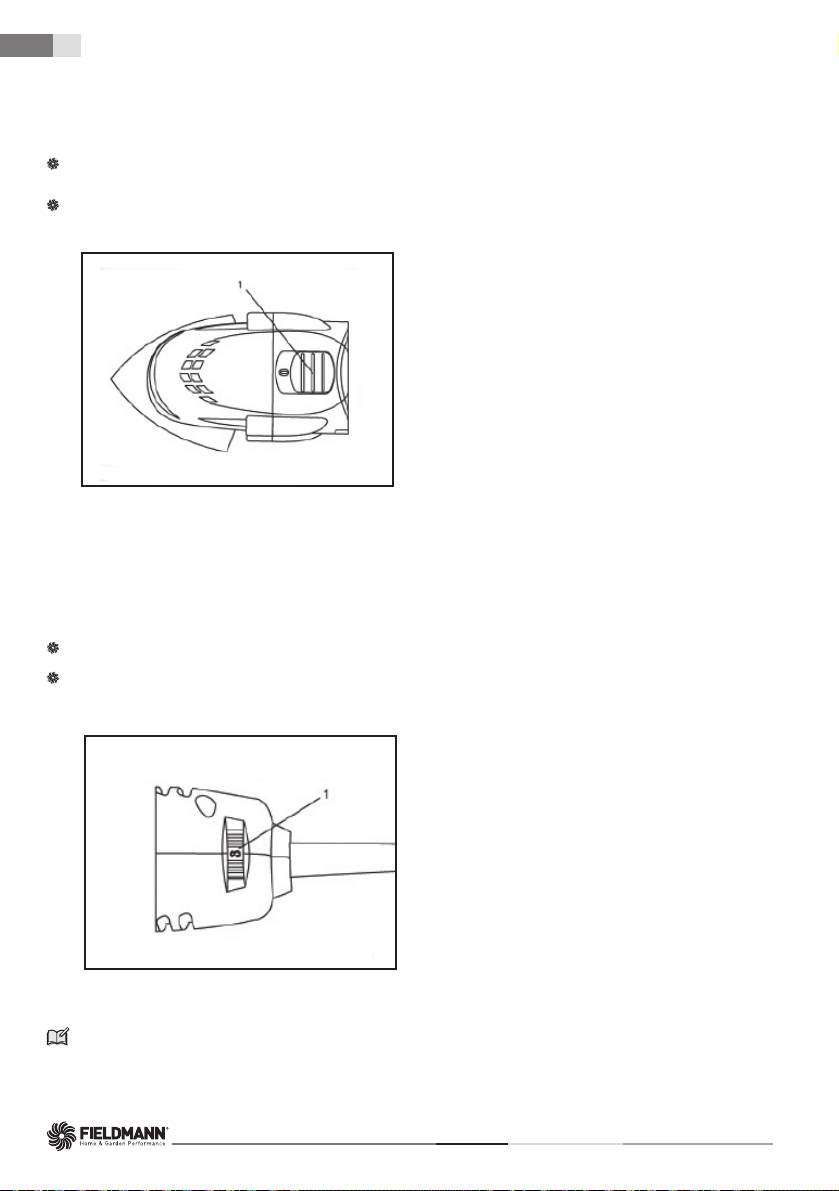

5.3 ON/OFF SWITCH

To turn the too ON, slide the ON/OFF switch (1) toward the front of the tool (Fig. 5).

To turn the tool OFF, slide the ON/OFF switch toward the rear of the tool.

Fig. 5

5.4 SPEED CONTROL WHEEL

The speed of the tool can be adjusted to run the tool at speeds varying between 10000 – 18000 RPM by rotating

the speed control wheel (1) located towards the rear of the tool housing (Fig. 6)

To increase the speed, rotate the speed control wheel toward the left side of the tool.

To decrease the speed, rotate the speed control wheel toward the right side of the tool.

Fig. 6

POZNÁMKA: Speed #1 is the lowest speed. MAX is the highest speed. The optimal speed setting will vary

depending upon the type of accessory being used, the surface being worked and the complexity of the

project. For general recommendations, se the chart on the following page.

FDB 2005-E

Speed control wheel | Flush cutting a door jamb and casing for installing flooting

17

EN

PROJECT: ACCESSORY: SPEED:

Drywall Half circle blade Maximum

Restoring windows Half circle blade Medium

Door Jamb Wood blade Maximum

Door casing Wood blade Medium / Maximum

Wood dowels Wood blade Maximum

Floor vent Wood blade Medium / Maximum

PVC pipe Wood blade Medium

Glued flooring Scraper Medium

Sanding Scraper Medium / Maximum

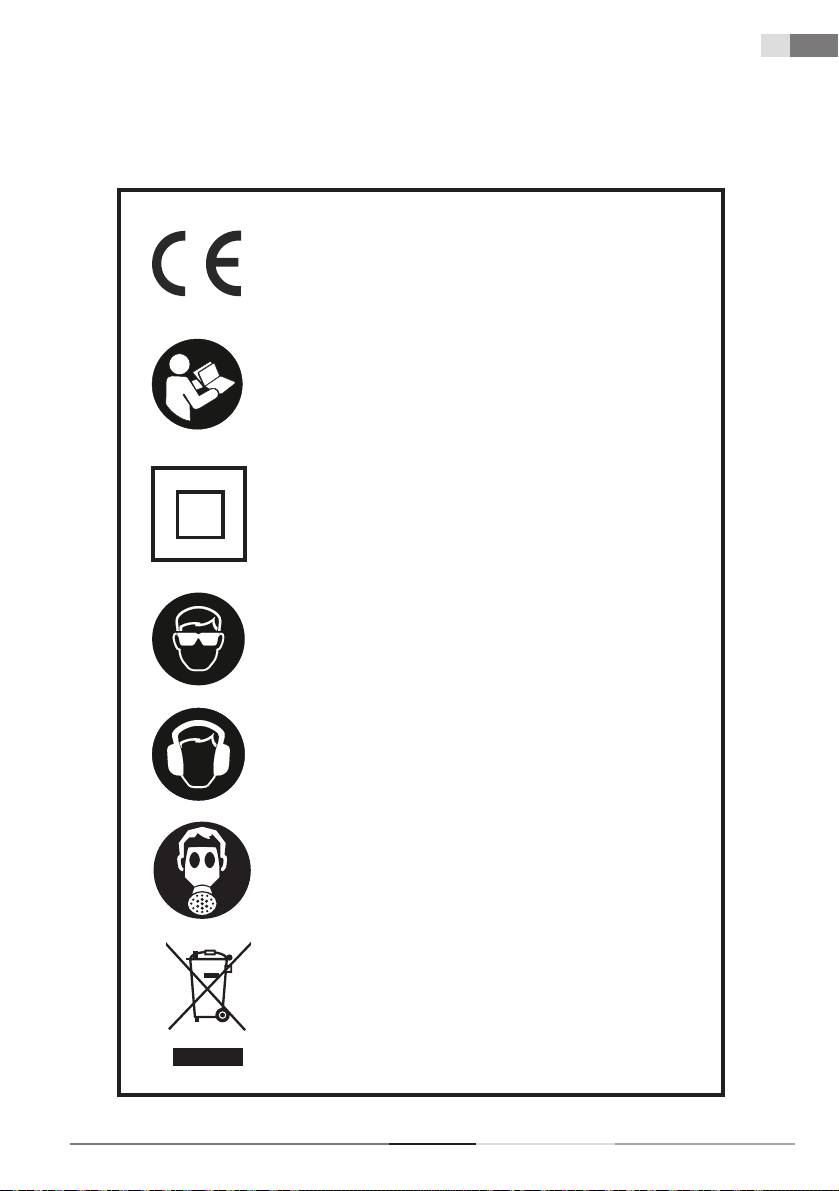

WARNING : For safety reasons the operator must read the sections of this instruction manual entitled

GENERAL SAFETY INSTRUCTION, SPECIFIC SAFETY RULES and SYMBOLS before using

this multi-tool.

Verify the following every time the multi-tool is used:

Safety glasses, safety goggles, or face shield are being worn.

Hearing protection is being worn.

The blade or sandpaper is in good condition.

The accessory is properly tightened onto the accessory holder of the tool.

Failure to observe these safety rules will significantly increase the risk of injury.

5.4 FLUSH CUTTING A DOOR JAMB AND CASING FOR INSTALLING

FLOOTING

The multi-tool can be used to flush cut a door jamb and casing to allow space for the new flooring to fit nearly

under the door jamb and casing. For the purpose of demonstrating the procedure, floor tile is being used.

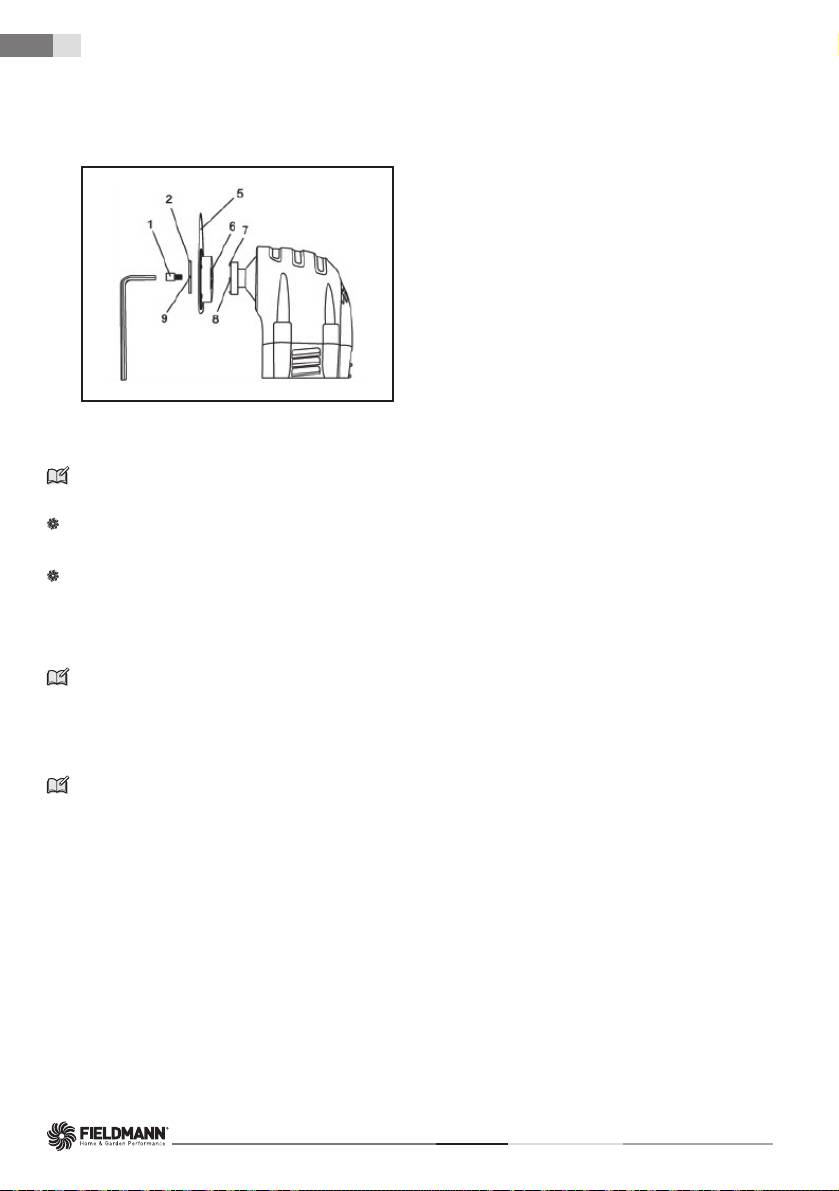

1. Install the plunge cutting wood saw blade for wood in the tool (Fig. 2).

NOTE: The blade should be centered on the tool housing and NOT installed in the 90° position.

2. Place a scrap piece of floor tile (1) on the floor about 1/2” (25mm) from the door jamb (2) (Fig. 7).

MULTI FUNCTION TOOL OPERATING INSTRUCTIONS

EN 18

Flush cutting a door jamb and casing for installing flooting |

Cutting a hole in wood flooring to install a heating vent

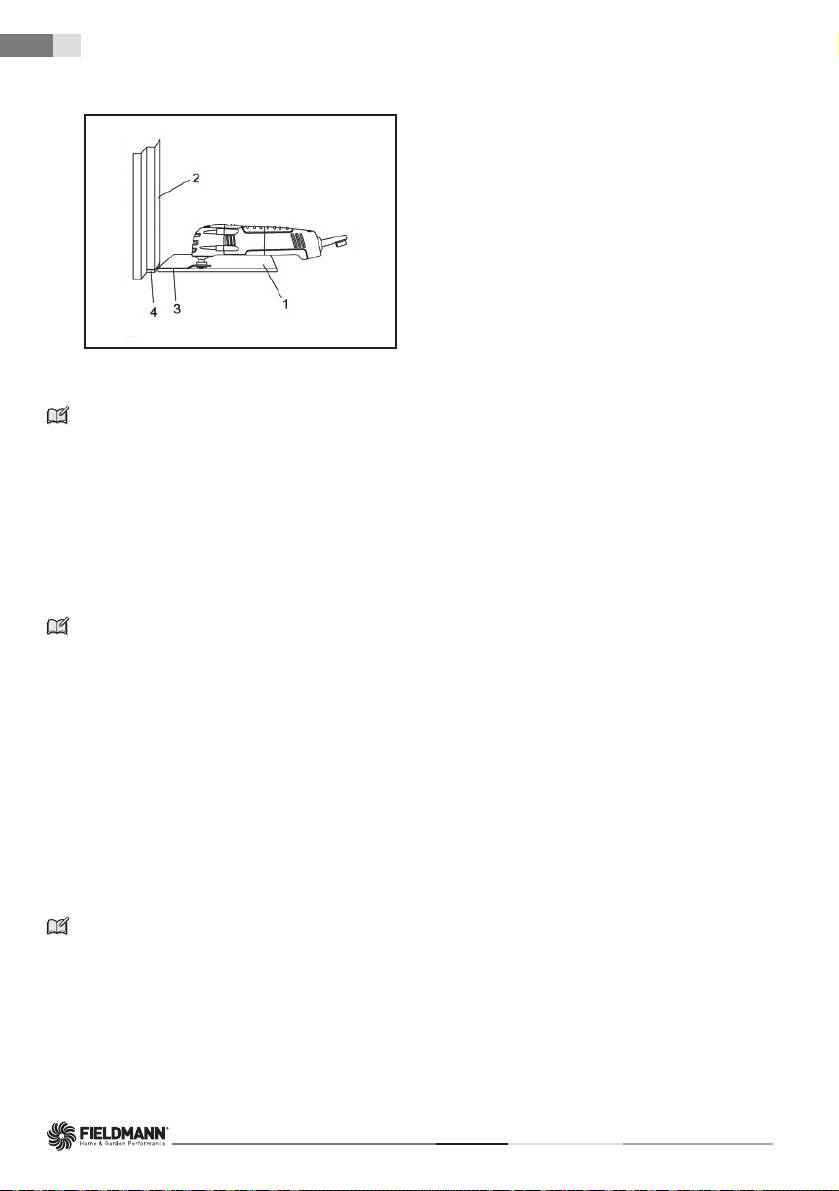

Fig. 7

NOTE: Make sure the “good” side of the tile is facing upward to provide a smooth surface for the blade to

follow.

3. Place the tool with the saw blade (3) lightly touching the surface of the rile and the cutting teeth NOT touching

the surface to be cut.

4. Set the speed to the fastest speed and turn to tool ON (Fig. 5 & 6)

5. When the tool reach its maximum set speed, carefully plunge the blade into the door jamb while sliding the

blade along the floor tile..

NOTE: Hold the tool tightly and do not put too much forward pressure on the saw blade when cutting, as

this will cause the tool to vibrate excessively.

6. Continue to make several plunge cuts until the bottom of the door jamb and casing are completely cut off and

the loos pieces can be easily removed

Follow the same basic procedure for installing carpet, using a thicker spacer that is the same thickness of the

carpet being installed.

5.5 CUTTING A HOLE IN WOOD FLOORING TO INSTALL A HEATING VENT

The multi-tool can be used to cut a hole in wood flooring for installing a heating vent.

1. Install the plunge cutting saw blade for wood in the tool (Fig. 2)

NOTE: The blade should be centered on the tool housing and NOT installed in the 90°position.

2. Place the floor vent on the floor and use a soft lead pencil to trace the required rectangular hole (1) on the

flooring (Fig. 8).

FDB 2005-E

Cutting a hole in wood flooring to install a heating vent

19

EN

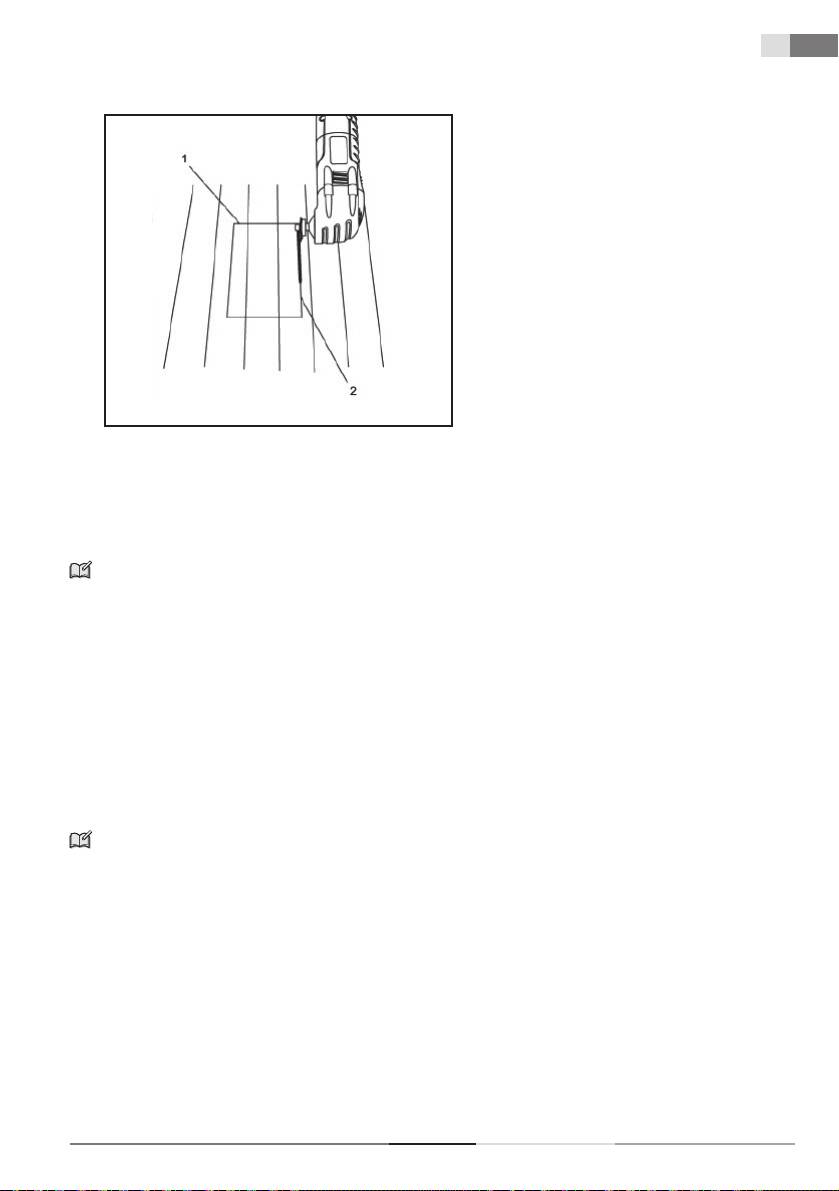

Fig. 8

3. Place the saw blade (2) near the floor surface in the middle of one of the cutting lines.

4. Set the tool speed at a medium speed and turn the tool ON (Fig. 5 & 6)

NOTE: The tool and blade should be at a 45° angle to the floor to allow the corner of the blade to plunge

cut into the flooring.

5. While holding the tool tightly, slowly plunge the corner of the blade into the flooring until it cuts through the

flooring. Once the plunge cut is complete, set the tool to its highest speed and complete the cut to the corner

of the rectangle.

6. Turn the saw OFF, remover it from the cut and proceed to cut in the opposite direction to complete the cut for

the first side of the rectangle.

7. Repeat steps #4, #5, #6 to cut the remaining three sides of the rectangle.

8. When all cuts are complete, use a flat blade screw driver to carefully pry the cut-out from the floor.

NOTE: Do NOT use the saw blade to pry the cut-out from the floor. You will break the blade. If the cut-out s

not easy to pry from the floor, check to make sure each line is cut completely into the corner of the rectangle.

MULTI FUNCTION TOOL OPERATING INSTRUCTIONS

EN 20

Cutting a hole in drywall for installing an electrical outlet box

5.6 CUTTING A HOLE IN DRYWALL FOR INSTALLING AN ELECTRICAL

OUTLET BOX

The multi-tool can be used to cut a hole in drywall for installing an electrical outlet box.

1. Install the half circle saw blade for wood & drywall in the tool (Fig.2)

NOTE: The blade should be centered on the tool housing and not installed in the 90° position

2. Place the outlet box on the drywall and use a soft lead pencil to trace the required rectangular hole (1) on

the drywall (Fig.9)

Fig. 9

3. Place the corner edge of the saw blade (2) near the drywall in the middle of one of the cutting lines.

4. Set he speed to the highest speed and urn the tool ON (Fig. 5 & 6)

5. When the tool reaches its maximum speed, carefully plunge the blade into the drywall until it cuts through

the drywall. Complete the cut to the corner of the rectangle.

NOTE: Hold the tool tightly and do not push too much pressure on the saw blade when cutting.

6. Turn the saw OFF, remove it from the cut and proceed to cut in the opposite direction to complete the cut for

the first side of the rectangle.

7. Repeat steps 4, 5 & 6 to cut the remaining three sides of the rectangle.

8. When all cuts are complete, use a flat blade screw driver to carefully pry the cut-out from the drywall.

FDB 2005-E

Using the detail sander attachment | Using the scraper blade

21

EN

NOTE: Do not use the saw blade to pry the cut-out from the drywall. You will break the blade. If the cut-

out is not easy to pry from the drywall, check to make sure each line is cut completely into th corner of the

rectangle.

5.7 USING THE DETAIL SANDER ATTACHMENT

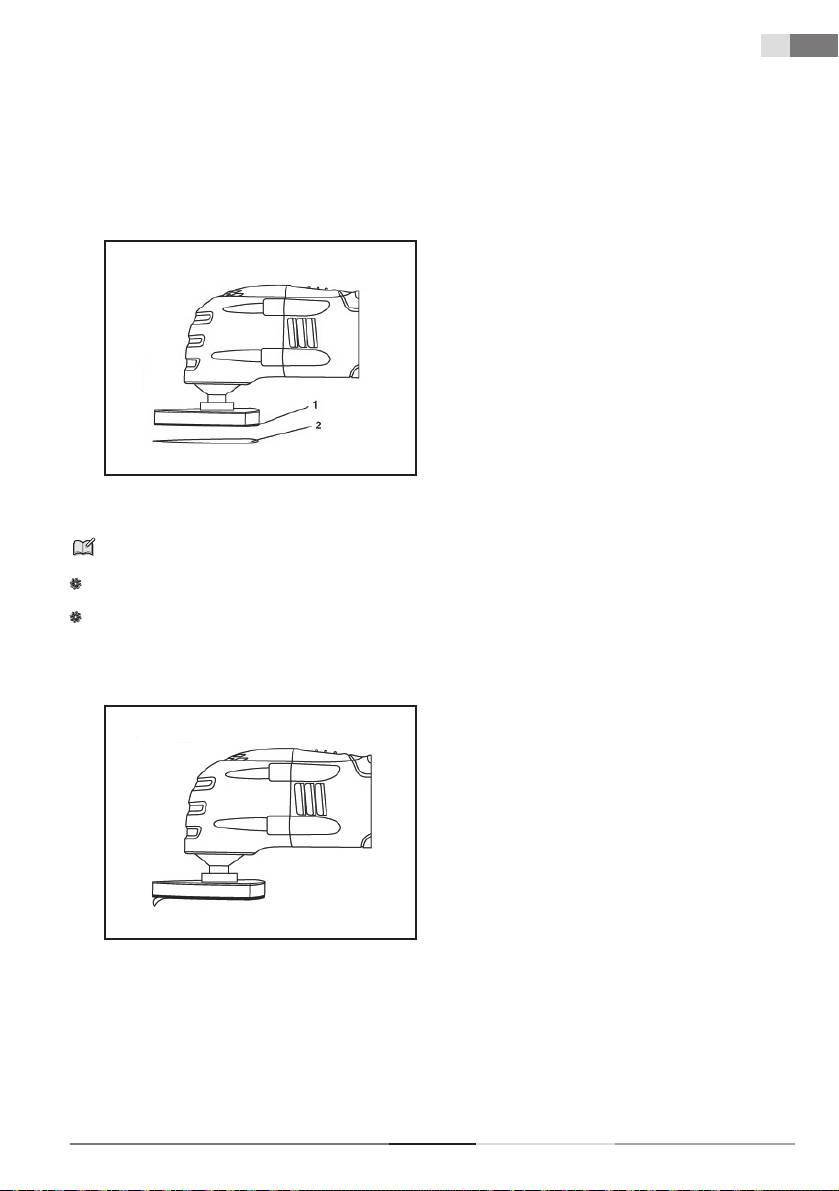

1. I nstall the sanding pad on the multi-tool as outlined in Fig. 2

2. Install the sandpaper on the sanding pad as outlined in Fig. 3

3. Set the speed control wheel between 4 and MAX as outlined in Fig. 6

4. Turn the switch ON as outlined in Fig. 5

This tool is designed for detail sanding on small surface areas. Place the sandpaper surface of the sanding pad

on the work piece to be sanded. Keep the tool moving to avoid gouging the surface. Use coarse sandpaper and

lower speeds when sanding rough surfaces and for removing previous finishes. Use fine sandpaper and higher

speeds to produce the smoothest surface.

5.8 USING THE SCRAPER BLADE

1. Install the scraper blade on the multi-tool as outlined in Fig. 2, Fig. 1 & 2.

2. Set the speed control wheel to #4 and turn the switch ON as outlined in Fig. 5 & 6.

When using the scraper blade to scrape old finishes or glue from a work piece, place the under the side of the

blade flat on the work piece surface and then lift upward on the rear of the tool to allow the blade to form a very

slight angle with the work piece surface. Feed the blade slowly into the material that is to be removed. Do not

force the tool as slower travel speeds will produce better cutting action and reduce the risk of gouging the work

piece.

When using the scraper blade to cut carpet, place a scrap work piece under the carpet where the cut is being

made. Set the speed to MAX, turn the tool so the scraper blade is at right angles (perpendicular) to the carpet

and the feed the blade into the carpet

MULTI FUNCTION TOOL OPERATING INSTRUCTIONS

EN 22

Mainenance

6. MAINENANCE

GENERAL

WARNIING: When servicing, use only identical replacement parts. The use of any other part may create a

hazard or cause product damage

Do no use solvents when cleaning plastic parts. Plastics are susceptible to damage from various types of co-

mmercial solvents and may be damaged by their use. Use a clean cloth to remove dirt, dust, oil, grease etc.

WARNIING: Do not allow brake fluids, gasoline, petroleum-based products, penetration oils, etc. to come

into contact with plastic parts. They contain chemicals that can damage, weaken or destroy plastic.

Do not abuse power tools. Abusive practices can damage the tool and the work piece

WARNIING: Do not attempt to modify tools or create accessories. Any such alteration or modification

is misuse and could result in a hazardous condition leading to possible serious injury. It will also void the

warranty

LUBRICATION

All of the bearings in this tool are lubricated with a sufficient amount of high-grade lubricant for the life of the unit

under normal conditions. Therefore, no further lubrication is required.

FDB 2005-E

Technical specifications

23

EN

7. TECHNICAL SPECIFICATIONS

MULTI FUNCTION TOOL :

Power supply: 230V/50Hz

Power input: 300W

Speed

10 000 – 18 500rpm

Protection class: II

Power supply cable length 1.8m

Declared noise level 95dB(A)

MULTI FUNCTION TOOL OPERATING INSTRUCTIONS

EN 24

Disposal

8. DISPOSAL

INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED

PACKAGING

Put any used package material to the place determined by the municipality for waste disposal.

DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMEN

This symbol on products or accompanying documents means that used electric or

electronic products must not be put to ordinary municipal waste. Hand over such products

to determined collection points for proper disposal, restoration and recycling. Alternatively,

in some countries of the European Union or other European countries you can return your

products to your local dealer when you buy an equivalent new product. By dutiful disposal of

this product you can preserve precious natural resources and you help prevent any potential

adverse effects on the environment and human health which could be the results of wrong

waste disposal. Ask your local authority or the nearest collection point for additional details.

In case of improper disposal of this waste kind penalties can be imposed in accordance

with national regulations.

FOR COMPANIES IN THE EUROPEAN UNION COUNTRIES

Should you want to dispose of electric and electronic devices, ask your dealer or vendor

for necessary information.

DISPOSAL IN OTHER COUNTRIES OUTSIDE THE EUROPEAN UNION

Should you want to dispose of this product, ask your local authorities or your dealer

for necessary information about disposal method

This product fulfils all basic requirements of the EU directives that apply to it.

Text, design and technical specifications can change without prior notice and we reserve the right for

their change.

FDB 2005-E

Declaration of conformity

25

EN

9. DECLARATION OF CONFORMITY

Product / Name: MULTI FUNCTION TOOL / FIELDMANN

Type / Model: FDB 2005-E ........................................................................................................................ 230V/50Hz/300W

The product complies with the following directives:

The Directive of the European Parliament and the Council No. 2006/95/EC dated 12 December 2006 on

the harmonisation of the laws of Member States relating to electrical equipment designed for use within

certain voltage limits.

The Directive of the European Parliament and the Council No. 2004/108/EC dated15 December 2004 on

the harmonisation of the laws of the Member States relating to electromagnetic compatibility and repealing

Directive No. 89/336/EEC.

The Directive of the European Parliament and the Council No. 2006/42/EC dated 17 May 2006 on machinery,

and amending Directive No. 95/16/EC.

The Directive of the European Parliament and the Council No. 2002/95/EC dated 27 January 2003 on the

restriction of the use of certain hazardous substances in electrical and electronic equipment.

The Directive of the European Parliament and the Council No. 2005/88/EC dated 14 December 2005

amending Directive No. 2000/14/EC on the harmonisation of the laws of the Member States relating to the

noise emission in the environment by equipment for use outdoors.

and standards:

EN 60745-1:2009

EN 60745 -1+A11:2010

EN 60745 -2- 4+A11:2011

EN 55014-1+A1:2009

EN 55014-2+A2:2008

EN 61000-3-2

EN ISO 12100:2010

ZEK 01.4-08

CE Certification ...............................................................................................................................................................14

FAST ČR, a.s. is authorised to act on behalf of the manufacturer.

Manufacturer:

FAST ČR, a.s.

Černokostelecká 2111, 100 00 Praha 10, Czech Republic

Tax ID:: CZ26726548

In Prague, 23 September 2014

Name: Zdeněk Pech

Chairman of Board Signature and stamps:

MULTI FUNCTION TOOL OPERATING INSTRUCTIONS
