LG 42LA660S: instruction

www.lg.com

LA62**

LA64**

LA66**

LA69**

LA74**

LN57**

OWNER’S MANUAL

LED TV

Please read this manual carefully before operating

your set and retain it for future reference.

* LG LED TV applies LCD screen with LED backlights.

P/NO : MFL67658601(1303-REV01)

Printed in Korea

A-2

TABLE OF CONTENTS

COMMON

TABLE OF CONTENTS

A-3  SETTiNg up ThE TV

A-3  Attaching the stand

A-6  Tidying cables

LANguAgE

LANguAgE LiST

English

Magyar

Polski

Česky

Slovenčina

Română

Български

Eesti

Lietuvių k.

Latviešu

Srpski

Hrvatski

Shqip

Bosanski

Македонски

Русский

COMMON

B-1  MAKiNg CONNECTiONS

B-1  Antenna connection

B-4  Satellite dish connection

B-5  HDMI connection

B-9  -  ARC (Audio Return Channel)

B-11  DVI to HDMI connection

B-14  Component connection

B-17  Composite connection

B-18  MHL connection

B-23  Audio connection

B-23  -  Digital optical audio connection

B-27  USB connection

B-30  CI module connection

B-33  Headphone connection

B-38  Euro Scart connection

B-54 SpECiFiCATiONS

A-3

SETTING UP THE TV

LA62**, LA64**, LA66**, LN57**-ZE/ZK

3

1

Front

M4 x 14

4 EA

Stand Base

Stand Body

M4 x 14

4 EA

M4 x 14

4 EA

Setting up the TV

Image shown may differ from your TV.

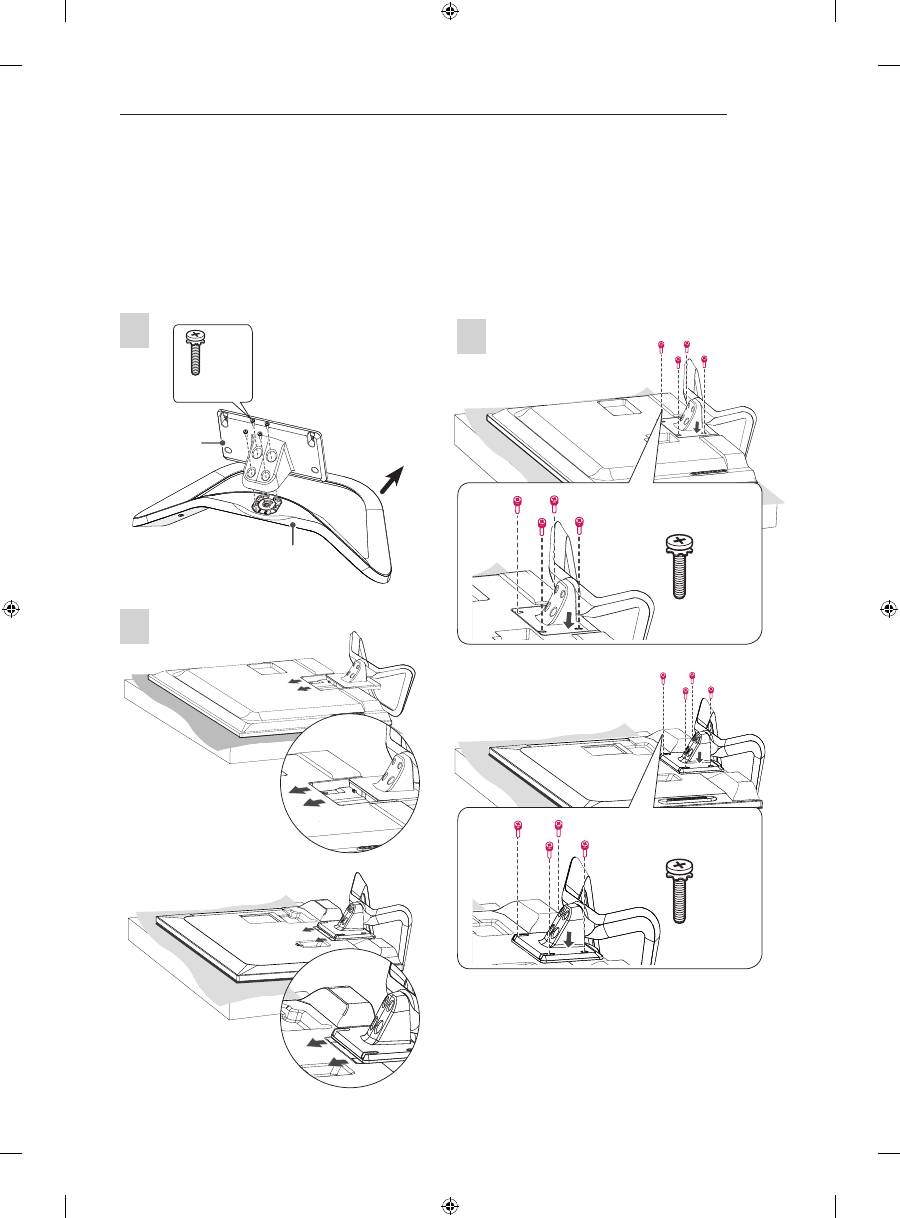

Attaching the stand

2

(Only LA64**, LA66**)

(Only LA62**, LN57**-ZE/ZK)

(Only LA62**, LN57**-ZE/ZK)

(Only LA64**, LA66**)

A-4

SETTING UP THE TV

LA69**, LA74**

2

3

1

Stand Base

M4 x 20

4EA

A-5

SETTING UP THE TV

 CAuTiON

y

When attaching the stand to the TV

set, place the screen facing down on a

cushioned table or flat surface to protect the

screen from scratches.

y

Make sure that the screws are inserted

correctly and fastened securely. (If they are

not fastened securely enough, the TV may

tilt forward after being installed.)

Do not use too much force and over tighten

the screws; otherwise screw may be

damaged and not tighten correctly.

 NOTE

y

Removing the protective film (from the

bottom)

(Depending on model)

Protective film is temporarily attached to

prevent the surface of the product from

being damaged during delivery.

Once the TV has been installed, please

remove the protective film on the bottom of

the unit as shown in the figure.

y

Remove the stand before installing the TV

on a wall mount by performing the stand

attachment in reverse.

LN57**-ZA

2

3

1

Stand Body

Stand Base

P5 x 25

3EA

M4 x 14

4EA

A-6

SETTING UP THE TV

Tidying cables

1  Gather and bind the cables with the Cable

Holder and the Cable Management.

2  Fix the Cable Management firmly to the TV.

(Only LA62**, LA64**, LA66**, LN57**-ZE/ZK)

Cable Holder

Cable Management

(Only LA69**, LA74**)

⨲㘶ᖂ2

㏪ⱞ⋾#Ɐᴏ

Cable Holder

Cable Management

(Only LN57**-ZA)

1  Gather and bind the cables with the Cable

Holder.

Cable Holder

 CAuTiON

y

Do not move the TV by holding the cable

holders, as the cable holders may break,

and injuries and damage to the TV may

occur.

www.lg.com

OWNER’S MANUAL

LED TV

Please read this manual carefully before operating

your set and retain it for future reference.

* LG LED TV applies LCD screen with LED backlights.

2

ENG

ENGLISH

TABLE OF CONTENTS

TABLE OF CONTENTS

3

LICENSES

3

OPEN SOURCE SOFTWARE NOTICE

4

SAFETy INSTRUCTIONS

10

-  Viewing 3D Imaging (Only 3D models)

12  INSTALLATION PROCEdURE

12  ASSEMBLING ANd PREPARING

12

Unpacking

15

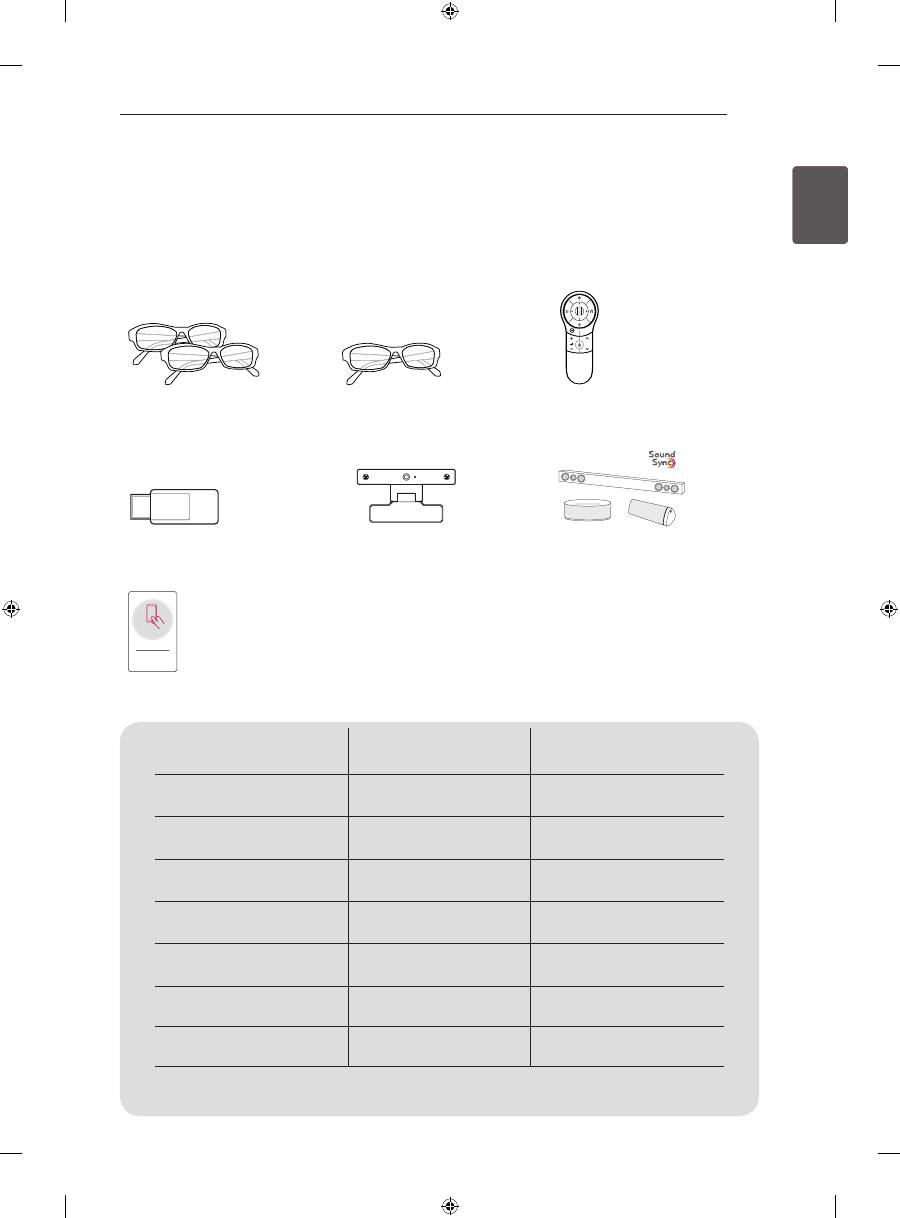

Separate purchase

16

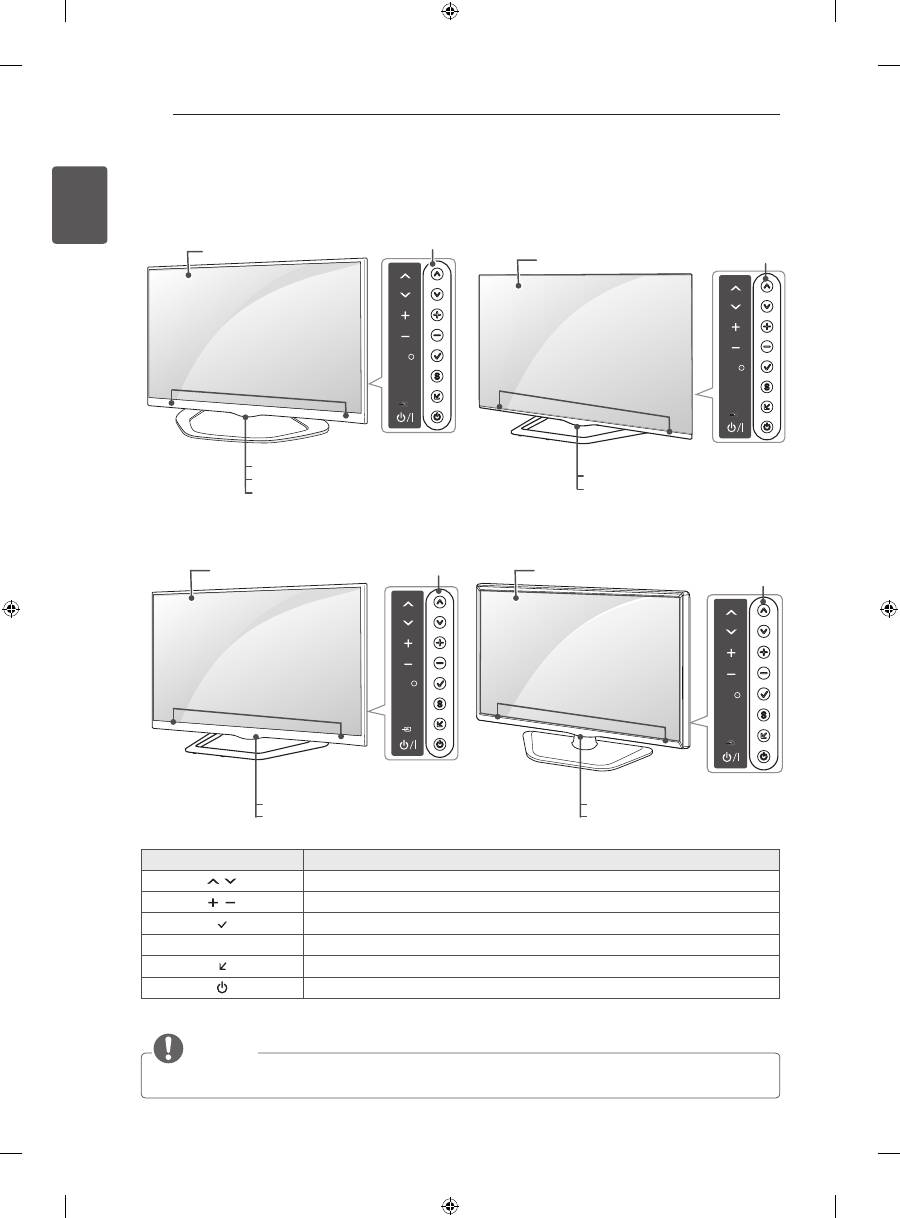

Parts and buttons

17

Lifting and moving the TV

18

Mounting on a table

20

Mounting on a wall

22  REMOTE CONTROL

24  MAGIC REMOTE CONTROL

FUNCTIONS

25

Registering Magic Remote Control

25

How to use Magic Remote Control

25

Precautions to Take when Using the Magic

Remote Control

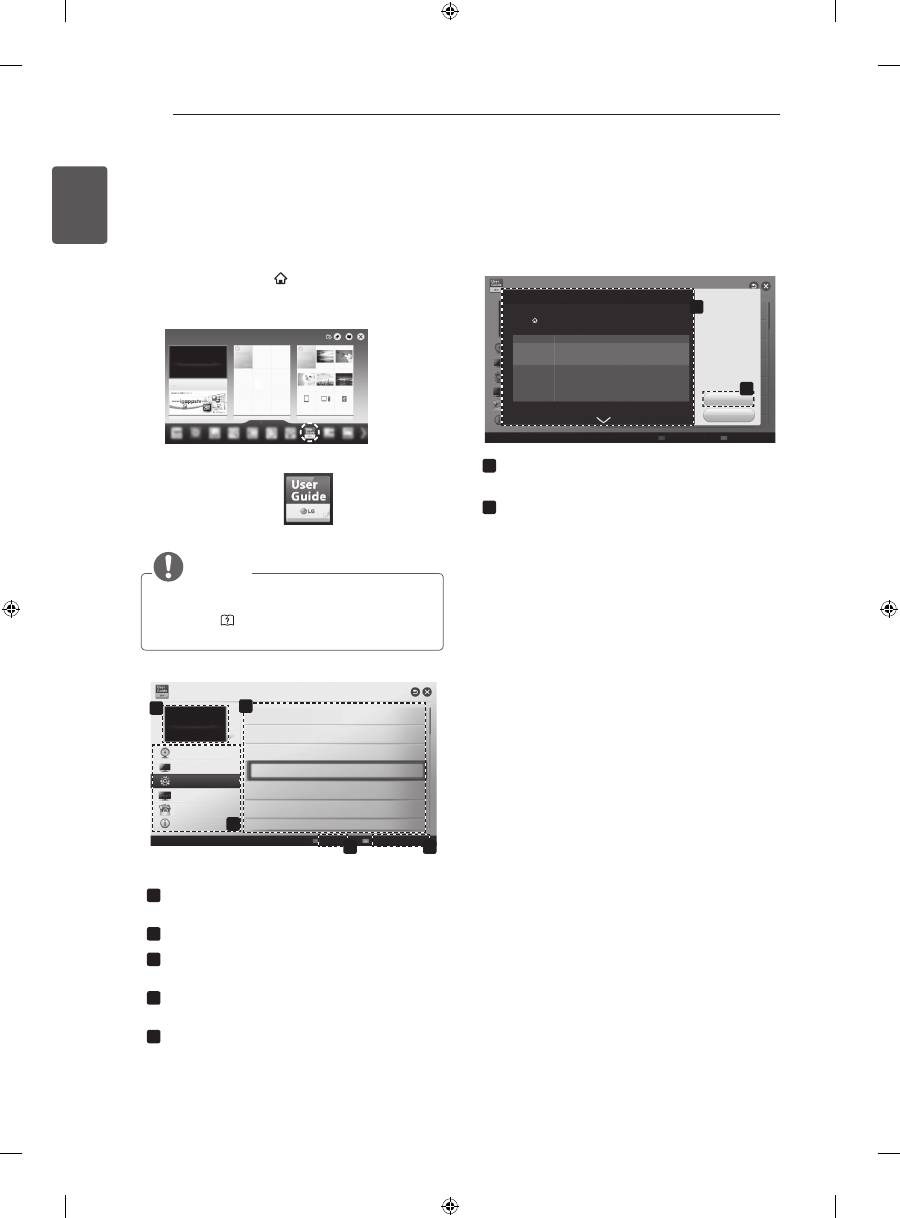

26  USING THE USER GUIdE

27  MAINTENANCE

27

Cleaning your TV

27

-  Screen, frame, cabinet and stand

27

-  Power cord

27  TROUBLESHOOTING

28  EXTERNAL CONTROL dEVICE

SETUP

28  SPECIFICATIONS

 WARNING

y

If you ignore the warning message, you may

be seriously injured or there is a possibility

of accident or death.

 CAUTION

y

If you ignore the caution message, you may

be slightly injured or the product may be

damaged.

 NOTE

y

The note helps you understand and use

the product safely. Please read the note

carefully before using the product.

3

ENG

ENGLISH

LICENSES / OPEN SOURCE SOFTWARE NOTICE

LICENSES

Supported licenses may differ by model. For more information about licenses, visit

www.lg.com

.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D

symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI logo

are trademarks or registered trademarks of HDMI Licensing LLC in the United States

and other countries.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a

subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays

DivX video. Visit

divx.com

 for more information and software tools to convert your

files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered

in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your

registration code, locate the DivX VOD section in your device setup menu. Go to vod.

divx.com for more information on how to complete your registration.

“DivX Certified® to play DivX® video up to HD 1080p, including premium content.”

 “DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or

its subsidiaries and are used under license.”

“Covered by one or more of the following U.S. patents :

7,295,673; 7,460,668; 7,515,710; 7,519,274”

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535

& other U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and

the Symbol together are registered trademarks & DTS 2.0+Digital Out is a trademark

of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this

product, please visit

http://opensource.lge.com .

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are

available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of

performing such distribution (such as the cost of media, shipping and handling) upon email request to

opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the

product.

4

ENG

ENGLISH

SAFETY INSTRUCTIONS

SAFETy INSTRUCTIONS

Please read these safety precautions carefully before using the product.

 WARNING

y

Do not place the TV and/or remote control in the following environments:

- A location exposed to direct sunlight

- An area with high humidity such as a bathroom

- Near any heat source such as stoves and other devices that produce heat

- Near kitchen counters or humidifiers where they can easily be exposed to steam

or oil

- An area exposed to rain or wind

- Near containers of water such as vases

Otherwise, this may result in fire, electric shock, malfunction or product deformation.

y

Do not place the product where it might be exposed to dust.

This may cause a fire hazard.

y

Mains Plug is the TV connecting/disconnecting device to AC mains electric supply.

This plug must remain readily attached and operable when TV is in use.

y

Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or

covered with dust, dry the power plug completely or wipe dust off.

You may be electrocuted due to excess moisture.

y

Make sure  to connect Mains cable to compliant AC mains socket with Grounded

earth pin. (Except for devices which are not grounded on earth.) Otherwise

possibility  you may be electrocuted or injured.

y

Insert power cable  plug completely into wall socket otherwise if not secured

completely into socket, fire ignition may break out.

y

Ensure the power cord does not come into contact with hot objects such as a

heater.

This may cause a fire or an electric shock hazard.

y

Do not place a heavy object, or the product itself, on power cables.

Otherwise, this may result in fire or electric shock.

y

Bend antenna cable between inside and outside building to prevent rain from

flowing in.

This may cause water damaged inside the Product and could give an electric

shock.

y

When mounting TV onto wall make sure to neatly install and isolate cabling from

rear of TV as to not create possibility of electric shock /fire hazard.

5

ENG

ENGLISH

SAFETY INSTRUCTIONS

y

Do not plug too many electrical devices into a single multiple electrical outlet.

Otherwise, this may result in fire due to over-heating.

y

Do not drop the product or let it fall over when connecting external devices.

Otherwise, this may result in injury or damage to the product.

Desiccant

y

Keep the anti-moisture packing material or vinyl packing out of the reach of

children.

Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the

patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause

suffocation. Keep it out of the reach of children.

y

Do not let your children climb or cling onto the TV.

Otherwise, the TV may fall over, which may cause serious injury.

y

Dispose of used batteries carefully to  ensure that a small child does not consume

them.

Please seek Doctor- Medical Attention immediately if child consumes batteries.

y

Do not insert any metal objects/conductors (like a metal chopstick/cutlery/

screwdriver) between power cable plug and input Wall Socket while it is connected

to the input terminal on the wall. Additionally, do not touch the power cable right

after plugging into the wall input terminal. You may be electrocuted.

 (Depending on model)

y

Do not put or store inflammable substances near the product.

There is a danger of combustion/explosion or fire due to careless handling of the

inflammable substances.

y

Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the

product, or inflammable objects such as paper and matches. Children must pay

particular attention.

Electrical shock, fire or injury can occur. If a foreign object is dropped into the

product, unplug the power cord and contact the service centre.

y

Do not spray water on the product or scrub with an inflammable substance (thinner

or benzene). Fire or electric shock accident can occur.

y

Do not allow any impact, shock or any objects to fall  into the unit, and do not drop

anything onto the screen.

You may be injured or the product can be damaged.

y

Never touch this product or antenna during a thunder or lighting storm.

You may be electrocuted.

y

Never touch the wall outlet when there is leakage of gas, open the windows and

ventilate.

It may cause a fire or a burn by a spark.

6

ENG

ENGLISH

SAFETY INSTRUCTIONS

y

Do not disassemble, repair or modify the product at your own discretion.

Fire or electric shock accident can occur.

Contact the service centre for check, calibration or repair.

y

If any of the following occur, unplug the product immediately and contact your local

service centre.

- The product has been impacted by shock

- The product has been damaged

- Foreign objects have entered the product

- The product produced smoke or a strange smell

This may result in fire or electric shock.

y

Unplug the TV from AC mains wall socket if you do not intend to use the TV for a

long period of time.

Accumulated dust can cause fire hazard and insulation deterioration can cause

electric leakage/shock/fire.

y

Apparatus shall not be exposed to dripping or splashing and no objects filled with

liquids, such as vases, shall be placed on the apparatus.

7

ENG

ENGLISH

SAFETY INSTRUCTIONS

 CAUTION

y

Install the product where no radio wave occurs.

y

There should be enough distance between an outside antenna and power lines to

keep the former from touching the latter even when the antenna falls.

This may cause an electric shock.

y

Do not install the product on places such as unstable shelves or inclined surfaces.

Also avoid places where there is vibration or where the product cannot be fully

supported.

Otherwise, the product may fall or flip over, which may cause injury or damage to

the product.

y

If you install the TV on a stand, you need to take actions to prevent the product

from overturning. Otherwise, the product may fall over, which may cause injury.

y

If you intend to mount the product to a wall, attach VESA standard mounting interface (optional

parts) to the back of the product. When you install the set to use the wall mounting bracket (optional

parts), fix it carefully so as not to drop.

y

Only use the attachments / accessories specified by the manufacturer.

y

When installing the antenna, consult with a qualified service technician. If not

installed by a qualified technician, this may create a fire hazard or an electric shock

hazard.

y

We recommend that you maintain a distance of at least 2 to 7 times the diagonal

screen size when watching TV.

If you watch TV for a long period of time, this may cause blurred vision.

y

Only use the specified type of battery.

This could cause damage to the remote control.

y

Do not mix new batteries with old batteries.

This may cause the batteries to overheat and leak.

y

Batteries should not be exposed to excessive heat.eg  keep away from direct Sunlight , open

fireplace and electric heaters .

y

Do not place non-rechargeable batteries in charging device.

y

Make sure there are no objects between the remote control and its sensor.

y

Signal from Remote Control can be interrupted due to external/internal  lighting eg

Sunlight, fluorescent lighting.

If this occurs turn off lighting or darken viewing area.

y

When connecting external devices such as video game consoles, make sure the

connecting cables are long enough.

Otherwise, the product may fall over, which may cause injury or damage the

product.

8

ENG

ENGLISH

SAFETY INSTRUCTIONS

y

Do not turn the product On/Off by plugging-in or unplugging the power plug to the

wall outlet. (Do not use the power plug for switch.)

It may cause mechanical failure or could give an electric shock.

y

Please follow the installation instructions below to prevent the product from

overheating.

- The distance between the product and the wall should be more than 10 cm.

- Do not install the product in a place with no ventilation (e.g., on a bookshelf or in

a cupboard).

- Do not install the product on a carpet or cushion.

- Make sure the air vent is not blocked by a tablecloth or curtain.

Otherwise, this may result in fire.

y

Take care not to touch the ventilation openings when watching the TV for long

periods as the ventilation openings may become hot. This does not affect the

operation or performance of the product.

y

Periodically examine the cord of your appliance, and if its appearance indicates damage or

deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact

replacement part by an authorized servicer.

y

Prevent dust collecting on the power plug pins or outlet.

This may cause a fire hazard.

y

Protect the power cord from physical or mechanical abuse, such as being twisted,

kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs,

wall outlets, and the point where the cord exits the appliance.

y

Do not press strongly upon the panel with a hand or sharp object such as nail,

pencil or pen, or make a scratch on it, as it may cause damage to screen.

y

Avoid touching the screen or holding your finger(s) against it for long periods of

time. Doing so may produce some temporary or permanent distortion/damage to

screen.

y

When cleaning the product and its components, unplug the power first and wipe it

with a soft cloth. Applying excessive force may cause scratches or discolouration.

Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or

industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the

product and its panel.

Otherwise, this may result in fire, electric shock or product damage (deformation,

corrosion or breakage).

y

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power

source even if you turn off this unit by SWITCH.

y

When unplugging the cable, grab the plug and unplug it, by pulling at the plug.

Don’t pull at the cord to unplug the power cord from the power board, as this could

be hazardous.

y

When moving the product, make sure you turn the power off first. Then, unplug the

power cables, antenna cables and all connecting cables.

The TV set or power cord may be damaged, which may create a fire hazard or

cause electric shock.

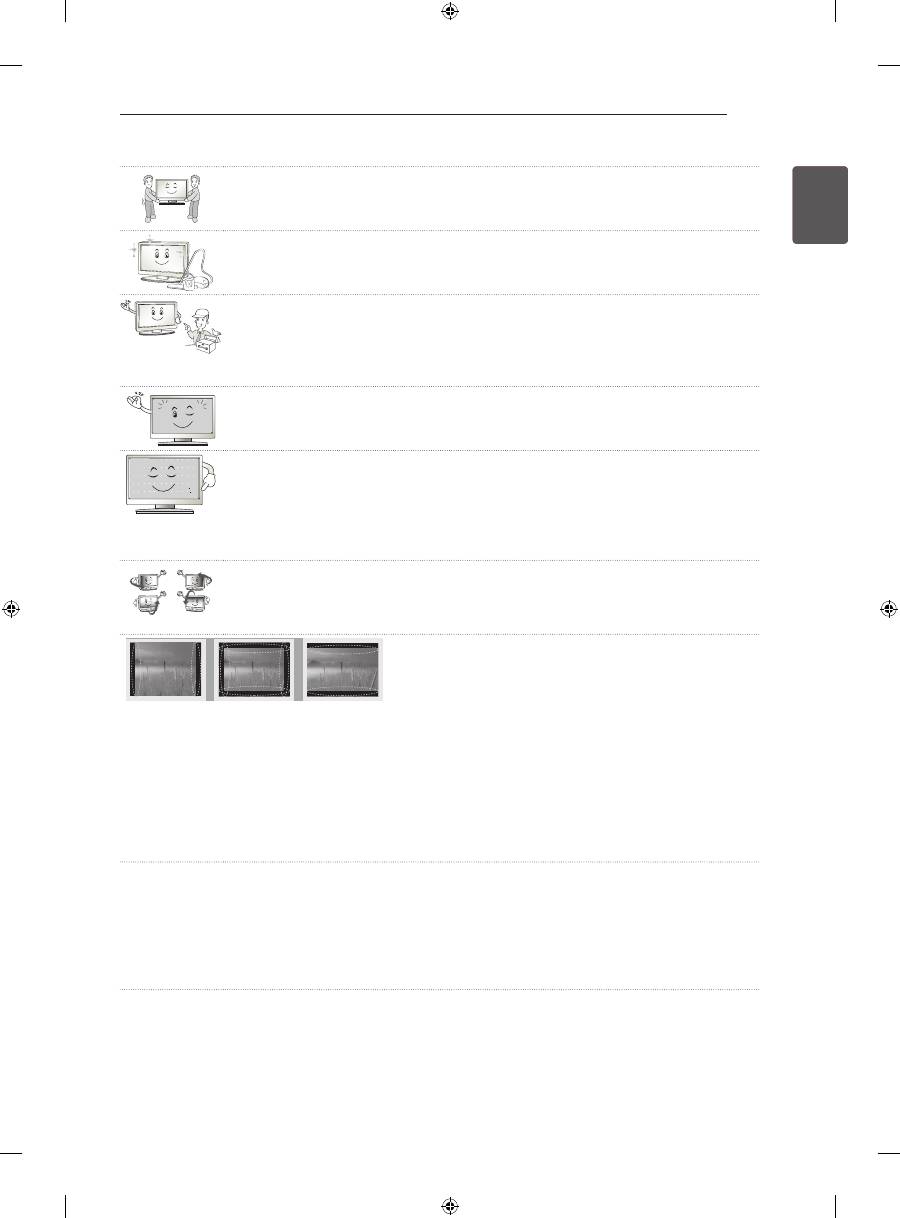

9

ENG

ENGLISH

SAFETY INSTRUCTIONS

y

When moving or unpacking the product, work in pairs because the product is

heavy.

Otherwise, this may result in injury.

y

Contact the service centre once a year to clean the internal parts of the product.

Accumulated dust can cause mechanical failure.

y

Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or has

been dropped.

y

If the product feels cold to the touch, there may be a small “flicker” when it is turned

on. This is normal, there is nothing wrong with product.

y

The panel is a high technology display product with resolution of two million to six

million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue

or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and

does not affect the performance and reliability of the product.

This phenomenon also occurs in third-party products and is not subject to

exchange or refund.

y

You may find different brightness and color of the panel depending on your viewing

position(left/right/top/down).

This phenomenon occurs due to the characteristic of the panel. It is not related with

the product performance, and it is not malfunction.

y

Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video

game) for a prolonged time may cause damage to the screen, resulting in retention of the image,

which is known as image sticking. The warranty does not cover the product for image sticking.

Avoid displaying a fixed image on your television’s screen for a prolonged period (2 or more hours

for LCD, 1 or more hours for Plasma).

Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of

the panel.

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

y

Generated Sound

“Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by

plastic thermal contraction due to tempera-ture and humidity. This noise is common for products

where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is

generated from a high-speed switching circuit, which supplies a large amount of current to operate a

product. It varies depending on the product.

This generated sound does not affect the performance and reliability of the product.

10

ENG

ENGLISH

SAFETY INSTRUCTIONS

Viewing 3d Imaging (Only 3d models)

 WARNING

Viewing Environment

y

Viewing Time

 - When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long

period of time may cause headache, dizziness, fatigue or eye strain.

Those that have a photosensitive seizure or chronic illness

y

Some users may experience a seizure or other abnormal symptoms when they are exposed to a

flashing light or particular pattern from 3D contents.

y

Do not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as epilepsy,

cardiac disorder, or blood pressure disease, etc.

y

3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly. Double

images or discomfort in viewing may be experienced.

y

If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble

sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than

the average adult.

y

If your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D

contents.

Symptoms which require discontinuation or refraining from watching 3d contents

y

Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.

y

When these symptoms are experienced, stop using/watching 3D contents and get enough rest until the

symptom subsides.

 - Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain,

dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.

11

ENG

ENGLISH

SAFETY INSTRUCTIONS

 CAUTION

Viewing Environment

y

 Viewing Distance

 - Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you

feel discomfort in viewing 3D contents, move further away from the TV.

Viewing Age

y

Infants/Children

 - Usage/ Viewing 3D contents for children under the age of 5 are prohibited.

 - Children under the age of 10 may overreact and become overly excited because their vision is in

development (for example: trying to touch the screen or trying to jump into it. Special monitoring

and extra attention is required for children watching 3D contents.

 - Children have greater binocular disparity of 3D presentations than adults because the distance

between the eyes is shorter than that of adults. Therefore they will perceive more stereoscopic

depth compared to adults for the same 3D image.

y

Teenagers

 - Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D

contents. Advise them to refrain from watching 3D contens for a long time when they are tired.

y

Elderly

 - The elderly may perceive less 3D effect compared to the young. Do not sit closer to the TV than the

recommended distance.

Cautions when using the 3d glasses

y

 Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.

y

 Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.

y

 Using modified 3D glasses may cause eye strain or image distortion.

y

 Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.

y

 The 3D glasses are fragile and are easily scratched. Always use a soft, clean piece of cloth when wiping

the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with

chemicals.

12

ENG

ENGLISH

INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING

 NOTE

y

Image shown may differ from your TV.

y

Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.

y

The available menus and options may differ from the input source or product model that you are

using.

y

New features may be added to this TV in the future.

y

The TV can be placed in standby mode in order to reduce the power consumption. And the TV should

be turned off if it will not be watched for some time, as this will reduce energy consumption.

y

The energy consumed during use can be significantly reduced if the level of brightness of the picture

is reduced, and this will reduce the overall running cost.

INSTALLATION PROCEdURE

1  Open the package and make sure all the accessories are included.

2  Attach the stand to the TV set.

3  Connect an external device to the TV set.

4  Make sure the network connection is available.

You can use the TV network functions only when the network connection is made.

ASSEMBLING ANd PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual

product and item.

 CAUTION

y

Do not use any unapproved items to ensure the safety and product life span.

y

Any damage or injuries caused by using unapproved items are not covered by the warranty.

y

Some models have a thin film attached on to the screen and this must not be removed.

 NOTE

y

The items supplied with your product may vary depending on the model.

y

Product specifications or contents of this manual may be changed without prior notice due to upgrade

of product functions.

y

For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick

and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory

stick does not fit into your TV’s USB port.

A

B

A

B

*A

<

=

 10 mm

*B

<

=

 18 mm

13

ENG

ENGLISH

ASSEMBLING AND PREPARING

FREEZE

RATIO

L/R SELECT

ENTER

BACK

EXIT

Q.MENU

INFO

MENU

CH

VOL

P

A

G

E

FAV

3D

MUTE

1 2 3

4 5 6

7 8

0

9

MARK

LIST

FLASHBK

ENERGY

SAVING

TV

AV MODE INPUT

Remote control and

batteries (AAA)

(Only LA62**, LA64**,

LN570*, LN575*, LN577*)

(See p. 22, 23)

P

123

FREEZE

RATIO

L/R SELECT

ENTER

BACK

EXIT

Q.MENU

INFO

MENU

CH

VOL

P

A

G

E

FAV

3D

MUTE

1 2 3

4 5 6

7 8

0

9

MARK

LIST

FLASHBK

ENERGY

SAVING

TV

AV MODE INPUT

Magic Remote Control,

Batteries (AA)

(Only LA66**, LA69**,

LA74**, LN578*)

(See p. 24)

Owner’s manual

Wi-Fi dongle

(Depending on model)

Cinema 3d Glasses

The number of 3D glasses

may differ depending on

the model or country.

(Depending on model)

dual play glasses

(Depending on model)

Cable Holder

(Depending on model)

(See p. A-6)

Power Cord

(Depending on model)

Stand Screws

M4 x 14

(8 EA: Only LN57**-ZE/ZK,

LA62**, LA64**, LA66**)

(4 EA: Only LN57**-ZA)

(See p. A-3,A-5)

Stand Screws

M4 x 20

(4 EA: Only LA69**,

LA74**)

(See p. A-4)

Stand Screws

3 EA, P5 x 25

(Only LN57**-ZA)

(See p.A-5)

desk-mount Screw

(1 EA : Only

32/39/42/47/50/60LN57**-

ZA)

(2 EA :Only

32/39/42/47/50LN57**-ZE/

ZK, 32/39/42/47/50LA62**,

32/42/47/50LA64**,

32/42/47/50LA66**)

(See p. 18)

desk-mount Cable

2 EA (Only

32/39/42/47/50LN57**-ZE/

ZK, 32/39/42/47/50LA62**,

32/42/47/50LA64**,

32/42/47/50LA66**)

(See p. 18)

Bracket Screw

2 EA, P4 x 8

(Only 47/50LN57**-

ZE/ZK,47/50LA62**,

47/50LA64**,47/50LA66**)

(See p. 18)

Bracket Screw

2 EA, M4 x 8

(Only 32/39/42LN57**-

ZE/ZK, 32/39/42LA62**,

32/42LA64**,32/42LA66**)

(See p. 18)

Wall mount inner spacers

4 EA

(Only LA64**)

(See p. 21)

14

ENG

ENGLISH

ASSEMBLING AND PREPARING

Tag On

Tag On

(Depending on model)

Stand Body / Stand Base

(Only LN57**-ZE/ZK,

LA62**, LA64** , LA66**)

(See p.A-3)

Stand Base

(Only LA69**, LA74** )

(See p.A-4)

Stand Body / Stand Base

(Only LN57**-ZA)

(See p.A-5)

LG Audio device

(Depending on model)

15

ENG

ENGLISH

ASSEMBLING AND PREPARING

Separate purchase

(Depending on model)

Separate purchase items can be changed or modified for quality improvement without any notification.

Contact your dealer to buy these items.

These devices only work with certain models.

P

123

AG-F***dP

Dual play glasses

AG-F***

Cinema 3D Glasses

AN-MR400

Magic Remote

AN-WF100

Wi-Fi Dongle

AN-VC4**

Video call camera

LG Audio device

Tag On

Tag on

Compatibility

LN57**

LA62**, LA64**,

LA66**, LA69**, LA74**

AG-F***dP

Dual play glasses

•

(Depending on model)

AG-F***

Cinema 3D Glasses

•

AN-MR400

Magic Remote

•

•

AN-WF100

Wi-Fi Dongle

•

(Depending on model)

AN-VC4**

Video call camera

•

•

LG Audio device

•

(Depending on model)

•

Tag On

•

(Depending on model)

•

The model name or design may be changed depending on the upgrade of product functions,

manufacturer’s circumstances or policies.

16

ENG

ENGLISH

ASSEMBLING AND PREPARING

Parts and buttons

Button

description

H

Scrolls through the saved programmes.

H

Adjusts the volume level.

H

Selects the highlighted menu option or confirms an input.

S

Accesses the main menu, or saves your input and exits the menus.

H

Changes the input source.

Turns the power on or off.

  NOTE

y

You can set the

LG Logo Light

 to on or off by selecting

OPTION

 in the main menus.(Depending on model)

LAN

(PC)

RGB IN

(RGB/HDMI-PC)

AUDIO

IN

IN

OUT

OPTICAL

DIGITAL

AUDIO

H/P

IN/OUT

(RGB)

AV1

IN

HDD IN

USB Hub

USB Appps

USB IN

1

1

(ARC)

2

3

4

(PC)

2

USB IN

3

ANTENNA

/CABLE

13/18V

700mA MAx

LNB IN

Satellite

IN

COMPONENT

AV

P

R

P

B

Y

VIDEO

AUDIO

SETTINGS

INPUT

OK

SETTINGS

INPUT

OK

Buttons

Screen

Speakers

SETTINGS

INPUT

OK

Screen

Buttons

Speakers

Remote control sensor

LG Logo Light (Only LA64**, LA66**)

Power Indicator (Only LA62**, LN57**-ZE/ZK)

Remote control sensor

LG Logo Light

A type : LA62**, LA64**, LA66**,

LN57**-ZE/ZK

SETTINGS

INPUT

OK

Screen

Buttons

Speakers

Remote control sensor

Power Indicator

D type : LN57**-ZA

SETTINGS

INPUT

OK

Screen

Buttons

Speakers

Remote control sensor

LG Logo Light

C type : 60LA74**

B type : LA69**, 42/47/55LA74**

17

ENG

ENGLISH

ASSEMBLING AND PREPARING

Lifting and moving the TV

Please note the following advice to prevent the

TV from being scratched or damaged and for safe

transportation regardless of its type and size.

 CAUTION

y

Avoid touching the screen at all times, as

this may result in damage to the screen.

y

It is recommended to move the TV in the box

or packing material that the TV originally came

in.

y

Before moving or lifting the TV, disconnect the

power cord and all cables.

y

When holding the TV, the screen should face

away from you to avoid damage.

y

Hold the top and bottom of the TV frame firmly.

Make sure not to hold the transparent part,

speaker, or speaker grill area.

y

When transporting a large TV, there should be

at least 2 people.

y

When transporting the TV by hand, hold the TV

as shown in the following illustration.

y

When transporting the TV, do not expose the

TV to jolts or excessive vibration.

y

When transporting the TV, keep the TV upright,

never turn the TV on its side or tilt towards the

left or right.

y

Do not apply excessive pressure to cause

flexing /bending of  frame chassis as it may

damage screen.

Remote control sensor

LG Logo Light

Remote control sensor

Power Indicator

18

ENG

ENGLISH

ASSEMBLING AND PREPARING

Mounting on a table

1  Lift and tilt the TV into its upright position on a

table.

 -  Leave a 10 cm (minimum) space from the

wall for proper ventilation.

10 cm

10 cm

10 cm

10 cm

10 cm

2  Connect the power cord to a wall outlet.

Using the Kensington security system (This feature is

not available for all models.)

y

Image shown may differ from your TV.

The  Kensington  security  system  connector  is

located at the rear of the TV. For more information

of  installation  and  using,  refer  to  the  manual

provided with the Kensington security system or

visit

http://www.kensington.com.

Connect the Kensington security system cable

between the TV and a table.

 CAUTION

y

Do not place the TV near or on sources

of heat, as this may result in fire or other

damage.

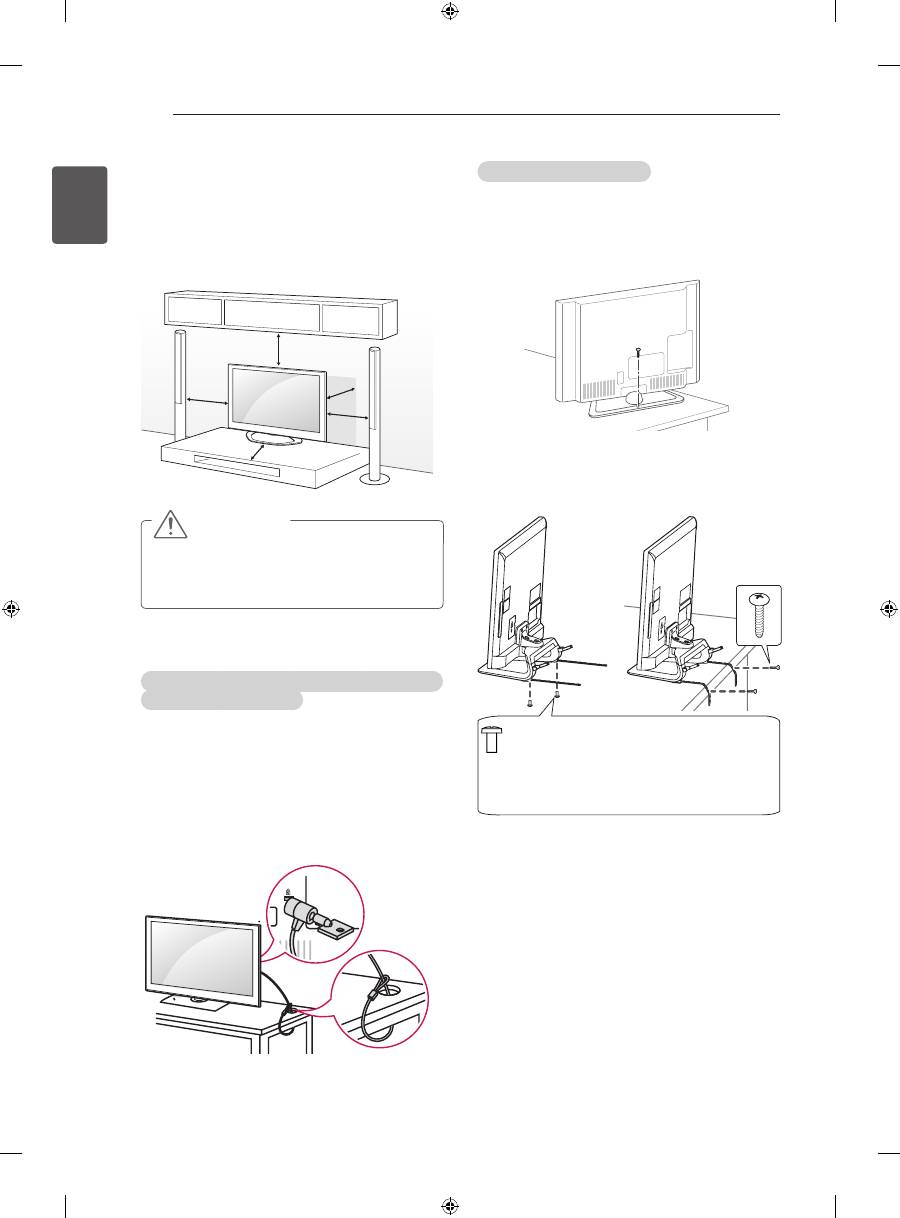

Securing the TV to a table

Fix the TV to a table to prevent from tilting forward,

damage, and potential injury.

To secure the TV to a table, insert and tighten the

supplied screw on the rear of the stand.

(Only 32/39/42/47/50/60LN57**-ZA)

(Only 32/39/42/47/50LN57**-ZE/ZK,

32/39/42/47/50LA62**, 32/42/47/50LA64**,

32/42/47/50LA66**)



2 EA, P4 x 8

(Only 47/50LN57**-ZE/ZK, 47/50LA62**,

47/50LA64**,47/50LA66**)

2 EA, M4 x 8

(Only 32/39/42LN57**-ZE/ZK, 32/39/42LA62**,

32/42LA64**, 32/42LA66**)

19

ENG

ENGLISH

ASSEMBLING AND PREPARING

Adjusting the angle of the TV to suit view

(This feature is not available for all models.)

Swivel 15 degrees to the left or right and adjust the

angle of the TV to suit your view.

(Only LA62**, LA64**, LA66**, LN57**-ZE/ZK)

15

15

Swivel 10 degrees to the left or right and adjust the

angle of the TV to suit your view.

(Only 42/47LA69**, 42/47LA74**)

10

10

Swivel 8 degrees to the left or right and adjust the

angle of the TV to suit your view.

(Only 55LA69**, 55/60LA74**)

8

8

 NOTE

(Only 32/39/42/47/50LN57**-ZE/ZK,

32/39/42/47/50LA62**, 32/42/47/50LA64**,

32/42/47/50LA66**)

How to fix the TV to a table

1. Connect the Desk-mount Cables to the

Stand Base using the Bracket Screws.

2. Fix the Desk-mount Cables to a table using

the Desk-mount Screws.

3. Once the TV is fixed, move the table close to

the wall. Children may go in, causing injuries.

 WARNING

y

To prevent TV from falling over, the TV

should be securely attached to the floor/

wall per installation instructions. Tipping,

shaking, or rocking the TV may cause injury.

20

ENG

ENGLISH

ASSEMBLING AND PREPARING

Mounting on a wall

Attach an optional wall mount bracket at the rear of

the TV carefully and install the wall mount bracket

on a solid wall perpendicular to the floor. When you

attach the TV to other building materials, please

contact qualified personnel.

LG recommends that wall mounting be performed

by a qualified professional installer.

10 cm

10 cm

10 cm

10 cm

 CAUTION

y

Make sure that children do not climb on or

hang on the TV.

 NOTE

y

Use a platform or cabinet that is strong and

large enough to support the TV securely.

y

Brackets, bolts and ropes are not provided.

You can obtain additional accessories from

your local dealer.

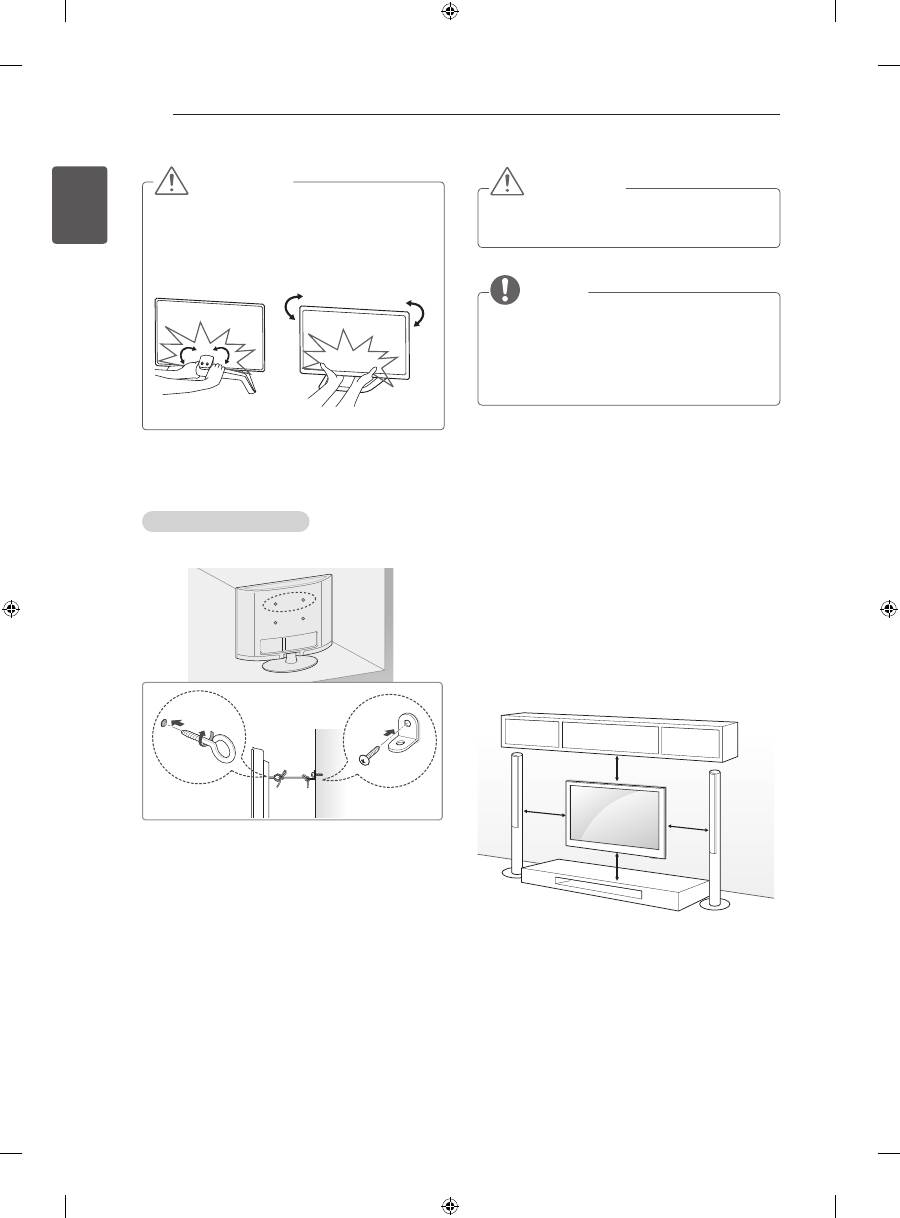

Securing the TV to a wall

(This feature is not available for all models.)

1  Insert and tighten the eye-bolts, or TV brackets

and bolts on the back of the TV.

 - If there are bolts inserted at the eye-bolts

position, remove the bolts first.

2  Mount the wall brackets with the bolts to the

wall.

Match the location of the wall bracket and the

eye-bolts on the rear of the TV.

3  Connect the eye-bolts and wall brackets tightly

with a sturdy rope.

Make sure to keep the rope horizontal with the

flat surface.

 CAUTION

y

When adjusting the angle adof the product,

watch out for your fingers.

»

Personal injury may occur if hands or fingers

are pinched. If the product is tilted too much, it

may fall, causing damage or injury.

<Rear>

<Front>

21

ENG

ENGLISH

ASSEMBLING AND PREPARING

Make sure to use screws and wall mount

bracket that meet the VESA standard. Standard

dimensions for the wall mount kits are described in

the following table.

Separate purchase(Wall Mounting Bracket)

Model

32LA62**

32LN57**

39/42LA62**

32LA64**

32LA66**

39/42LN57**

VESA (A x B)

200 x  100

200 x  200

Standard screw

M4

M6

Number of screws 4

4

Wall mount

bracket

LSW130B

LSW230B

Model

47/50/55/60LA62**

42/47/50/55/60LA64**

42/47/50/55LA66**

42/47/55LA69**

42/47/55/60LA74**

47/50/55/60LN57**

VESA (A x B)

400 x 400

Standard screw

M6

Number of screws 4

Wall mount

bracket

LSW430B

A

B

 CAUTION

y

Disconnect the power first, and then move

or install the TV. Otherwise electric shock

may occur.

y

If you install the TV on a ceiling or slanted

wall, it may fall and result in severe injury.

Use an authorised LG wall mount and

contact the local dealer or qualified

personnel.

y

Do not over tighten the screws as this may

cause damage to the TV and void your

warranty.

y

Use the screws and wall mounts that meet

the VESA standard. Any damages or injuries

by misuse or using an improper accessory

are not covered by the warranty.

 NOTE

y

Use the screws that are listed on the VESA

standard screw specifications.

y

The wall mount kit includes an installation

manual and necessary parts.

y

The wall mount bracket is not provided. You

can obtain additional accessories from your

local dealer.

y

The length of screws may differ depending

on the wall mount. Make sure to use the

proper length.

y

For more information, refer to the manual

supplied with the wall mount.

y

When attaching a third-party wall mounting

bracket to the TV, insert the wall mount

inner spacers into the TV wall mount holes

to move your TV in vertical angle. Please

make sure not to use the spacers for LG

wall mounting bracket. (Only LA64**)

Wall Mount Inner Spacer

22

ENG

ENGLISH

REMOTE CONTROL

REMOTE CONTROL

The descriptions in this manual are based on the buttons on the remote control.

Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching

the   and   ends to the label inside the compartment, and close the battery cover.

To remove the batteries, perform the installation actions in reverse.

or

 CAUTION

y

Do not mix old and new batteries, as this may damage the remote control.

Make sure to point the remote control toward the remote control sensor on the TV.

(Only , LN570*, LN575*, LN577*)

APP/*

MUTE

FAV

P

GUIDE

SMART

MY APPS

REC

LIVE TV

1

2

1

 TV/RAd

Selects Radio, TV and DTV programme.

SUBTITLE

Recalls your preferred subtitle in digital mode.

Q. MENU

Accesses the quick menus.

GUIdE

Shows programme guide.

 RATIO

Resizes an image.

 INPUT

Changes the input source.

LIST

Accesses the saved  programme list.

Q.VIEW

Returns to the previously viewed programme.

FAV

Accesses your favourite programme list.

APP/*

Select the MHP TV menu source. (Only Italy.) (Depending on model)

PAGE

Moves to the previous or next screen.

1

 TELETEXT BUTTONS

These buttons are used for teletext.

INFO

Views the information of the current programme and screen.

 SMART

Accesses the Smart Home menus.

 My APPS

Shows the list of Apps.

Navigation buttons

(up/down/left/right) Scrolls through menus or options.

OK

Selects menus or options and confirms your input.

 BACK

Returns to the previous level.

EXIT

Clears on-screen displays and return to TV viewing.

SETTINGS

Accesses the main menus.

REC

Start to record and display record menu.

LIVE TV

Return to LIVE TV.

Control buttons

(

) Controls the Premium contents, Time

Machine or Smart Share menus or the SIMPLINK compatible devices (USB

or SIMPLINK or Time Machine).

2

 Colour buttons

 These access special functions in some menus.

(

: Red,

: Green,

: Yellow,

: Blue)

23

ENG

ENGLISH

REMOTE CONTROL

(Only LA62**, LA64**)

 (User Guide)

 Sees user-guide.

 RATIO

Resizes an image.

 INPUT

Changes the input source.

 TV/RAd

 Selects Radio, TV and DTV programme.

LIST

Accesses the saved  programme list.

 (Space)

Opens an empty space on the screen keyboard.

Q.VIEW

Returns to the previously viewed programme.

FAV

Accesses your favourite programme list.

3d

Used for viewing 3D video.

 PAGE

Moves to the previous or next screen.

INFO

Views the information of the current programme and screen.

 SMART

Accesses the Smart Home menus.

 My APPS

Shows the list of Apps.

Navigation buttons

(up/down/left/right) Scrolls through menus or options.

OK

Selects menus or options and confirms your input.

 BACK

Returns to the previous level.

GUIdE

Shows programme guide.

EXIT

Clears on-screen displays and return to TV viewing.

1

 Colour buttons

These access special functions in some menus.

(

: Red,

: Green,

: Yellow,

: Blue)

2

 TELETEXT BUTTONS

These buttons are used for teletext.

SUBTITLE

Recalls your preferred subtitle in digital mode.

Q. MENU

Accesses the quick menus.

LIVE TV

Return to LIVE TV.

Control buttons

(

) Controls the Premium contents, Time

Machine or Smart Share menus or the SIMPLINK compatible devices (USB

or SIMPLINK or Time Machine).

REC

Start to record and display record menu.

SETTINGS

Accesses the main menus.

Ad

Switches the Audio Description On or Off.

APP/*

Select the MHP TV menu source. (Only Italy.) (Depending on model)

P

A

G

E

TV/

RAD

RATIO

INPUT

FAV

MUTE

EXIT

OK

GUIDE

MY APPS

LIVE TV

REC

TEXT

T.OPT

SUBTITLE

Q.MENU

AD

BACK

SETTINGS

INFO

1

.,;@

2



abc

3



def

4



ghi

5



jkl

6



mno

7



pqrs

8



tuv

0

9



wxyz

LIST

Q.VIEW

SMART

APP/*

1

2

24

ENG

ENGLISH

MAGIC REMOTE CONTROL FUNCTIONS

MAGIC REMOTE CONTROL FUNCTIONS

This item is not included for all models.

When the message “Magic Remote Control battery is low. Change the battery.” is

displayed, replace the battery.

To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching

 and   ends to the label inside the compartment, and close the battery cover. Be

sure to point the remote control toward the remote control sensor on the TV.

To remove the batteries, perform the installation actions in reverse.

 CAUTION

y

Do not mix old and new batteries, as this may damage the remote control.

(Only LA66**, LA69**, LA74**, LN578*)

P

BACK

SMART

/Q.MENU

 Voice recognition

(Depending on model)

 /Q.MENU

Accesses the quick menus.

Accesses the Universal Control.

 SMART

Accesses the Smart Home

menus.

Wheel(OK)

Selects menus or options and

confirms your input.

Scrolls through the saved

programmes.

If you press the navigation

button while moving the pointer

on the screen, the pointer

disappears, and the Magic

Remote Control works as a

regular remote control.

To display the pointer again,

shake the Magic Remote

Control from side to side.

 (POWER)

Turns the TV on or off.

3d

Used for viewing 3D video.

(Depending on model)

 BACK

Returns to the previous level.

+   -

Adjusts the volume level.

ꕌ

P

ꕍ

Scrolls through the saved

programmes or channels.

 MUTE

Mutes all sounds.

Navigation buttons

 (up/down/

left/right)

Scrolls through menus or op-

tions.

Pointer (RF transmitter)

Voice recognition

(Depending on model)

Network connection is required to use the voice recognition function.

The recognition rate may vary depending on the user’s characteristics (voice, pronunciation, intonation

and speed) and the environment (noise and TV volume).

1.  Press the Voice recognition button.

2.  Speak when the voice display window appears on the left of the TV screen.

•

The voice recognition may fail when you speak too fast or too slow.

•

Use the Magic remote control no further than 10 cm from your face.

25

ENG

ENGLISH

MAGIC REMOTE CONTROL FUNCTIONS

Registering Magic Remote

Control

It is necessary to ‘pair’ (register) the magic remote

control to your TV before it will work.

How to register the Magic Remote Control

BACK

HOME

P

MY APPS

1 To register automatically,

turn the TV on and press the

Wheel(OK)

 button. When

registration is completed, the

completion message appears

on the screen.

2 If registration fails, turn the TV

off and back on, then press

the

Wheel(OK)

 button to

complete registration.

How to re-register the Magic Remote Control

BACK

SMART

1 Press and hold the

BACK

and

SMART

 buttons

together for 5 seconds to

reset, then register it by

following “How to register the

Magic Remote Control” above.

2 To re-register the Magic

Remote Control, press and

hold the

BACK

 button for 5

seconds toward the TV. When

registration is completed, the

completion message appears

on the screen.

How to use Magic Remote

Control

1 If the pointer disappears, move

the Magic Remote Control

slightly to left or right. Then, it

will automatically appear on

the screen.

»

If the pointer has not been

used for a certain period of

time, it will disappear.

2 You can move the pointer by

aiming the Pointer Receiver of

the Magic Remote Control at

your TV then move it left, right,

up or down.

»

If the pointer does not work

properly, leave the Magic

Remote Control for 10

seconds then use it again.

Precautions to Take when

Using the Magic Remote

Control

y

Use the Magic Remote Control within the

maximum communication distance (10 m).

Using the Magic Remote Control beyond this

distance, or with an object obstructing it, may

cause a communication failure.

y

A communication failure may occur due to

nearby devices. Electrical devices such as

a microwave oven or wireless LAN product

may cause interference, as these use the

same bandwidth (2.4 GHz) as the Magic

Remote Control.

y

The Magic Remote Control may be damaged

or may malfunction if it is dropped or receives

a heavy impact.

y

Take care not to bump into nearby furniture

or other people when using the Magic

Remote Control.

y

Manufacturer and installer cannot provide

service related to human safety as the

applicable wireless device has possibility of

electric wave interference.

y

It is recommended that an Access Point (AP)

be located more than 1 m away from the

TV. If the AP is installed closer than 1 m, the

Magic Remote Control may not perform as

expected due to frequency interference.

1

If you press

Wheel(OK)

 on the Magic

Remote Control, the following screen

appears.

Shows information about the current

programme and screen.

2

You can select More Menu.

More

11

-1 Brief Info Title Test...

Info.
