ASRock b85 pro4: instruction

Version 1.0

Published April 2013

Copyright©2013 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

B85 Pro4

Motherboard Layout

English

2 1

No. Description

1 Power Fan Connector (PWR_FAN1)

2 ATX 12V Power Connector (ATX12V1)

3 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)

4 2 x 240-pin DDR3 DIMM Slots (DDR3_A2, DDR3_B2)

5 ATX Power Connector (ATXPWR1)

6 USB 3.0 Header (USB3_2_3)

7 SATA2 Connectors (SATA2_0)

8 SATA2 Connectors (SATA2_1)

9 SATA3 Connectors (SATA3_0)

10 SATA3 Connectors (SATA3_3)

11 SATA3 Connectors (SATA3_2)

12 Chassis Fan Connector (CHA_FAN1)

13 System Panel Header (PANEL1)

14 SATA3 Connectors (SATA3_1)

15 Power LED Header (PLED1)

16 TPM Header (TPMS1)

17 USB 2.0 Header (USB6_7)

18 USB 2.0 Header (USB4_5)

19 Infrared Module Header (IR1)

20 Chassis Speaker Header (SPEAKER1)

21 Clear CMOS Jumper (CLRCMOS1)

22 COM Port Header (COM1)

23 SPDIF Out Connector (SPDIF_OUT1)

24 Front Panel Audio Header (HD_AUDIO1)

25 Chassis Fan Connector (CHA_FAN2)

26 CPU Fan Connector (CPU_FAN1)

27 CPU Fan Connector (CPU_FAN2)

English

2 3

B85 Pro4

I/O Panel

4

1 2 3 5

6789101112

No. Description No. Description

1 PS/2 Mouse Port 7 USB 2.0 Ports (USB_23)

2 VGA Port 8 USB 3.0 Ports (USB3_01)

3 LAN RJ-45 Port* 9 USB 2.0 Ports (USB_01)

4 Line In (Light Blue) 10 HDMI Port

5 Front Speaker (Lime)** 11 DVI-D Port

6 Microphone (Pink) 12 PS/2 Keyboard Port

English

2 3

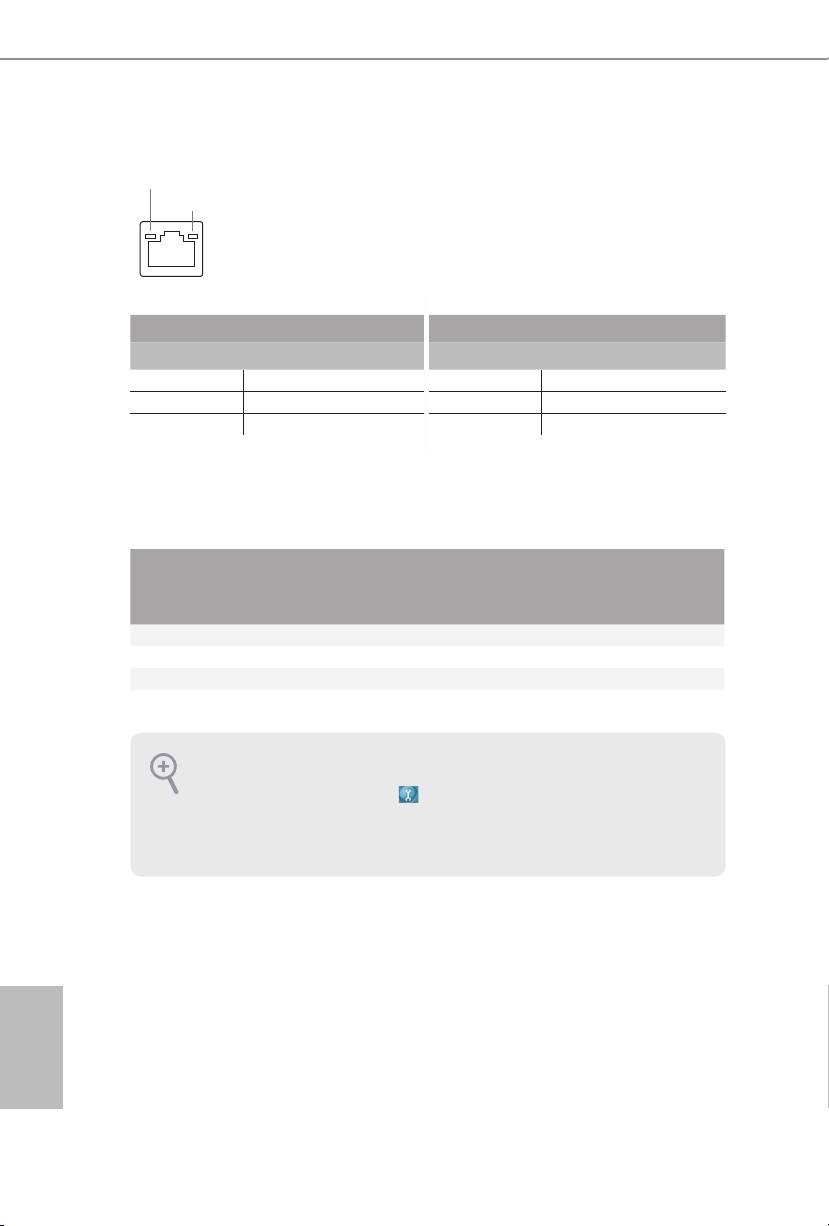

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Chapter 1 Introduction

ACT/LINK LED

ank you for purchasing ASRock B85 Pro4 motherboard, a reliable motherboard

SPEED LED

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality

and endurance.

LAN Port

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below

for connection details in accordance with the type of speaker you use.

1.1 Package Contents

•

ASRock B85 Pro4 Motherboard (ATX Form Factor)

Audio Output

Front Speaker

Line in

Microphone

Front Panel

•

ASRock B85 Pro4 Quick Installation Guide

Channels

(No. 5)

(No. 4)

(No. 6)

Headphone

•

ASRock B85 Pro4 Support CD

2 V -- -- --

•

2 x Serial ATA (SATA) Data Cables (Optional)

4 V V -- --

•

1 x I/O Panel Shield

6 V V V --

8 V V V V

To enable Multi-Streaming, you need to connect a front panel audio cable to the front

panel audio header. Aer restarting your computer, you will nd the “Mixer” tool on your

system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and

click “ok”. Choose “2CH”, “4CH”, or “6CH” and then you are allowed to select “Realtek

HDA Primary output” to use the Rear Speaker, Central/Bass, and Front Speaker, or select

“Realtek HDA Audio 2nd output” to use the front panel audio.

*** e eSATA connector supports SATA with cables within 1 meters.
