Manual for ASRock H61M-DGS

1
ASRock H61M-DGS Motherboard
English
Copyright Notice:
No part of this installation guide may be reproduced, transcribed, transmitted, or trans-
lated in any language, in any form or by any means, except duplication of documentation
by the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this guide may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identi
fi
ca-
tion or explanation and to the owners’ bene
fi
t, without intent to infringe.
Disclaimer:
Speci
fi
cations and information contained in this guide are furnished for informational use
only and subject to change without notice, and should not be constructed as a commit-
ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may
appear in this guide.
With respect to the contents of this guide, ASRock does not provide warranty of any kind,
either expressed or implied, including but not limited to the implied warranties or condi-
tions of merchantability or
fi
tness for a particular purpose. In no event shall ASRock, its
directors, of
fi
cers, employees, or agents be liable for any indirect, special, incidental, or
consequential damages (including damages for loss of pro
fi
ts, loss of business, loss of
data, interruption of business and the like), even if ASRock has been advised of the pos-
sibility of such damages arising from any defect or error in the guide or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlorate”
ASRock Website: http://www.asrock.com
Published December 2011
Copyright
©
2011 ASRock INC. All rights reserved.

2
ASRock H61M-DGS Motherboard

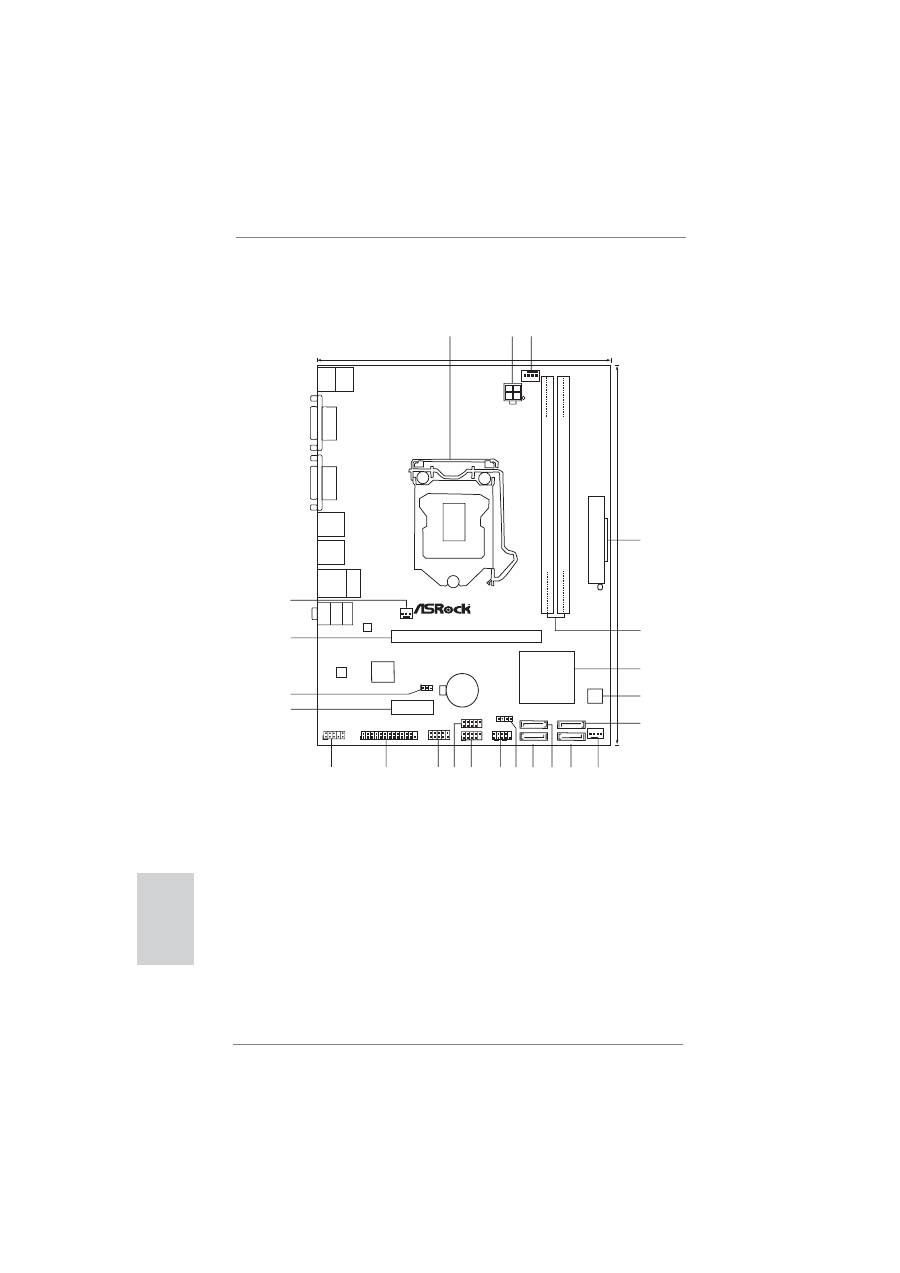

Motherboard Layout
English
1
1155-Pin CPU Socket
13
Chassis Speaker Header (SPEAKER 1, White)
2
ATX 12V Power Connector (ATX12V1)
14
System Panel Header (PANEL1, White)
3
CPU Fan Connector (CPU_FAN1)
15
USB 2.0 Header (USB6_7, Blue)
4
ATX Power Connector (ATXPWR1)
16
USB 2.0 Header (USB8_9, Blue)
5
2 x 240-pin DDR3 DIMM Slots
17
COM Port Header (COM1)
(Dual Channel: DDR3_A1, DDR3_B1, Blue)
18
Print Port Header (LPT1, White)
6
Intel H61 Chipset
19
Front Panel Audio Header
7
32Mb SPI Flash
(HD_AUDIO1, White)
8
SATA2 Connector (SATA2_1, Blue)
20
PCI Express 2.0 x1 Slot (PCIE2, White)
9
Chassis Fan Connector (CHA_FAN1)
21
Clear CMOS Jumper (CLRCMOS1)
10
SATA2 Connector (SATA2_0, Blue)
22
PCI Express 2.0 x16 Slot (PCIE1, Blue)
11
SATA2 Connector (SATA2_3, Blue)
23
Power Fan Connector (PWR_FAN1)
12
SATA2 Connector (SATA2_2, Blue)
A
T
XPWR1
DDR3_A1
(64
bit,
2
40-pin
module)
DDR3_B1
(64
bit,
240-pin
module)
CPU_FAN1
Intel
H61
CMOS
Battery
17.3cm (6.8 in)
22.6cm
(8.9
in)
ErP/EuP
Ready
D
DR3
Designed
in
T
aipei
32Mb
BIOS
Super
I/O
CHA_FAN1
PWR_FAN1
1
SPEAKER1
PCIE1
PCIE2
1
HD_AUDIO1
COM1
1
1
LPT1
CLRCMOS1
1
HDLED RESET
PLED PWRBTN
PANEL1
1
LAN
PHY
AUDIO
CODEC
USB6_7
1
USB8_9
1
SATA2_2
SATA2_0
SATA2_3
SATA2_1
ATX12V1
PS2
Keyboard
PS2
Mouse
VGA1
Top:
RJ-45
USB 2.0
T: USB4
B: USB5
USB 2.0
T: USB0
B: USB1
To
p
:
LINE
IN
Center:
FRONT
Bottom:
MIC
IN
USB 2.0
T: USB2
B: USB3
1
2
3
4
5
6
7
9
10
11
12
8
14 13
15
16
17
18
19
20
21
22
23
RoHS
H61M-DGS
DVI1
X
Fast
USB
X
Fast
LAN
X
Fast RAM

3
ASRock H61M-DGS Motherboard
English
I/O Panel
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED
SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link
Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
1
PS/2 Mouse Port (Green)
7
USB 2.0 Ports (USB23)
* 2
LAN RJ-45 Port
8
USB 2.0 Ports (USB01)
3
Line In (Light Blue)
9
DVI-D Port
** 4
Front Speaker (Lime)
10 D-Sub Port
5
Microphone (Pink)
11 PS/2 Keyboard Port (Purple)
6
USB 2.0 Ports (USB45)
** To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. Please refer to below steps for the software setting of Multi-Streaming.
For Windows
®
XP:
After restarting your computer, you will
fi
nd “Mixer” tool on your system. Please select “Mixer
ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or
“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker
and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then
reboot your system.
For Windows
®
7 / Vista
TM
:
After restarting your computer, please double-click “Realtek HD Audio Manager” on the
system tray. Set “Speaker Con
fi
guration” to “Quadraphonic” or “Stereo”. Click “Device
advanced settings”, choose “Make front and rear output devices playbacks two different audio
streams simultaneously”, and click “ok”. Then reboot your system.
