Xoro HTC 2225D: Connection

Connection

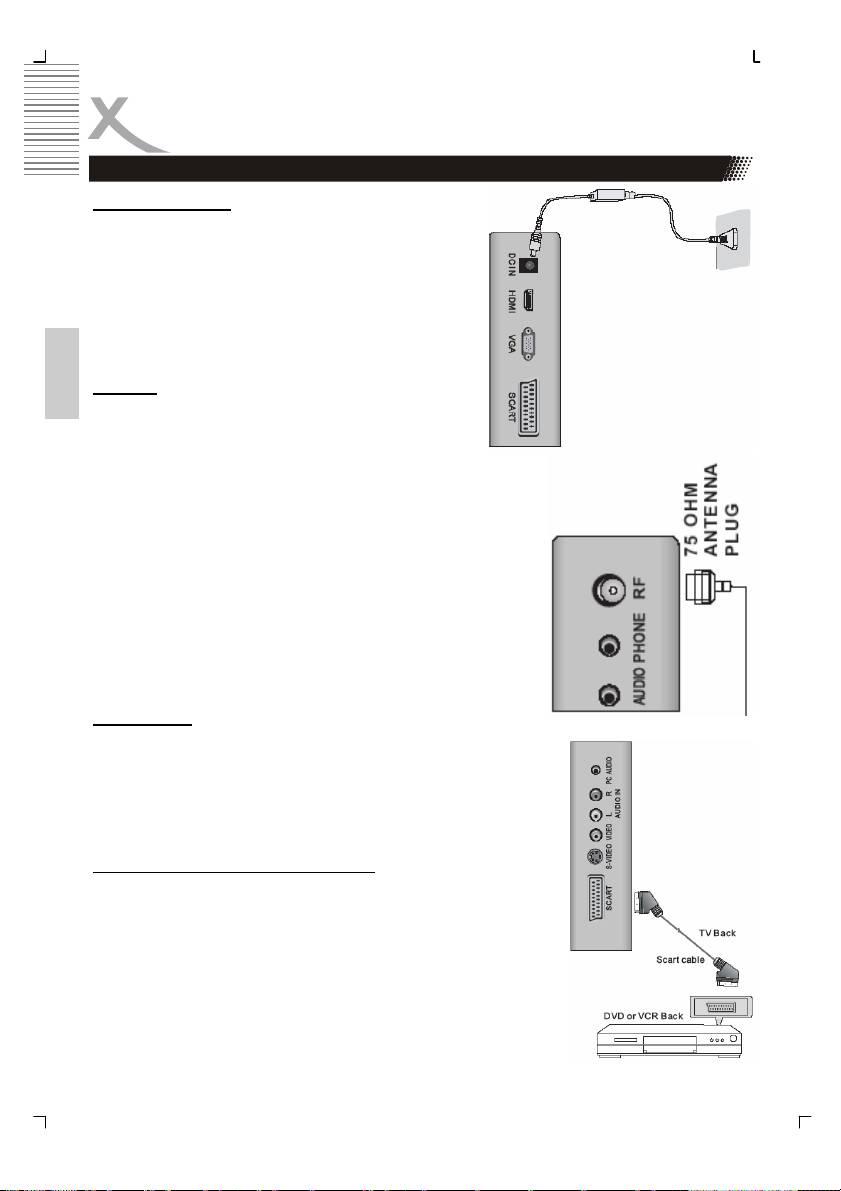

Power connection

Connect the AC/DC power adapter with the DC IN

input of the HTC TV set. After than, please connect the

power cable with the wall mounted power outlet.

On the front side you can see a red LED light. The

HTC TV set is now in Stand-By mode. By pressing the

POWER button on the remote control or on the top

side of the device the red LED changes to a green

light.

Antenna

English

The HTC TV set has an analogue and a digital TV

Tuner inside. For receiving analogue TV signals please

connect the antenna cable with the RF connector on

the HTC TV set and with the VHF/UHF roof antenna or

with a CATV antenna plug.

For receiving digital terrestical TV signals please connect the

HTC TV set with the RF plug and also with the roof antenna. If

no roof antenna is available, please use indoor aerial.

For activating the analogue TV Tuner, please switch with the

Source button to „TV“. For viewing DVB-T, please change with

the SOURCE button to „DVB“.

Note:

For getting the best DVB-T reception please uses the roof

antenna. If not possible, than you can connect the HTC TV set

with an active indoor aerial.

SCART Input

Audio– and Video signals from a VCR or a setop box can be

transmitted by SCART. Please connect a SCART cable with the

SCART input on the HTC TV set and with the SCART output on

the VCR or setop box.

Press the SOURCE button again until „SCART“ appears on the

screen and the SCART interface is activated.

CVBS Video– and Stereo Audio input

If you uses more than one multimedia terminals and the SCART,

HDMI and S-Video connection are used, than you connect the

next device by the audio/video component input. Please connect

the yellow wire of an 3-pin component cable with the VIDEO input

of the HTC TV set and the multimedia device. With this kind of

connection only video signals are transmitted. For listening sound

on the TV you should establish also a sound connection.

Please connect the white and red wire of the 3-pin component

cable with the AUDIO IN L / R and the correspondent audio out on

the multimedia device.

6

Connection

Please press the SOURCE button until „AV“ appears on the screen and the AV input is ac-

tive.

S-Video Video- und Stereo Audio input

If you uses more than one multimedia terminals and the SCART, HDMI and AV connection

are used, than you connect the next device by the S-Video. Please connect the S-Video

cable with the S-VIDEO input of the HTC TV set and with the S-Video output of the multime-

dia device. With this kind of connection only video signals are transmitted. For listening

English

sound on the TV you should establish also a sound connection.

Please connect the white and red wire of the 2-pin cable with the AUDIO IN L / R and the

correspondent audio out on the multimedia device.

Please press the SOURCE button until „S-Video“ appears on the screen and the S-Video

input is active.

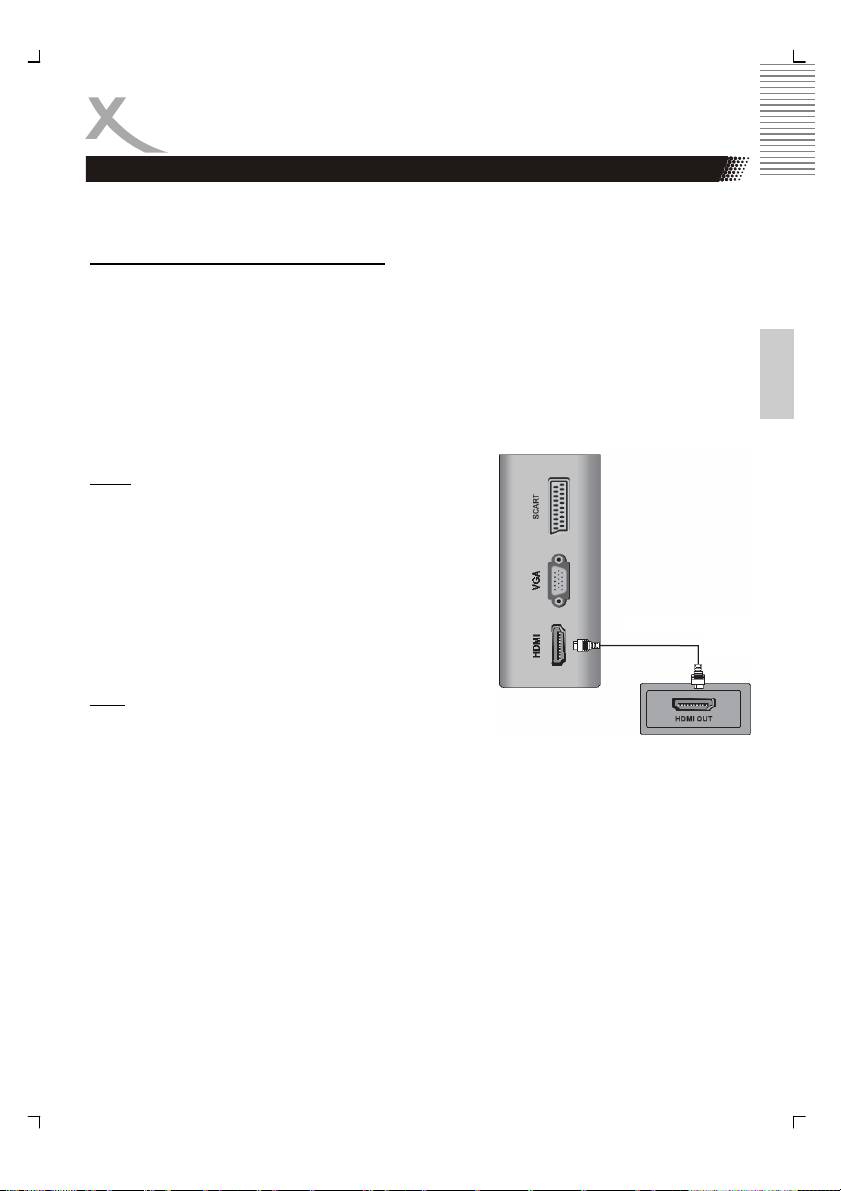

HDMI

If you want connect a multimedia device with HDMI like

a game console „PS3“ or a setop box with the HTC TV

set, you can establish a HDMI connection. Please con-

nect the HDMI cable on the HDMI interface on the HTC

TV set and the HDMI output of the multimedia device.

Please press the SOURCE button until „HDMI“ appears

on the screen and the HDMI input is active.

VGA

You can use the HTC TV set as a PC monitor by using

the VGA interface. Please connect a VGA cable with the

VGA input of the HTC TV set and with the PC.

Please press the SOURCE button until „PC-VGA“ appears on the screen and the PC-VGA

input is active.

Notes:

1. Before you connect the HTC TV set with the PC, please change the graphic resolu-

tion of the PC to: 640 x 480, 800 x 600 or 1024 x 768.

2. Please establish the connection and switch to „PC-VGA“ input.

3. For displaying the best results, please uses the native resolution of the TV LCD

panel:

• HTC 1525d —> 1280 x 800 Pixel

• HTC 1925d —> 1440 x 900 Pixel

• HTC 2225d —> 1680 x 1050 Pixel

7
