Xoro HSD 7150: CONNECTING

CONNECTING

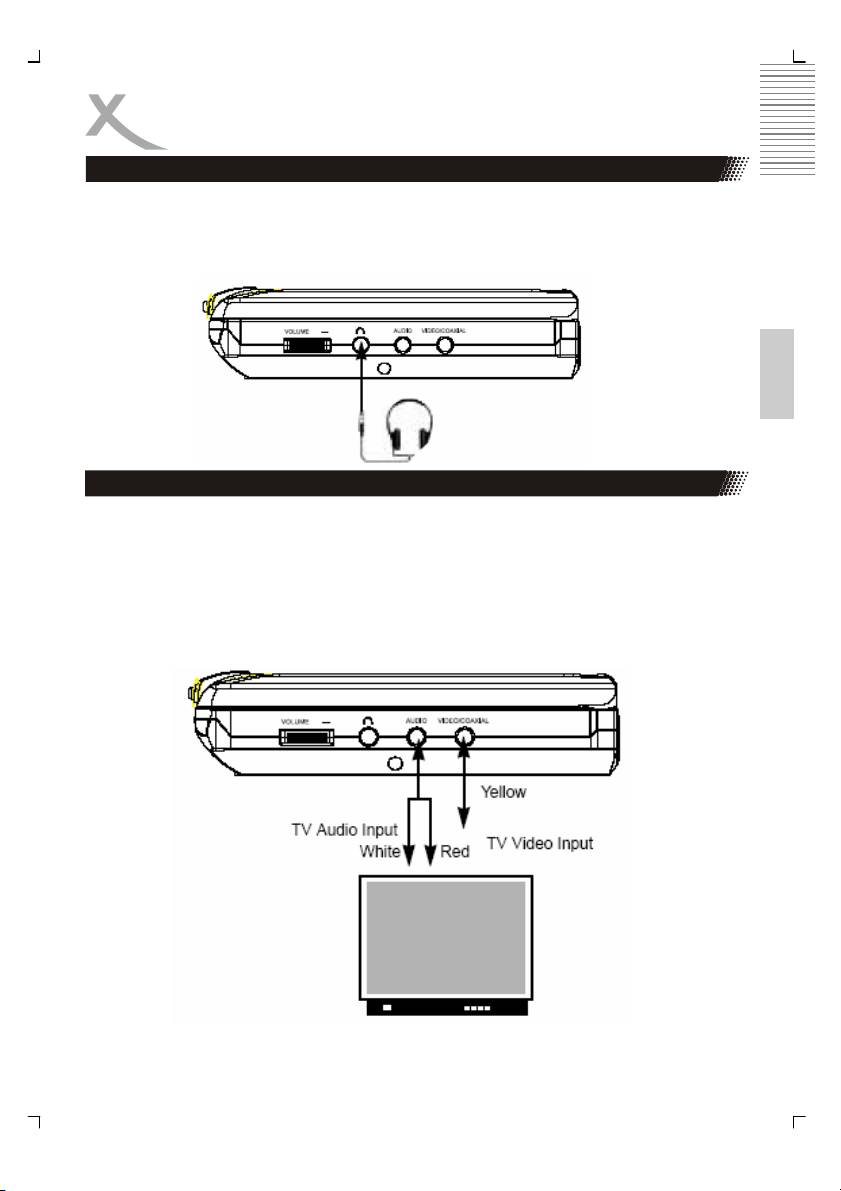

Connecting headphones

1. Connect the headphones.Headphones with a 3.5 mm stereo plug can be connected.

2. Adjust the volume by turning the dial.

Avoid listening to sound at levels which may be harmful to your ears.

English

Connecting to a TV set

1. Turn off the power and unplug both units before setting up any connections.

2. Connect the adapter cable (supplied by the HSD 7150) to AV OUT.

3. Connect the yellow cable (Video) to the adaptor cable and to the VIDEO-IN of the

TV set.

4. Connect the red and white cable to the adaptor cable and to the AUDIO-IN of the TV

set.

HSD 7150 15

CONNECTING

Connect to an AV Receiver

Enjoy the more realistic sound by connecting an amplifier and speaker system.

1. Turn off the power and unplug both units before setting up any connections.

2. Please connect the red and white RCA cable with the red and white jack of the

adapter cable and the AUX (Stereo IN) Input of the amplifier or active sound system.

3. Connect the yellow cable (Video) to the adaptor cable and to the VIDEO-IN of the

TV set.

English

16 HSD 7150
