Fenix Therm 105: In the pack

In the pack: Fenix Therm 105

In the pack

4

5

2

3

EN

1

6

7

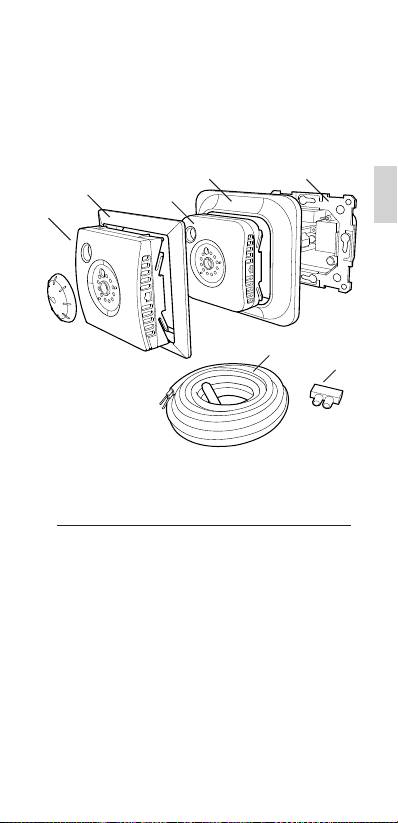

1. Front for Elko RS, Elko Plus and Gira

2. Adapter for Strömfors frame system

3. Front for Eljo Trend, Merten, Jussi/

Busch-Jäger

4. Frame

5. Thermostat

6. Floor sensor

7. Connection clip

Manual

21

Installing the thermostat

The oor sensor should be mounted in

a spiral hose laid in the oor. The hose

endings should be sealed so that the

oor sensor can easily be replaced.

Installation

Mount the thermostat in a 65 mm

standard appliance box.

1. Make sure the box is level with the

wall.

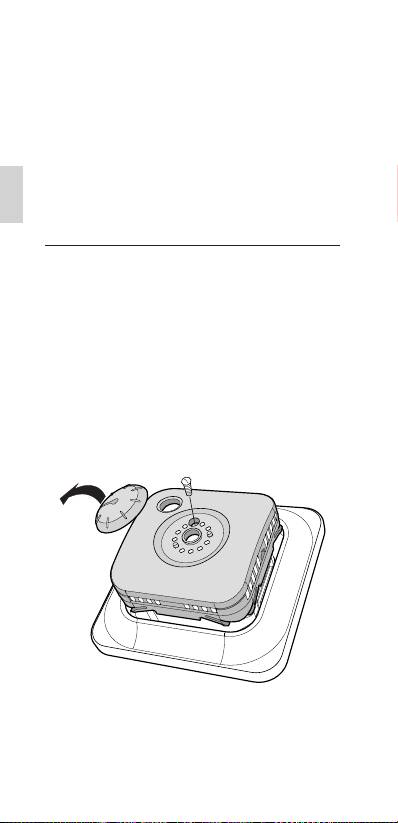

2. Remove the knob and undo the

screw as in the illustration. Lift o front

and frame.

22

3. Connect power, voltage 230 VAC,

load and oor sensor cable.

Any extension to the oor sensor cable

must be by means of high-voltage

current. Protective conductor for

EN

incoming feed and for heating cable

is connected with a connection clip in

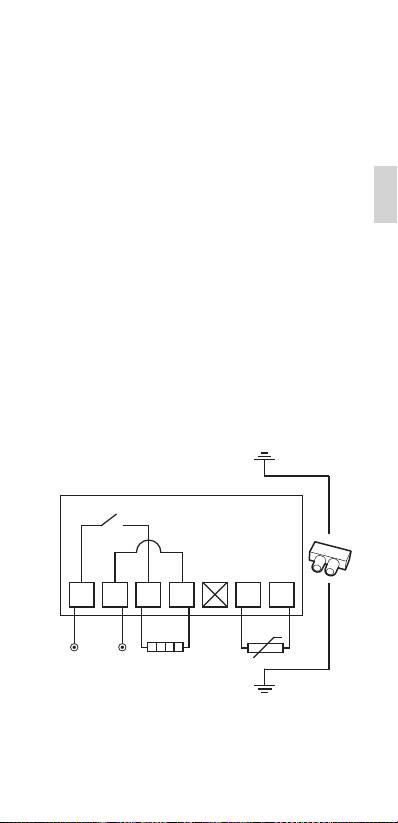

the box. See wiring diagram below.

4. Insert the thermostat into the ap-

pliance box and screw tight with the

existing screws.

5. Mount frame, front and knob.

6. If the thermostat is mounted in a

multi-compartment frame, the internal

corners of this frame must be removed.

DO NOT USE

SENSOR

SENSOR

LOAD

LOAD

L

N

230 V

23

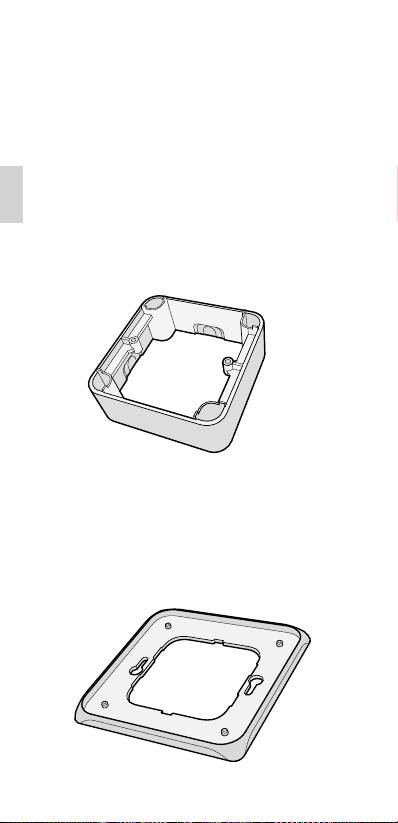

Surface mounting

If recessed mounting is not possible,

use the extension frame (E 85 816 69)

for surface mounting. This is not includ-

ed and must be ordered separately

Attach the extension frame to the wall

with screws. Then mount the thermostat

as indicated in the normal instructions.

Fitting with back plate

If the existing frame will not cover the

hole, use an Back Plate. This is not in-

cluded and must be ordered separately

24
