Setup Manual

Important: Please read PRECAUTIONS, this Setup Manual and the User’s Manual

stored on the CD-ROM carefully to familiarize yourself with safe and effective

usage. Please retain this manual for future reference.

Installationshandbuch

Wichtig: Lesen Sie die VORSICHTSMASSNAHMEN, dieses Handbuch zur

Einrichtung und das Benutzerhandbuch (auf der CD-ROM) aufmerksam

durch, um sich mit der sicheren und effizienten Bedienung vertraut zu

machen. Bewahren Sie dieses Handbuch zum späteren Nachschlagen auf.

Manuel d’installation

Important : Veuillez lire attentivement les PRECAUTIONS, ce Manuel d’installation ainsi

que le Manuel d’utilisation inclus sur le CD-ROM, afin de vous familiariser

avec ce produit et de l’utiliser efficacement et en toute sécurité. Veuillez

conserver ce manuel pour référence ultérieure.

Manual de instalación

Importante: Lea detenidamente el apartado PRECAUCIONES, el Manual de instalación y

el Manual del usuario que encontrará en el CD-ROM para familiarizarse con

las normas de seguridad y los procedimientos de uso. Conserve este manual

para consultas posteriores.

Manuale di installazione

Importante:

leggere attentamente la sezione PRECAUZIONI, il presente Manuale di

installazione e il Manuale dell’utente memorizzati sul CD-ROM per utilizzare il

prodotto in modo efficace e sicuro. Conservare il manuale per consultazioni future.

Installationshandboken

Viktigt:

Läs försiktighetsåtgärderna, den här installationshandboken och användarhandboken

som finns på CD-skivan noggrant så att du känner dig säker och får ett effektivt

användande av produkten. Behåll manualen för framtida behov.

Εγχειρίδιο εγκατάστασης

Σημαντικό: Διαβάστε προσεκτικά τις ΠΡΟΦΥΛΑΞΕΙΣ, το Εγχειρίδιο εγκατάστασης και το

Εγχειρίδιο χρήστη που θα βρείτε στο CD-ROM προκειμένου να εξοικειωθείτε

με την ασφαλή και αποτελεσματική χρήση της συσκευής. Διατηρήστε αυτό το

εγχειρίδιο για μελλοντική χρήση.

Руководство по установке

Важно! Внимательно прочитайте МЕРЫ ПРЕДОСТОРОЖНОСТИ, настоящее

Руководство по установке и Руководство пользователя на CD-ROM для

получения сведений о безопасной и эффективной эксплуатации.

Сохраните это руководство для справки.

设定手册

重要事项： 请仔细阅读储存在光盘上的用户手册、本设定手册和预防措施、掌握如何安

全、有效地使用本产品。请保留本手册、以便今后参考。

中文

Compatible Resolutions/Frequencies Kompatibla upplösningar/frekvenser

Kompatible Auflösungen/Bildwiederholfrequenzen

Συμβατές αναλύσεις/Συχνότητες

Résolutions/Fréquences compatibles

Поддерживаемые разрешения/частоты

Frecuencias y resoluciones compatibles

兼容的分辨率／频率

Risoluzioni/Frequenze compatibili:

The monitor supports the following resolutions. Skärmen stöder följande upplösningar.

Der Monitor unterstützt die nachfolgend aufgeführten Auflösungen.

Η οθόνη υποστηρίζει τις παρακάτω αναλύσεις.

Le moniteur est compatible avec les résolutions suivantes. Монитор поддерживает следующие разрешения.

El monitor admite las siguientes resoluciones.

本显示器支持下列分辨率。

Il monitor supporta le seguenti risoluzioni.

Analog Input

Resolution Frequency Mode

Dot Clock

640 × 480 67 Hz Apple Macintosh

640 × 480 ~85 Hz VGA, VESA

720 × 400 70 Hz VGA TEXT

800 × 600 ~85 Hz VESA

832 × 624 75 Hz Apple Macintosh

1024 × 768 ~85 Hz VESA

1152 × 864

75 Hz VESA

202.5 MHz (Max.)

1152 × 870

75 Hz Apple Macintosh

1280 × 960 60 Hz VESA

1280 × 960 75 Hz Apple Macintosh

1280 × 1024 ~85 Hz VESA

1600 × 1200 ~75 Hz VESA

*

2

1680 × 1050 60 Hz VESA CVT, VESA CVT RB

*

1

*

2

1920 × 1200 60 Hz VESA CVT, VESA CVT RB

Digital Input

Resolution Frequency Mode

Dot Clock

640 × 480 60 Hz VGA

720 × 400 70 Hz VGA TEXT

800 × 600 60 Hz VESA

1024 × 768 60 Hz VESA

1280 × 960 60 Hz VESA

162 MHz (Max.)

1280 × 1024 60 Hz VESA

1600 × 1200 60 Hz VESA

*

2

1680 × 1050 60 Hz VESA CVT, VESA CVT RB

*

1

*

2

1920 × 1200 60 Hz VESA CVT RB

1920 × 1080p 50, 60 Hz 1080p

*

1

Recommended resolution (Set this resolution)

*

1

Empfohlene Auflösung (diese Auflösung festlegen)

*

1

Résolution recommandée (Réglez votre appareil sur cette résolution)

*

1

Resolución recomendada (ajuste esta resolución)

*

1

Risoluzione consigliata (impostare questo valore di risoluzione)

*

1

Rekommenderad upplösning (Ställ in den här upplösningen)

*

1

Προτεινόμενη ανάλυση (Επιλέξτε αυτή την ανάλυση)

*

1

Рекомендованное разрешение (Установите данное разрешение)

*

1

推荐的分辨率 (设定此分辨率)

*

2

When displaying the wide format input signal, a graphics board in conformance with VESA CVT standard is required.

*

2

Zur Anzeige des Eingangssignals für das Breitbild ist eine Grafikkarte erforderlich, die die Anforderungen des Standards VESA CVT erfüllt.

*

2

Lors de l’affichage du signal d’entrée format large, une carte vidéo conforme à la norme VESA CVT est requise.

*

2

Se necesita una tarjeta gráfica compatible con el estándar VESA CVT para visualizar la señal de entrada con formato panorámico.

*

2

Per visualizzare il segnale di ingresso in formato ampio, è necessaria una scheda grafica conforme allo standard VESA CVT.

*

2

Vid visning med ingångssignalen för bredbildsformat, krävs ett grafikkort som uppfyller VESA CVT-standard.

*

2

Όταν εμφανίζεται το σήμα εισόδου οθόνης μεγάλου μεγέθους, απαιτείται κάρτα γραφικών συμβατή με το πρότυπο VESA CVT.

*

2

Для отображения широкоформатного входного сигнала графическая карта должна соответствовать стандарту VESA CVT.

*

2

当显示宽荧幕格式输入信号时，需要符合VESA CVT标准的显卡。

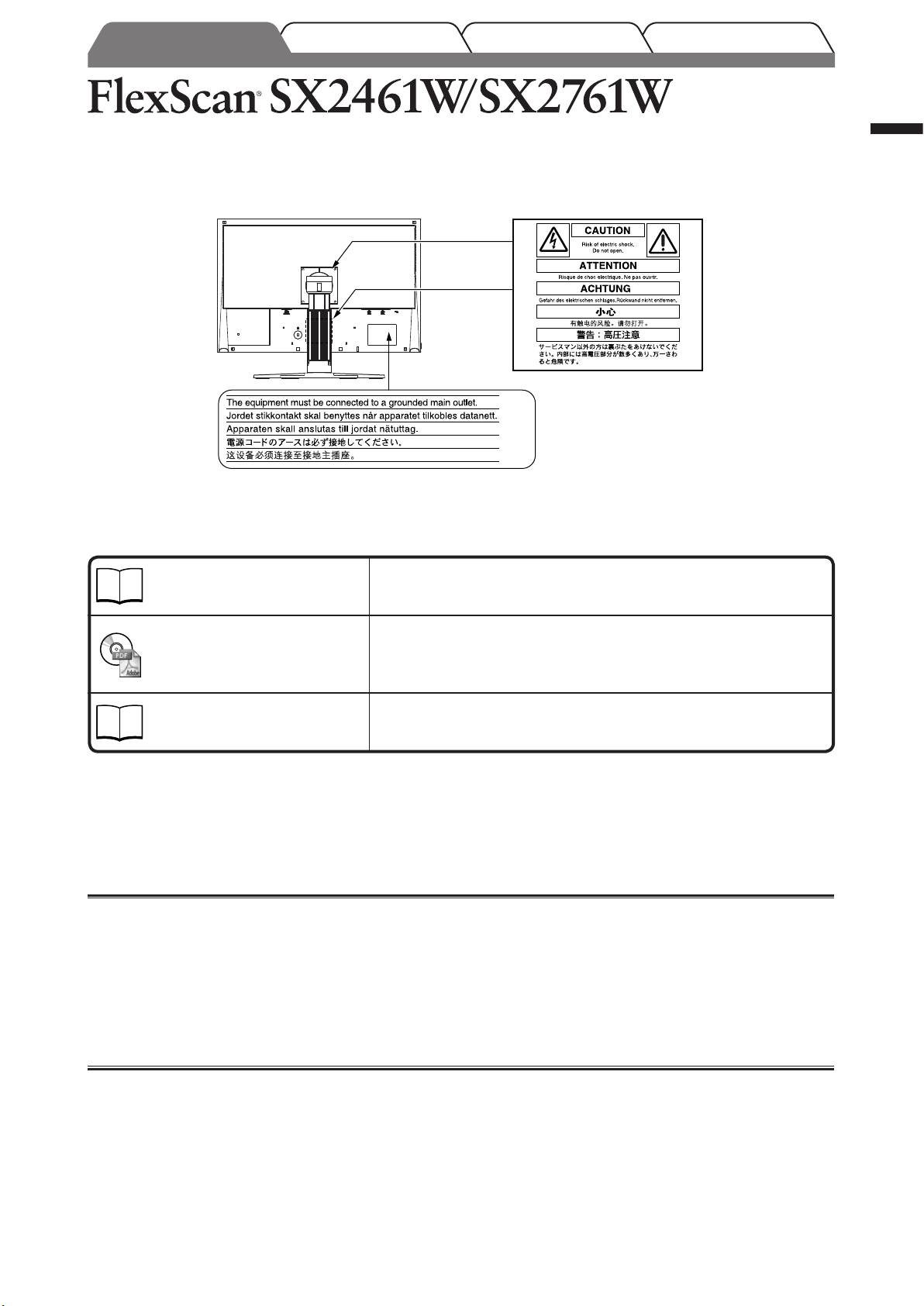

Color LCD Monitor

English

[Location of Caution Statement]

(SX2461W)

(SX2761W)

1

About Setup Manual and User’s Manual

Setup Manual

Describes basic information ranging from connection of the monitor to a

(this manual)

PC to using the monitor.

User’s Manual

Describes application information such as screen adjustments, settings,

(PDF file on the EIZO LCD

and specifications.

Utility Disk (CD-ROM)*)

PRECAUTIONS

Describes how to use the monitor safely.

* Installation of Adobe Reader is required.

• Product specifications vary with sales areas. Confirm that the manual is written in the language of the area of purchase.

Copyright© 2007 EIZO NANAO CORPORATION All rights reserved.

No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means,

electronic, mechanical, or otherwise, without the prior written permission of EIZO NANAO CORPORATION.

EIZO NANAO CORPORATION is under no obligation to hold any submitted material or information confidential

unless prior arrangements are made pursuant to EIZO NANAO CORPORATION’s receipt of said information.

Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO

monitor specifications are subject to change without notice.

ENERGY STAR is a U.S. registered mark.

Apple and Macintosh are registered trademarks of Apple Inc.

VGA is a registered trademark of International Business Machines Corporation.

DPMS is a trademark and VESA is a registered trademark of Video Electronics Standards Association.

Windows and UniColor Pro are trademarks of Microsoft Corporation.

PowerManager is a trademark of EIZO NANAO CORPORATION.

FlexScan, ScreenManager, i•Sound and EIZO are registered trademarks of EIZO NANAO CORPORATION in Japan and other

countries.

English

2

Package Contents

Check that all the following items are included in the packaging box. If any items are missing or damaged, contact your local dealer.

NOTE

• Please keep the packaging box and materials for future movement or transport of the monitor.

□ Monitor

□ EIZO USB cable: MD-C93

□ Power cord

□ EIZO LCD Utility Disk (CD-ROM)

□ Digital signal cable: FD-C39

• User’s Manual of this monitor

□ UniColor Pro (CD-ROM)

• UniColor Pro User’s Manual

□ Setup Manual (this manual)

□ Analog signal cable: FD-C16

□ PRECAUTIONS

□ Limited warranty

□ Recycling Information

□ Mounting Screws (M4 x 12mm, 4 pcs)

Controls and Functions

1 Sensor Detects ambient brightness. BrightRegulator function (page 5).

2 Adjustment Lock button Locks the buttons to retain the display mode or the status adjusted or set.

3 Input Signal Selection button Switches input signals for display when two PCs are connected to the monitor.

4 Mode button Allows you to switch the display mode.

5 Auto button Performs the function to adjust the screen automatically. (analog input only)

6 Enter button

Displays the Adjustment menu, determines an item on the menu screen, and

saves values adjusted.

7 Control buttons (Left, Down,

• Chooses an adjustment item or increases/decreases adjusted values for

Up, Right)

advanced adjustments using the Adjustment menu (page 5).

• or button: Displays the brightness adjustment window (page 5).

8 Power button Turns the power on or off.

9 Power indicator

Indicates monitor’s operation status.

Blue: Operating Orange: Power saving Off: Power off

10 Security lock slot Complies with Kensington’s MicroSaver security system.

11

Power connector Connects the power connector.

12 Input signal connectors Left: Signal 1 (DVI-I connector), Right: Signal 2 (DVI-I connector)

13 USB port (Up)

Connect the PC to the monitor with a USB cable.

14

USB Port (Down) Connects a peripheral USB device.

15 Stand Used to adjust the height and angle of the monitor screen.

16 Cable holder Covers the monitor cables.

17

Option speaker (i·Sound L3)

Used to attach the option speaker (i·Sound L3). (May not allowed to attach the

mounting holes

option speaker depending on the stand type.)

®

* ScreenManager

is an EIZO’s nickname of the Adjustment menu. (For how to use ScreenManager, refer to the User’s Manual on

the EIZO LCD Utility Disk (CD-ROM).)

(SX2761W only)

Adjustment menu

®

(*ScreenManager

)

[SX2461W] [SX2761W]

English

3

Connecting Cables

Attention

• When replacing the current monitor with a SX2461W/SX2761W monitor, be sure to change the PC

settings for resolution and vertical frequency to those which are available for the SX2461W/SX2761W

monitor referring to the resolution table (back of cover page) before connecting the PC.

NOTE

• When connecting two PCs to the monitor, refer to the User’s Manual on the EIZO LCD Utility Disk (CD-ROM).

Check that the monitor and the PC are powered off.

1

Connect the monitor to the PC with a signal cable that matches the connectors.

2

After connecting the cable connectors, tighten the screws of the connectors to secure the coupling.

Digital connection

Connectors on

Connectors on

the PC

the monitor

Signal cable FD-C39 (supplied)

DVI connector

DVI-I connector

USB Upstream

USB Downstream

EIZO USB cable MD-C93 (supplied)*

Analog connection

Connectors on

Connectors on

the PC

the monitor

D-Sub mini 15-pin

Signal cable FD-C16 (supplied)

connector

DVI-I connector

USB Upstream

USB Downstream

EIZO USB cable MD-C93 (supplied)*

* Required when using the UniColor Pro software and the ScreenManager Pro for LCD software. (Refer to the

User’s Manual on the UniColor Pro (CD-ROM) or the EIZO LCD Utility Disk (CD-ROM).)

Plug the power cord into a power outlet and the Power connector on the monitor.

3
