Setup Manual

Important: Please read this Setup Manual and the User’s Manual stored on the CD-

ROM carefully to familiarize yourself with safe and effective usage. Please

retain this manual for future reference.

Installationshandbuch

Wichtig: Lesen Sie dieses Installationshandbuch und das Benutzerhandbuch (auf der

CD-ROM) aufmerksam durch, um sich mit der sicheren und efzienten

Bedienung vertraut zu machen. Bewahren Sie dieses Handbuch zum

späteren Nachschlagen auf.

Manuel d’installation

Important : Veuillez lire attentivement ce manuel d’installation, ainsi que le manuel

d’utilisation inclus sur le CD-ROM, pour vous familiariser avec une utilisation

efcace et en toute sécurité. Veuillez conserver ce manuel pour référence

ultérieure.

Manual de instalación

Importante: Lea detenidamente este Manual de instalación y el Manual del usuario (en el

CD-ROM) para familiarizarse con las normas de seguridad y procedimientos

de uso. Conserve este manual para consultas posteriores.

Manuale di installazione

Importante: si consiglia di leggere con attenzione il presente Manuale di installazione e il

Manuale dell’utente (sul CD-ROM in dotazione) per acquisire le informazioni

necessarie per un utilizzo sicuro ed efcace. Conservare il manuale per

consultazioni future.

Installationshandboken

Viktigt: Läs den här installationshandboken och bruksanvisningen som nns på CD-

skivan noggrant så att du känner dig säker och får ett effektivt användande

av produkten. Behåll manualen för framtida behov.

Εγχειρίδιο εγκατάστασης

Σημαντικό: Διαβάστε προσεκτικά αυτό το εγχειρίδιο εγκατάστασης και το εγχειρίδιο

χρήσης που είναι αποθηκευμένο στο CD-ROM για να εξοικειωθείτε με την

ασφαλή και αποτελεσματική χρήση της μονάδας. Διατηρήστε αυτό το

εγχειρίδιο για μελλοντική χρήση.

Руководство по установке

Важно! Внимательно прочитайте настоящее Руководство по установке и

Руководство пользователя на диске CD-ROM для получения сведений о

безопасной и эффективной эксплуатации. Сохраните это руководство

для справки.

设定手册

重要事项： 请仔细阅读储存在光盘片中的设定手册和用户手册，以便熟悉安全有效使用本

显示器的信息。请保留本手册，以便今后参考。

中文

Color LCD Monitor

English

SAFETY SYMBOLS

This manual uses the safety symbols below. They denote critical information. Please read them carefully.

WARNING

CAUTION

Failure to abide by the information in a WARNING

Failure to abide by the information in a CAUTION

may result in serious injury and can be life threatening.

may result in moderate injury and/or property or

product damage.

Indicates a prohibited action. Indicates a mandatory action that must be followed.

PRECAUTIONS

WARNING

If the unit begins to emit smoke, smells like

Use the enclosed power cord and connect to

something is burning, or makes strange

the standard power outlet of your country.

noises, disconnect all power connections

Be sure to remain within the rated voltage of the power

immediately and contact your dealer for

cord. Not doing so may result in re or electric shock.

advice.

Power supply: 100-120/200-240Vac 50/60Hz

Attempting to use a malfunctioning unit may result in

re, electric shock, or equipment damage.

Keep small objects or liquids away from the

Use the unit in an appropriate location.

unit.

Not doing so may result in re, electric shock, or

Small objects accidentally falling through the

equipment damage.

ventilation slots into the cabinet or spillage into the

• Do not place outdoors.

cabinet may result in re, electric shock, or equipment

• Do not place in the transportation system (ship,

damage. If an object or liquid falls/spills into the

aircraft, trains, automobiles, etc.).

cabinet, unplug the unit immediately. Have the unit

• Do not place in a dusty or humid environment.

checked by a qualied service engineer before using it

• Do not place in a location where water is splashed on

again.

the screen (bathroom, kitchen, etc.).

• Do not place in a location where the steam comes

directly on the screen.

• Do not place near heat generating devices or a

humidier.

•

Do not place in an inammable gas environment.

The equipment must be connected to a

Fluorescent backlight lamps contain mercury

grounded main outlet.

(the products that have LED backlight lamps

Not doing so may result in re or electric shock.

contain no mercury), dispose according to

local, state or federal laws.

CAUTION

Do not block the ventilation slots on the

Use an easily accessible power outlet.

cabinet.

This will ensure that you can disconnect the power

• Do not place any objects on the ventilation slots.

quickly in case of a problem.

• Do not install the unit in a closed space.

• Do not use the unit laid down or upside down.

Blocking the ventilation slots prevents proper airow

and may result in re, electric shock, or equipment

damage.

1

TroubleshootingSetting/AdjustmentInstallationPrior to use

About Setup Manual and User’s Manual

Setup Manual

Describes basic information ranging from connection of the monitor to a

(this manual)

PC to using the monitor.

Describes application information such as screen adjustments, settings,

User’s Manual

and specications.

(PDF le on the CD-ROM*)

* Installation of Adobe Reader is required.

• Product specications vary with sales areas. Conrm that the manual is written in the language of the area of purchase.

English

2

TroubleshootingSetting/AdjustmentInstallationPrior to use

Package Contents

Check that all the following items are included in the packaging box. If any items are missing or damaged, contact your local dealer.

NOTE

• Please keep the packaging box and materials for future movement or transport of the monitor.

□ Monitor

□ Stereo mini-jack Cable

□ Power Cord

□ EIZO LCD Utility Disk (CD-ROM)

• User’s Manual

□ Digital Signal Cable: FD-C39

□ Setup Manual (this manual)

□ Limited Warranty

□ Recycling Information

□ Mounting Screws (M4 x 12, 4 pcs.)

□ Analog Signal Cable: MD-C87

Controls and Functions

Adjustment menu

®

(*ScreenManager

)

1 Sensor The sensor detects ambient brightness. BrightRegulator function (page 5)

2 Volume control button Displays the volume adjustment menu (page 4).

3

Input Signal Selection button

Switches input signals for display when two PCs are connected to the monitor.

4 Mode button Displays the FineContrast mode (page 4).

5 Control buttons (Left, Right) •

Displays the brightness adjustment window (page 5).

• Chooses an adjustment item or increases/decreases adjusted values for

advanced adjustments using the Adjustment menu (page 5).

6 Enter button Displays the Adjustment menu, determines an item on the menu screen, and

saves values adjusted.

7 Power button T

urns the power on or off.

8 Power indicator Indicates

monitor’s operation status.

Blue: Operating Orange: Power saving Off: Power off

9 Security lock slot Complies with Kensington’s MicroSaver security system.

10 Stand Used to adjust the angle of the monitor screen.

11

Power connector

Connects the power cord.

12

Input signal connectors

Left: DVI-D connector/Right: D-sub mini 15-pin connector.

13 Stereo mini jack Connects the stereo mini jack cable.

14 Cable holder Covers

the monitor cables.

15 Headphone jack Connects

the headphones.

16 Speaker Outputs

audio source.

®

*

ScreenManager

is an EIZO’s nickname of the Adjustment menu. (For how to use ScreenManager, refer to the User’s Manual on the CD-ROM.)

English

3

TroubleshootingSetting/AdjustmentPrior to use Installation

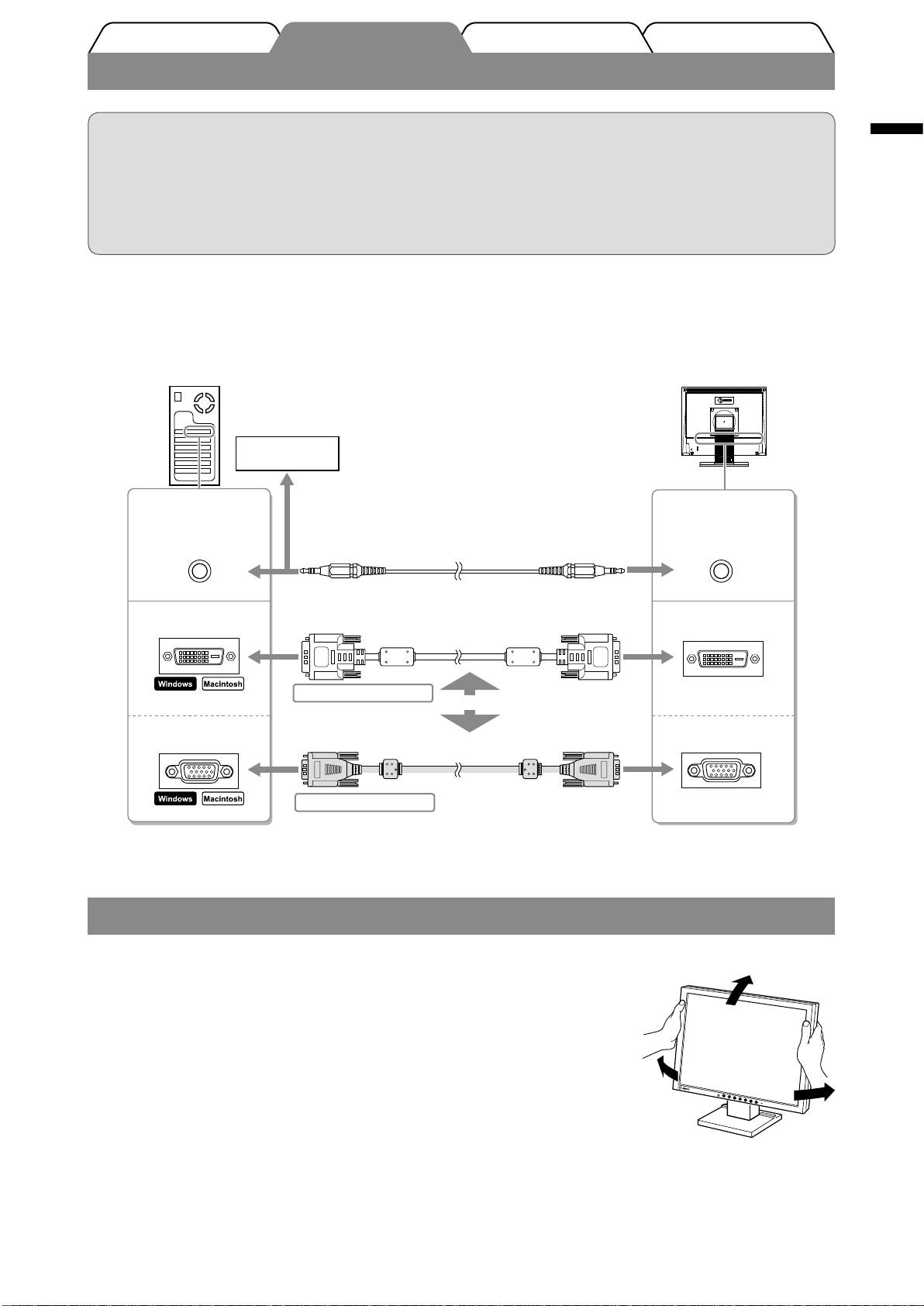

Connecting Cables

Attention

• When replacing the current monitor with a S1501-B monitor, be sure to change the PC settings for

resolution and vertical frequency to those which are available for the S1501-B monitor referring to the

resolution table (back of cover page) before connecting the PC.

NOTE

•

When connecting two PCs to the monitor, refer to the User’s Manual on the CD-ROM.

Check that the monitor and the PC are powered off.

1

Connect the monitor to the PC with a signal cable that matches the connectors.

2

After connecting the cable connectors, tighten the screws of the connectors to secure the coupling.

CD player, etc

Connectors on

Connectors on

the PC

the monitor

Audio output

Audio

input

connector

Stereo mini jack cable (supplied)

connector

Signal cable FD-C39 (supplied)

DVI-D connector

DVI-D connector

Digital connection

or

D-sub mini 15-pin

D-sub mini 15-pin

connector

Signal cable MD-C87 (supplied)

connector

Analog connection

Plug the power cord into a power outlet and the Power connector on the monitor.

3

Adjusting the Screen Angle

Tilt and swivel the screen to the best condition for working.
