JVC KW-NSX1: instruction

MONITOR WITH DVD RECEIVER

ENGLISHESPAÑOLРУCCKИЙ

MONITOR CON RECEPTOR DE DVD

МОНИТОР С DVD-РЕСИВЕРОМ

KW-NSX1

Consists of KW-HUNSX1 (Main unit) and KS-NSX1 (SMARTPHONE ADAPTER unit).

Se compone de la KW-HUNSX1 (unidad principal) y del KS-NSX1 (ADAPTADOR SMARTPHONE).

Состоит из KW-HUNSX1 (основное устройство) и KS-NSX1 (АДАПТЕР ДЛЯ СМАРТФОНА).

For canceling the display demonstration, see page 7.

Para cancelar la demostración en pantalla, consulte la página 7.

Информацию об отмене демонстрации функций дисплея см. на стр. 7.

For installation and connections, refer to the separate manual.

Para la instalación y las conexiones, refiérase al manual separado.

Указания по установке и выполнению соединений приводятся в отдельной инструкции.

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ

LVT2359-001A

[EU]

Covers_KW-NSX1[EU]001A.indb 2Covers_KW-NSX1[EU]001A.indb 2 12/04/20 16:0912/04/20 16:09

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

ENGLISH

2. CAUTION: Do not open the

top cover. There are no user

serviceable parts inside the

unit; leave all servicing to

qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical

instruments.

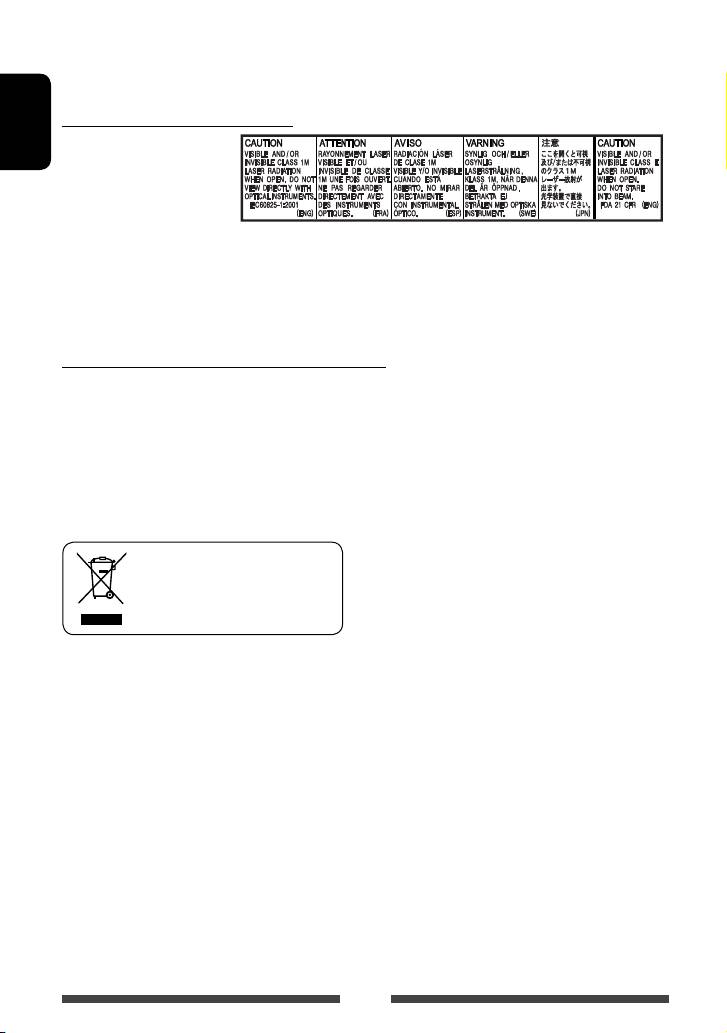

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

WARNINGS: (To prevent accidents and damage)

• DO NOT install any unit or wire any cable in a location

• DO NOT operate the unit while driving.

where;

If you need to operate the unit while driving, be sure

– it may obstruct the steering wheel and gearshift

to look around carefully.

lever operations.

• The driver must not watch the monitor while driving.

– it may obstruct the operation of safety devices

• The driver must not put on the headphones while

such as air bags.

driving.

– it may obstruct visibility.

[European Union only]

2

EN_KW-NSX1[EU].indb 2EN_KW-NSX1[EU].indb 2 12/04/23 16:4012/04/23 16:40

Cautions on the monitor:

How to reset your unit

• The monitor built in this unit has been produced with

high precision, but it may have some ineffective dots.

This is inevitable and is not considered defective.

• Do not expose the monitor to direct sunlight.

• Do not operate the touch panel using a ball-point

ENGLISH

pen or similar tool with the sharp tip.

Touch the buttons on the touch panel with your

finger directly (if you are wearing a glove, take it off).

• Your preset adjustments will also be erased (except

• When the temperature is very cold or very hot...

the registered Bluetooth devices).

–

Chemical changes occur inside, causing malfunction.

– Pictures may not appear clearly or may move

How to forcibly eject a disc

slowly. Pictures may not be synchronized with

Press SRC/ and 0 at the same time.

the sound or picture quality may decline in such

environments.

+

For safety...

• Do not raise the volume level too much, as this will

make driving dangerous by blocking outside sounds,

and may cause hearing loss.

• Stop the car before performing any complicated

operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold

• Be careful not to drop the disc when it ejects.

weather, wait until the temperature in the car becomes

• If this does not work, reset your unit. (☞ above)

normal before operating the unit.

How to read this manual:

• This manual mainly explains operations using the buttons on the monitor panel and touch panel. For

operations using the remote controller (RM-RK252 ), ☞ page 59.

• < > indicates the variable screens/menus/operations/settings that appear on the touch panel.

• [ ] indicates the buttons on the touch panel.

• Indication language: English indications are used for the purpose of explanation. You can select the

indication language from the <Settings> menu. (☞ page 46)

3

EN_KW-NSX1[EU].indb 3EN_KW-NSX1[EU].indb 3 12/04/23 16:4012/04/23 16:40

Contents

How to reset your unit ........................................... 3

Using the smartphone ..........................34

How to forcibly eject a disc .................................... 3

Sound adjustment ................................37

Using the sound equalization .............................. 37

INTRODUCTIONS

ENGLISH

Adjusting the crossover frequency ....................... 38

Detaching/attaching the monitor panel ...5

Changing display design .......................39

Component names and functions ............6

Setting for video playback ....................41

Initial settings .......................................7

Adjusting the picture ........................................... 41

Setting the clock ....................................8

Changing the aspect ratio ................................... 42

Common operations ...............................9

Zooming the picture ............................................42

Turning on the power ...........................................9

Using a rear view camera ......................43

Turning off the power ............................................9

Setting menu items ..............................44

Adjusting the volume ...........................................9

Memorizing/recalling the settings .....................47

Turning off the screen ...........................................9

Updating the system ...........................................48

Turning on/off the AV source ..............................10

Adjusting the touch position ..............................48

Touch screen operation ........................................10

Switching screens ................................11

BLUETOOTH OPERATIONS

Information for using Bluetooth®

AV SOURCE OPERATIONS

devices..........................................49

Selecting the playback source ...............12

Bluetooth operations ...........................49

Listening to the radio ...........................13

Connecting Bluetooth devices ............................. 50

Disc operations.....................................18

Using the Bluetooth mobile phone ...................... 52

Playing a disc.......................................................18

Using the Bluetooth audio player ........................57

Playable disc types ..............................................19

Bluetooth device settings ....................................58

Playback operations ............................................20

Settings for disc playback .................................... 24

REFERENCE

USB operations.....................................25

Using the remote controller ..................59

Playing a USB device ...........................................25

Operations using the remote controller

Listening to the iPod/iPhone device ......27

(RM-RK252) ........................................................ 59

Preparation .........................................................27

Maintenance .......................................62

Setting iPod control mode ...................................28

More about this unit .............................63

Selecting preference settings for iPod/iPhone

Troubleshooting ................................... 66

playback ..............................................................28

Specifications.......................................70

iPod/iPhone playback operations for <Head>

mode ...................................................................29

iPod/iPhone playback operations for <iPod Out>

mode ...................................................................30

Using an App of iPod touch/iPhone .....................31

Using other external components ..........33

Front AUX ............................................................33

AV-IN ................................................................... 33

4

EN_KW-NSX1[EU].indb 4EN_KW-NSX1[EU].indb 4 12/04/23 16:4012/04/23 16:40

INTRODUCTIONS

Detaching/attaching the monitor panel

Cautions

ENGLISH

• Hold the monitor panel securely so as not to drop it accidentally.

• Fit the monitor panel onto the attaching plate until it is firmly locked.

AttachingDetaching

Turn off the power before detaching the monitor panel.

(☞ page 9)

1

2

3

Soft case (supplied)

5

EN_KW-NSX1[EU].indb 5EN_KW-NSX1[EU].indb 5 12/04/23 16:4012/04/23 16:40

Component names and functions

ENGLISH

Screen (touch panel) Monitor panel

1 Loading slot

5 VOLUME/ATT knob. (☞ page 9)

2 0 (Eject) button

• Attenuates the sound. (Press)

Ejects the disc.

• Adjusts the audio volume. (Turn)

3 MENU/DISP OFF button

6 Remote sensor

• Displays the <AV Menu> screen. (Press)

7 Reset button

(☞ page 11)

Resets the unit. (☞ page 3)

• Turns off/on the screen. (Hold) (☞ page 9)

8 AUX input jack

4 SRC /

button

9

(Detach) button

• Turns off the power. (Hold) (☞ page 9)

Detaches the monitor panel. (☞ page 5)

• Turns on the power. (☞ page 9)

• Selects the AV source. (Press) (☞ page 12)

Caution on volume setting:

Digital devices (CD/USB/iPod) produce very little

noise compared with other sources. Lower the

volume before playing these digital sources to

You can change the color of the buttons on the

avoid damaging the speakers by sudden increase

monitor panel. (☞ page 39)

of the output level.

6

EN_KW-NSX1[EU].indb 6EN_KW-NSX1[EU].indb 6 12/04/23 16:4012/04/23 16:40

Initial settings

When you power on the unit for the first time or reset

2 Finish the procedure.

the unit, the initial setting screen appears.

• You can also change the settings on the <Settings>

screen. (☞ page 44)

ENGLISH

1

<AV Menu> screen is displayed.

• <AV Off> is selected initially. Select the

playback source. (☞page 12)

Language Select the text language used

for on-screen information.

(☞page 46)

AV Input Select an external component

to play. (☞page 45)

Camera Input Select <On> when

connecting the rear view

camera. (☞page 46)

Display

Select the background

Design

and the colors of the text,

touch panel buttons and

the monitor panel buttons.

(☞page 39)

Demonstration

Activate or deactivate the

display demonstration.

(☞page 45)

7

EN_KW-NSX1[EU].indb 7EN_KW-NSX1[EU].indb 7 12/04/23 16:4012/04/23 16:40

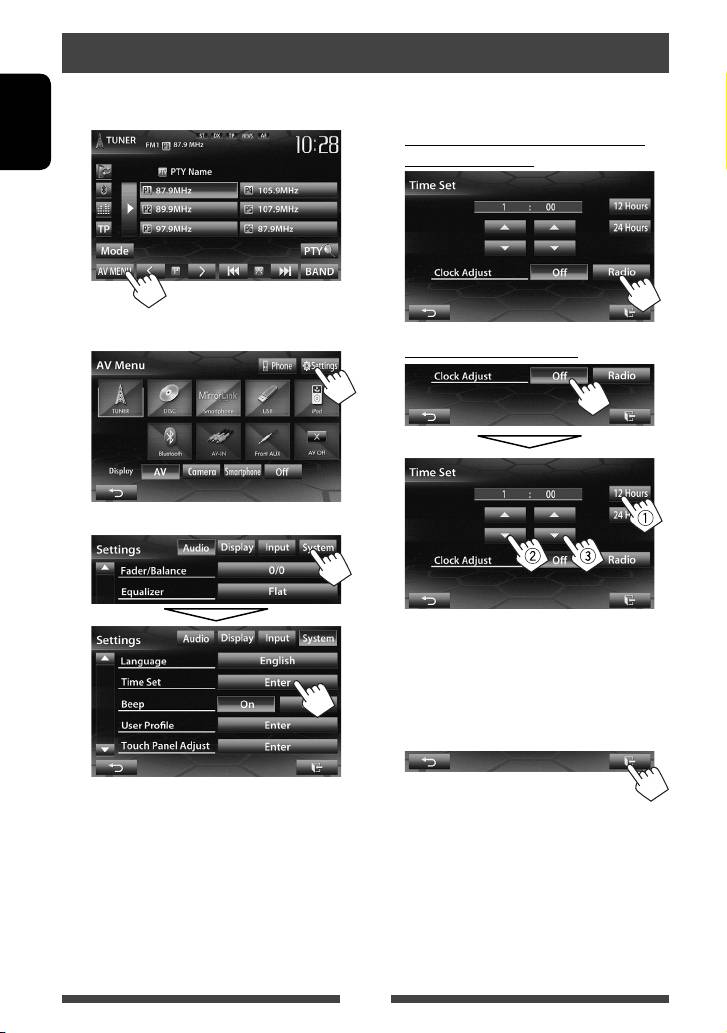

Setting the clock

1 Display <AV Menu> screen.

4 Set the clock time.

On the source control screen:

To synchronize the clock time with

ENGLISH

Radio Data System

2 Display <Settings> screen.

To set the clock manually

3

1

Select the time display format

2

Adjust the hour

3

Adjust the minute

5 Finish the procedure.

8

EN_KW-NSX1[EU].indb 8EN_KW-NSX1[EU].indb 8 12/04/23 16:4012/04/23 16:40

Common operations

Turning on the power

Turning off the screen

ENGLISH

(Hold)

The screen is turned off.

Turning off the power

• You can also turn off the screen on <AV Menu>

screen.

(Hold)

Adjusting the volume

To adjust the volume (00 to 50)

IncreaseDecrease

To turn on the screen

• On the source control screen, you can also adjust the

volume by moving your finger on the touch panel as

illustrated.

or

IncreaseDecrease

Touch the screen to display <AV Menu> screen.

To attenuate the sound

The ATT indicator lights up.

To cancel the attenuation, press the VOLUME/ATT

knob.

9
