Eneo EDC-4372: DE EN FR PL

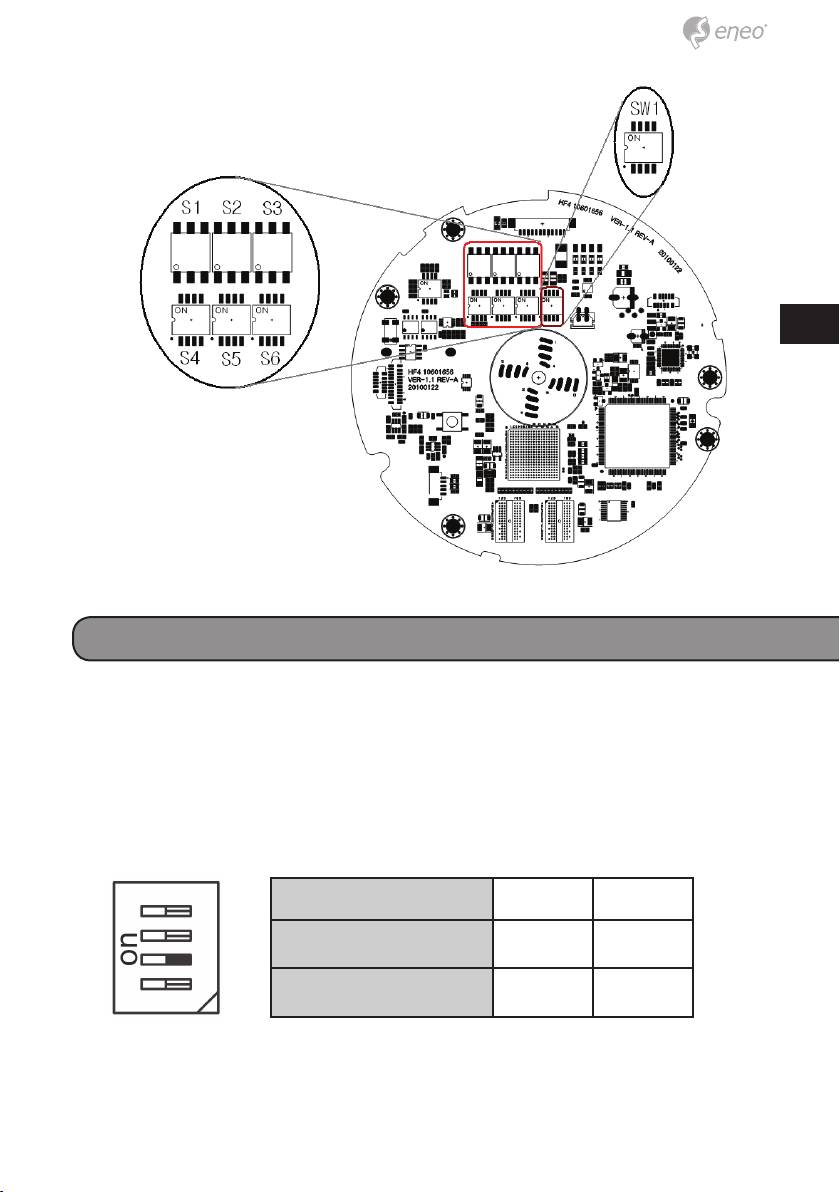

SW1: Termination switches

Fail-safe Network

DE

EN

FR

PL

Adress (ID-) and protocol

selection switches

RU

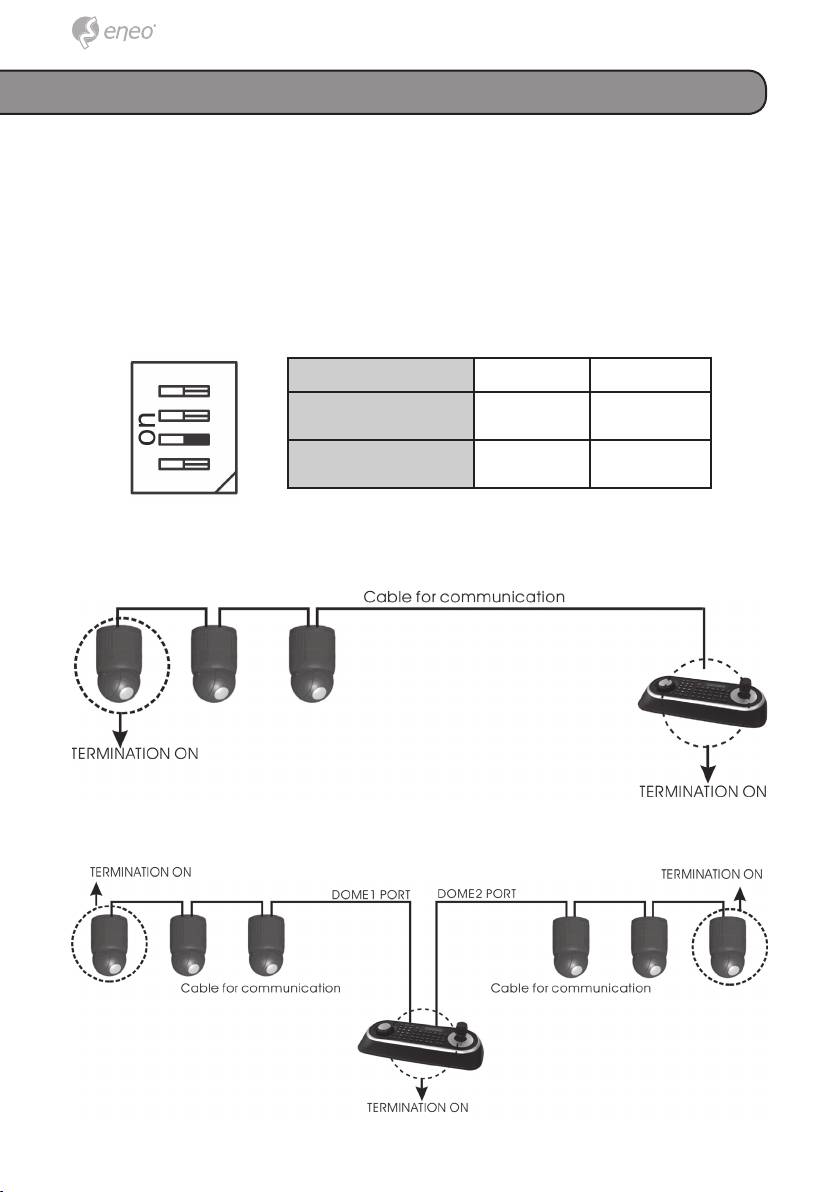

Setting Dome Camera Termination

The device which is connected at end of line, whether it be a dome camera

or keyboard controller, must have the cable for communication terminated

by setting the appropriate DIP switch. Without proper termination, there is

potential for control signal errors. Total length of the cable for communica-

tion should not exceed 1.2km.

SW1 SW1-1 SW1-2

Terminated ON ON

Not terminated OFF OFF

21

Fail-safe Network

When you control the dome by the other device not own keyboard, some

error may be existed in the serial communication. The reason is caused by

the other device without the fail-safe network.

At this time, you solve the problem to set this DIP switch to ON of the

nearest dome from the other device only.

SW2 SW1-3 SW1-4

ON Pull-up Pull-down

OFF None None

22
