Eneo EDC-4372: DE EN FR

Push

Bubble ring

ass‘y

Remove camera

window

Screw

Push

DE

EN

FR

Dome

PL

RU

Alarm output Alarm input

Light

Alarm output Alarm input

Rear Rear

19

PTZ camera

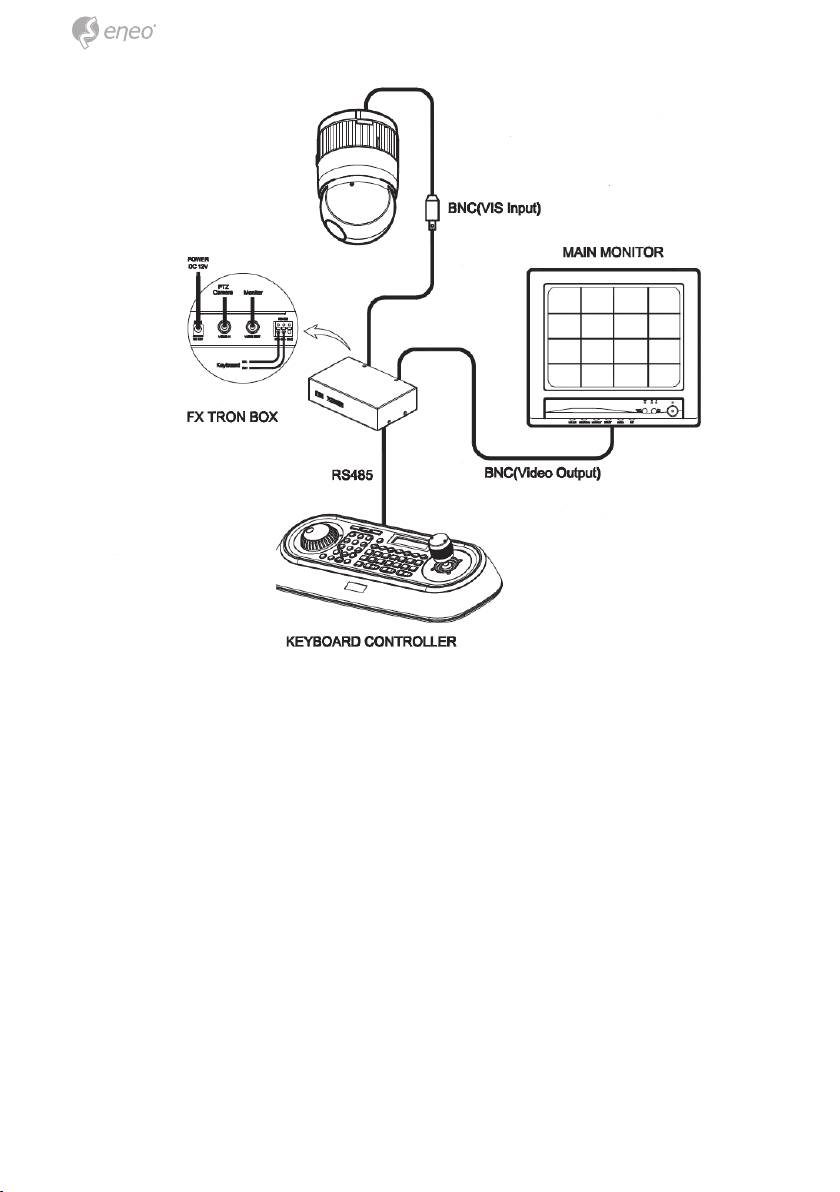

For control the transmission mode you should be following Step:

1. Adjust the ID(DIP switch)*. Device ID should be the same as Camera ID.

2. Adjust the protocol(DIP switch)*. Device protocol should be the same as

Camera protocol.

3. Connect the keyboard RS485 port to the device RS485 port.

4. Connect the camera video output port to the device video input port

(BNC).

5. Connect the device video output port to the monitor (BNC).

The dome camera must be installed by qualified service personnel in

accordance with all local and federal electrical and building codes. The

system should be installed according to Figures 4 through 10.

20
