Setting Dome Camera Address (ID)

PL

To prevent damage, each dome camera must have a unique address (ID).

RU

When installing multiple dome cameras using a multiplexer, it is suggested

that the dome camera address match the multiplexer port number.

If you want to set the address more than 999, you should contact the

service provider.

Example: Port 1 = Dome 1, Port 2 = Dome 2 … Port 16 = Dome 16. If

more than 16 dome cameras are installed using two or more multiplexers,

ID of the dome camera should be ID of MUX x No. of camera IN.

(e.g. multiplexer ID= n, Camera IN= m then ID of Dome =16x (n-1)+m )

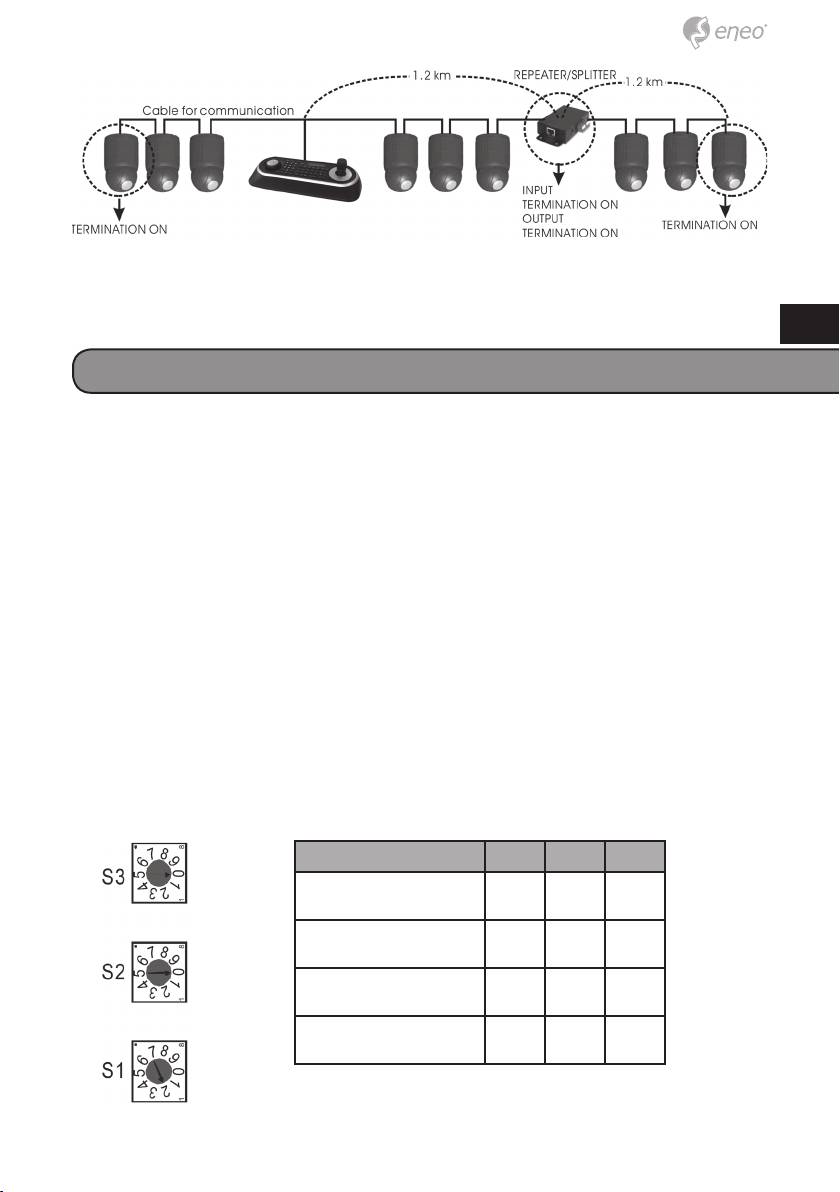

Refer to Figures 4-5 for setting the dome camera address (ID) and protocol

selection.

DOME ID S3 S2 S1

1 0 0 1

2 0 0 2

. . . .

999 9 9 9

23

Setting Dome Camera Protocol

If a dome camera is to be installed with a Fastrax keyboard controller,

select the default protocol.

Consult service personnel if a dome camera is installed with device other

than a keyboard controller.

S/W ON OFF FUNCTION

D1 S4-1 Enable Disable Alarm

D2 S4-2 PAL NTSC NTSC/PAL

D3 S4-3 Reserved

D4 S4-4 RS-422 RS-485 RS-422/RS-

485

D5 D6 D7 D12

PROTOCOLL

S5-1 S5-2 S5-3 S6-4

Off Off Off Off F2, F2E, Pelco-D, Pelco-P:

Standard

Off Off On Off F2, F2E

Off On Off Off Sensormatic RS422

Off On On Off Pelco-D, Pelco-P

On Off Off Off Vicon

On Off On Off Ernitec

On On Off Off Reserved
