Notes on safety

Please also pay attention to the enclosed safety instructions, and carefully

read through this instruction guide before initial operation.

Important points of advice are marked with a caution symbol.

DE

EN

FR

PL

Parts supplied

RU

• 1x Fastrax IV (Dome Camera)

• 1x Bubble Ring (optional)

• 1x Instruction Manual (This Document)

• 3x Assembly Screws for Attaching Fastrax IV

• 3x Plastic Anchor

• 1x 10Pin Connector

• 1x 12Pin Connector

Installation

CAUTION: Be sure to have caution labels (E version only) on

both the body and the base of the camera. Different version will

not support input and output.

The dome camera is for use in surface mounting applications and the

mounting surface should be capable of supporting loads up to 4.5kg.

The dome camera’s base should be attached to a structural object, such as

hard wood, wall stud or ceiling rafter that supports the weight of the dome

camera.

17

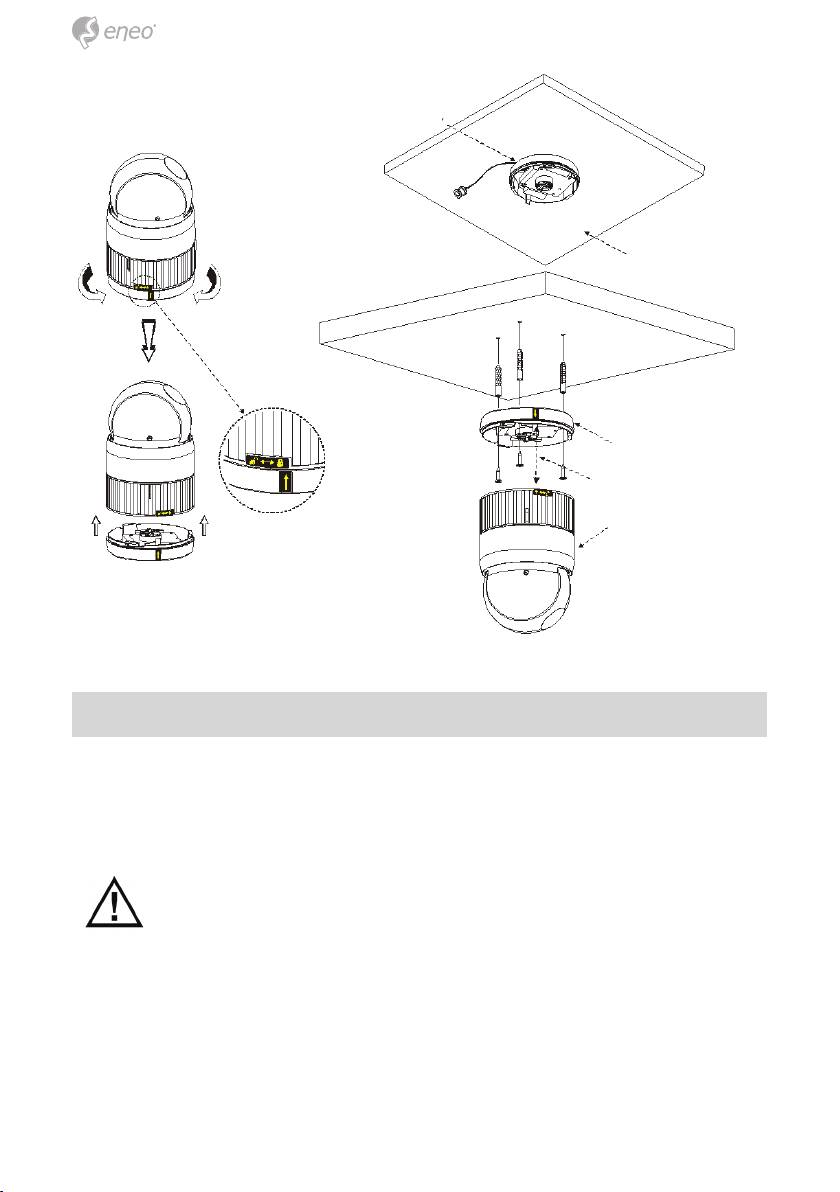

Cable entry

Surface (ceiling)

Unlock Lock

Base

Align extruded tap in

the base to the keyhole

on the PCB in the body

Lock

Body

Assemble bubble ring ass‘y

Note: It is recommended to remove camera window for improving picture

quality when you use bubble ring ass’y.

CAUTION: When installing a Fastrax camera on a high pole

outside, caution should be taken to avoid vibration and shaking of

dome camera due to windload or shock of passing heavy vehic-

les. If pole is not stable enough, it may cause malfunction in accurate tilt

positioning.
