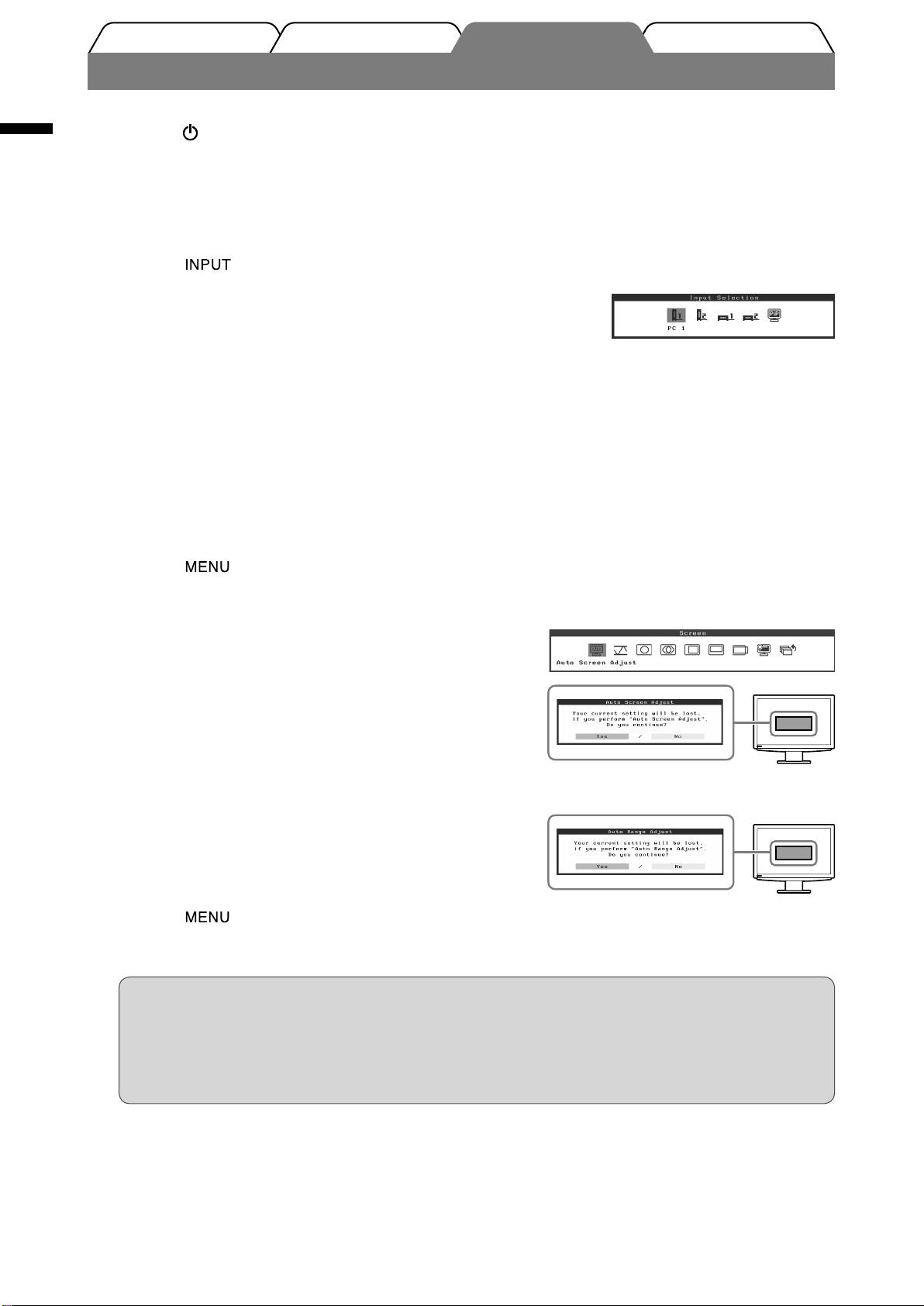

Displaying the Screen

Touch to turn on the monitor.

1

The monitor’s Power indicator lights up blue.

Turn on the external equipment.

2

Switch the input signal to display the desired image sent from the equipment.

3

1. Touch .

Input Selection menu

The Input Selection menu appears.

2. Trace the slide bar left and right to select the input

signal and tap the slide bar.

The screen image appears.

After the image appears on the screen, perform the following operations

4

according to the monitor status.

 When receiving an analog signal from the PC (at PC 2 input selection) [Auto Screen/Range

Adjust]

Perform the auto adjustment function. The screen (clock, phase, position) and the signal output range

are adjusted automatically.

The auto adjustment function is not required when digital signals are input (at PC 1 input selection)

because images are displayed correctly based on the preset data of the monitor.

1. Touch .

The Setting menu appears.

2. Select the <Screen> icon and tap the slide bar.

Screen menu

The <Screen> menu appears.

3. Select the <Auto Screen Adjust> icon and tap the

slide bar.

A message window appears.

4. Select “Yes” and tap the slide bar.

The Auto Screen Adjust function is activated and clock,

phase and screen position are adjusted automatically.

5. Select the <Auto Range Adjust> icon and tap the

slide bar.

A message window appears.

6. Select “Yes” and tap the slide bar.

The Auto Range Adjust function is activated and the

signal output range is adjusted automatically.

7. Touch

.

The Setting menu quits.

Attention

• The Auto Screen Adjust function works correctly when an image is fully displayed over the display

area of the monitor.

It does not work properly when an image is displayed only on a part of the screen (DOS prompt

window, for example) or when a black background (wallpaper, etc.) is in use.

The Auto Screen Adjust function may not work properly with some graphics boards.
