Owner’s Manual

®

PowerVerter

APSX6048VR Pure Sine Wave

DC-to-AC Inverter/Charger

Input Output

1111 W. 35th Street, Chicago, IL 60609 USA

Invert: 48 VDC 208/230V, 50/60 Hz. AC

Customer Support: (773) 869-1212

Charge: 208/230V, 50/60 Hz. AC 48 VDC

www.tripplite.com

Reliable Emergency Backup Power

Congratulations! You’ve purchased the most advanced, feature-rich Inverter/Charger designed as an alternative energy source during utility

power failures. Tripp Lite APS Inverter/Chargers keep your equipment constantly up and productive through all utility power problems (blackouts,

brownouts and high voltages) by inverting DC power from user-supplied batteries into AC power. Built-in surge suppression provides an additional

level of equipment protection. When utility power is present, APS Inverter/Chargers automatically pass through power to your equipment while

simultaneously recharging your connected battery bank. APS Inverter/Chargers are the quiet alternative to gas generators during emergency

backup applications—with no fumes, fuel or noise to deal with! You get AC electricity anywhere and anytime you need it.

Better for Your Equipment Premium Protection Levels

• Built-In Isobar Surge Protection

• Automatic Overload Protection

Ideal Output for All Loads (including computers)

• Pure Sine Wave Output for Maximum Compatibility and Performance

• Frequency-Controlled Output

• Fast Load Switching

• Balanced Load Sharing

Better for Your Batteries Faster Battery Recharge

• High-Amp, 3-Stage Battery Charger (adjustable)

Critical Battery Protection

• Battery Charge Conserver (Load Sense)

• High-Efficiency DC-to-AC Inversion

Better for You Simple, Maintenance-Free Operation

• Multi-Function Lights & Switches

• Moisture-Resistant Construction*

Contents

Safety 2

AC Input/Output Connection 9

Feature Identification 3

Service/Maintenance 9

Operation 4

Troubleshooting 10

Configuration 5

Specifications/Warranty 11

Battery Selection 7

Español 12

Battery Connection 8

Français 23

Ðóññêèé 34

* Inverter/Chargers are moisture-resistant, not waterproof.

®

Copyright © 2007. All rights reserved. PowerVerter

is a registered trademark of Tripp Lite.

Important Safety Instructions

SAVE THESE INSTRUCTIONS!

This manual contains important instructions and warnings that should be followed during the installation, operation and storage of all Tripp Lite

Inverter/Chargers.

Location Warnings

• Install your Inverter/Charger (whether for a mobile or stationary application) in a location or compartment that minimizes exposure to

heat, dust, direct sunlight and moisture.

• Although your Inverter/Charger is moisture resistant, it is NOT waterproof. Flooding the unit with water will cause it to short circuit

and could cause personal injury due to electric shock. Never immerse the unit, and avoid any area where standing water might

accumulate. Mounting should be in the driest location available.

• Leave a minimum of 5 cm clearance at front and back of the Inverter/Charger for proper ventilation. The heavier the load of connected

equipment, the more heat will be generated by the unit.

• Do not install the Inverter/Charger directly near magnetic storage media, as this may result in data corruption.

• Do not install near flammable materials, fuel or chemicals.

• Do not mount unit with its front or rear panel facing down (at any angle). Mounting in this manner will seriously inhibit the

unit's internal cooling, eventually causing product damage not covered under warranty.

• Mount your Inverter/Charger BEFORE DC battery and AC power connection. Failure to follow these instructions may lead to

personal injury and/or damage to the Inverter/Charger and connected systems.

Battery Connection Warnings

• Multiple battery systems must be comprised of batteries of identical voltage, age, amp-hour capacity and type.

• Because explosive hydrogen gas can accumulate near batteries if they are not kept well ventilated, your batteries should not be

installed (whether for a mobile or stationary application) in a “dead air” compartment. Ideally, any compartment would have some

ventilation to outside air.

• Sparks may result during final battery connection. Always observe proper polarity as batteries are connected.

• Do not allow objects to contact the two DC input terminals. Do not short or bridge these terminals together. Serious personal injury

or property damage could result.

Equipment Connection Warnings

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the

failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended. Do not use this

equipment in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.

• Connect your Inverter/Charger only to a properly grounded AC power source. Do not connect the unit to itself; this will damage the

device and void your warranty.

• You may experience uneven performance results if you connect a surge suppressor, line conditioner or UPS system to the output of the

Inverter/Charger.

Operation Warnings

• Your Inverter/Charger does not require routine maintenance. Do not open the device for any reason. There are no user serviceable parts

inside.

• Potentially lethal voltages exist within the Inverter/Charger as long as the battery supply and/or AC input are connected. During any

service work, the battery supply and AC input connection should therefore be disconnected.

• Do not connect or disconnect batteries while the Inverter/Charger is operating in either inverting or charging mode. Operating Mode

Switch should be in the OFF position. Dangerous arcing may result.

2

Feature Identification

Identify the premium features on your specific model and quickly locate instructions on how to maximize their use.

1

Configuration DIP Switches: optimize Inverter/Charger

7

Knockouts for AC Input/Output Conduits

operation depending on your application. See Configuration

8

Remote Control Module Connector: allows remote monitoring

Section for setting instructions.

and control with an optional module (Tripp Lite model

2

Operating Mode Rocker Switch: controls Inverter/Charger

APSRM4, sold separately). See remote module owner’s

operation.The “AUTO/REMOTE” setting ensures your

manual for connection instructions.

equipment receives constant, uninterrupted AC power. It also

9

Battery Charge Conserver (Load Sense) Control: conserves

enables the Inverter/Charger to be remotely monitored and

battery power by setting the low-load level at which the

controlled with an optional remote module (Tripp Lite model

Inverter/Charger’s inverter automatically shuts off. See

APSRM4, sold separately). The “CHARGE ONLY” setting

Configuration Section for setting instructions.

allows your batteries to return to full charge faster by turning the

inverter off, which halts battery discharging. See Operation

10

Main Ground Lug: properly grounds the Inverter/Charger to

Section for setting instructions.

earth ground or to vehicle or boat grounding system. See Battery

Connection Section for connection instructions.

3

Operation Indicator Lights: intuitive “traffic light” signals

show whether the Inverter/Charger is operating from AC line

11

Thermostatically-Controlled Cooling Fans: quiet, efficient

power or DC battery power. It also warns you if the connected

fans regulate internal temperature and prolong equipment

equipment load is too high. See Operation Section for

service life. Fans run intermittently depending on temperature

instructions on reading indicator lights.

and load.

4

Battery Indicator Lights: intuitive “traffic light” signals show

12

Remote Generator Start Connector: automatically cycles

approximate charge level of your battery. See Operation Section

generator based on battery voltage. Use with user-supplied

for instructions on reading indicator lights.

cable. See Configuration Section for more information.

5

DC Power Terminals: connect to your battery terminals. See

13

Remote Battery Temperature Sensing Connector: prolongs

Battery Connection Section for connection instructions.

battery life by adjusting charge based on battery temperature.

Use with cable (included on select models). See Configuration

6

Hardwire AC Input/Output Terminal Strip (Access Panel):

Section for more information.

securely connects the Inverter/Charger to facility or vehicle

electrical system. See Input/Output Connection Section for

connection instructions.

13

12

1

4 3

8

9

5

2

11

6

On Side,

Not Shown

7

10

3

Operation

Switch Modes

LOAD Red Indicator: This red light will

After configuring, mounting and connecting your Inverter/Charger, you

ILLUMINATE CONTINUOUSLY whenever the

are able to operate it by switching between the following operating

inverter is functioning and the power demanded by

modes as appropriate to your situation:

connected appliances and equipment exceeds 100%

of load capacity. The light will FLASH to alert you

AUTO/REMOTE: Switch to this mode when you

when the inverter shuts down due to a severe

need constant, uninterrupted AC power for connected

overload or overheating. If this happens, turn the operating mode

appliances and equipment. The Inverter/Charger will

switch “OFF”; remove the overload and let the unit cool. You may

continue to supply AC power to connected equipment

then turn the operating mode switch to either “AUTO/REMOTE” or

and to charge your connected batteries while utility-

“CHARGE ONLY” after it has adequately cooled. This light will be

or generator-supplied AC power is present. Since the

off when AC power is supplying the load.

inverter is ON (but in Standby) in this mode, it will automatically

switch to your battery system to supply AC power to connected

BATTERY Indicator Lights: These three lights will illuminate in

equipment in the absence of a utility/generator source or in over/under

several sequences to show the approximate charge level of your

voltage situations. “AUTO/REMOTE” also enables an optional

connected battery bank and alert you to two fault conditions:

remote control module (Tripp Lite model APSRM4, sold separately)

Approximate Battery Charge Level*

to function when connected to the unit.

CHARGE ONLY: Switch to this mode when you

Indicator Illuminated Battery Capacity

(Charging/Discharging)

are not using connected appliances and equipment in

order to conserve battery power by disabling the

Green 91%–Full

inverter. The Inverter/Charger will continue to supply

Green & Yellow 81%–90%

AC power to connected equipment and charge

Yellow 61%–80%

connected batteries while utility- or generator-

Yellow & Red 41%–60%

supplied AC power is present. However, since the inverter is OFF in

Red 21%–40%

this mode, it WILL NOT supply AC power to connected equipment in

the absence of a utility/generator source or in over/under voltage

All three lights off 1%–20%

situations.

Flashing red 0% (Inverter

OFF: Switch to this mode to shut down the

shutdown)

* Charge levels listed are approximate. Actual conditions vary

Inverter/Charger completely, preventing the inverter

depending on battery condition and load.

from drawing power from the batteries, and preventing

utility AC from passing through to connected equipment

Fault Condition

or charging the batteries. Use this switch to automatically

Indicator Illuminated Fault Condition

reset the unit if it shuts down due to overload or

overheating. First remove the excessive load or allow the unit to

All three lights Excessive discharge

sufficiently cool (applicable to your situation). Switch to “OFF”,

flash slowly* (Inverter shutdown)

then back to “AUTO/REMOTE” or “CHARGE ONLY” as desired.

All three lights Overcharge (Charger

If unit fails to reset, remove more load or allow unit to cool further

flash quickly** shutdown)

and retry. Use an optional remote control module (Tripp Lite model

*Approximately ½ second on, ½ second off. See Troubleshooting section. ** Approximately ¼ second

APSRM4, sold separately) to reset unit due to overload only.

on, ¼ second off. May also indicate a battery charger fault exists. See Troubleshooting section.

Indicator Lights

Resetting Your Inverter/Charger

Your Inverter/Charger (as well as an optional Tripp Lite Remote

to Restore AC Power

Control Module, sold separately) is equipped with a simple, intuitive,

Your Inverter/Charger may cease supplying AC power or DC charging

user-friendly set of indicator lights. These easily-remembered “traffic

power in order to protect itself from overload or to protect your

light” signals will allow you, shortly after first use, to tell at a glance

electrical system. To restore normal functioning:

the charge condition of your batteries, as well as ascertain operating

details and fault conditions.

Overload Reset: Switch operating mode switch to “OFF” and

remove some of the connected electrical load (ie: turn off some of

LINE Green Indicator: If the operating mode

the AC devices drawing power which may have caused the overload

switch is set to “AUTO/REMOTE,” this light will

of the unit). Wait one minute, then switch operating mode switch

ILLUMINATE CONTINUOUSLY when your

back to either “AUTO/REMOTE” or “CHARGE ONLY.”

connected equipment is receiving continuous AC

power supplied from a utility/generator source.

If the operating mode switch is set to “CHARGE ONLY,” this light

will FLASH to alert you that the unit’s inverter is OFF and will NOT

supply AC power in the absence of a utility/generator source or in

over/under voltage situations.

INV (Inverting) Yellow Indicator: This light will

ILLUMINATE CONTINUOUSLY whenever connected

equipment is receiving battery-supplied, inverted AC

power (in the absence of a utility/generator source or

in over/under voltage situations). This light will be off

when AC power is supplying the load. This light will

FLASH to alert you if the load is less than the Battery Charge

Conserver (Load Sense) setting.

4

Position =

1

2

1

2 3

Position —

3

4

5

6

4

5

6

7

7

(Position ø)

1

2

1

2

OPERATION

LINE

INV

LOAD

Configuration

Set Configuration DIP Switches

Using a small tool, set the Configuration DIP Switches (located on the front panel of your unit, see diagram) to optimize Inverter/Charger

operation depending on your application. Warning: Make sure the unit is turned OFF before changing DIP Switch settings.

5

5

Select Battery Charger Amp Setting

Low Charge Amp

Battery Charger Switch Position

1

CAUTION: When switching to the High Charge Amp setting, the user

Low Charge Amps (23A) Up (factory setting)

must ensure that the amp hour capacity of their battery system exceeds

High Charge Amps (90A) Down

the amperage of the High Charge Amp setting or the batteries may be

damaged or degraded.

5 6 7 8

High Charge Amp

Setting Procedure

6

Select Equalize Battery Charge - OPTIONAL

“Reset”

• Move to “Equalize” (DOWN) postition for three seconds.

• Move to “Reset” (UP) postition and leave it there. This is the factory default setting.

This DIP Switch is momentarily engaged to begin the process of

CAUTION: Do not leave DIP switch #3 in the down position after beginning process. Battery charge

equalizing the charge state of your battery’s cells by time-limited

equalization should only be performed in strict accordance with the battery manufacturer’s instructions

overcharge of all cells. This can extend the useful life of certain types

“Equalize”

and specifications.

of batteries; consult with your battery’s manufacturer to determine if

5 6 7 8

your batteries could benefit from this process. The charge equalization

Battery Charge Switch Position

process is automatic; once started, it can only be stopped by removing

Reset Up (factory setting)

the input power.

Equalize Down (momentarily)

7 8 9

Not Used

Configuration

(continued)

Set Battery Charge Conserver (Load Sense) Control—OPTIONAL

In order to save battery power, the unit's inverter automatically shuts off in the absence of any power demand from

connected equipment or appliances (the electrical load). When the Inverter/Charger detects a load, it automatically turns

its inverter function on. Users may choose the minimum load the Inverter/Charger will detect by adjusting the Battery

Charge Conserver Control (see diagram). Using a small tool, turn the control clockwise to lower the minimum load that

will be detected, causing the inverter to turn on for smaller loads. When the control is turned fully clockwise, the inverter

will operate even when there is no load. Turn the control counterclockwise to increase the minimum load that will be

detected, causing the inverter to stay off until the new minimum load is reached.

NOTE: The factory setting for the control is fully clockwise. However, based on the threshold load to which you’d like the inverter to respond, you should adjust the control counterclockwise to reduce

its sensitivity until the inverter is active only when connected equipment or appliances are actually in use.

Connect Remote Control—OPTIONAL

The unit features an 8-conductor telephone style receptacle on the front panel for use with an optional remote control module (Tripp Lite

model APSRM4, sold separately). The remote module allows the Inverter/Charger to be mounted in a compartment or cabinet out of sight, while

operated conveniently from a remote location. See instructions packed with the remote control module.

6

Connect Battery Temperature Sensing Cable—OPTIONAL

The battery temperature sensing function prolongs battery life by adjusting the charge float voltage level based on battery temperature.

Connect the sensor cable (the cable has an RJ style connector on one end and a black sensor on the other) to the RJ style jack located on

the front panel of the Inverter/Charger labeled “RMT BATT TEMP.” With user-supplied electrical or duct tape, affix the sensor to the side

of the battery below the electrolyte level. Make sure that nothing, not even tape, comes between the sensor and the side of the battery. To

guard against false readings due to ambient temperature, place the sensor between batteries, if possible, or away from sources of extreme

heat or cold. If the sensor cable is not used, the Inverter/Charger will charge according to its default value (25º C).

Connect Automatic Generator Starter—OPTIONAL

Connect the RJ type modular jack on the front panel labeled “RMT GEN START” to vehicle

generator ON/OFF switching mechanism with user-supplied cable (see Pin Configuration Diagram).

Once attached, the interface will allow the Inverter/Charger to automatically switch a vehicle

generator on when connected battery voltage levels are low ( 46.0 VDC) and switch it off when

battery voltage levels are high ( 56.4 VDC).

* Most of your connected appliances and equipment will perform adequately when your Inverter/Charger’s High AC Input Voltage Point and its Low AC Voltage Input Point is left in the factory setting . However, if the unit frequently switches to battery power due to momentary

high/low line voltage swings that would have little effect on equipment operation, you may wish to adjust these settings. By increasing the High AC Voltage Point and/or decreasing the Low AC Voltage Point, you will reduce the number of times your unit switches to battery

due to voltage swings.

Battery Selection

Select Battery Type

Select “Deep Cycle” batteries to enjoy optimum performance from your Inverter/Charger. Batteries of either Wet-Cell (vented) or Gel-Cell /Absorbed

Glass Mat (sealed) construction are ideal. 6-volt “golf cart,” Marine Deep-Cycle or 8D Deep-Cycle batteries are also acceptable. You must

set the Inverter/Charger’s Battery Type DIP Switch (see Configuration section for more information) to match the type of batteries you connect

or your batteries may be degraded or damaged over an extended period of time.

Match Battery Amp-Hour Capacity to Your Application

Select a battery or system of batteries that will provide your Inverter/Charger with proper DC voltage and an adequate amp-hour capacity

to power your application. Even though Tripp Lite Inverter/Chargers are highly-efficient at DC-to-AC inversion, their rated output capacities

are limited by the total amp-hour capacity of connected batteries plus the output of an alternator when one is used.

Example

• STEP 1) Determine Total Wattage Required

Tools

Add the wattage ratings of all equipment you will connect to your

Drill Orbital Sander Cordless Tool Charger

Inverter/Charger. Wattage ratings are usually listed in equipment manuals

or on nameplates. If your equipment is rated in amps, multiply that number

times AC utility voltage to estimate watts. (Example: a drill requires 1.3

amps. 1.3 amps × 230 volts = 300 watts.)

NOTE: Your Inverter/Charger will operate at higher efficiencies at about 75% - 80% of nameplate rating.

300W + 160W + 20W = 480W

Appliances

Blender Color TV Laptop Computer

300W + 80W + 100W = 480W

• STEP 2) Determine DC Battery Amps Required

Divide the total wattage required (from step 1, above) by the battery voltage

480 watts ÷ 48V = 10 DC Amps

(48V) to determine the DC amps required.

• STEP 3) Estimate Battery Amp-Hours Required

Multiply the DC amps required (from step 2, above) by the number of hours

you estimate you will operate your equipment exclusively from battery

power before you have to recharge your batteries with utility- or

generator-supplied AC power. Compensate for inefficiency by

10 DC Amps × 5 Hrs. Runtime

multiplying this number by 1.2. This will give you a rough estimate of how

many amp-hours of battery power (from one or several batteries) you

× 1.2 Inefficiency Rating = 60 Amp-Hours

should connect to your Inverter/Charger.

NOTE: Battery amp-hour ratings are usually given for a 20-hour discharge rate. Actual amp-hour capacities

are less when batteries are discharged at faster rates. For example, batteries discharged in 55 minutes

provide only 50% of their listed amp-hour ratings, while batteries discharged in 9 minutes provide as little

as 30% of their amp-hour ratings.

• STEP 4) Estimate Battery Recharge Required, Given Your Application

You must allow your batteries to recharge long enough to replace the

charge lost during inverter operation or else you will eventually run down

60 Amp-Hours ÷ 23 Amps

your batteries. To estimate the minimum amount of time you need to

Inverter/Charger Rating = 2.6 Hours Recharge

recharge your batteries given your application, divide your required battery

amp-hours (from step 3, above) by your Inverter/Charger’s rated charging

amps (23/90).

NOTE: For Tripp Lite Inverter/Chargers over 1000 watts used in vehicular applications, Tripp Lite

recommends you use at least two batteries, if possible fed by a heavy-duty alternator anytime the engine

is running. Tripp Lite Inverter/Chargers will provide adequate power for ordinary usage within limited

times without the assistance of utility or generator power. However, when operating extremely heavy

electrical loads at their peak in the absence of utility power, you may wish to “assist your batteries” by

running an auxiliary generator or vehicle engine, and doing so at faster than normal idling.

7

Non-Vehicular or Vehicular Applications

Non-vehicular applications include stationary configurations as well as vehicular configurations that are not integrated into a vehicle’s

electrical system. In a parallel connection, your Inverter/Charger’s Nominal DC Input Voltage must match the voltage of your battery or

batteries. Your 48V DC Inverter/Charger requires 48V DC from your battery system.

In a series connection, your Inverter/Charger’s Nominal DC Input Voltage must match the number of batteries multiplied by their voltage.

Your 48V DC Inverter/Charger requires either four 12V batteries connected in series (48 = 4 × 12) or eight 6V batteries

connected in series (48 = 8 × 6).

In vehicular applications, your Inverter/Charger’s Nominal DC Input Voltage must match the voltage of your battery or batteries—

48 Volts. Although it is possible to connect your Inverter/Charger to the main battery within your vehicle’s electrical system, in the normal

vehicular context, the Inverter/Charger is connected to one or more dedicated auxiliary (house) batteries which are isolated from the drive

system to prevent possible draining of the main battery.

Contact Tripp Lite technical support for assistance with additional parallel, series or series/parallel connections.

Earth or Vehicle/Boat Battery Ground Battery UL-Listed Fuse & Fuse Block (mounted within 45 cm of the battery) Large Diameter

4321

Cabling, Maximum 00 Gauge to Fit Terminals Alternator (for vehicle or boat connection only)

5

4

1

2

Single Battery Connection

3

Battery Connection

Connect your Inverter/Charger to your batteries using the following procedures:

• Connect DC Wiring: Though your

for brief periods of time. Heavier gauge

the Main Ground Lug on your specific

Inverter/Charger is a

cabling should be used when continuously

Inverter/Charger model. All installations

high-efficiency

operating heavy draw equipment under these

must comply with national and local codes

converter of

conditions. Tighten your Inverter/Charger

and ordinances.

electricity, its rated

and battery terminals to approximately 3.5

• Connect Fuse: Tripp Lite recommends

output capacity is

Newton-meters of torque to create an

that you connect all of your Inverter/Charger’s

limited by the length

DC Connectors

efficient connection and to prevent

positive DC Terminals directly to a fuse(s)

and gauge of the

excessive heating at this connection.

and fuse block(s) within 45 cm of the

cabling running from the battery to the unit.

Insufficient tightening of the terminals could

battery. The fuse’s rating must equal or

Use the shortest length and largest diameter

void your warranty. See Specifications

exceed the Minimum DC Fuse Rating listed

cabling (maximum 00 gauge) to fit your

page for Minimum Recommended Cable

in your Inverter/Charger’s specifications.

Inverter/Charger’s DC Input terminals.

Sizing Chart.

See Specifications for fuse and fuse block

Shorter and heavier gauge cabling reduces

• Connect Ground: Using an 8 AWG wire

recommendations. See diagrams below for

DC voltage drop and allows for maximum

or larger directly connect the Main Ground

proper fuse placement.

transfer of current. Your Inverter/Charger is

Lug to the vehicle’s chassis or earth ground.

capable of delivering peak wattage at up to

See the Feature Identification section to locate

200% of its rated continuous wattage output

WARNING! • Failure to properly ground your Inverter/Charger to a vehicle’s chassis or earth

ground may result in a lethal electrical shock hazard.

• Never attempt to operate your Inverter/Charger by connecting it directly to output from an

alternator rather than a battery or battery bank.

• Observe proper polarity with all DC connections.

5

Optional connection

for Vehicular

applications only.

2 2 2 2 4

1

3

Multiple Battery Connection (Series)

8

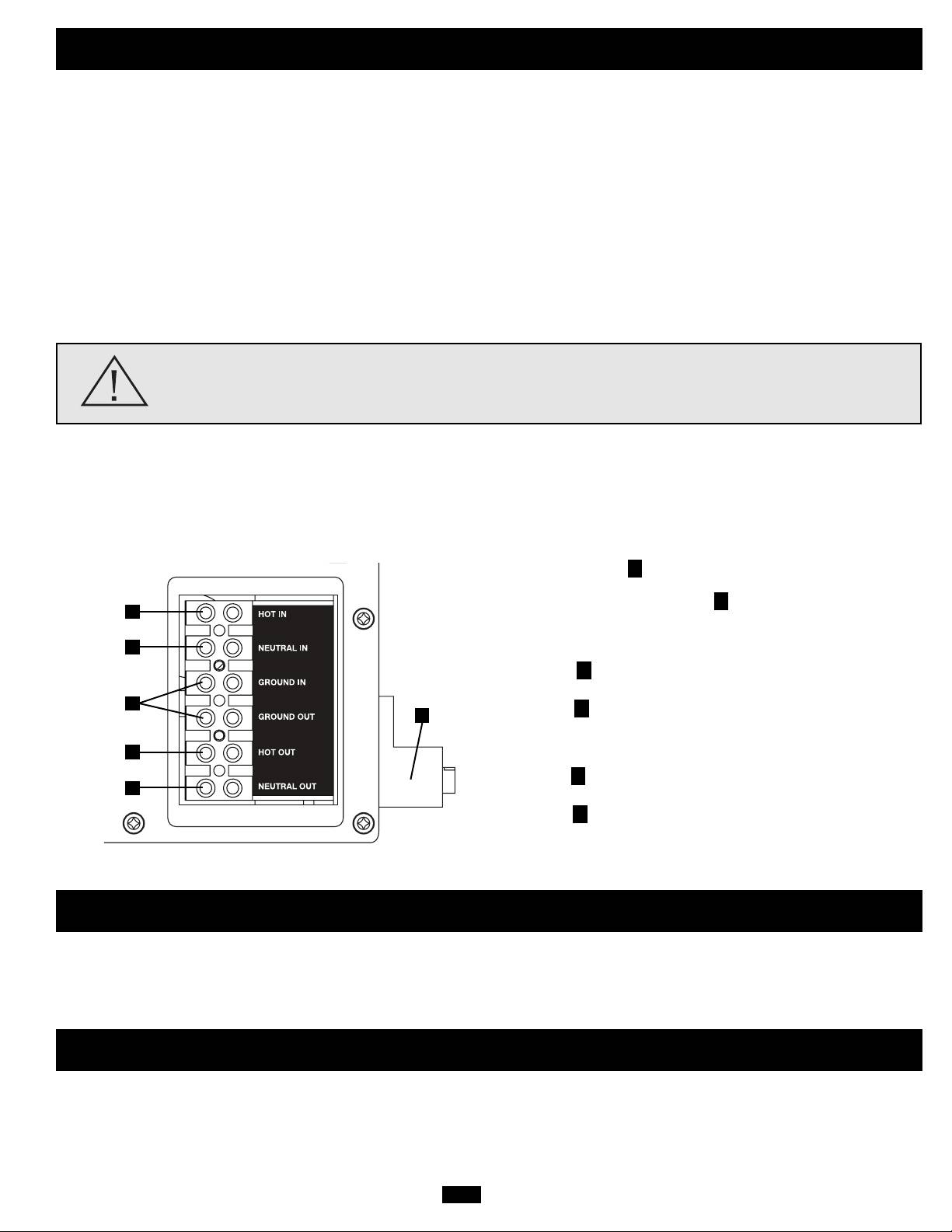

AC Input/Output Connection

To avoid overloading your Inverter/Charger, be sure to match the power requirements of the equipment you plan to run at any one time (add their

total watts) with the output wattage capacity of your Inverter/Charger model. When figuring the power requirements of your equipment, do

not confuse “continuous” wattage with “peak” wattage ratings. Most electric motors require extra power at start-up (“peak” wattage) than

required to run continuously after start-up, sometimes over 100% more. Some motors, such as in refrigerators and pumps, start and stop

intermittently according to demand, requiring “peak” wattage at multiple, unpredictable times during operation.

™

™

• DoubleBoost

Feature

• OverPower

Feature

Tripp Lite Inverter/Chargers deliver up to twice their nameplate

The Tripp Lite APSX6048VR Inverter/Charger delivers up to

rated wattage for up to 10 seconds,* providing the extra power

150% of its nameplate-rated wattage for up to 60 seconds under

needed to cold start heavy-duty tools and equipment.

ideal battery and temperature conditions*, providing reserve

power to support tools and equipment.

* For best results, utilize OverPower for as short a duration as possible, ensure that battery bank

and cabling are able to provide full nominal DC voltage under load, and allow the

inverter/charger to cool completely before and after OverPower utilization.

Warning! Consult a qualified electrician and follow all applicable electrical codes

and requirements for hardwire connection. Disconnect both DC input and AC utility

supply before attempting hardwiring.

Remove the screws and cover plate over the hardwire terminal strip. Remove the knockout covers closest to the desired electrical source and

to your equipment. Attach 1.28 cm diameter conduits (user-supplied) to the knockouts and thread wires through. Connect the conduits to

each other with the ground bond connection supplied.

Ground*

• Connect the incoming and outgoing ground wires to the

ground terminals .

1

• Connect the Main Ground Lug to earth ground.

2

3

AC Input

4

• Connect the incoming hot wire to the input hot

terminal 3 .

3

• Connect the incoming neutral wire to the input neutral

1

terminal .

4

2

AC Output

5

• Connect the outgoing hot wire to the output hot

terminal .

5

6

• Connect the outgoing neutral wire to the output neutral

terminal .

6

Replace cover plate and tighten screws.* If the incoming conduit only contains two wires (hot

and neutral), the incoming conduit must be bonded to the main ground lug on the unit. In any

case, the incoming conduit must be bonded to earth or vehicle ground, and the incoming

conduit must be bonded to the outgoing conduit.

Service

If you are returning your Inverter/Charger to Tripp Lite, please pack it carefully, using the ORIGINAL PACKING MATERIAL that came

with the unit. Enclose a letter describing the symptoms of the problem. If the Inverter/Charger is within the warranty period, enclose a copy

of your sales receipt. To obtain service you must obtain a Returned Material Authorization (RMA) number from Tripp Lite or an authorized

Tripp Lite service center.

Maintenance

Your Inverter/Charger requires no maintenance and contains no user-serviceable or replaceable parts, but should be kept dry at all times.

Periodically check, clean and tighten all cable connections as necessary, both at the unit and at the battery.

9
