Eneo HDD-1012PTZ1080: DE

Connections

Connecting to the RS485

The Dome Camera can be controlled remotely by an external device or

control system, such as a control keyboard, using RS485 half-duplex serial

communications signals.

DE

Connecting HD-SDI Output connector

EN

Connect the HD-SDI output (BNC) connector to the monitor or video input.

FR

Connecting Alarms

• A1,A2,A3,A4 (Alarm Input 1,2,3,4) : You can use external devices to

PL

signal the dome camera to react on events. Mechanical or electrical

switches can be wired to the A1,A2,A3,A4 (Alarm Input 1,2,3,4) and G

RU

(Ground) connectors. See „Program and Operation“ in the Full Manual

for configuring alarm input.

• G (Ground): NOTE: All the connectors marked G or GND are common.

Connect the ground side of the alarm input and/or alarm output to the

G (Ground) connector.

• AO1,AO2 (5VTTL Alarm Output 1,2): The dome camera can activate

external devices such as buzzers or lights. Connect the device to the

AO1,AO2 (Alarm Output 1,2) and G (Ground) connectors. See „Pro-

gram and Operation“ in the Full Manual for configuring alarm output.

Connecting the Power

Connect power of 24VAC or 12VDC 1.5A for the dome camera.

When using a 12VDC adapter, connect the positive (+) pole to the ‘+’ positi-

on and the negative (-) pole to the ‘-’ position.

Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class

2 power source only.

Getting started

Once installed apply power to the dome camera. The dome camera will

start a configuration sequence.

19

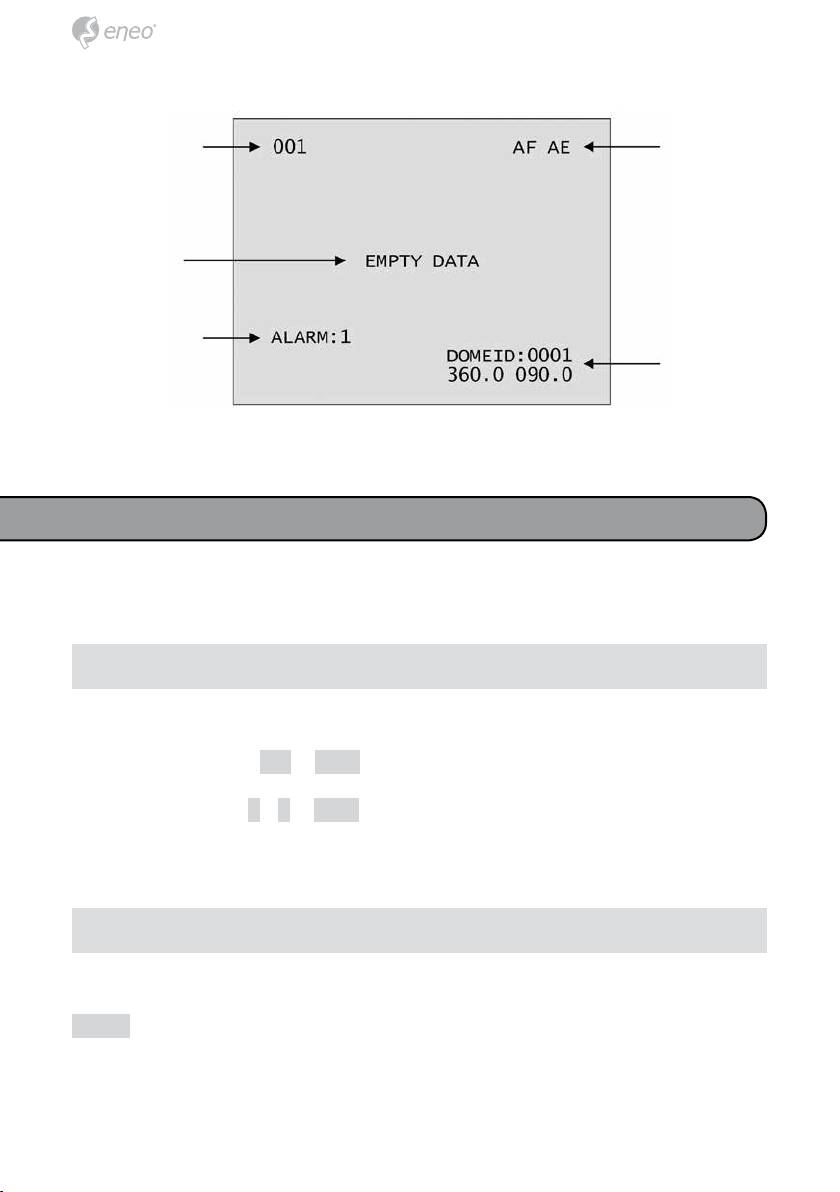

Function

Status of

title

focus and

AE

Information

display

Alarm

Camera

display

title &ID

Pan&Tilt

angle

Operation

Dome camera selection

Before you program or operate a dome camera, you must select the dome

camera by pressing No. + CAM keys.

Example: Pressing 1 , 0 + CAM keys sequentially will select dome camera

10. The selected dome camera ID will be displayed on the LCD monitor of

the keyboard controller.

Accessing the On-Screen Menu utility

You can call up the On-screen menu utility on your monitor by pressing the

MENU key on the keyboard controller, the following On-screen menu utility

will appear:
