CAUTION: NEVER USE THIS CAMERA

1) in WATER.

2) in area where has SHOCK or VIBRATION which results in the problems

for Auto Focus operation.

1) Drill the holes on wall using a supplied template.

2) Insert the anchors to the drilled holes.

2a) Easy Bracket: Match the EASY BRA-

CKET to the drilled position.

Fix the EASY BRACKET by using

Wall fixing screws.

3. Route cables to the installtion position and connect cables as required.

Care should be taken the cable is NOT to be damaged, kinked or

exposed in the hazardous area.

The camera can work with either 24AC or 12VDC, dual voltage power.

When using a 12VDC or 24VAC power supply please proceed as follows:

17

45

57

76

Easy Bracket and Standard Bracket

• Make sure the power is removed before the installation.

• Follow the order for applying power.

First, connect the low voltage (AC24V or DC12V), then plug the AC adapter to AC

outlets to avoid an improper reset from power jitter and a damage from the surge

voltage when no load. It is strongly required the polarity-matched connection for

12VDC supply, otherwise IR LEDs will not operate.

4a) Easy Bracket: Connect hook ⓘ to

4b) Standard Bracket: Match Foot mount

peg ⓚ.

Hole (4x) ⓔ to the drilled position.

5a) Easy Bracket: Fix Bracket Foot ⓓ to

5b) Standard Bracket: Fix the bracket by

EASY BRACKET by using wrench

using Wall fixing screws.

bolts through Foot mount Hole (4x)

ⓔ.

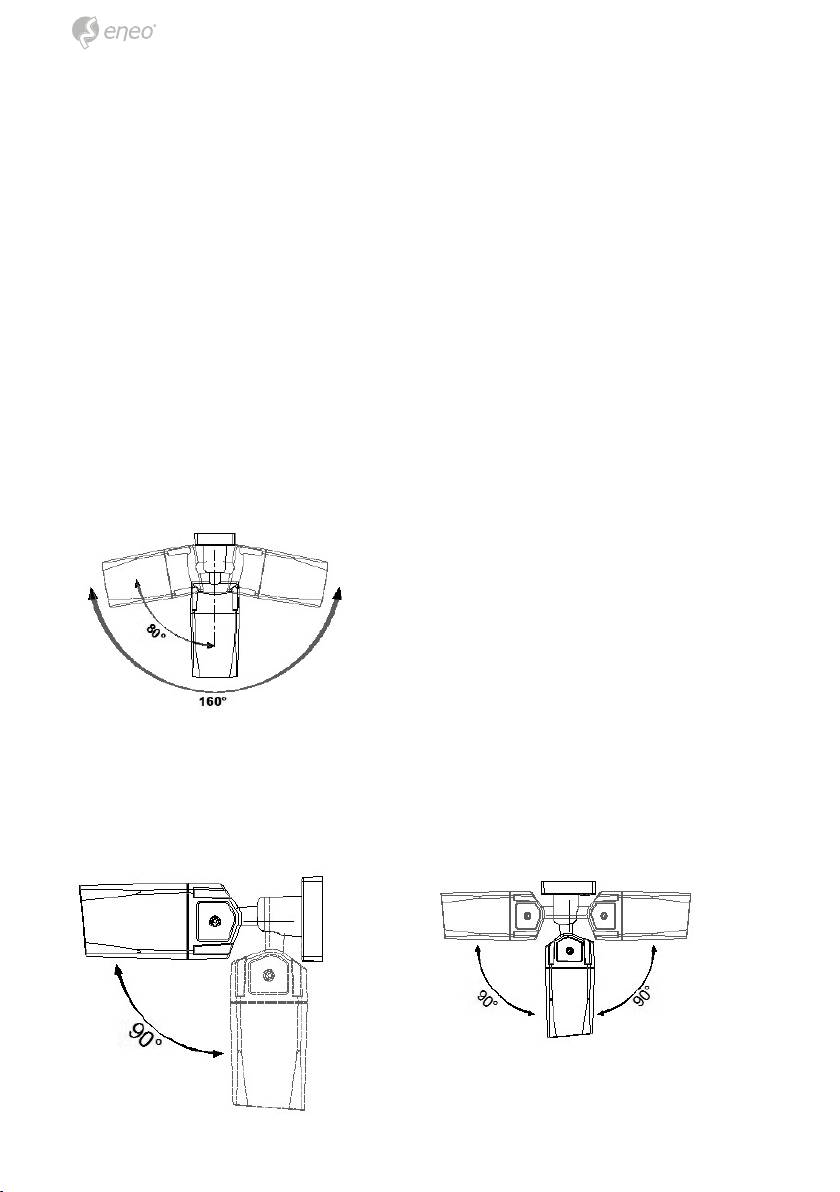

6. Set the camera’s angle (Pan, Tilt, inclination).

Pan is limited to +/- 80°.

Tilt is limited to 0°(2°) min ~ 90° max. for wall(ceiling) installation respectively with

reference to the ceiling when the inclination of camera module is 0°, that is, the

image is aligned horizontally.
