Product description and connections

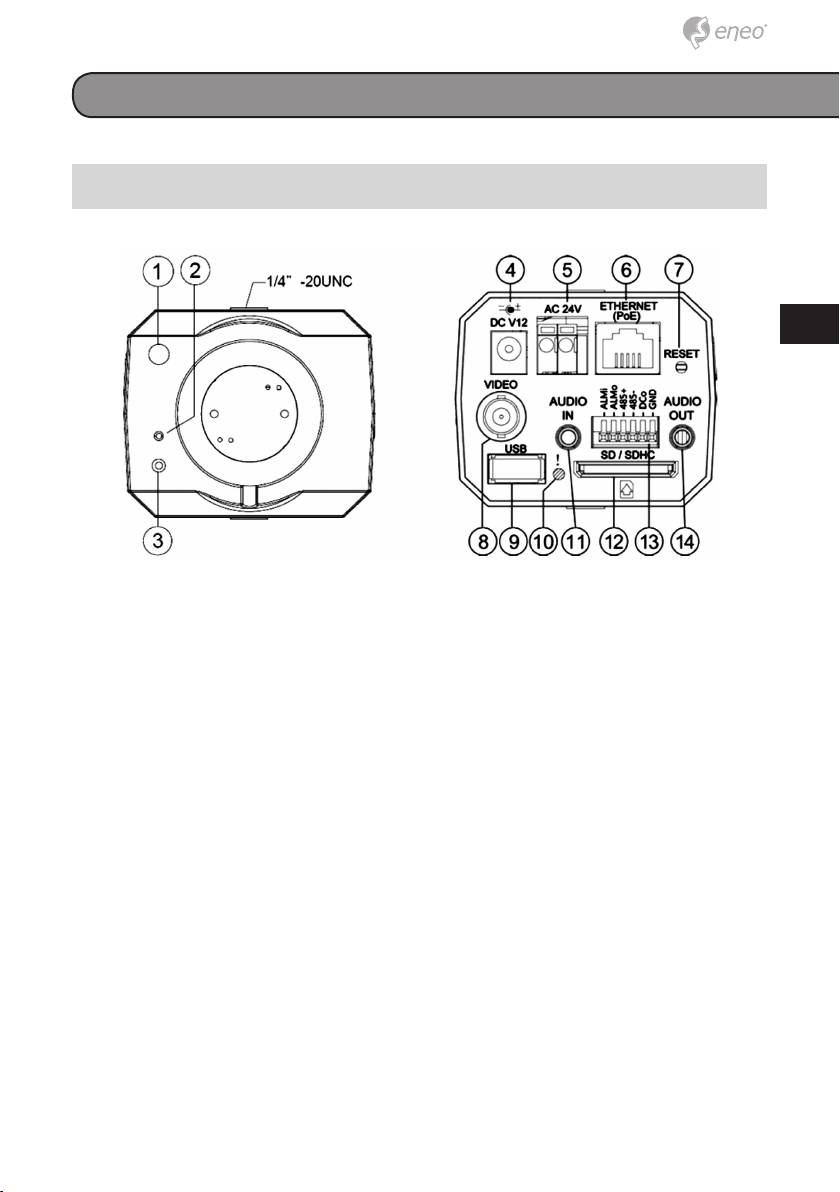

1. Front Panel & Rear Panel
DE
EN
FR
PL
RU
1. Light Sensor: Registers the quality of light in the camera’s environment,
and controls the iris shuttle to provide better information concerning the
light.
2. MICROPHONE: The IP Camera has an additional audio function. The
device has a microphone built into its front panel which records sound.
3. POWER indicator: Indicates the power status of the unit.
4. Plug Inlet: A DC 12V inlet that connects to an external power supply.
5. Plug Inlet: An AC 24V inlet that connects to an external power supply.
6. ETHERNET 10/100 Connector: This is a standard RJ-45 connector for
10/100 Mbps Ethernet networks. PoE (Power over Ethernet) function:
Provides power to the device via the same cable as used for the net-
work connection.
7. RESET: Recover to factory default.
8. VIDEO OUT Connector: The connector provides the unit’s composite
video signals to a monitor.
9. USB port: The user can use a USB device cable to connect the
IP camera to the USB port on the PC.
10. LED indicator: The green light indicates the unit is activating and the
SD card cannot be removed.
11. AUDIO IN: The connector is used to connect the audio output from
other devices to the camera.
13
12. SD/ SDHC CARD slot: This is used for system software updating and
archiving / accessing critical images.
13. ALARM I/O: This is a 6-PIN connector including the ALARM IN/OUT,
RS-485, DC OUTPUT and GROUND items for connecting with external
devices.
14. AUDIO OUT: Provides the camera’s audio signal to a speaker or stereo.
2. Flank Panel
1. IRIS: Auto iris connector.
This camera works with a DC drive auto iris lens. Please refer to the pin
assignment marked on the camera when connecting the auto iris lens.
2. DIP Switch:
(1) AES: Auto electric shutter.
(2) DC IRIS: Use an auto iris (DC drive)
(3) DHCP: Turn On / Turn Off to use the DHCP protocol. If the
switch points upwards, the device can obtain an IP address
from the DHCP server via the network.
(4) STATIC IP: If the switch points down, the device can’t obtain
an IP address from the DHCP server. This option is needed to
configure the network communication settings.
