User’s Manual

Welcome

Thank you very much for purchasing this product. Before you start, you are

recommended to read this manual step by step to obtain the best results with your

EN

new Pico projector. We wish you enjoy it.

About the product

This is the latest generation of Pico projector with DLP technology inside. Known for

great cinema projectors, the DLP technology provides rich colours and enhances the

contrast of the image. The Pico projector offers versatile connection options including

HDMI, MHL and VGA port and projecting the images up to 120’’ (300 cm) in size. This

Pico projector is the best solution for mobile use in business and entertainment.

Safety Notice

1. Keep the device and packaging materials out of the reach of infants and children.

2. Avoid subjecting the power adapter and other contacts to dripping or splashing

water and dry your hands before you use it. Do not place objects filled with liquids

such as vases, etc. on or near the device.

3. Make sure that the used power outlet is always readily available and never hidden.

In case of emergency, use the power adapter to separate the device from the power

network.

4. Keep your device away from all flames such as candles and do not set them up in

the vicinity of the device.

5. Keep the unit at least 10 cm away from other objects. Make sure the ventilation is

not covered by newspapers, tablecloths, curtains, etc.

6. For your own safety, do not use the projector during thunderstorms or lightning.

7. Relative Humidity is 20% ~ 80%, non-condensing.

8. The battery is integrated with the device. Do not dissemble and modify. The battery

should be replaced by an authorized service center only.

9. Ensure that the ambient room temperature is within 5 ~ 35°C

10. Wait before using if the device has been moved from a cold location into a warm one.

Any condensation that has formed may in certain circumstances destroy the device.

As soon as the device has reached room temperature it can be used without risk.

11. Handle the product with care. Avoid contact with sharp objects. Keep device away

from metallic objects.

12. Place the projector on a flat surface. Any collision or falling to the ground is likely to

damage the product.

13. Do not drop or disassemble the product otherwise the warranty voids. Opening or

removing covers may expose you to dangerous voltage or other hazards. Refer all

servicing to an authorized service center.

14. Use only the accessories supplied by the manufacturer.

Page 1

User’s Manual

15. Both product and user’s manual are subject to further improvement or supplement

without further notice.

EN

Care and Safety Information for Pico Projectors

1. Avoid facing directly into the projector’s lens.

2. During the operation, this product may heat

lightly, which is normal.

3. The device should not be used in a very dusty

environment. Dust particles and other foreign

objects may damage the unit.

4. Do not expose the device to extreme vibrations. It

may damage the internal components.

5. Use the enclosed power adapter (see technical data):

Check whether the mains voltage of the power supply matches the mains voltage

available at the setup location. This equipment complies with the voltage type

specified on the unit.

Avoid Hearing Damage:

Listening at high volume for a long

period of time could cause damage

to your ears.

Notice for Long-time Projection

The built-in battery supports approximately 150 mins of projection. For long time

projection, you are recommended to use AC adapter.

When the battery is too weak to stay in operation, the low battery capacity icon ( )

will flash. You need to charge the product while the icon showed.

It’s normal that the projector will feel warm with continuous use due to its high

performance. If the projector runs for a long time and over-heated, the

High-Temperature icon ( ) will appear on the screen. The system will automatically

enter the standby mode.

Page 2

User’s Manual

FCC Compliance Statement:

This device complies with Part 15 of the FCC Rules. Operation is

subjected to the following two conditions: (1) this device may not

EN

cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply with limits for a Class B digital

device, pursuant to Part 15 of the FCC rules. These limits are designed to provide

reasonable protection against harmful interference in residential installations. This

equipment generates, uses, and can radiate radio frequency energy, and if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause interference to radio or television equipment reception,

which can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Move the equipment away from the receiver.

- Plug the equipment into an outlet on a circuit different from that to which the receiver

is connected.

- Consult the dealer or an experienced radio/television technician for additional

suggestions.

You are cautioned that any change or modifications to the equipment not expressly

approved by the party responsible for compliance could void your authority to operate

such equipment.

If the time arises to throw away your

product, please recycle all the

components possible. Batteries and

rechargeable batteries are not to be

disposed in your domestic waste!

Please recycle them at your local

recycling point.

Together we can help to protect the

environment.

Page 3

User’s Manual

Table of Content

EN

About the Product, Safety Notice

1

Package Content

4

Knowing Your Device

5

Getting Started

7

Projecting from External Video Input Source

8

HDMI, VGA

9

Smartphone & Tablets

12

Charging the external mobile devices

12

Trouble Shooting

13

Specifications

14

Package Content

Please check if the following items are located in your packaging:



Pico Projector



Power Adapter



Exchangeable Power Plug



Remote Control



HDMI Cable (A to A type)



MHL Cable (HDMI A to USB D type)



Carry Bag



User’s Manual

Page 4

User’s Manual

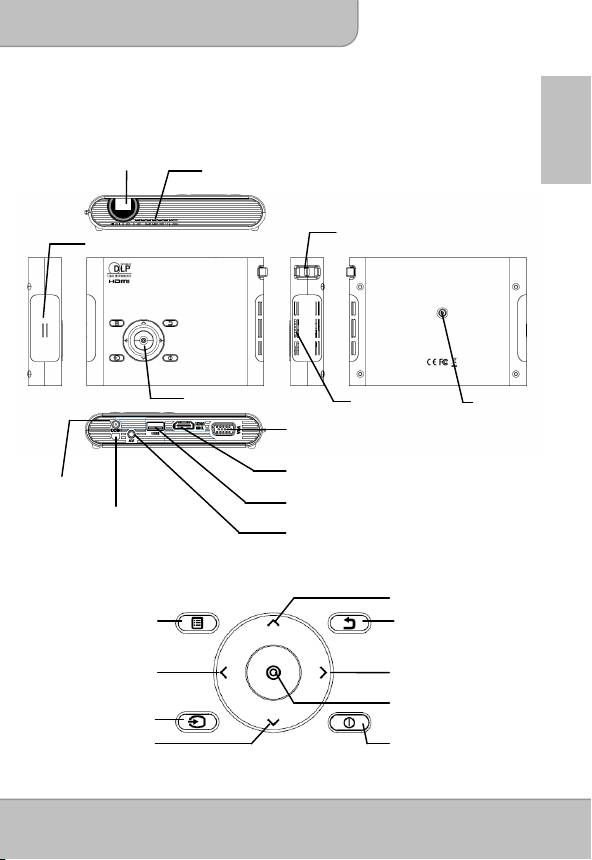

Knowing your Device

Projector

EN

HDMI / MHL Connector

DC IN

USB Connector

Infrared Receiver

Control Panel

Menu

Exit

OK

Down

Page 5

for Mobile Char

in

Projection Lens

Ventilation

Focus Lever

Speaker

Keypad

Ventilation

Tripod Socket

VGA Port

Speaker Connector

Powe

Source

External video in

ut

Up

Left

As

Right /

ect ratio

Scene mode

User’s Manual

Remote Control

EN

Source

Power

Brightness

Scene mode

Lens mode

Exit

Menu

Left/ Aspect ratio

Right/ Scene mode

O

Down

Volume Down

Installing the Remote Control Battery

1. Remove the battery holder by holding down the side

releasefirmly and pulling out the battery holder.

2. Insert a CR2025 coin cell battery and align the polarity correctly

according to the marking in the battery holder.

Note: When you use the remote control for the first time, there is

a plastic sheet between the battery and its contact.

Remove the sheet before use.

3. Insert the battery holder.

Warning:

Improper use of the battery may cause overheating, explosion or ignition, which can

result in an injury or a fire. Battery leakage may damage the remote controller.

Do not expose the remote controller unit to direct sunlight.

Do not expose the battery to fire or water.

Immediately replace the exhausted battery.

Take out battery when the remote is not in use for a long time.

Page 6

Up

Volume Up
