ASRock E35LM1: 2. Installation

11

ASRock  E35LM1  Motherboard

English

2. Installation

This is a Mini-ITX form factor (6.7" x 6.7", 17.0 x 17.0 cm) motherboard. Before you

install the motherboard, study the con

fi

 guration of your chassis to ensure that the

motherboard

fi

 ts into it.

Make sure to unplug the power cord before installing or removing the

motherboard. Failure to do so may cause physical injuries to you and

damages to motherboard components.

2.1  Screw Holes

Place screws into the holes indicated by circles to secure the motherboard to the

chassis.

Do not over-tighten the screws!  Doing so may damage the motherboard.

2.2  Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

1.   Unplug the power cord from the wall socket before touching any component.

2.   To avoid damaging the motherboard components due to static electricity,

NEVER place your motherboard directly on the carpet or the like. Also

remember to use a grounded wrist strap or touch a safety grounded object

before you handle components.

3.   Hold components by the edges and do not touch the ICs.

4.   Whenever you uninstall any component, place it on a grounded antistatic pad or

in the bag that comes with the component.

      Before you install or remove any component, ensure that the power is

      switched off or the power cord is detached from the power supply.

      Failure to do so may cause severe damage to the motherboard, peripherals,

      and/or components.

12

ASRock  E35LM1  Motherboard

English

notch

break

notch

break

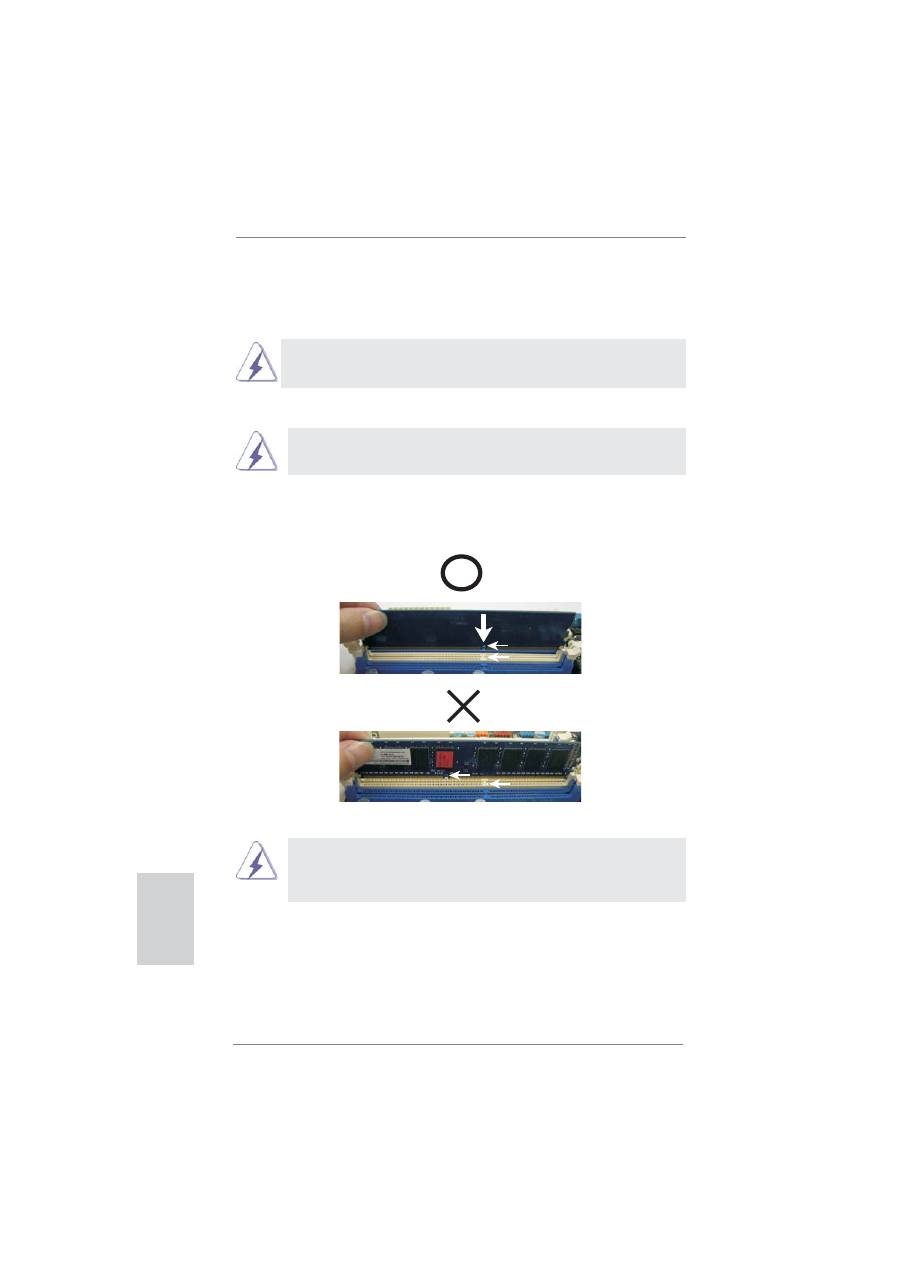

2.3 Installation of Memory Modules (DIMM)

E35LM1

motherboard provides two 240-pin DDR3 (Double Data Rate 3) DIMM

slots.

It is not allowed to install a DDR or DDR2 memory module into DDR3

slot; otherwise, this motherboard and DIMM may be damaged.

Installing a DIMM

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

Step 1.  Unlock a DIMM slot by pressing the retaining clips outward.

Step 2.  Align a DIMM on the slot such that the notch on the DIMM matches the

break on the slot.

The DIMM only

fi

 ts in one correct orientation. It will cause permanent

damage to the motherboard and the DIMM if you force the DIMM into

the slot at incorrect orientation.

Step 3.  Firmly insert the DIMM into the slot until the retaining clips at both ends

fully snap back in place and the DIMM is properly seated.

13

ASRock  E35LM1  Motherboard

English

2.4 Expansion Slot (PCI Express Slot)

There is 1 PCI Express slot on this motherboard.

PCIE slot:

PCIE1 (PCIE x16 slot; Blue) is used for PCI Express x4 lane width

graphics cards.

Installing an expansion card

Step 1.

Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2.

Remove the system unit cover (if your motherboard is already installed

in a chassis).

Step 3.

Remove the bracket facing the slot that you intend to use. Keep the

screws for later use.

Step 4.

Align the card connector with the slot and press

fi

 rmly until the card is

completely seated on the slot.

Step 5.

Fasten the card to the chassis with screws.

Step 6.

Replace the system cover.

14

ASRock  E35LM1  Motherboard

English

USB 2.0 header (9-pin, black)

CIR header (4-pin, gray)

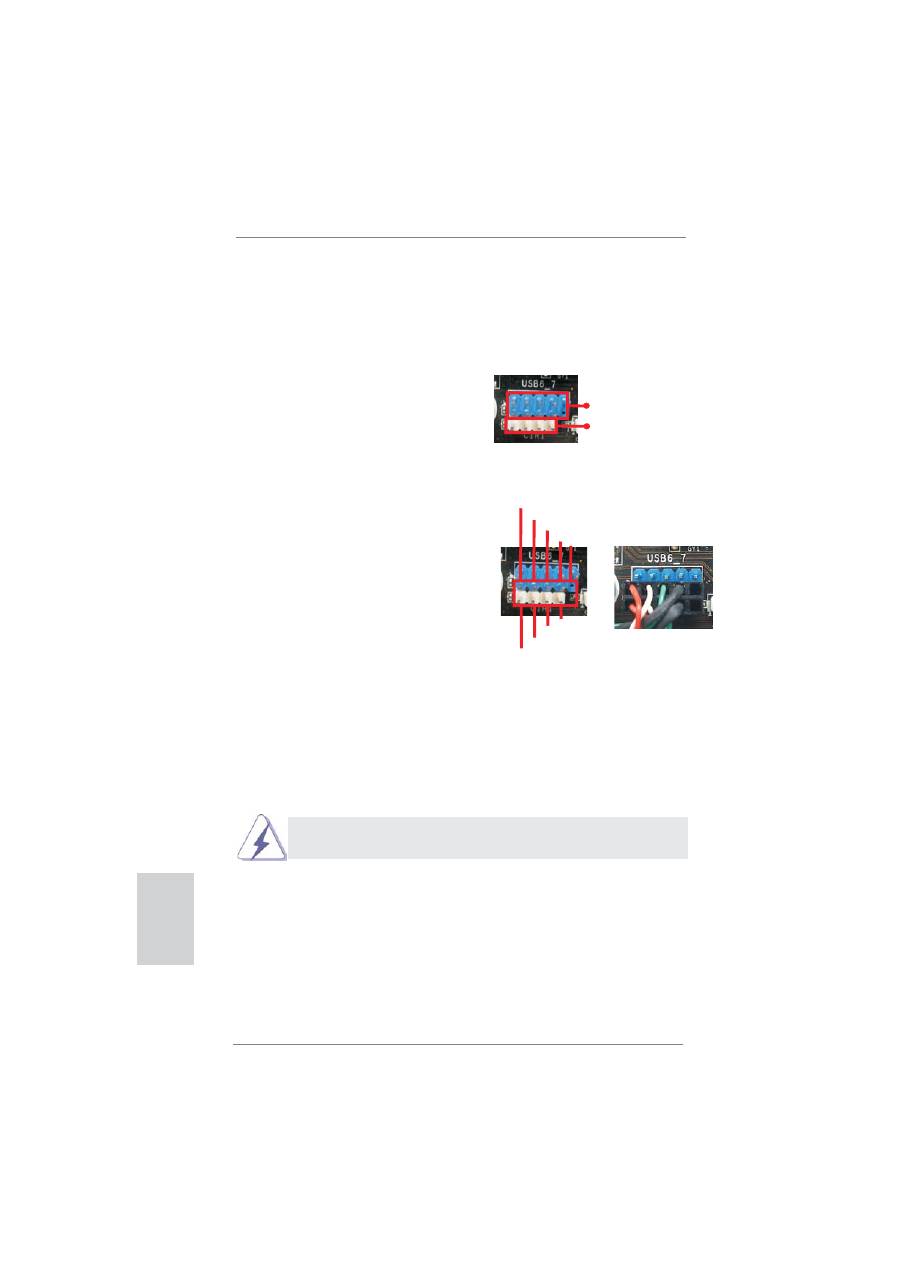

2.5 ASRock Smart Remote Installation Guide

ASRock Smart Remote is only used for ASRock motherboard with CIR header.

Please refer to below procedures for the quick installation and usage of ASRock

Smart Remote.

Step1.

Find the CIR header located next

to the USB 2.0 header on ASRock

 motherboard.

Step2.

Connect the front USB cable to the

USB 2.0 header (as below, pin 1-5)

and the CIR header. Please make

sure the wire assignments and the

pin assignments are matched

 correctly.

Step3. Install

Multi-Angle CIR Receiver to the front USB port.

Step4.   Boot up your system. Press <F2> or <Del> to enter BIOS Setup Utility.

Make sure the option "CIR Controller" is setting at [Enabled].

(Advanced -> Super IO Con

fi

 guration -> CIR Controller -> [Enabled])

If you cannot

fi

 nd this option, please shut down your system and install

Multi-Angle CIR Receiver to the other front USB port then try again.

Step5.

Enter Windows. Execute ASRock support CD and install CIR Driver. (It is

listed at the bottom of driver list.)

1 2

4

3

5

USB_PWR

P-

P+

GND

ATX+5VSB

IRRX

IRTX

GND

DUMMY

15

ASRock  E35LM1  Motherboard

English

)

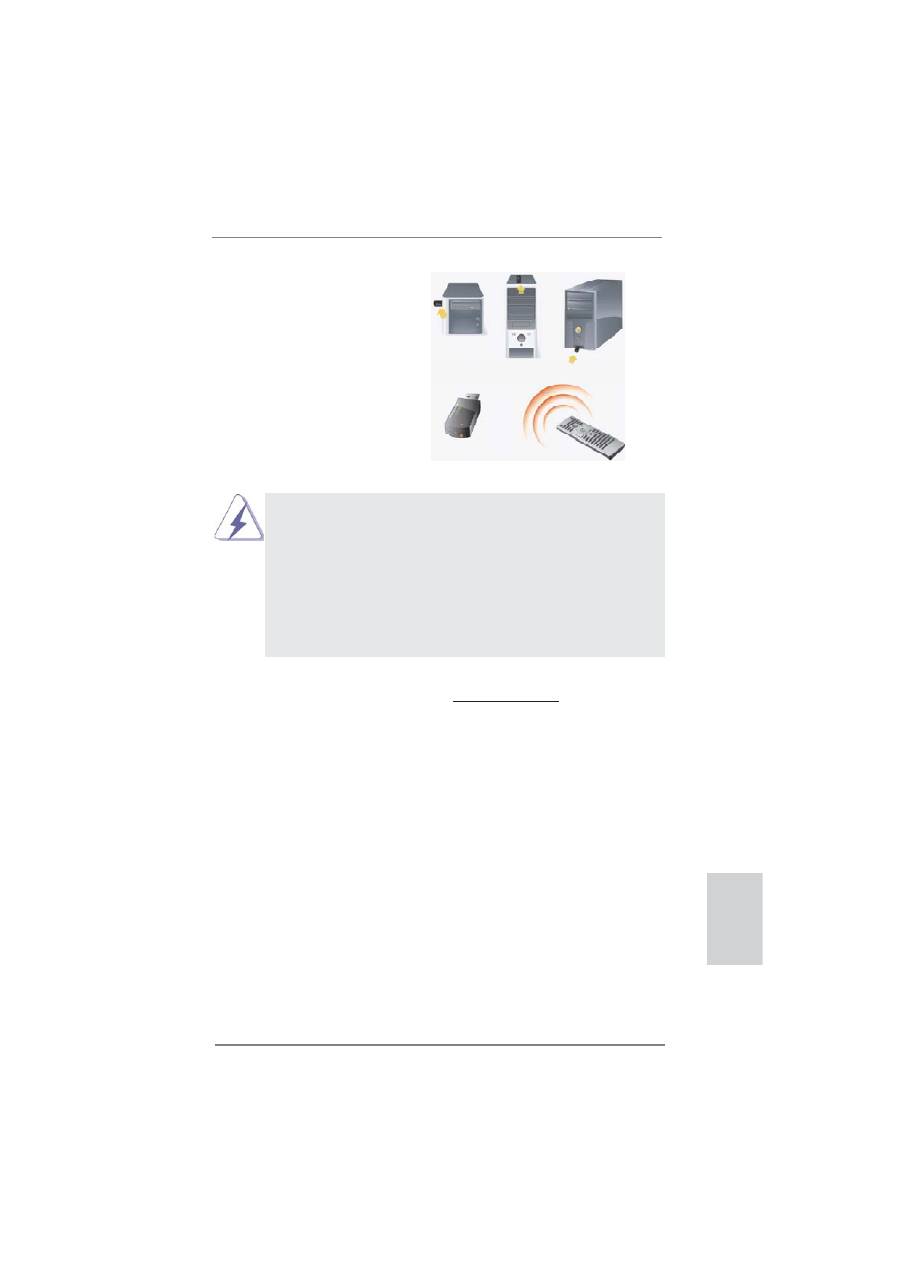

* ASRock Smart Remote is only supported by some of ASRock motherboards. Please refer to

  ASRock website for the motherboard support list: http://www.asrock.com

1.

Only one of the front USB port can support CIR function. When

the CIR function is enabled, the other port will remain USB

 function.

2.

Multi-Angle CIR Receiver is used for front USB only. Please do

not use the rear USB bracket to connect it on the rear panel.

Multi-Angle CIR Receiver can receive the multi-direction infrared

signals (top, down and front), which is compatible with most of

the chassis on the market.

3.

The Multi-Angle CIR Receiver does not support Hot-Plug

function. Please install it before you boot the system.

3 CIR sensors in different angles

16

ASRock  E35LM1  Motherboard

English

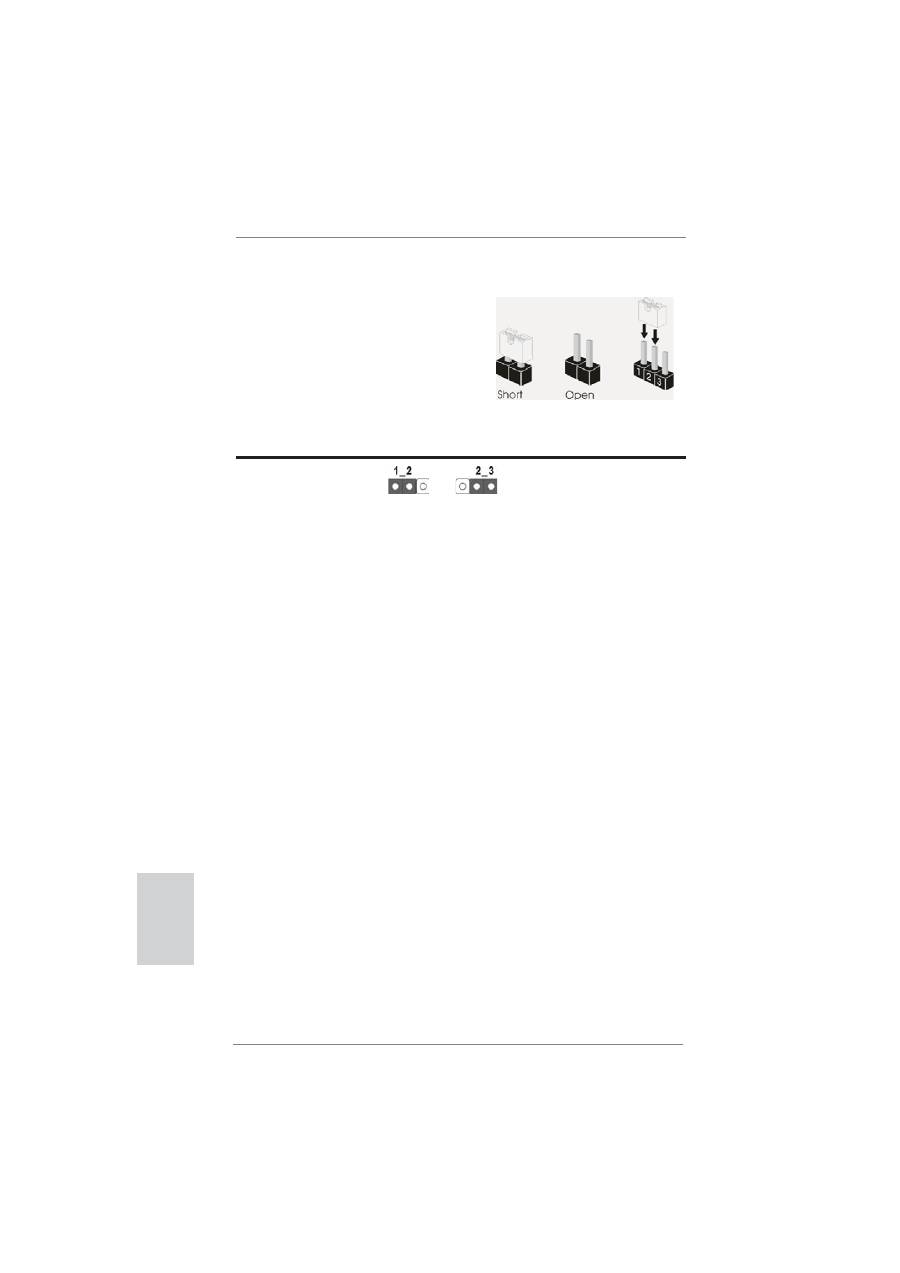

2.6 Jumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose

pin1 and  pin2 are “Short” when jumper cap

is placed on these 2 pins.

Jumper Setting

Description

Clear CMOS Jumper

(CLRCMOS1)

(see p.2,  No. 6)

Note:  CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the

system parameters to default setup, please turn off the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a

jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,

please do not clear the CMOS right after you update the BIOS. If you need

to clear the CMOS when you just

fi

 nish updating the BIOS, you must boot

up the system

fi

 rst, and then shut it down before you do the clear-CMOS ac-

tion. Please be noted that the password, date, time, user default pro

fi

 le, 1394

GUID and MAC address will be cleared only if the CMOS battery is removed.

Clear CMOS

Default

17

ASRock  E35LM1  Motherboard

English

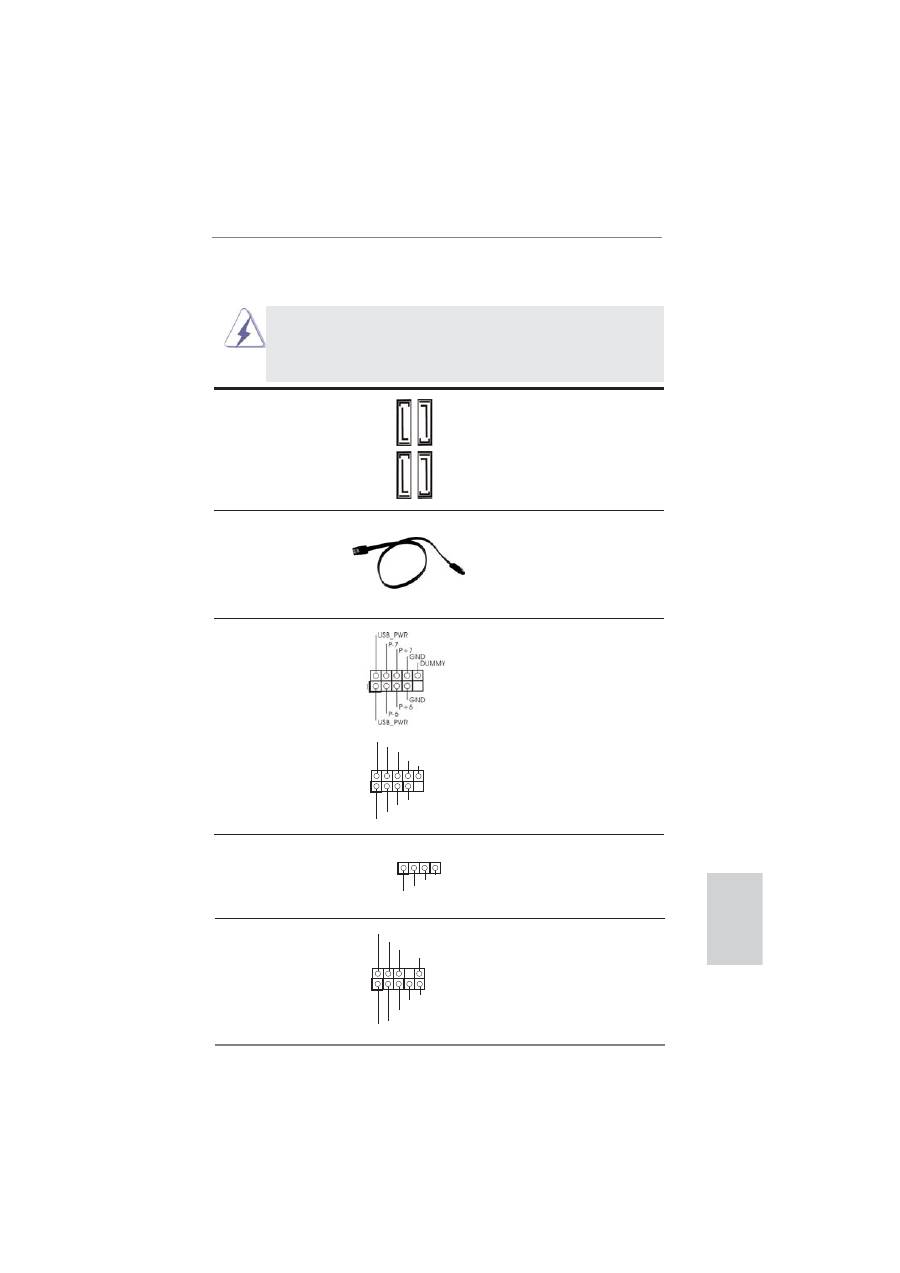

2.7 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

Serial ATA3 Connectors

These four Serial ATA3 (SATA3)

(SATA3_1: see  p.2, No. 12)

connectors support SATA data

(SATA3_2: see  p.2, No. 10)

cables for internal storage

(SATA3_3: see  p.2, No. 11)

devices. The current SATA3

(SATA3_4: see  p.2, No. 9)

interface allows up to 6.0 Gb/s

data transfer rate.

Serial ATA (SATA)

Either end of the SATA data

Data Cable

cable can be connected to the

(Optional)

SATA / SATAII / SATA3 hard

disk or the SATAII / SATA3

connector on this motherboard.

USB 2.0 Headers

Besides four default USB 2.0

(9-pin USB6_7)

ports on the I/O panel, there

(see p.2  No. 19)

are two USB 2.0 headers on

this motherboard. Each

USB 2.0 header can support

two USB 2.0 ports.

(9-pin USB8_9)

(see p.2  No. 18)

1

USB_PWR

P-8

GND

DUMMY

USB_PWR

P+8

GND

P-9

P+9

SA

TA3_4

SA

TA3_2

SA

TA3_3

SA

TA3_1

J_SENSE

OUT2_L

1

MIC_RET

PRESENCE#

GND

OUT2_R

MIC2_R

MIC2_L

OUT_RET

Front Panel Audio Header

This is an interface for front

(9-pin HD_AUDIO1)

panel audio cable that allows

(see p.2  No. 20)

convenient connection and

control of audio devices.

Consumer Infrared Module Header

This header can be used to

(4-pin CIR1)

connect the remote

(see  p.2  No. 17)

 controller

receiver.

1

ATX+5VSB

IRTX

GND

IRRX

18

ASRock  E35LM1  Motherboard

English

1. High De

fi

 nition Audio supports Jack Sensing, but the panel wire on

    the chassis must support HDA to function correctly. Please follow the

    instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

    header as below:

    A. Connect Mic_IN (MIC) to MIC2_L.

    B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

    C. Connect Ground (GND) to Ground (GND).

    D. MIC_RET and OUT_RET are for HD audio panel only. You don’t

         need to connect them for AC’97 audio panel.

    E. To activate the front mic.

         For Windows

®

 XP / XP 64-bit OS:

                 Select “Mixer”. Select “Recorder”. Then click “FrontMic”.

         For Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit OS:

         Go to the "FrontMic" Tab in the Realtek Control panel. Adjust

         “Recording Volume”.

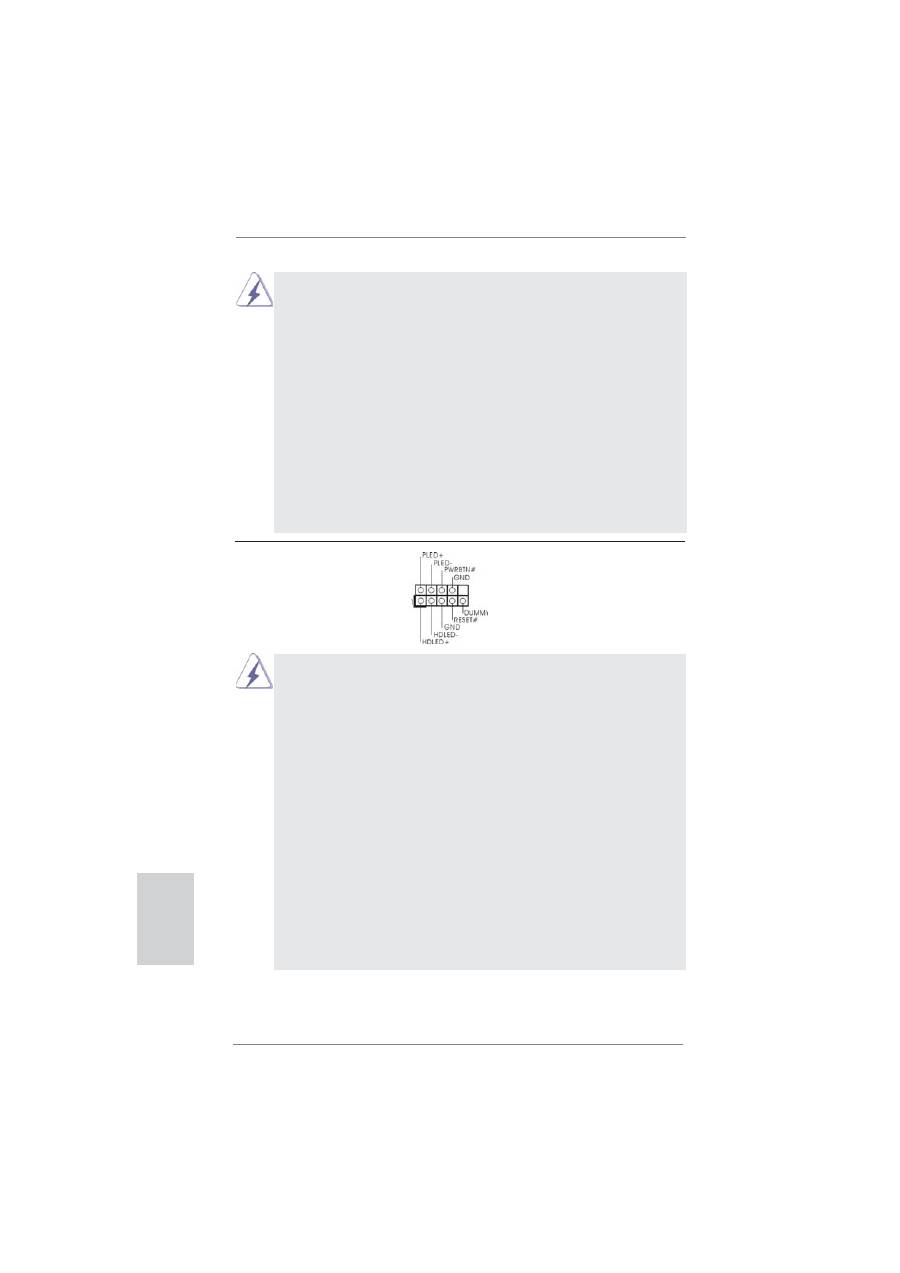

System Panel Header

This header accommodates

(9-pin PANEL1)

several system front panel

(see p.2  No. 8)

 functions.

Connect the power switch, reset switch and system status indicator on the

chassis to this header according to the pin assignments below. Note the

positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may con

fi

 gure

the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset

switch to restart the computer if the computer freezes and fails to perform a

normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED

is on when the system is operating. The LED keeps blinking when the sys-

tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep

state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED

is on when the hard drive is reading or writing data.

19

ASRock  E35LM1  Motherboard

English

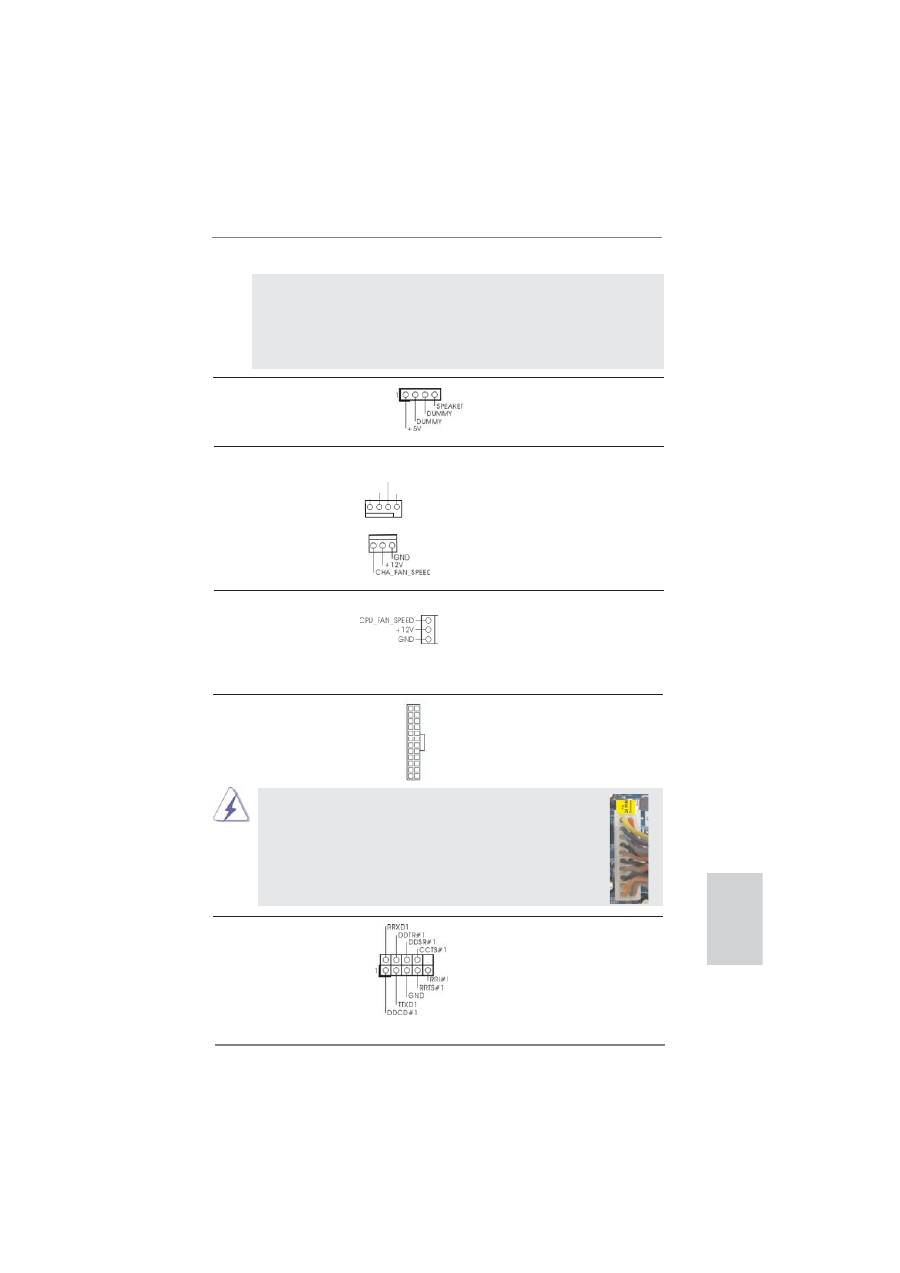

Chassis Speaker Header

Please connect the chassis

(4-pin SPEAKER 1)

speaker to this header.

(see p.2  No. 13)

The front panel design may differ by chassis. A front panel module mainly

consists of power switch, reset switch, power LED, hard drive activity LED,

speaker and etc. When connecting your chassis front panel module to this

header, make sure the wire assignments and the pin assign-ments are

matched correctly.

Chassis Fan Connectors

Please connect the fan cables

(4-pin CHA_FAN1)

to the fan connectors and

(see p.2  No. 2)

match the black wire to the

ground pin. CHA_FAN2

supports fan speed control by

(3-pin CHA_FAN2)

fan power voltage.

(see p.2  No. 14)

CPU Fan Connectors

Please connect the CPU fan

(3-pin CPU_FAN1)

cable to the connector and

(see p.2  No. 1)

match the black wire to the

ground pin. CPU_FAN1

supports fan speed control.

ATX Power Connector

Please connect an ATX power

(24-pin ATXPWR1)

supply to this connector.

(see p.2  No. 7)

12

 1

24

13

20-Pin ATX Power Supply Installation

Though this motherboard provides 24-pin ATX power connector,

it can still work if you adopt a traditional 20-pin ATX power supply.

To use the 20-pin ATX power supply, please plug your

power supply along with Pin 1 and Pin 13.

12

 1

24

13

Serial port Header

This COM1 header supports a

(9-pin COM1)

serial port module.

(see p.2  No. 21)

GND

+12V

CHA_FAN_SPEED

FAN_SPEED_CONTROL

20

ASRock  E35LM1  Motherboard

English

2.8    Driver Installation Guide

To install the drivers to your system, please insert the support CD to your optical

drive

fi

 rst. Then, the drivers compatible to your system can be auto-detected and

listed on the support CD driver page. Please follow the order from up to bottom side

to install those required drivers. Therefore, the drivers you install can work properly.

2.9 Installing

Windows

®

 7 / 7 64-bit / Vista

TM

/ Vista

TM

64-bit / XP

/ XP 64-bit Without RAID Functions

If you want to install Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit / XP / XP 64-

bit OS on your SATA / SATAII / SATA3 HDDs without RAID functions, please follow

below procedures according to the OS you install.

2.9.1     Installing Windows

®

 XP / XP 64-bit Without RAID

 Functions

If you want to install Windows

®

 XP / XP 64-bit OS on your SATA / SATAII / SATA3

HDDs without RAID functions, please follow below steps.

STEP 1: Set up UEFI.

A. Enter UEFI SETUP UTILITY        Advanced screen        Storage Con

fi

 guration.

B. Set the option “SATA Mode” to [IDE].

STEP 2: Install Windows

®

 XP / XP 64-bit OS on your system.

Using SATA / SATAII / SATA3 HDDs without NCQ function

AHCI mode is not supported under Windows

®

 XP / XP 64-bit OS.

2.9.2     Installing Windows

®

 7 / 7 64-bit / Vista

TM

/ Vista

TM

64-bit

Without RAID Functions

If you want to install Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit OS on your SATA

/ SATAII / SATA3 HDDs without RAID functions, please follow below steps.

Using SATA / SATAII / SATA3 HDDs with NCQ function

STEP 1: Set up UEFI.

A. Enter UEFI SETUP UTILITY        Advanced screen        Storage Con

fi

 guration.

B. Set the option “SATA Mode” to [AHCI].

STEP 2: Install Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit OS on your

 system.

21

ASRock  E35LM1  Motherboard

English

Using SATA / SATAII / STA3 HDDs without NCQ function

STEP 1: Set up UEFI.

A. Enter UEFI SETUP UTILITY        Advanced screen        Storage Con

fi

 guration.

B. Set the option “SATA Mode” to [IDE].

STEP 2: Install Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit OS on your

 system.
