TS07 Manual

EXTERNAL 3.5’’ HDD ENCLOSURE

Installation and system optimization guide:

The following manual and guides were carefully prepared by the SilverStone

engineering team to help you maximize the potential of your SilverStone product.

Please keep this manual for future reference when upgrading or performing

maintenance on your system. A copy of this manual can also be downloaded

from our website at:

http://www.silverstonetek.com

PRODUCT OVERVIEW

P.2

ENGLISH

P.3

P.7

P.11

P.15

P.19

P.23

P.27

简体中文

P.31

P.35

P.39

1

PRODUCT OVERVIEW

TS07

EXTERNAL 3.5’’ HDD ENCLOSURE

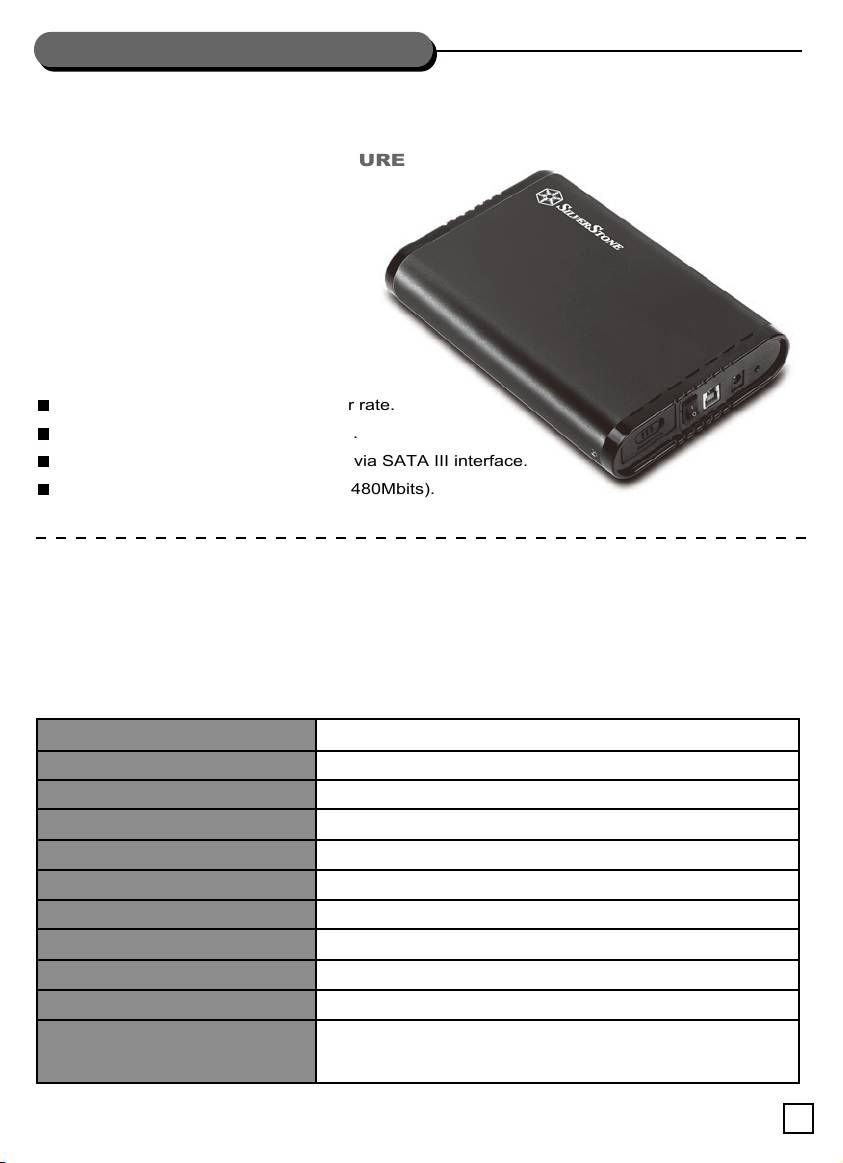

FEATURES

5Gbits USB 3.0 Super Speed transfer rate.

Support 3.5” SATA SSD or hard drive.

Maximum 6Gbits data transfer speed via SATA III interface.

Maximum compatibility with USB2.0 (480Mbits).

INTRODUCTION

SilverStone created an incredible mobile storage product, the Treasure TS07.

It connects to the PC via 5Gbit/s USB 3.0 super speed interface which enables data transfer with

maximum compatibility and stability, making TS07 the best choice for taking important data on the go.

Model No.

SST-TS07B (Black)

Enclosure Material

Aluminum + Plastic

Color

Black

Power Requirement

12Vdc

Drive Size Support

3.5” hard drive or SSD

Drive Interface Support

SATA I / SATA II / SATA III

Enclosure Interface

USB3.0 (Max. 5Gbit/s) compatible with USB 2.0

Operating System Support

Windows XP, Vista, 7, Mac OS and Linux

Net Weight

340g

Dimension

193mm (D) x 128mm (W) x 35mm (H)

Minimum System Requirements

Windows XP, Vista, 7, Mac OS 10.x, Linux

Computer with USB 3.0 super speed or USB 2.0 interface

2

lNSTALLATION GUIDE

Package Content

A complete unit contains the following items:

(Please check the package according to the interface you choose before use the product.)

Interface

SBN

Interface

USB 3.0

USB 3.0 Cable

1 PCS

12V2A Power Adapter

1 PCS

User Manual

1 PCS

Stand Holder

1 PCS

Body

1 PCS

Hardware & OS Requirement

Hardware Requirement: Standard USB port and eSATA port are requires on your computer.

OS Requirement: Windows XP / Vista / 7, Mac OS 10.x, various Linux Kernels or latest versions.

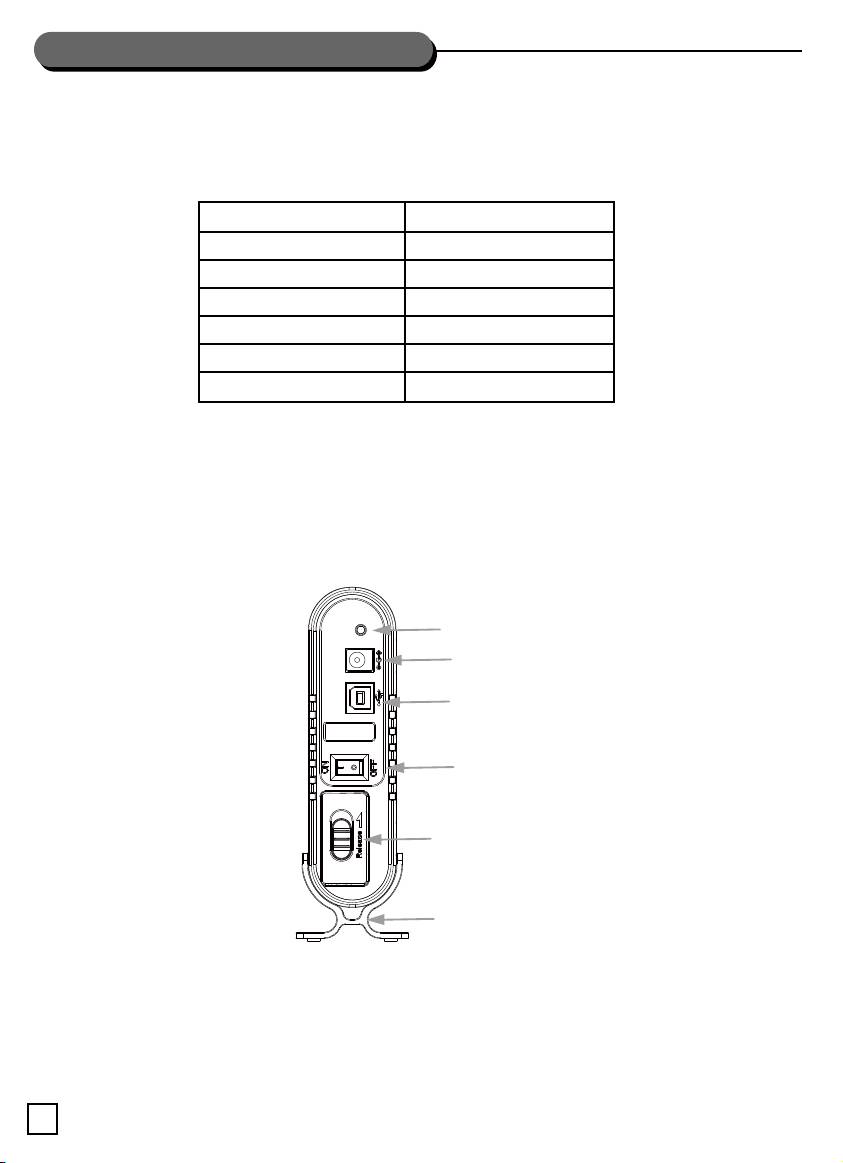

Exterior Layout

LED

DC-IN Port

USB Port

Power Switch

Release Switch

Interface: SBN

Stand Holder

Function Description

Support SATA hard drive up to 2TB capacity.

Plug and Play & Hot plug – ready for immediate use.

LED indicates power and data access status.

With patent screw-free design, fast-n-easy installation without any tools.

3

lNSTALLATION GUIDE

EN

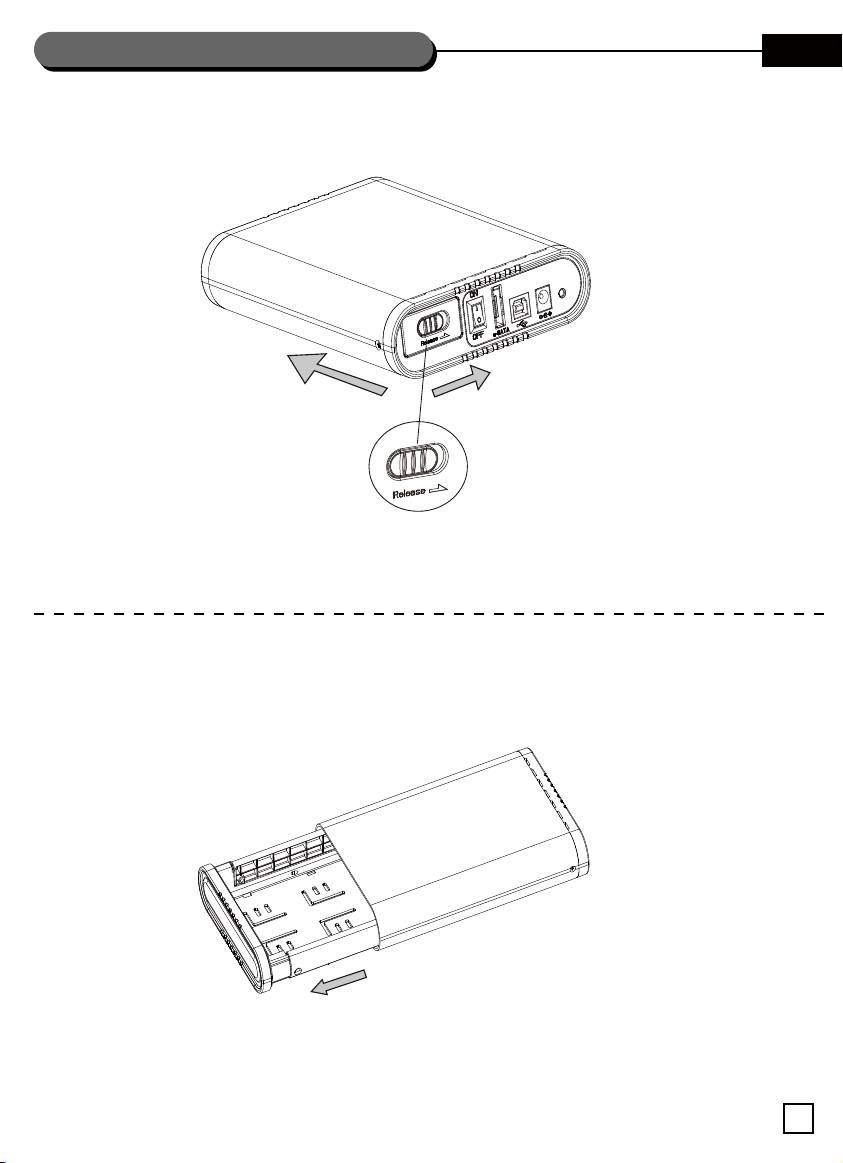

Take out the HDD tray

1.

Push the release switch on the rear panel as shown below to eject the rear panel.

2.

Take out the tray carefully in the arrow pointed direction. Show as below.

4
