Front Panels
This section describes
z VNM 250 Front Panels
z Status Information
z Unit Identify Mode
VNM 250 Front Panels
The front panels of both the VNE 250 and the VND 250 are identical apart from the product
name on the silk screen. The VNE 250 is shown below:
ADJUST
CONTROL
MENU
STREAM
STATUS
CONFIG
NEXT
ALARM
VNE 250
VN-MATRIX RGB / HDMI OVER IP
AE
DCB

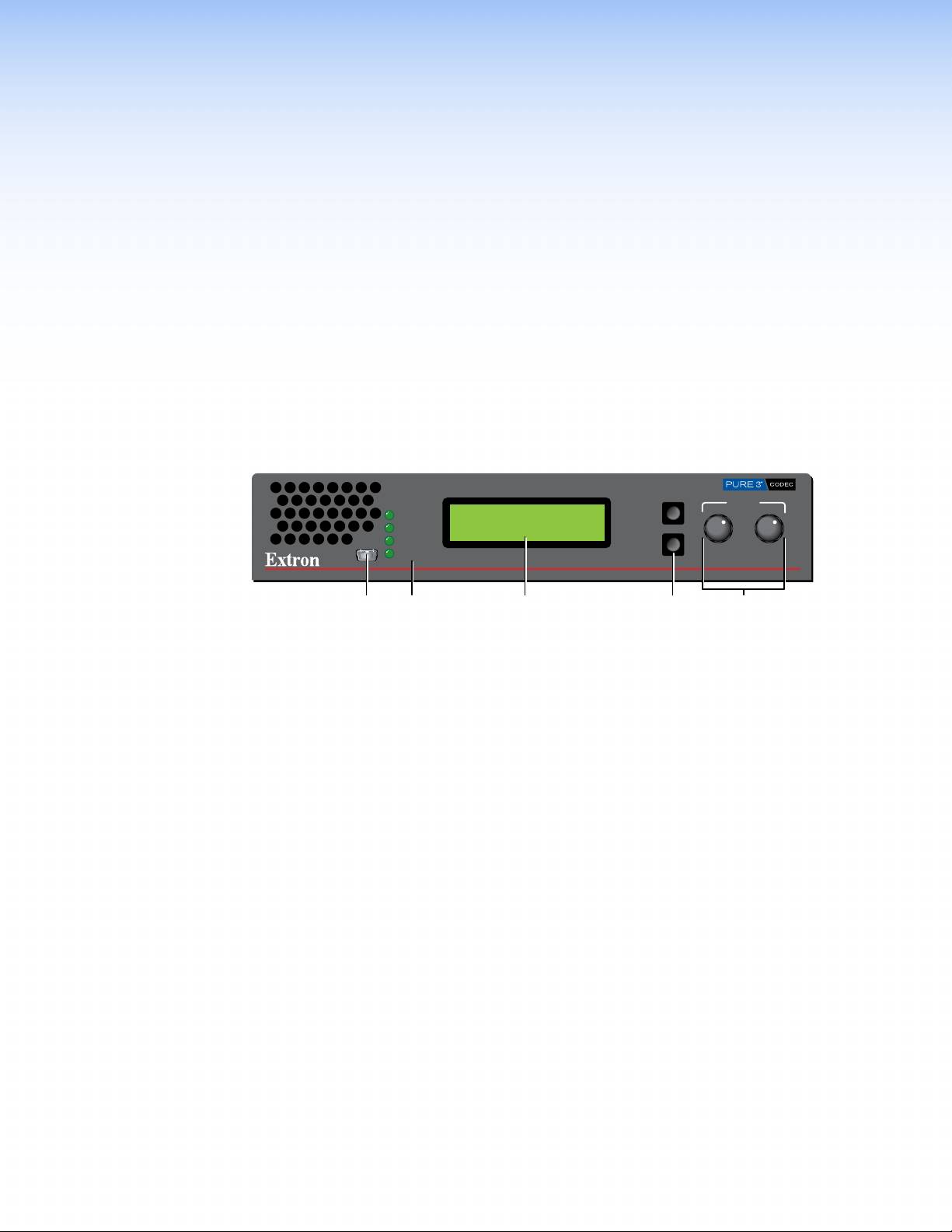

Figure 5. VNE 250 Front Panel
A
Config port — connect this USB mini type B port to a control PC for low level
configuration using SIS commands.
B
Unit status LEDs — provide status information about the unit (see Status Information
on the following page).
C
LCD display — A 2 x 16 character LCD display provides status feedback and allows
configuration through the front panel menu. For information about using the Front
Panel Menu Configuration, see page 91.
D
Menu and Next buttons — use these buttons to move through different levels of the
front panel menu.
E
Rotary encoders — use these rotary encoders to select values from the front panel
menu choices.
VNM 250 • Front Panels and Menus 11

Status Information
Name Color Function
Control Orange Indicates the status of the control network port:
Fully lit or Flashing intermittently — control data is being
transmitted or received by the port.
Unlit — no data or no network connection detected.
Stream Orange Indicates the status of the active network port (streaming):
Fully lit or Flashing intermittently — system control or source data
is being transmitted or received by the port.
Unlit — no data or no network connection detected.
Status Green Indicates the status of the VNE 250 or VND 250
Condition Encoder (source) Decoder (display)
Unlit No source input detected. No stream being received.
Flashing Source being streamed. Stream being received.
Fully Lit Source present but not
N/A
being streamed (for
example, the unit is
currently disabled or in
standby mode).
Alarm Red Fully lit — indicates that a critical alarm has occurred.
Flashing — indicates an over‑temperature condition.
For complete information, see Alarm Types on page 111.
Unit Identify Mode
In addition to the standard indicator modes described above, there is a Unit Identify
mode, for troubleshooting. In large systems, with multiple units in a rack and multiple rack
locations, this is not always easy. The Unit Identify mode causes the front panel display back
light to illuminate and flash and makes it easy to match the physical unit in a rack with the
virtual unit displayed in the VN‑Matrix Enterprise Controller GUI.
The mode can only be triggered by a command from the Enterprise Controller. It is not
available in smaller systems where a VNM250 device is used as a controller.
VNM 250 • Front Panels and Menus 12
