Drilling Guide

Label

2 Point -

Drilling Position

DE

EN

FR

Plastic anchors

PL

RU

Special Screw (M4)

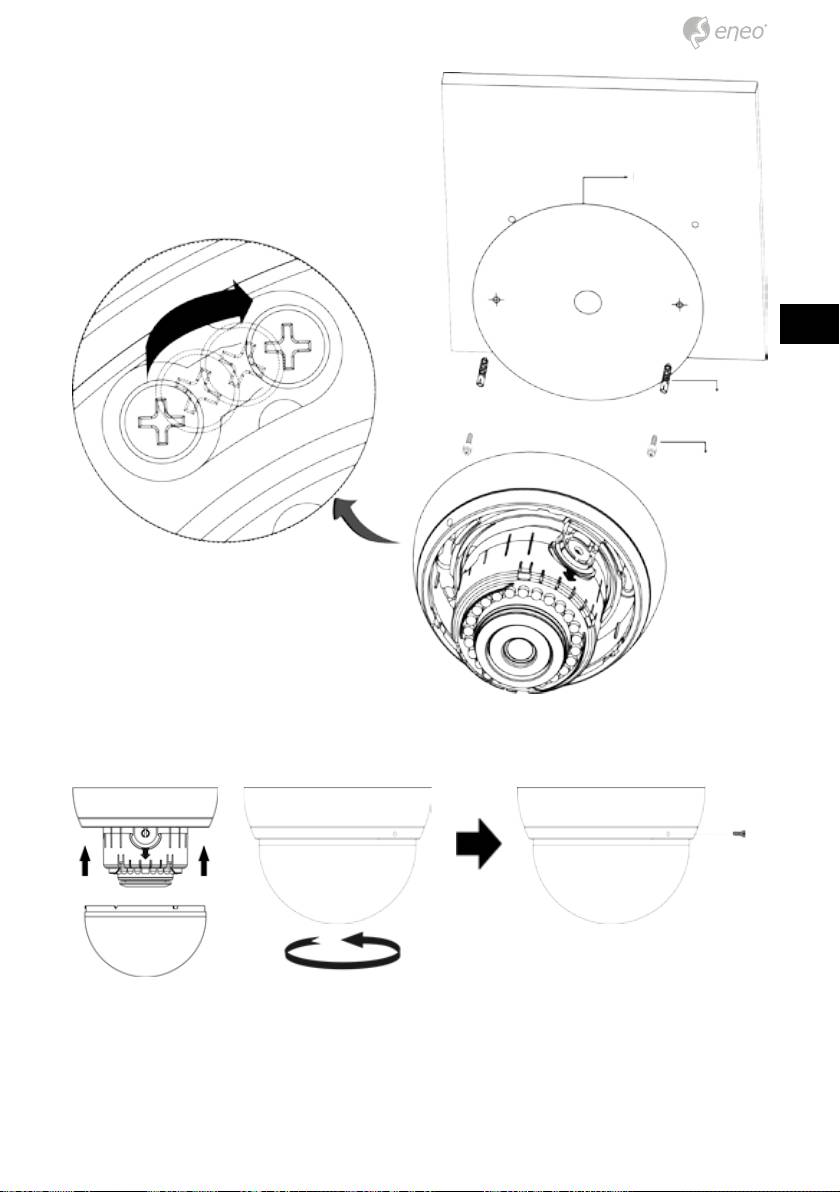

4. Reassemble the dome cover on the camera assembly. Turn Camera

Cover clockwise to complete installation.

Locking Screw

Lock: clockwise

Unlock: reverse

17

Connecting to the RJ-45

Connect a standard RJ-45 cable to the network port of the network camera.

Generally a cross-over cable is used for directly connection to PC, while a

direct cable is used for connection to a hub or switch.

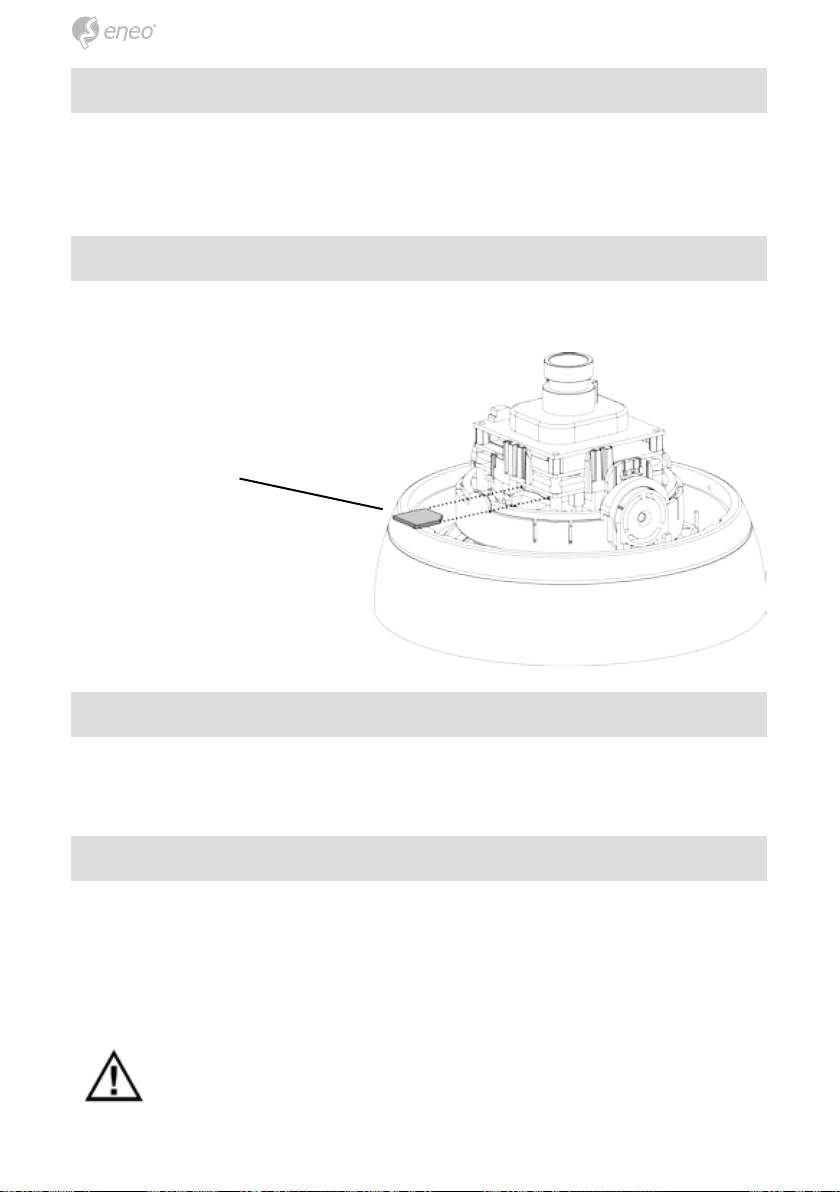

microSD card slot

Insert the microSD card.

microSD card

Connecting the Power

Connect the DC 12V power adaptor to the camera. (This connection is not

used if using PoE power)

Network Connection and IP assignment

The Network Camera supports the operation through the network. When

a camera is first connected to the network it has no assigned IP address.

So, it is necessary to allocate an IP address to the device with the “eneo

Scan Device” tool found on the supplied CD. The factory default IP is

“192.168.1.10”

NOTE: For more information, refer to the eneo Scan Device tool

Manual.
