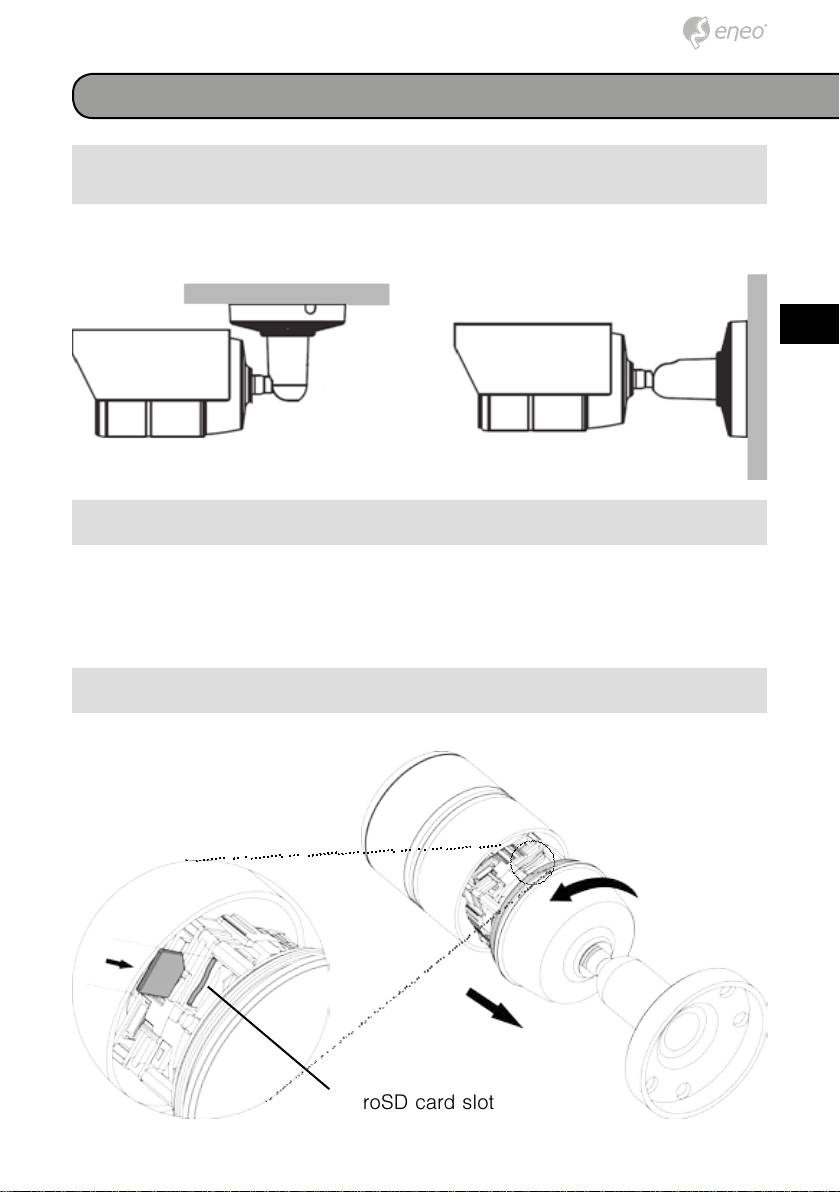

Connecting the Power

Connect the DC 12V power adaptor to the camera. (This connection is not

used if using PoE power).

Network Connection and IP assignment

The Network Camera supports the operation through the network. When

a camera is first connected to the network it has no assigned IP address.

So, it is necessary to allocate an IP address to the device with the “eneo

Scan Device” tool found on the supplied CD. The factory default IP is

“192.168.1.10”

NOTE: For more information, refer to the eneo Scan Device tool

Manual.

Operation

The Network Camera can be used with Windows operating system and

browsers. The recommended browsers are Internet Explorer, Safari, Firefox,

Opera and Google Chrome with Windows.

Access from a browser

1. Start a browser. (Internet Explorer) will be used in this example.

2. Enter the IP address or host name of the Network Camera in the Loca-

tion/Address field of your browser.

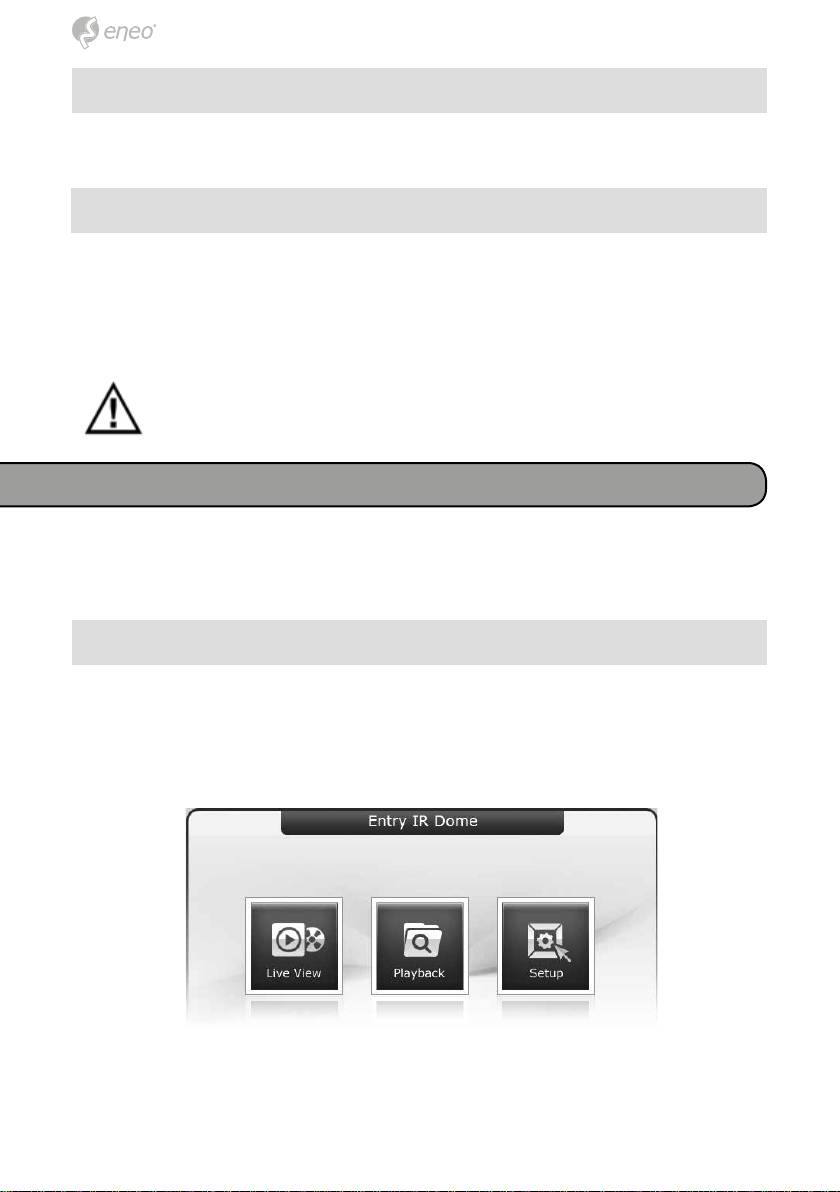

3. You can see a starting page. Click Live View or Setup to enter web

page.

16

4. The network camera’s Live View page appears in your browser.

DE

EN

FR

PL

RU

Access from the internet

Access from the internet once connected, the Network Camera is accessible

on your local network (LAN). To access the network camera from the Internet

you must configure your broadband router to allow incoming data traffic to

the network camera. To do this, enable the NAT-traversal feature, which will

attempt to automatically configure the router to allow access to the network

camera. This is enabled from Setup > System > Network > NAT. For more

information, please see “3.5.6 System>Network>NAT” of User’s Manual.

17

Setting the admin password over a secure connection

To gain access to the product, the password for the default administrator

user must be set. This is done in the “Admin Password” dialog, which is

displayed when the network camera is accessed for the setup at the first

time. Enter your admin name and password, set by the administrator.

NOTE: The default administrator username and password is

“admin”. If the password is lost, the Network Camera must be

reset to the factory default settings. See “Resetting to the Factory

Default Settings”.

18

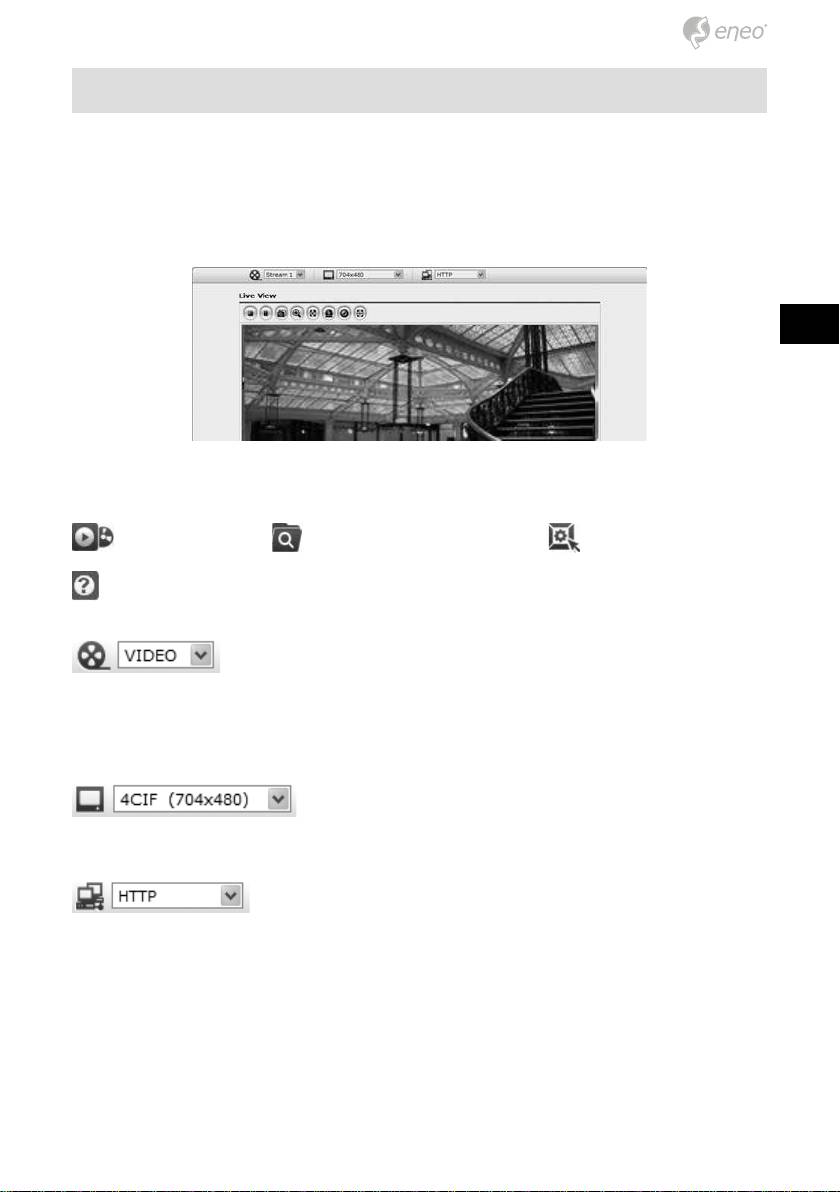

Live View Page

The live view page comes in several screen modes: 1920x1080

(1600x1200), 1280x1024, 1280x720, 704x480(576), 640x480,

352x240(288) and 320x240. Users are allowed to select the most suitable

one out of those modes. Please, adjust the mode in accordance with your

PC specifications and monitoring purposes.

DE

EN

FR

PL

RU

General controls

Live View Page Search & Playback Page Setup Page

Help Page

The video drop-down list allows you to select a customized

or pre-programmed video stream on the live view page. Stream profiles are

configured under Setup > Basic Configuration > Video & Image. For more

information, please see “3.5.1 Basic Configuration > Video & Image” of

User’s Manual.

The resolution drop-down list allows you to select

the most suitable one out of video resolutions to be displayed on live view

page.

The protocol drop-down list allows you to select which

combination of protocols and methods to use depending on your viewing

requirements, and on the properties of your network.

19

Control toolbar

The live viewer toolbar is available in the web browser page only. It displays

the following buttons:

The Stop button stops the video stream being played. Pressing the key

again toggles the start and stop. The Start button connects to the network

camera or start playing a video stream.

The Pause button pause the video stream being played.

The Snapshot button takes a snapshot of the current image. The loca-

tion where the image is saved can be specified.

The digital zoom activates a zoom-in or zoom-out function for video

image on the live screen.

The Full Screen button causes the video image to fill the entire screen

area. No other windows will be visible. Press the ‚Esc‘ button on the com-

puter keyboard to cancel full screen view.

The Manual Trigger button activates a pop-up window to manually start

or stop the event.

Video Streams

The network camera provides several images and video stream formats.

Your requirements and the properties of your network will determine the

type you use.

The Live View page in the network camera provides access to H.264,

MPEG-4 and Motion JPEG video streams, and to the list of available vid-

eo streams. Other applications and clients can also access these video

streams/images directly, without going via the Live View page.

Network Camera Setup

This section describes how to configure the network camera, and is intend-

ed for product Administrators, who have unrestricted access to all the Setup

tools; and Operators, who have access to the settings for Basic, Live View,

Video & Image, Event, and System Configuration.

20

You can configure the network camera by clicking Setup in the top right-

hand corner of the Live View page. Click on this page to access the online

help that explains the setup tools.

When accessing the Network Camera for the first time, the “Admin Pass-

word” dialog appears. Enter your admin name and password, set by the

administrator.

DE

EN

FR

PL

RU

NOTE: If the password is lost, the Network Camera must be reset

to the factory default settings. See “Resetting to the Factory

Default Settings”.

21

Resetting to the factory default settings

To reset the Network Camera to the original factory settings, go to the

Setup>System> Maintenance web page (described in User’s Manual, “3.5.6

System > Maintenance”) or use the Reset button on the network camera, as

described below:

Reset Button

Using the Reset Button

Follow the instructions below to reset the Network Camera to the factory

default settings using the Reset button.

1. Switch off the Network Camera by disconnecting the power adapter.

2. Remove the front cap of the camera.

3. Press and hold the Reset button while reconnecting the power.

4. Keep the Reset button pressed for at least 2 or more seconds.

5. Release the Reset button.

6. The network camera resets to factory defaults and restarts after com-

pleting the factory reset.

7. Close the front cap of the camera.

CAUTION: When performing a Factory Reset, you will lose any

settings you have saved. (Default IP 192.168.1.10)

22

Further information

The User‘s Guide is available on the eneo website at

www.eneo-security.com or on the included CD.

DE

EN

FR

PL

RU

23
