Eizo FlexScan S2411W: Adjusting the Screen Height and Angle

Prior to use Installation TroubleshootingSetting/Adjustment

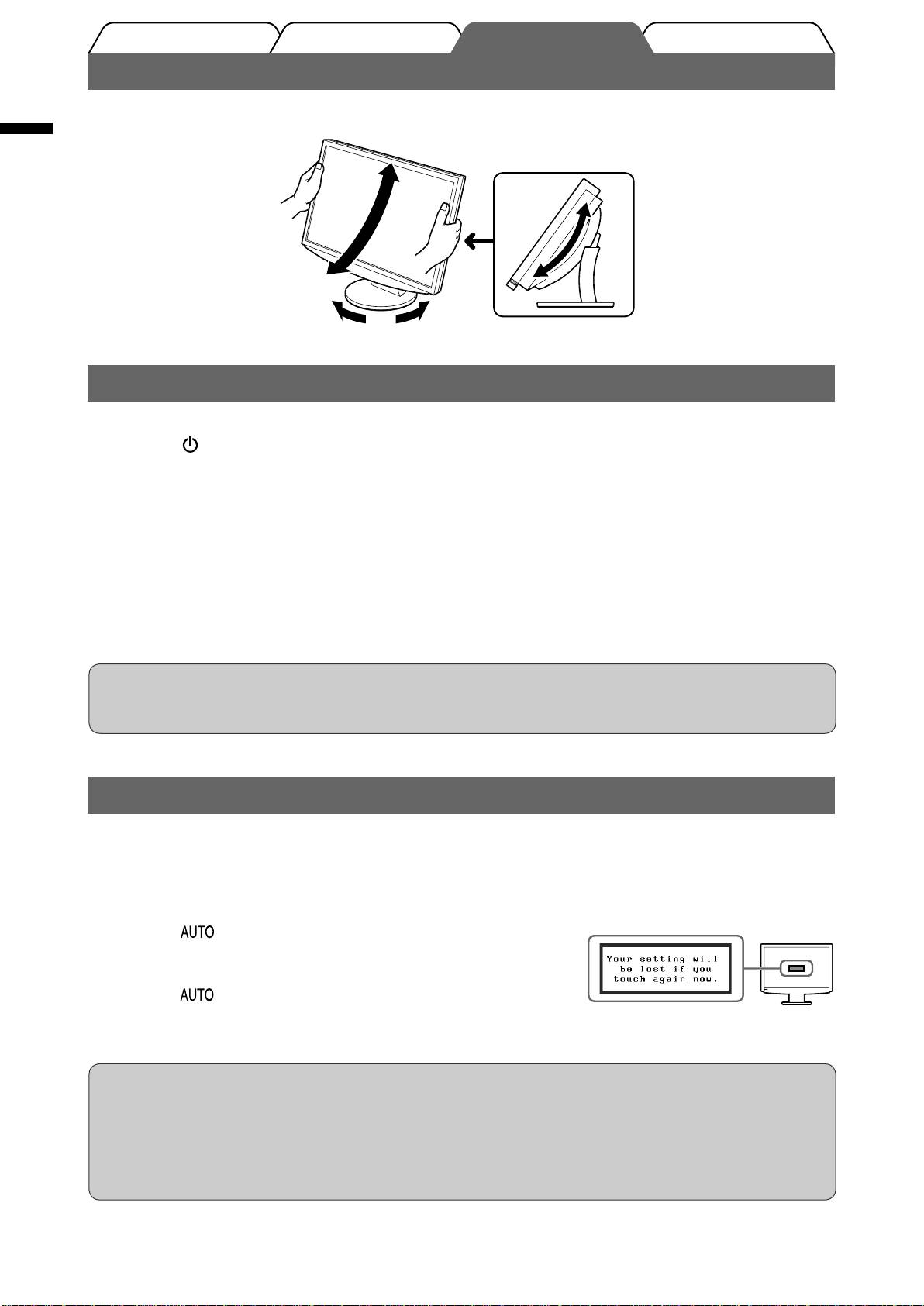

Adjusting the Screen Height and Angle

Adjust the screen height, tilt and swivel the screen to the best condition for working.

English

Displaying the Screen

Touch to turn on the monitor.

1

The monitor’s Power indicator lights up blue.

Turn on the PC.

2

The screen image appears.

When using analog input signals, perform the Auto Adjustment function. (Refer

3

to “Performing Auto Adjustment function” below.)

The Auto Adjustment function is not necessary when digital signals are input because images are

displayed correctly based on the preset data of the monitor.

Attention

• Turn off the monitor and PC after using them. Unplugging the power cord completely shuts off power

supply to the monitor.

Performing Auto Adjustment Function (Analog input only)

When analog signals are input, the Auto Adjustment function enables the automatic adjustment of clock, phase, screen

position, and resolution.

For details of the Auto Adjustment function, refer to the User’s Manual on the CD-ROM.

Touch .

1

A message window appears.

Touch again while the message is displayed.

2

The Auto Adjustment function is activated and clock, phase,

screen position, and resolution are adjusted automatically.

Attention

• The Auto Adjustment function works correctly when an image is fully displayed over the display area of a

PC screen.

It does not work properly when an image is displayed only on a part of the screen (DOS prompt window,

for example) or when a black background (wallpaper, etc.) is in use.

• The Auto Adjustment function may not work properly with some graphics boards.

4
