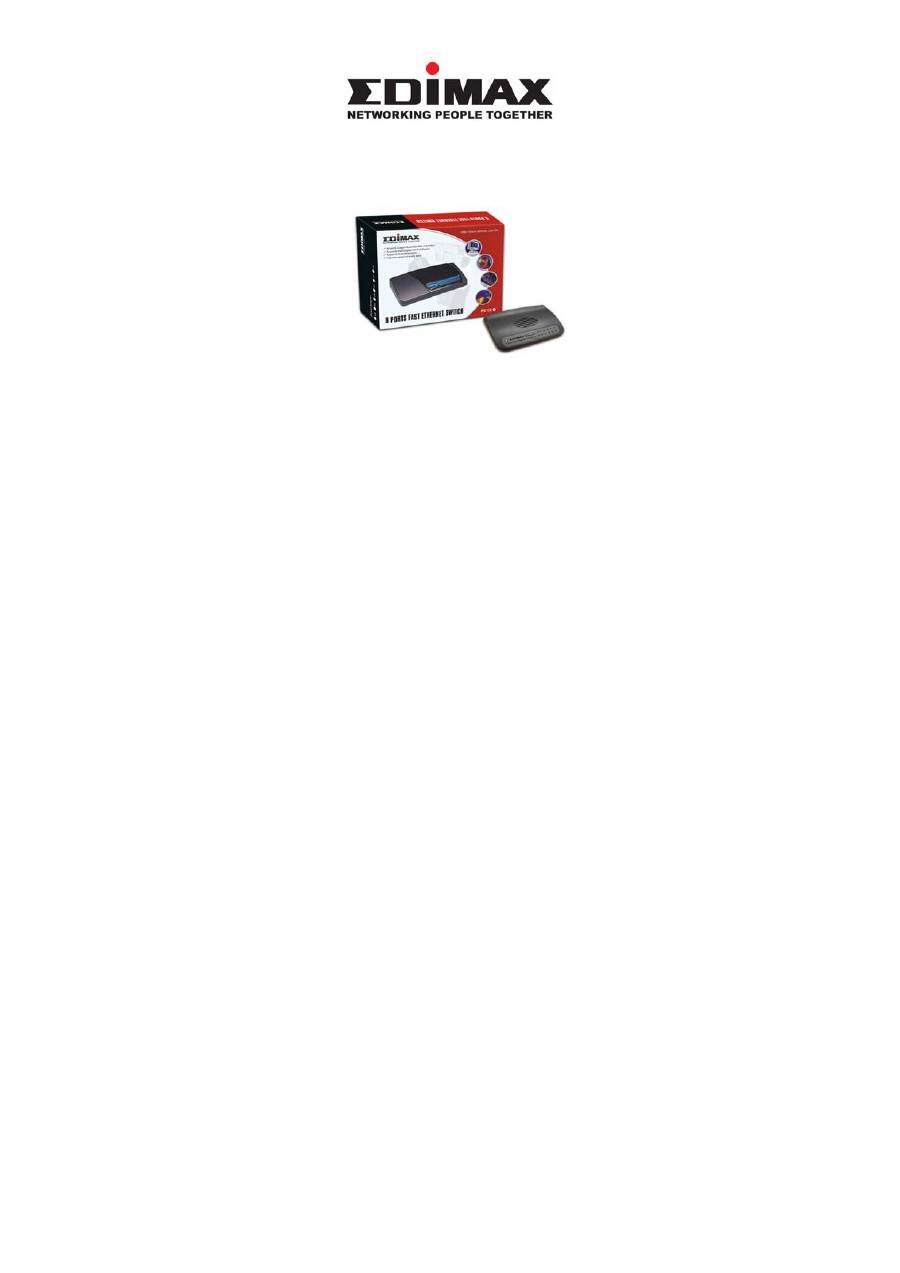

Edimax Technology Edimax ES-3105P: инструкция

0

5

5

/

/

8

8

/

/

1

1

6

6

P

P

o

o

r

r

t

t

s

s

S

S

O

O

H

H

O

O

F

F

a

a

s

s

t

t

E

E

t

t

h

h

e

e

r

r

n

n

e

e

t

t

S

S

w

w

i

i

t

t

c

c

h

h

e

e

s

s

Q

Q

u

u

i

i

c

c

k

k

I

I

n

n

s

s

t

t

a

a

l

l

l

l

a

a

t

t

i

i

o

o

n

n

G

G

u

u

i

i

d

d

e

e

1

Content Table

English

 ..............…………...............……………...

2

Č

eský

...................................................................

 5

Deutsch

 ...............................................................

 8

Español

 ..............................................................

 11

Français

 .............................................................

14

Italiano

 ...............................................................

17

Magyar

 ...............................................................

20

Nederlands

.........................................................

23

Polski

.................................................................

 26

Português

 ..........................................................

 29

Русский

..............................................................

 32

Türkçe

 ................................................................

 35

2

 English .

Front Panel & Connectors  Fast Ethernet Switch LED Panel

LED

Color

Status

Description

Lit Power

is

supplied

PWR

(Power)

Green

Off No

power

Lit

A valid link is established

Flash

Data packets received

LNK/ACT

(Link/Activity)

Green

Off

No link is established

Lit

This port run at 100Mbps

SPEED

(10/100M)

Yellow

Off

This port run at 10Mbps

3

1. Operating Environment

This switching hub must be installed and operated within the

limits of specified operating temperature (32-131°F) and

humidity (10~95% Non-condensing).

z

Do not place objects on top of the unit.

z

Do not obstruct any vents at the sides of the unit.

z

Do not position the unit near any heating source such

as heater, radiator, or direct exposure to sun.

Prevent entering of water and moisture into the unit. If

necessary, use dehumidifier to reduce humidity.

2.  Connecting to network devices

The RJ-45 ports on the switch support Auto-MDI/MDI-X

function which allows using straight-through or cross-over

type cables to connect this switch to workstation or hub.

Connect one end of the network cable to the RJ-45 port on

the rear panel, and connect the other end of the network

cable to the RJ-45 port on the network device. Follow the

same procedure to connect all the RJ-45 ports of the switch.

The UTP network cables must comply with EIA/TIA 568

specifications and Category 5 standard for 100Mbps data

transmission. Maximum length: using UTP cable, between

the switch and connected device is 100 meters (300ft).

Once the network cable is connected to both ends and the

attached network device is powered on, the green LNK/ACT

LED should be lit.

3.  Connecting the power

Connect the power adapter to the power connector on the

rear panel of the unit; the green Power LED on the front

panel should be lit.

4

Trouble Shooting

1.

Power LED is not lit

z

Check if the power cord is properly connected to the

external power adapter and the power outlet. Make sure

the DC power jack is firmly plugged into the power socket

of the switch.

2.

Link/Activity is not lit when connect to 100Mbps device

z

Check the power switch of the network device attached to

the switch; make sure it is turned ON.

z

Check the network cable; make sure it is properly

connected to the switch and the network device.

z

Check the network cable; make sure the UTP cables

comply with EIA/TIA 568 and Category 5 specification.

[!] Contact your dealer if problem persist.
