Installation

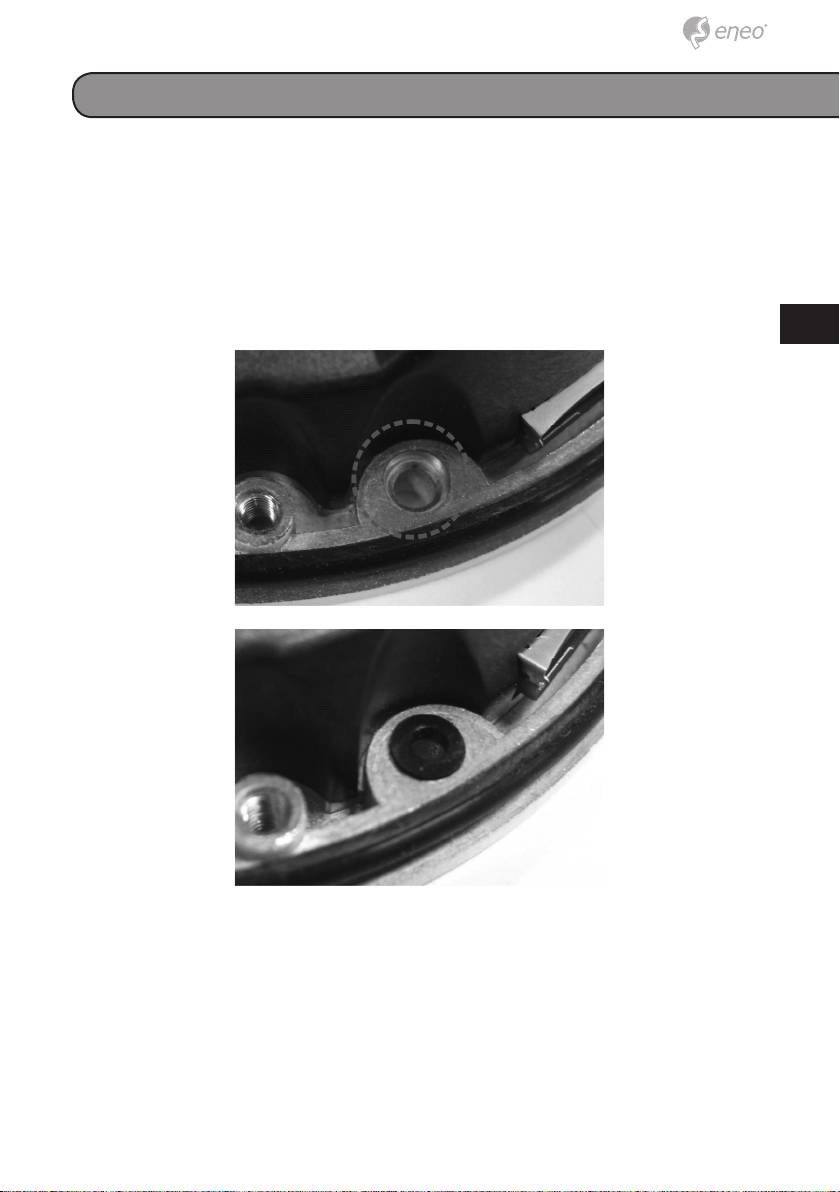

1. Drill two holes in the ceiling or the wall, to match the spacing of the
mounting holes in the base plate.
1a External use: Drill a hole in the ceiling or wall, to run the Ethernet cable
through. Place the rubber seal rings on either side of the hole in the base
DE
plate.
EN
FR
PL
RU
2. Align the dome base with the previously drilled holes and secure it with
the mounting screws passed through the mounting holes.
3. Adjust the camera angle and focus.
4. Fit the cover onto the dome base and tighten the screws with the Torx
wrench.
13
PoE Connection
Please follow the instructions below to complete the Ethernet connection of
IP Dome Camera.
PXD-1010F02 (Indoor Camera)
Connect the one end of the PoE cable to the Ethernet port on the
camera, and the other end to Power Sourcing Equipment (PSE) like
hubs or routers.
NOTE: Check the status of the link indicator and activity
indicator LEDs; if the LEDs are unlit, please check
LAN connection.
Green Link Light indicates good network connection.
Orange Activity Light flashes for network activity indication.
NOTE: Before connecting the Ethernet Cable to the Camera,
please remove the RJ45 plug protector cover.
PXD-1020F02 (Rugged Camera)
For the Rugged IP Dome Camera, connect its Ethernet cable to a M12
/ RJ-45 waterproof switch. Please refer to the IP Dome Camera’s user
manual for further details.
