Installation

DE

EN

FR

PL

RU

CAUTION: Easy Bracket can not be installed on the ceiling.

When it is installed on the wall, peg for Easy bracket Hook ⓚ

must be placed upwardly.

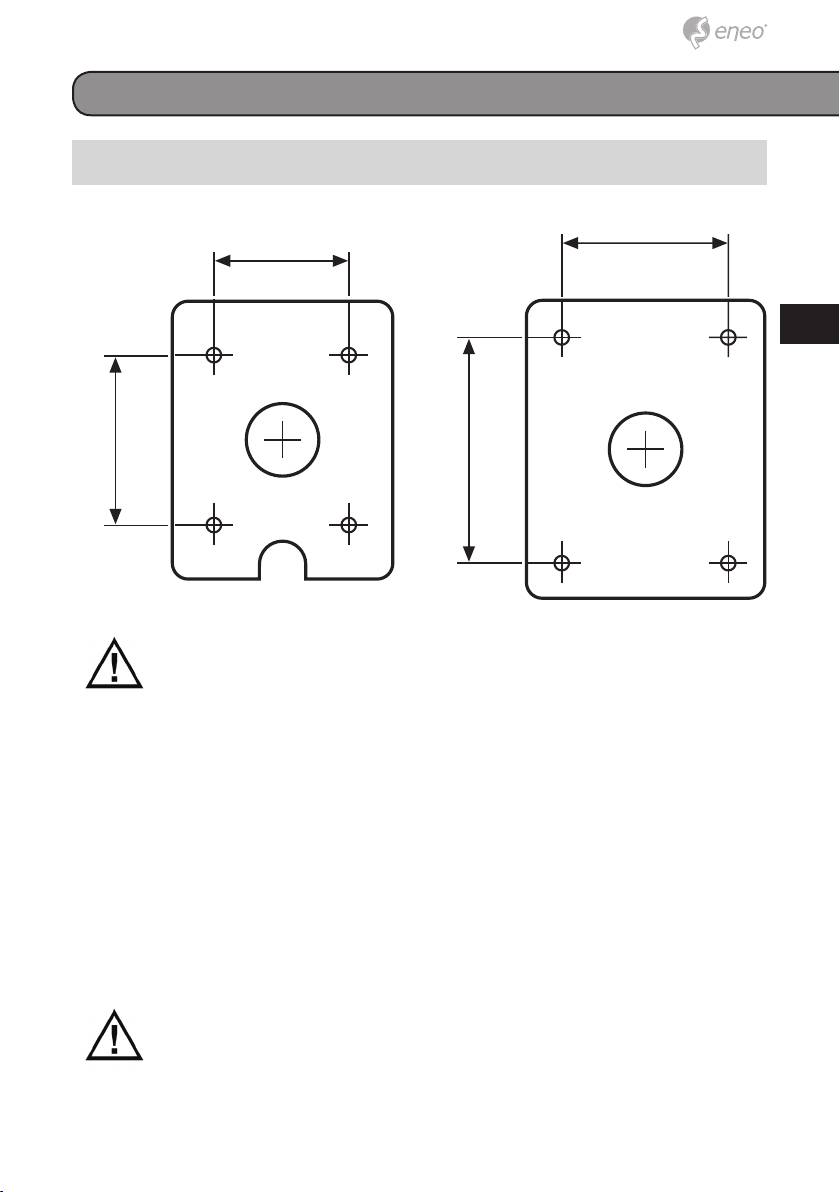

1) Drill the holes on wall using a supplied template.

2) Insert the anchors to the drilled holes.

2a) Easy Bracket: Match the EASY

BRACKET to the drilled position.

Fix the EASY BRACKET by using

Wall fixing screws.

3. Route cables to the installtion position and connect audio, power, alarm

and LAN cables as required.

Care should be taken the cable is NOT to be damaged, kinked or

exposed in the hazardous area.

The camera can work with either 24AC or 12VDC, dual voltage power and

21

56

45

57

76

Easy Bracket and Standard Bracket

PoE (IEEE Std. 802.3af). When using a 12VDC or 24VAC power supply

please proceed as follows:

• Make sure the power is removed before the installation.

• Follow the order for applying power.

First, connect the low voltage (AC24V or DC12V), then plug the AC adapter

to AC outlets to avoid an improper reset from power jitter and a damage

from the surge voltage when no load.

To communicate with the network camera it is necessary to connect a

standard RJ-45 cable to it. Generally a cross-over cable is used for direct

connection to PC, while a direct cable is used for connection to a hub /

switch.

4a) Easy Bracket: Connect hook ⓘ

4b) Standard Bracket: Match Foot

to peg ⓚ.

mount Hole (4x) ⓓ to the drilled

position.

5a) Easy Bracket: Fix Bracket Foot ⓒ

to EASY BRACKET by using wrench

5b) Standard Bracket: Fix the bracket

bolts through Foot mount Hole (4x)

by using Wall fixing screws.

ⓓ.

6. Set the camera’s angle (Pan, Tilt, inclination).

Pan is limited to +/- 90°.

Tilt is limited to 0°(2°) min ~ 90° max. for wall(ceiling) installation respec-

tively with reference to the ceiling when the inclination of camera module is

0°, that is, the image is aligned horizontally.
