• Install the illuminator in a properly airy zone.

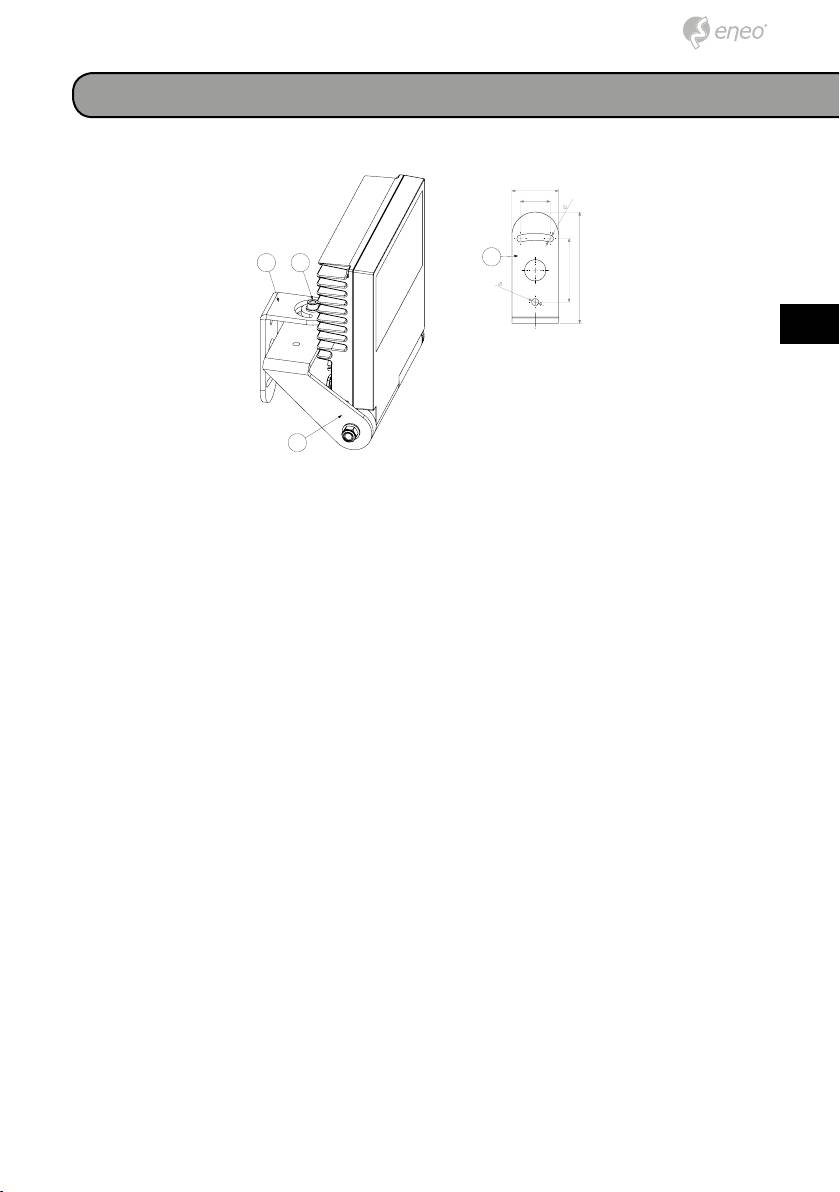

• Mount the BWHYP1 bracket ⓓ to the bracket ⓐ, using the screw and

the nut ⓔ.

• Place the bracket ⓓ in the desired position against the wall.

• To make this operation easier, it is possible to loosen the knurled hand-

wheel ⓑ or in case the nut opposite to the handwheel, and rotate the

bracket as to the illuminator.

• Mark the position of mounting holes.

• Make the mounting holes, taking into consideration the type of material,

which the wall is made of, and the type of fixings to be used.

• Mount the bracket ⓓ to the wall in a firm way.

If loosened during the bracket installation, please remember to tighten the

knurled handwheel ⓑ and/or the nut opposite to the handwheel.

19

Wall bracket mounting

6,5

D

6,5

Connections

The illuminator is provided with integrated power supply and twilight control;

therefore, it is sufficient to simply connect the power supply cable to the

main.

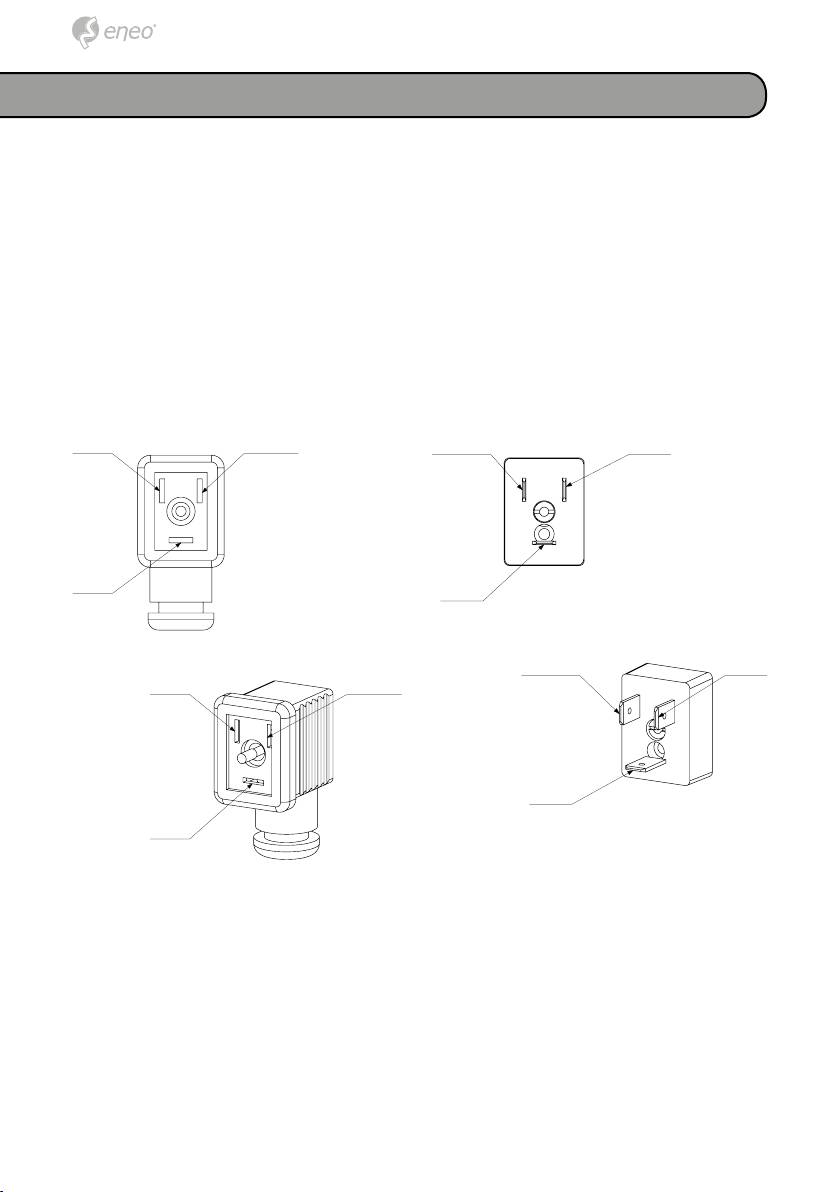

When connecting the cable to the 3 pin power connector pay attention to

the correct pin assignment. Make sure that the seal is positioned correctly

and connector screwed on tightly when connected to the illuminator.

20

PHASE

NEUTRA

EARTH

EARTH

NEUTRAL

Phase Neutral

Neutral

Phase

Earth

Earth

Neutral

Phase

Phase

Neutral

Earth

Earth
