Connecting Cables

Attention

• When replacing the current monitor with a S2001W/S2201W monitor, be sure to change the PC settings

for resolution and vertical frequency to those which are available for the S2001W/S2201W monitor

referring to the resolution table (back of cover page) before connecting the PC.

NOTE

• When connecting two PCs to the monitor, refer to the User’s Manual on the CD-ROM.

Check that the monitor and the PC are powered off.

1

Connect the monitor to the PC with a signal cable that matches the connectors.

2

After connecting the cable connectors, tighten the screws of the connectors to secure the coupling.

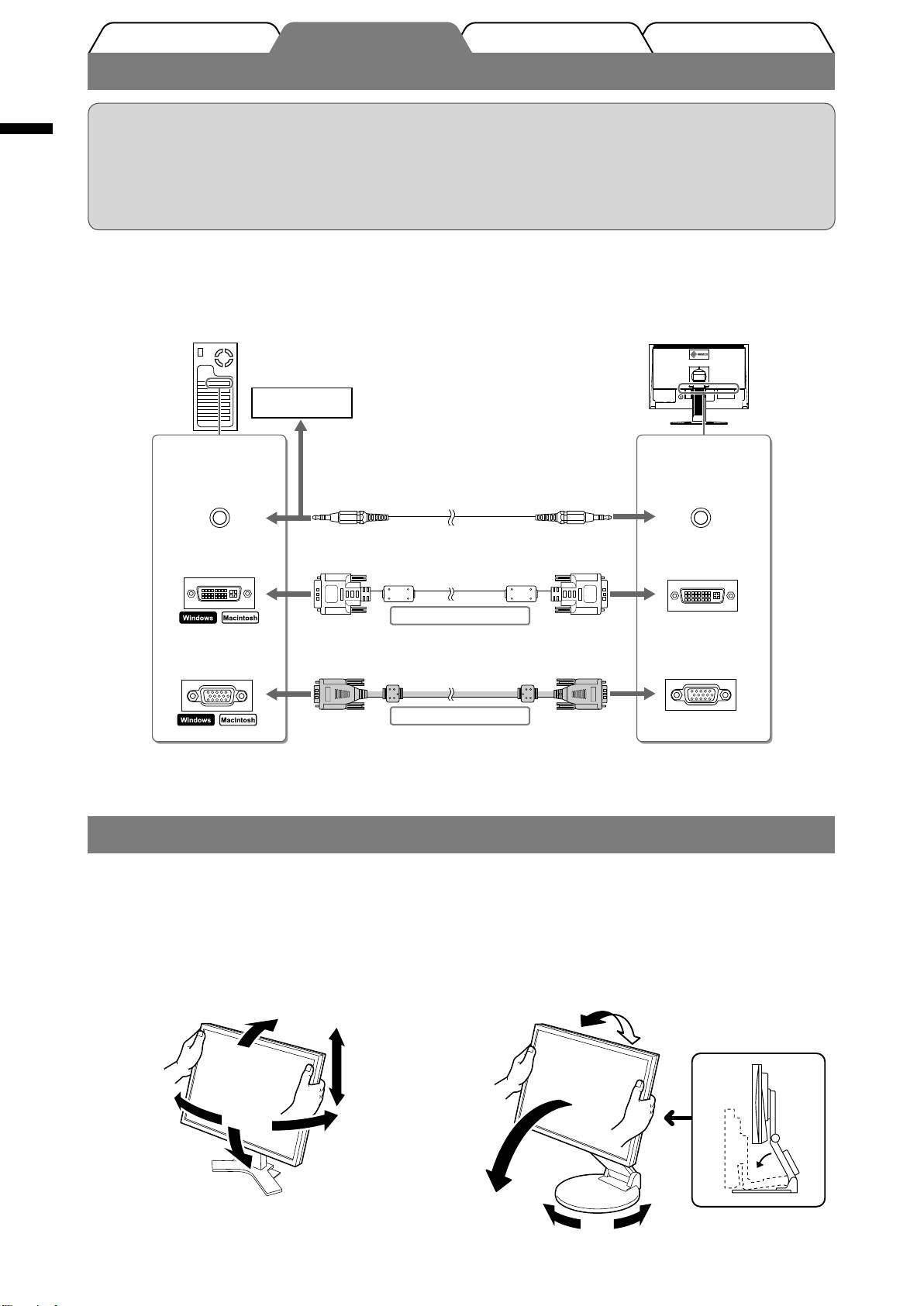

CD player, etc

Connectors on

Connectors on

the PC

the monitor

Audio output

Audio input

connector

Stereo mini jack cable (supplied)

connector

Signal cable FD-C39 (supplied)

DVI connector

DVI-I connector

Digital connection

D-Sub mini 15-pin

D-Sub mini 15-pin

connector

Signal cable MD-C87 (supplied)

connector

Analog connection

Plug the power cord into a power outlet and the Power connector on the monitor.

3

Adjusting Screen Height and Angle

Hold left and right edge of the monitor with both hands, and adjust the screen height, tilt and swivel of the screen to the

best condition for working.

Height adjustable stand

EZ-UP stand

Hold left and right edge of the monitor with both hands to

Hold the left and right edges of the monitor with both

adjust the screen up, down, left and right directions.

hands and adjust the screen angle by moving them

upwards, downwards, or to the left or right.
