Accessories

Check valve (flapper valve)

  .......................................................................

639683

(Simultaneous operation of two systems at different pressure levels,

stainless steel/FFKM, leak rate < 1.6*10-3 Torr*cfm

for pressure differences > 375  Torr (500 mbar))

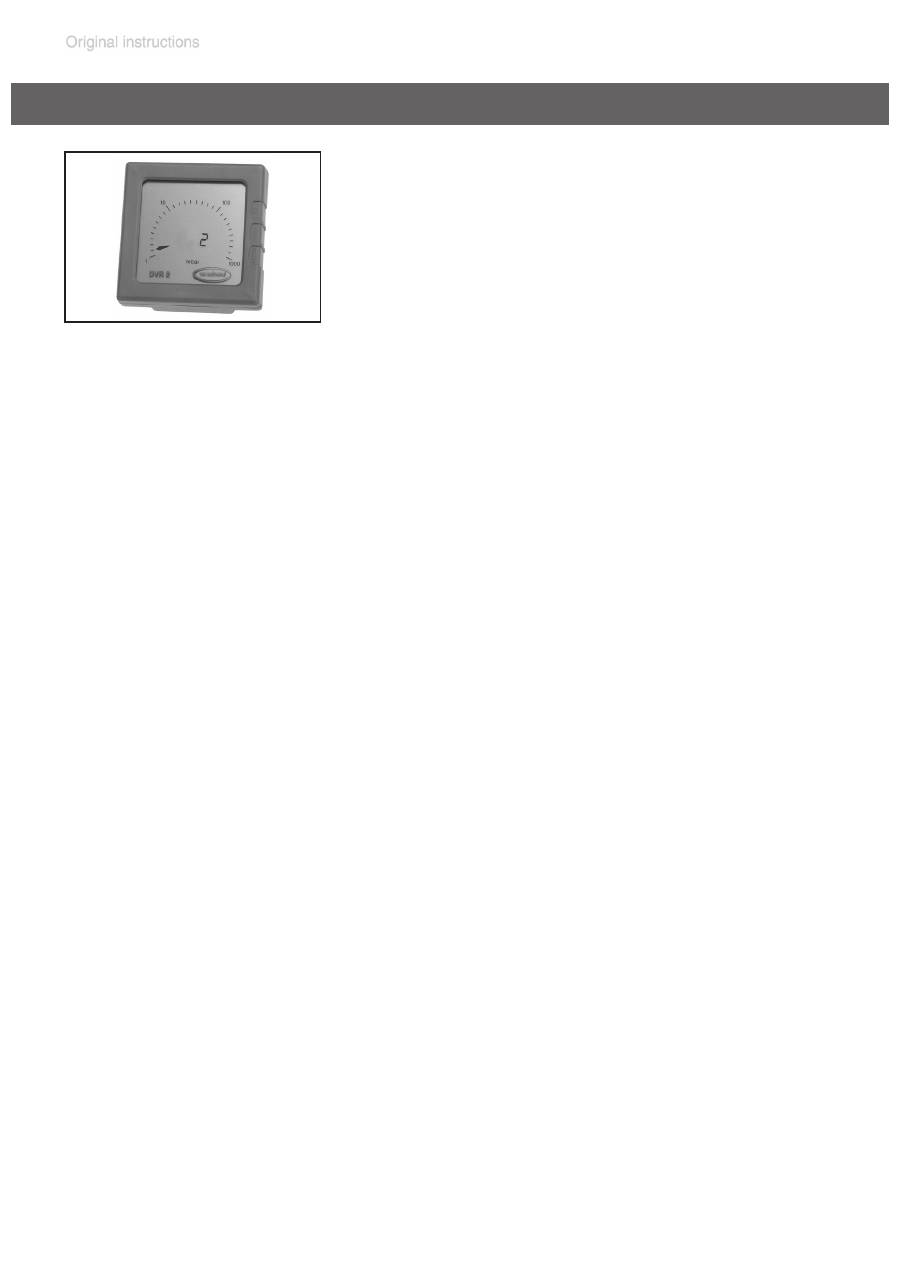

Digital vacuum gauge DVR 2

  .....................

682902

Level sensor

 for catchpots ...........................................................................

699908

Vacuum hose (caoutchouc)

 I.D. 3/8” (10 mm ID)  ......................................

686002

Silencer

for hose nozzle 3/8” (DN 10 mm)  ..................................................

636588

Upgrade possibilities for NT vacuum systems:

Upgrade kit SYNCHRO

  ..............................................................................

699920

to two inlets (valve block; replaces distribution head)

Adapter G 1/4 thread to PTFE tubing*

,  .....................................................

677060

for inlet at valve block (SYNCHRO)

Small flange KF DN 16

  ...............................................................................

662593

for assembly at inlet of valve block (SYNCHRO)

Seal ring

for small flange KF DN 16 (662593)

 ...........................................

3120565

Hose nozzle for tubing I.D. 1/4” / 3/8”

 (

DN 6/10 mm)

, ...............................

642470

for inlet at valve block (SYNCHRO)

Modification kit for small flange KF DN 16

 ................................................

699939

at inlet of distribution head

Hose nozzle for tubing I.D. 1/4” / 3/8”

 (

DN 6/10 mm)

, ...............................

636635

for inlet at distribution head

Elbow piece (90°) for PTFE tubing

* ...........................................................

637873

for assembly at inlet of distribution head

Adapter

for

gas ballast connection

 ...........................................................

636193

Via small flange KF DN 16

Blind flange

 (C1)  .........................................................................................

677136

for assembly at valve block or distribution head

Attention

: Dust-laden gases, deposits and condensed solvent vapor can restrict

air flow out the silencer. The resultant back pressure can lead to damage of pump

bearings, diaphragms, and valves. Under those conditions, a silencer must not be

used.

 page 49 of 74

Ways to connect NT chemistry diaphragm pumps:

Small flange KF DN 16

,  ..............................................................................

677058

with hose - for installation at hose nozzle

Small flange KF DN 16

,  ..............................................................................

699918

for assembly directly at the valve head

(at inlet of ME 4C NT / ME 8C NT / MD 4C NT; at outlet of ME 4C NT / MZ 2C NT)

Small flange KF DN 16

, ...............................................................................

699919

for assembly directly at the valve head (at outlet of ME 8C NT / MD 4C NT)

Adapter hose nozzle DN 10 to hose nozzle 1/2

” .......................................

636002

Adapter to PTFE tubing*

, ............................................................................

636274

for assembly directly at the valve head (at inlet of ME 4C NT / ME 8C NT / MD 4C

NT; at outlet of ME 4C NT / MZ 2C NT)

Adapter to PTFE tubing*

, ............................................................................

636275

for assembly directly at the valve head (at inlet of MZ 2C NT;

at outlet  of ME 8C NT / MD 4C NT)

Elbow connecting piece (90°) for PTFE tubing

* .......................................

638434

T-piece for PTFE tubing

* .............................................................................

638435

PTFE tubing*

 (sold by meter) ......................................................................

638644

For additional accessories such as vacuum valves, small-flange components, vac

-

uum gauges or vacuum controllers refer to www.vacuubrand.com

Flow control diaphragm valve

 (C2)  ...........................................................

677137

for assembly at valve block or distribution head

Solenoid operated valve

 (C3-B) .................................................................

636668

for assembly at valve block or distribution head

Manometer module (

C5)  ............................................................................

677100

for assembly at valve block or distribution head

Controller CVC 3000

  ...................................................................................

683160

In-line valve VV-B 6C

  ..................................................................................

674291

VACUU•LAN

®

 Mini-Network

 with three VCL 01 modules

 .........................

2614455

Vacuum adjustment device

 with manometer ..............................................

696840

Spare parts:

Catchpot

 0.52 qt (500 ml), coated ................................................................

638497

*

 PTFE tubing DN 10/8 mm

VACUU•LAN

®

 networks are engineered to perform to specification when installed

with PTFE tubing, DN 10/8 mm. All VACUU•LAN

®

 modules, pumps and connectors

are designed for compatibility with this tubing.
