Technical data
General technical data valid for all pumps/pumping units
Maximum permissible inlet pressure
psi
16
(absolute)
(bar)
(1.1)
Maximum permissible outlet pressure
psi
16
(absolute)
(bar)
(1.1)
Maximum pressure difference between
psi
16
inlet and outlet
(bar)
(1.1)
Maximum permissible pressure (abso-
psi
17.5
lute) at gas ballast valve
(bar)
(1.2)
Permissible ambient temperature
°F
14 to 140 / 50 to 104
storage / operation
(°C)
(-10 to +60 / +10 to +40)
Permissible relative atmospheric mois-
% 30 to 85
ture during operation (no condensation)
No-load speed 50/60 Hz rpm 1500 / 1800
Device fuse slow blow fuse 6.3 A
Motor protection thermal cutout, manual reset
Degree of protection IEC 529 IP 40
hose nozzle for tubing
Coolant connection
I.D. 1/4” - 5/16”
(waste vapor condenser, only ”EK”)
(hose nozzle DN 6-8 mm)
Maximum permissible pressure of
psi
87 (absolute)
coolant at waste vapor condenser (”EK”)
(bar)
(6 (absolute))
Permissible range of coolant temperature
°F
5 to 68
(waste vapor condenser, only ”EK”)
(°C)
(-15 to +20)
quarts
0.52
Volume of catchpot (only ”AK” / ”EK”)
(ml)
(500)
A-weighted emission sound pressure
dB(A) 45
level* (uncertainty K
: 3 dB(A))
pA
* Measurement according to EN ISO 2151:2004 and EN ISO 3744:1995 at 230V/50Hz and ulti-
mate vacuum with exhaust tube at outlet.
page 25 of 74
Gas inlet temperatures
Permitted range of gas
Operating condition Inlet pressure
temperatures at inlet
> 75 Torr (100 mbar)
➨ 50 °F to 104 °F
Continuous operation
(high gas load)
(+10°C to +40°C)
< 75 Torr (100 mbar)
➨ 32 °F to 140 °F*
Continuous operation
(low gas load)
(0°C to +60°C*)
Short-time
< 75 Torr (100 mbar)
➨ 14 °F to 176 °F*
(< 5 minutes)
(low gas load)
(-10°C to +80°C*)
* if pumping potentially explosive atmospheres: 50 °F to 104 °F (+10°C to +40°C)
ME 4C NT
Type ME 2C NT
ME 4C NT + 2 AK
Maximum pumping
cfm
1.2 / 1.4
2.3 / 2.6
speed* 50/60 Hz
3
(m
/h)
(2.1 / 2.4)
(3.9 / 4.3)
(ISO 21360)
Ultimate vacuum
Torr
52.5
52.5
(absolute)
(mbar)
(70)
(70)
Rated motor power hp (kW) 0.24 (0.18)
Maximum permissible range
100-115 V~ 50/60 Hz, 120V~ 60 Hz
of supply voltage ( ±10% )
Attention: Observe specications
230 V~ 50/60 Hz
of rating plate!
100-115 V~ 50/60 Hz, 120~ V 60 Hz /
Dual voltage motor
200-230 V~ 50/60 Hz
Maximum rated current at:
100-115 V~ 50/60 Hz, A
3.4
120 V~ 60 Hz
200-230 V~ 50/60 Hz A
1.8
230 V~ 50/60 Hz A
1.8
hose nozzle for tubing I.D. 3/8" or small ange
Inlet
KF 16 (hose nozzle DN 10 mm or small ange
KF 16)
hose nozzle for tubing I.D. 3/8”
Outlet
(hose nozzle DN 10 mm)
Dimensions L x W x H
in
9.6 x 8.3 x 7.8
10.0 x 9.6 x 7.8
approx.
(mm)
(243 x 211 x 198
(254 x 243 x 198)
design 2 AK
in
-
12.4 x 9.6 x 11.5
(mm)
(-)
(316 x 243 x 291)
Weight approx.
lbs. (kg)
22.5 (10.2)
24.3 (11.1)
design 2 AK
lbs. (kg)
-
30.0 (13.6)
* Pumping speed of diaphragm pump
page 26 of 74
MZ 2C NT
MZ 2C NT + 2 AK
MZ 2C NT + AK + EK
Type
MZ 2C NT + AK SYNCHRO + EK
MZ 2C NT + AK + M + D
PC 101 NT
Maximum pumping speed*
cfm
1.2 / 1.4
3
50/60 Hz (ISO 21360)
(m
/h)
(2.0 / 2.3)
Ultimate vacuum (absolute)
Torr
5.3
without gas ballast
(mbar)
(7)
Ultimate vacuum (absolute)
Torr
9
with gas ballast
(mbar)
(12)
Rated motor power hp (kW) 0.24 (0.18)
Maximum permissible range
100-115 V~ 50/60 Hz, 120V~ 60 Hz
of supply voltage ( ±10% )
Attention: Observe specications
230 V~ 50/60 Hz
of rating plate!
100-115 V~ 50/60 Hz, 120 V 60 Hz /
Dual voltage motor
200-230 V~ 50/60 Hz
Maximum rated current at:
100-115 V~ 50/60 Hz,
A
3.4
120 V~ 60 Hz
200-230 V~ 50/60 Hz
A
1.8
230 V~ 50/60 Hz
A
1.8
hose nozzle for tubing I.D. 3/8" or small
Inlet
ange KF 16 (hose nozzle DN 10 mm
or small ange KF 16)
hose nozzle for tubing I.D. 3/8”
Outlet
(hose nozzle DN 10 mm)
Dimensions L x W x H approx.
Pump:
in (mm)
9.6 x 9.6 x 7.8 (243 x 243 x 198)
Vacuum systems:
design 2 AK
in (mm)
12.6 x 9.6 x 12.2 (319 x 243 x 309)
design AK + EK design
in (mm)
12.8 x 9.6 x 15.8 (326 x 243 x 402)
AK SYNCHRO + EK
in (mm)
12.8 x 9.8 x 15.8 (326 x 248 x 402)
design AK + M + D
in (mm)
12.2 x 9.6 x 12.3 (310 x 243 x 313)
PC 101 NT
in (mm)
12.8 x 9.6 x 15.8 (326 x 243 x 402)
Weight approx.
Pump:
lbs. (kg)
24.3 (11.1)
Vacuum systems:
design 2 AK
lbs. (kg)
30.0 (13.6)
design AK + EK
lbs. (kg)
31.3 (14.2)
design AK SYNCHRO + EK
lbs. (kg)
32.0 (14.5)
design AK + M + D
lbs. (kg)
29.5 (13.4)
PC 101 NT
lbs. (kg)
32.0 (14.5)
* Pumping speed of diaphragm pump
page 27 of 74
MD 4C NT
ME 8C NT
MD 4C NT + 2 AK
MD 4C NT + AK + EK
Type
ME 8C NT
MD 4C NT +
+ 2 AK
AK SYNCHRO + EK
PC 201 NT
Maximum pumping
cfm
4.0 / 4.6
2.0 / 2.2
speed* 50/60 Hz
3
(m
/h)
(7.1 / 7.8)
(3.4 / 3.8)
(ISO 21360)
Ultimate vacuum
Torr
52.5
1.1
(absolute)
(mbar)
(70)
(1.5)
without gas ballast
Ultimate vacuum
Torr
2.3
(absolute)
-
(mbar)
(3)
with gas ballast
Rated motor power hp (kW) 0.34 (0.25)
Maximum permissible range of
100 V~
100-115 V~ 50/60Hz,
supply voltage ( ±10% )
50/60 Hz
120 V~ 60 Hz
Note: Observe specications of
rating plate!
120 V~ 60 Hz
-
230 V~ 50/60 Hz
100-115 V~ 50/60 Hz, 120 V~ 60 Hz /
Dual voltage motor
200-230 V~ 50/60 Hz
Maximum rated cur-
rent at:
A
5.0
100 V~ 50/60 Hz
A
4.0
120 V~ 60 Hz
A
5.7
100-115 V~ 50/60 Hz,
120V~ 60 Hz
A
3.0
200-230 V~ 50/60 Hz
A
3.0
230V~ 50/60 Hz
hose nozzle for tubing I.D. 3/8"
Inlet
(hose nozzle DN 10 mm)
hose nozzle for tubing I.D. 3/8"
Outlet
(hose nozzle DN 10 mm)
Dimensions L x W x H
12.8 x 9.6 x
approx.
in (mm)
7.8
Pump:
12.8 x 9.6 x 7.8 (325 x 243 x 198)
(325 x 243
x 198)
Vacuum systems:
12.6 x 9.6 x
in (mm)
design 2 AK
14.7 (319 x
12.6 x 9.6 x 14.7 (319 x 243 x 374)
243 x 374)
design AK + EK
in (mm)
-
12.8 x 9.6 x 15.8 (326 x 243 x 402)
design
AK SYNCHRO + EK
in (mm)
-
12.8 x 9.8 x 15.8 (326 x 248 x 402)
PC 201 NT
in (mm)
-
12.8 x 9.6 x 15.8 (326 x 243 x 402)
* Pumping speed of diaphragm pump
page 28 of 74
MD 4C NT
ME 8C NT
MD 4C NT + 2 AK
MD 4C NT + AK + EK
Type
ME 8C NT
MD 4C NT +
+ 2 AK
AK SYNCHRO + EK
PC 201 NT
Weight approx.
Pump:
lbs. (kg)
31.5 (14.3)
31.5 (14.3)
Vacuum systems:
design 2 AK
lbs. (kg)
36.8 (16.7)
36.8 (16.7)
design AK + EK
lbs. (kg)
-
38.1 (17.3)
design
AK SYNCHRO + EK
lbs. (kg)
-
38.8 (17.6)
PC 201 NT
lbs. (kg)
-
38.6 (17.5)
Wetted parts
Components Wetted materials
Head cover ETFE carbon ber reinforced
Diaphragm clamping disc ETFE carbon ber reinforced
Diaphragm PTFE
Valves (ME 2C NT / ME 4C NT / ME 8C NT) PTFE
Valves (MZ 2C NT / MD 4C NT) FFKM
O-rings FPM
Valve head ECTFE carbon ber reinforced
Gas ballast tube PTFE carbon reinforced
Inlet (hose nozzle)
Pump
PTFE carbon reinforced
Vacuum systems
PP (PBT only SYNCHRO designs)
Inlet (small ange)
stainless steel
Outlet (hose nozzle)
Pump / MZ 2C NT + AK + M + D
PTFE carbon reinforced
Vacuum systems (waste vapor condenser)
PET
Vacuum systems (2 AK)
PP
Tubing PTFE
Flow control diaphragm PTFE
Valve block (SYNCHRO design) PP
Valves (valve block SYNCHRO) FFKM
Distribution head PPS glass ber reinforced
Blind plug PP
O-ring at catchpot FPM
Overpressure safety relief device PTFE / silicone rubber
Exhaust waste vapor condenser / catchpot Borosilicate glass
page 29 of 74
Abbreviations
ETFE: Ethylene/Tetrauoroethylene
PTFE: Polytetrauoroethylene
FFKM: Peruoro elastomer
FPM: Fluoroelastomer
ECTFE: Ethylene/Chlorotriuoroethylene
PP: Polypropylene
PBT: Polybutylene terephthalate
PET: Polyethylene terephthalate
PPS: Polyphenylene sulde
AK: separator for condensates, catchpot at inlet or outlet
EK: exhaust vapor condenser

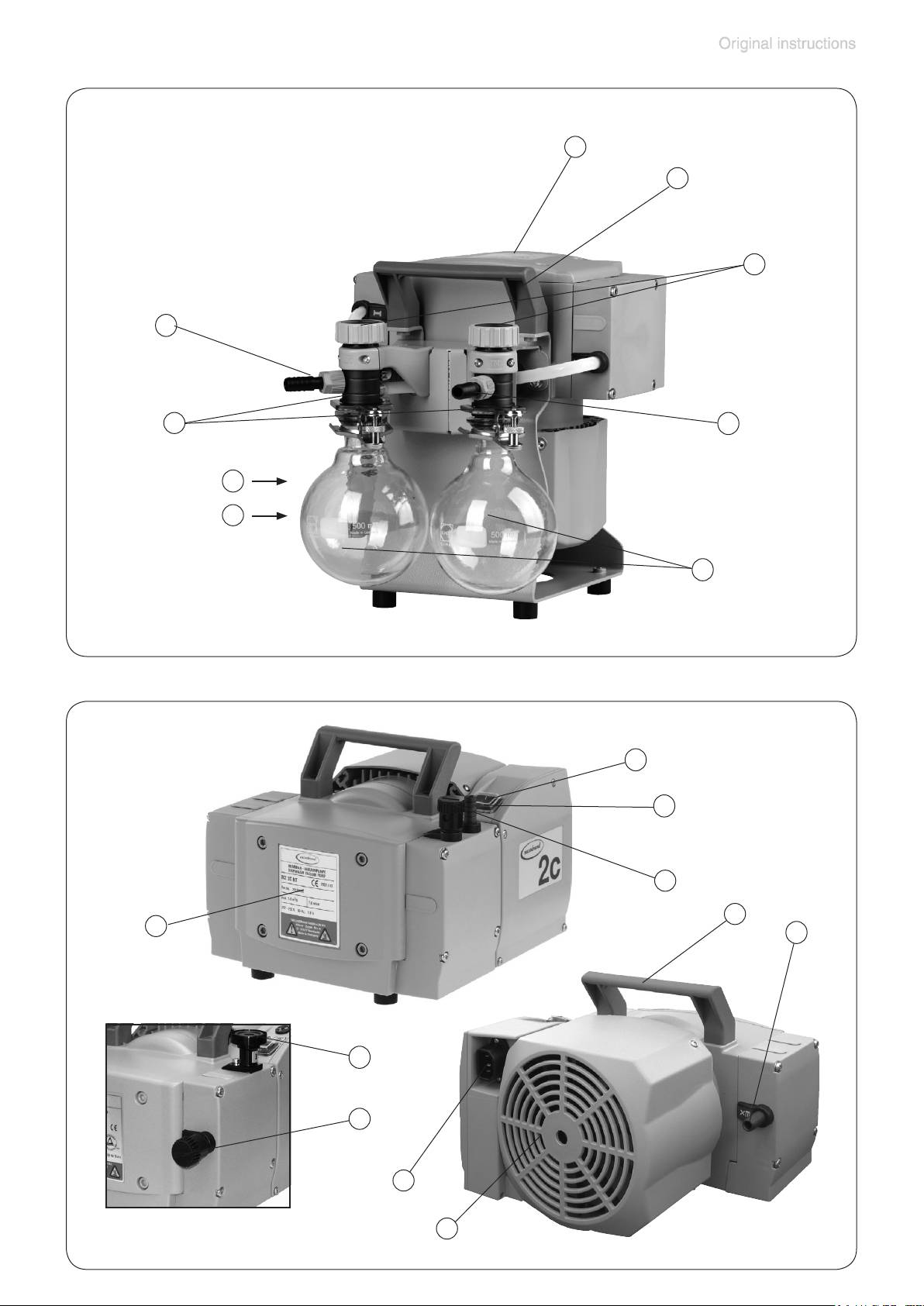

Pump parts
Position Component
Position Component
1 Inlet
Overpressure safety relief
11
device
2 Outlet
12 Coolant inlet
3 Gas ballast valve
13 Coolant outlet
4 ON/OFF switch
14 Flow control diaphragm
5 Mains connection
15 Manometer
6 Handle
16 Valve block
7 Pump rating plate
17 Distribution head
8 Fan
18 Blind plug
9 Catchpot
19 Voltage selection switch
Exhaust waste vapor
10
condenser
20 Pump support
We reserve the right for technical modication without prior notice!
page 30 of 74
ME 2C NT
6
2
4
7
1
5
8
ME 4C NT
4
6
2
1
7
5
8
page 31 of 74
ME 4C NT + 2 AK
7
6
18
2
17
1
4
19
9
Power connection: see ME 4C NT
MZ 2C NT
4
1
3
6
7
2
1
3
5
MZ 2C NT KF 16
8
page 32 of 74
ME 8C NT
6
4
1
7
5
8
2
MD 4C NT
4
6
3
7
1
5
2
8
page 33 of 74
MZ 2C NT + 2 AK
3
7
6
18
2
17
9
1
20
Power connection and ON/OFF switch: see MZ 2C NT
MZ 2C NT + AK + EK
7
6
2
13
18
12
1
17
10
11
20
9
Power connection
alternately:
and ON/OFF switch:
small ange KF DN 16
at the inlet
see MZ 2C NT
page 34 of 74
MZ 2C NT + AK SYNCHRO + EK
6
7
3
2
13
16
12
1
10
11
9
Power connection
and ON/OFF switch:
14
20
see MZ 2C NT
MZ 2C NT + AK + M + D
7
3
15
6
14
1
2
20
9
17
Power connection and ON/OFF switch: see MZ 2C NT
page 35 of 74
PC 101 NT
3 7
6
2
13
15
12
14
10
11
9
17
20
Power connection
1
and ON/OFF switch:
see MZ 2C NT
ME 8C NT + 2 AK
7
6
18
17
2
9
1
Power connection and ON/OFF switch: see ME 8C NT
page 36 of 74
MD 4C NT + 2 AK
7
6
3
18
17
2
9
1
20
Power connection and ON/OFF switch: see MD 4C NT
7
MD 4C NT + AK + EK
6
2
13
12
3
18
10
17
11
9
1
20
Power connection
and ON/OFF switch:
see MD 4C NT
page 37 of 74
MD 4C NT + AK SYNCHRO + EK
7
6
2
13
12
3
16
10
11
1
9
14
Power connection
and ON/OFF switch:
20
see MD 4C NT
PC 201 NT
7
6
2
13
3
12
15
10
14
11
17
9
1
Power connection
20
and ON/OFF switch:
see MD 4C NT
